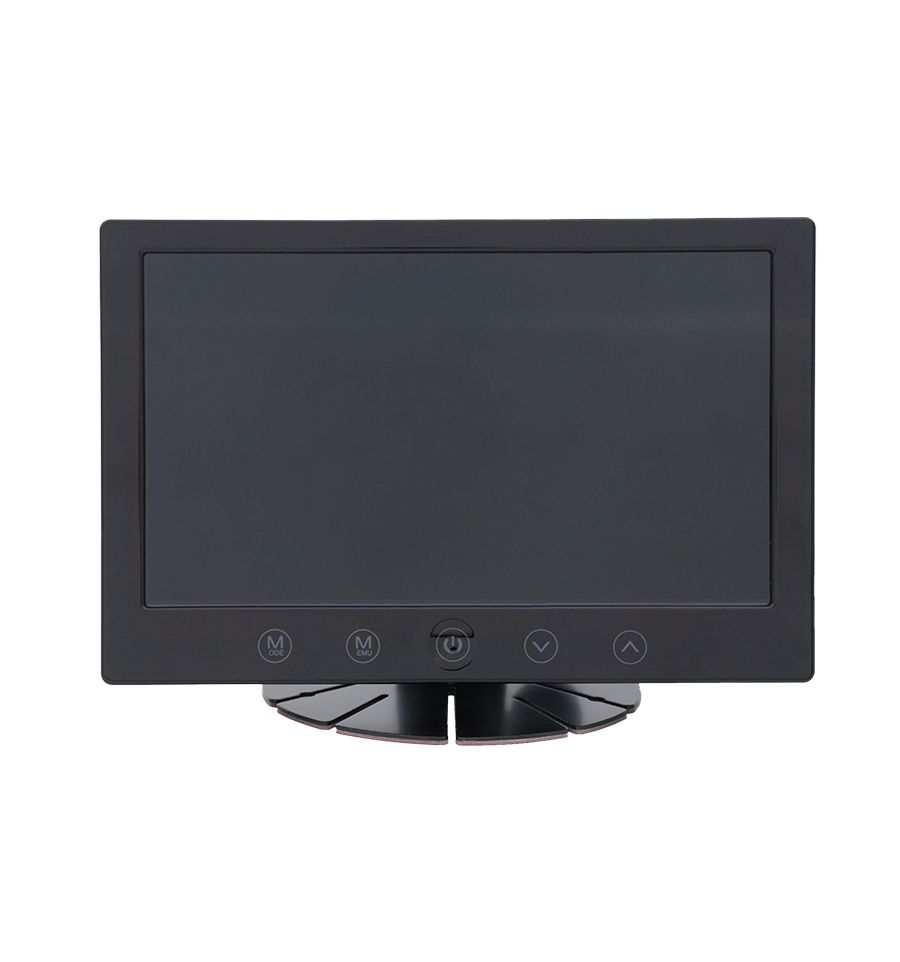

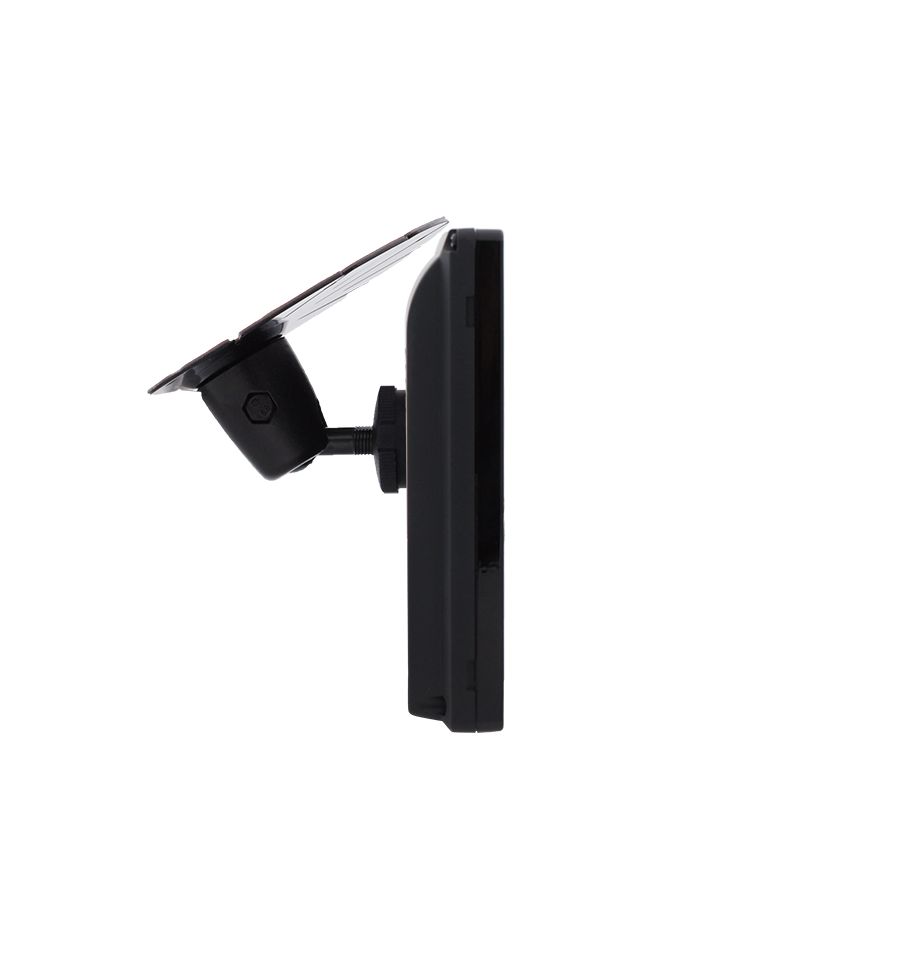

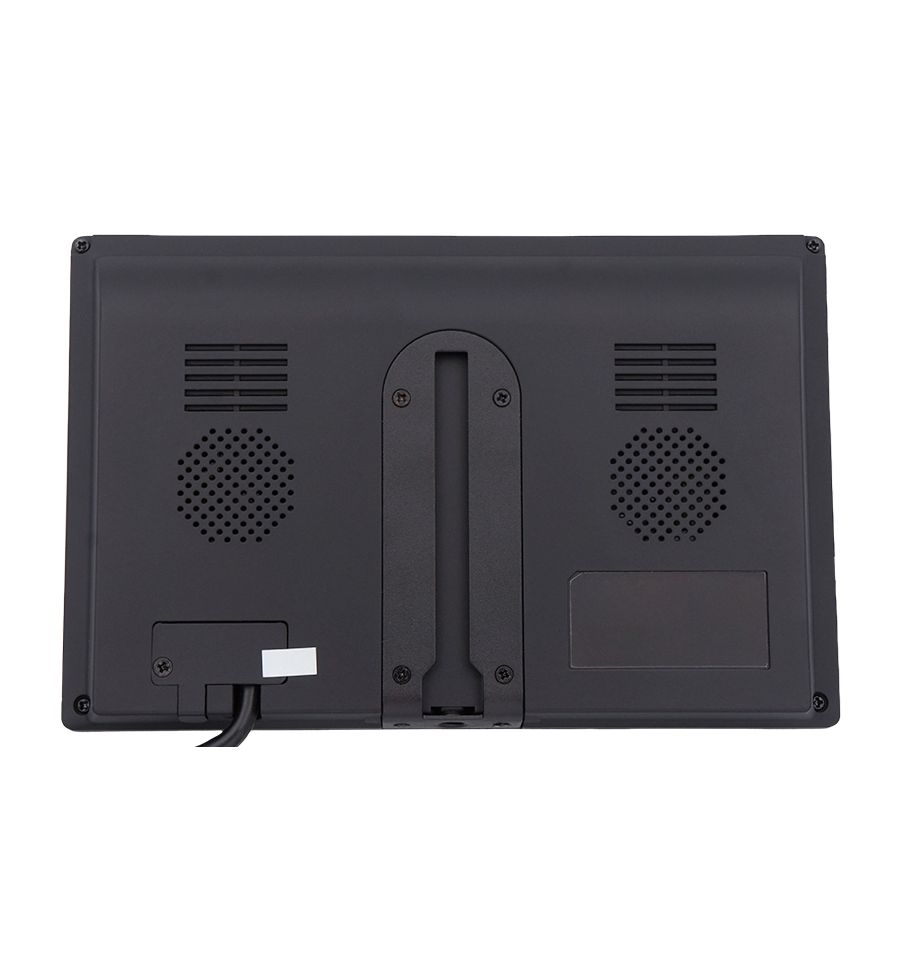

Monitor da 7" AHD formato 16:9 con staffa di supporto,alimentazione 12V/24V

Monitor da 7" AHD formato 16:9 con staffa di supporto,alimentazione 12V/24V ideale in combinazione con telecamere di retromarcia. 1 Ingresso Video/front camera, 1 Ingresso telecamera, compatibile PAL/NTSC

Principali caratteristiche:

• 2 switchable video inputs e.g. for rear view camera and front camera
• Video inputs AHD (720P and 1080P) and CVBS compatible
• Video inputs NTSC and PAL compatible
• Resolution 1024x600 pixel
• Switchable via permanent- or pulse voltage
• Automatic switch-on and switch-off via switching inputs
• Separate audio inputs for both video inputs
• Integrated mono speaker
• Guide-lines activatable
• Last position memory (switching on in last mode)
• Inputs with system connector 4P for cameras with 4-pin mini-DIN with CV assignment
• 1 adapter to RCA included
• Car and truck compatible (12V/24V) with 12V power supply for cameras
• Adjustable picture cut-off delay for both video inputs
• Mirroring and rotation of camera picture on both video inputs separately selectable
• Automatic dimming of display brightness adjustable

Connectors

• 2 rear-view camera/video inputs: 4pin mini-DIN female connector with CV assignment
• 1 CAB-2RCAFPW-4PM adapter 4pin mini-DIN male connector to 2x RCA female connector and power out for camera

Specifiche:

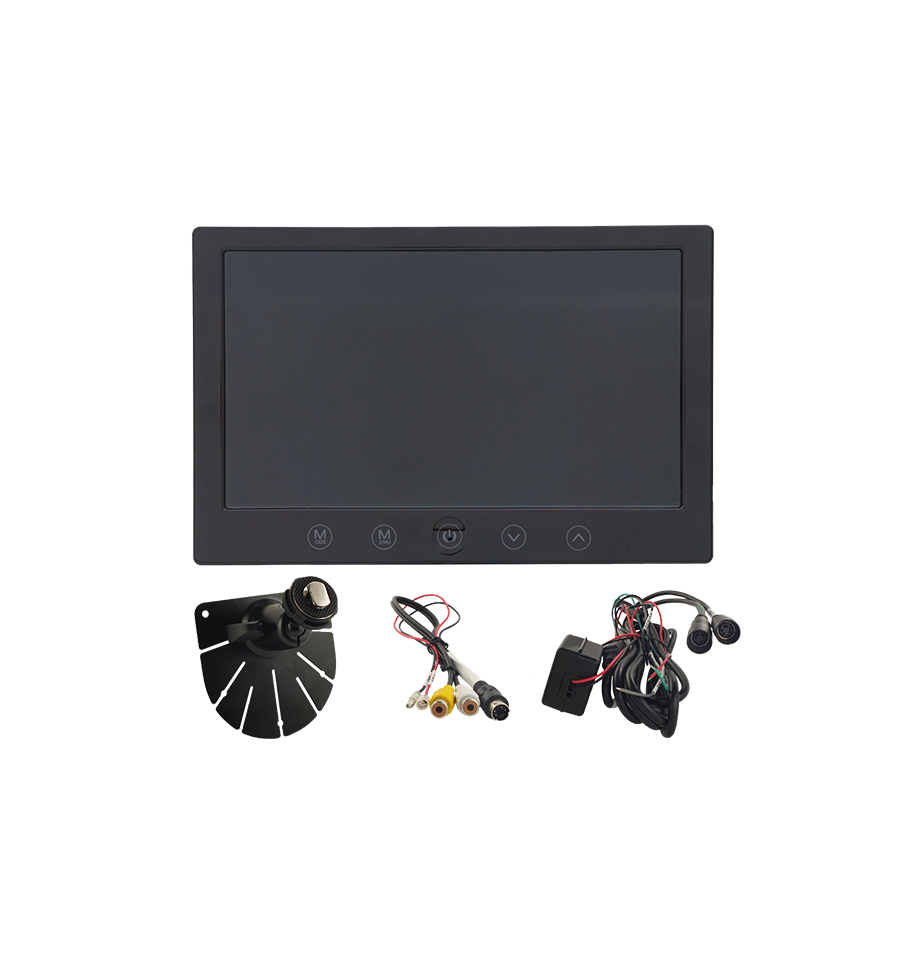

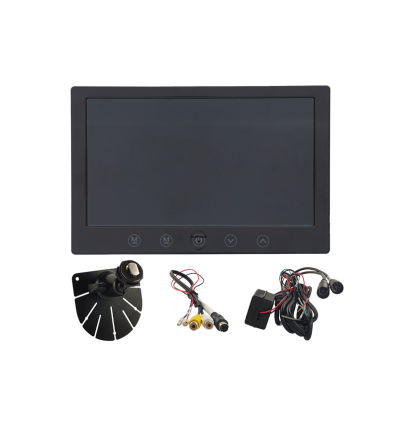

Contenuto:

• Monitor
• Connection cable
• CAB-2RCAFPW-4PM adapter 4pin mini-DIN male connector to 2x RCA female connector and power out for camera
• Stand
• Manual
