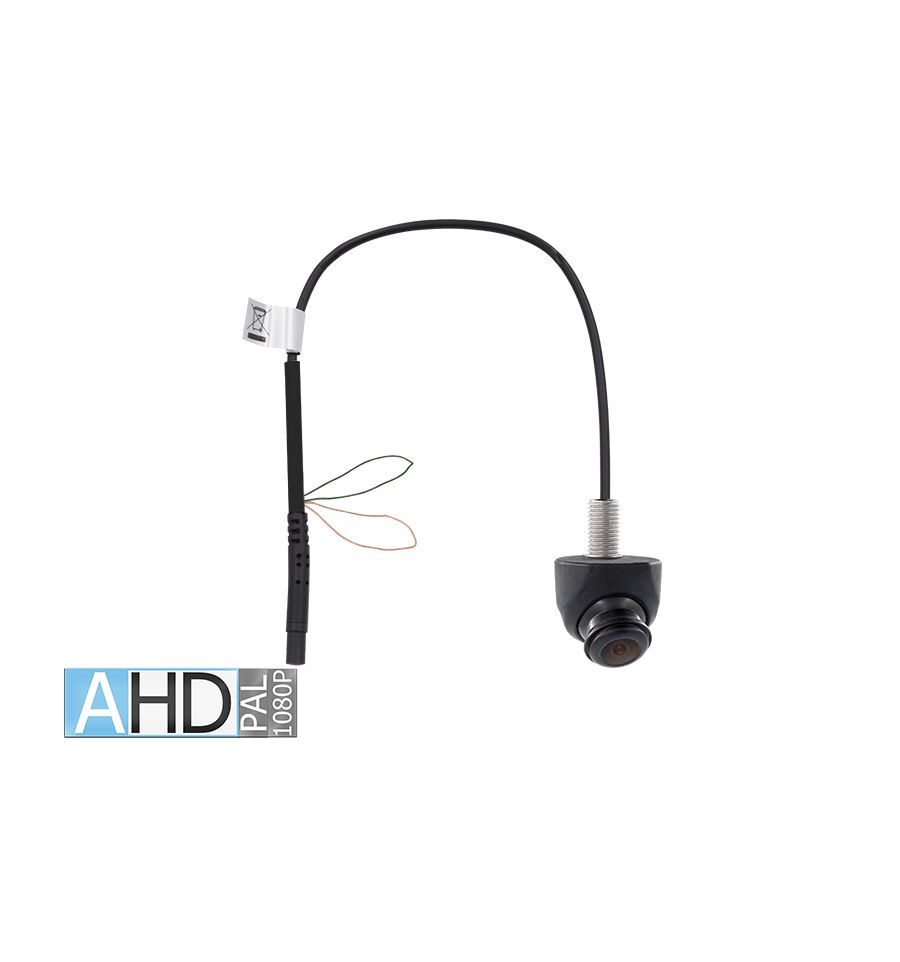

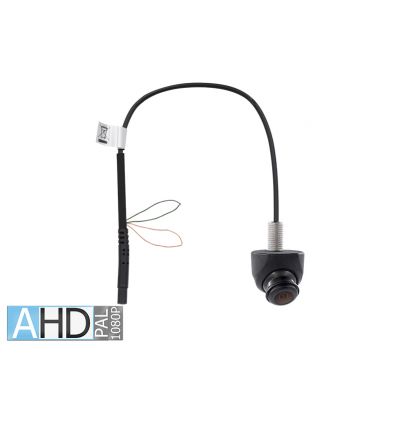

Telecamera retromarcia AHD PAL 1080P 210° miniaturizzata

Telecamera retromarcia AHD PAL 1080P miniaturizzata a colori, ampio angolo di visuale da 210°

Configurabile come telecamera frontale-retromarcia ed orizzontale-verticale

Caratteristiche:

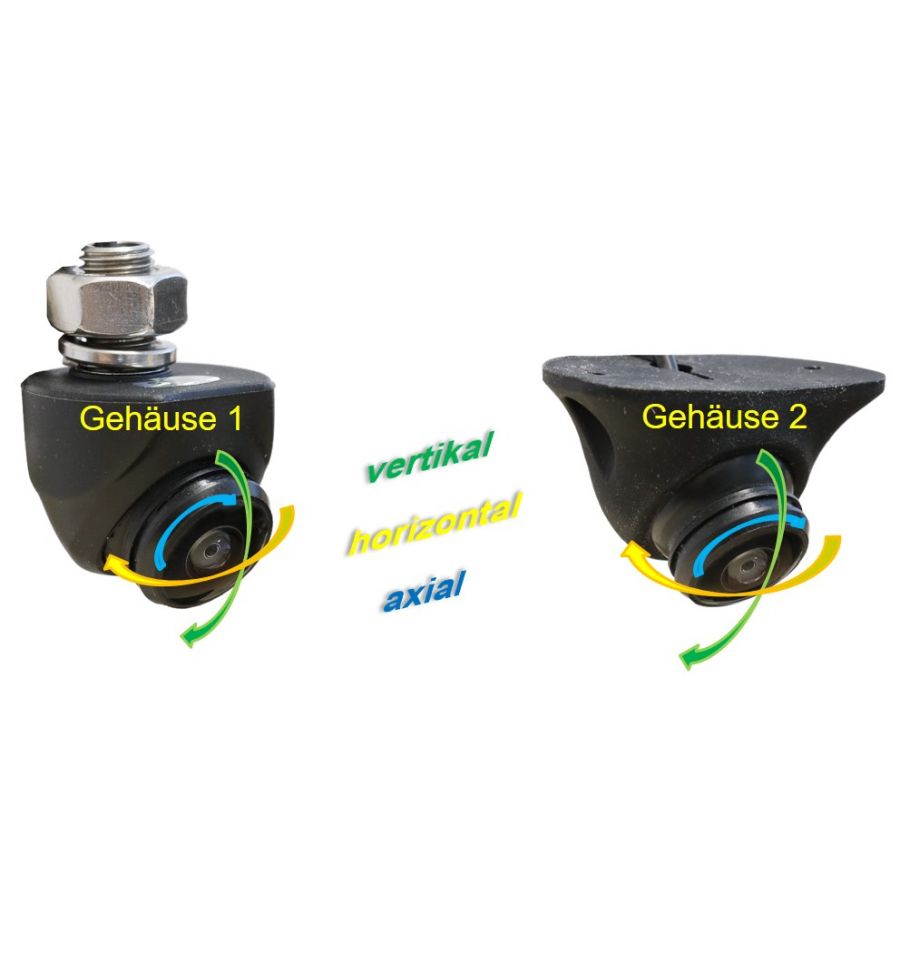

• Mini ball camera AHD PAL (black) with 2 housings
• Housing 1: Cable-guided thread tube with counternut
• Housing 2: Screw or glue fixing
• Optional housing 3: Rubber ring for in-mount (Article No. HD-B168-02 must be ordered separately)
• Horizontal mount-under and vertical mount-on possible (by rotating the ball)
• System cable with throughput wire, e.g. for reverse signal
• Mirroring can be switched off - suitable also as front camera
• Sensor type AHD 646 CMOS 1/4 inch PAL
• Resolution 1080p
• 1.200 TV lines
• Frame rate up to 25fps
• Light sensitivity 0.005 Lux
• Dynamic range 56dB
• Bezel F1.2

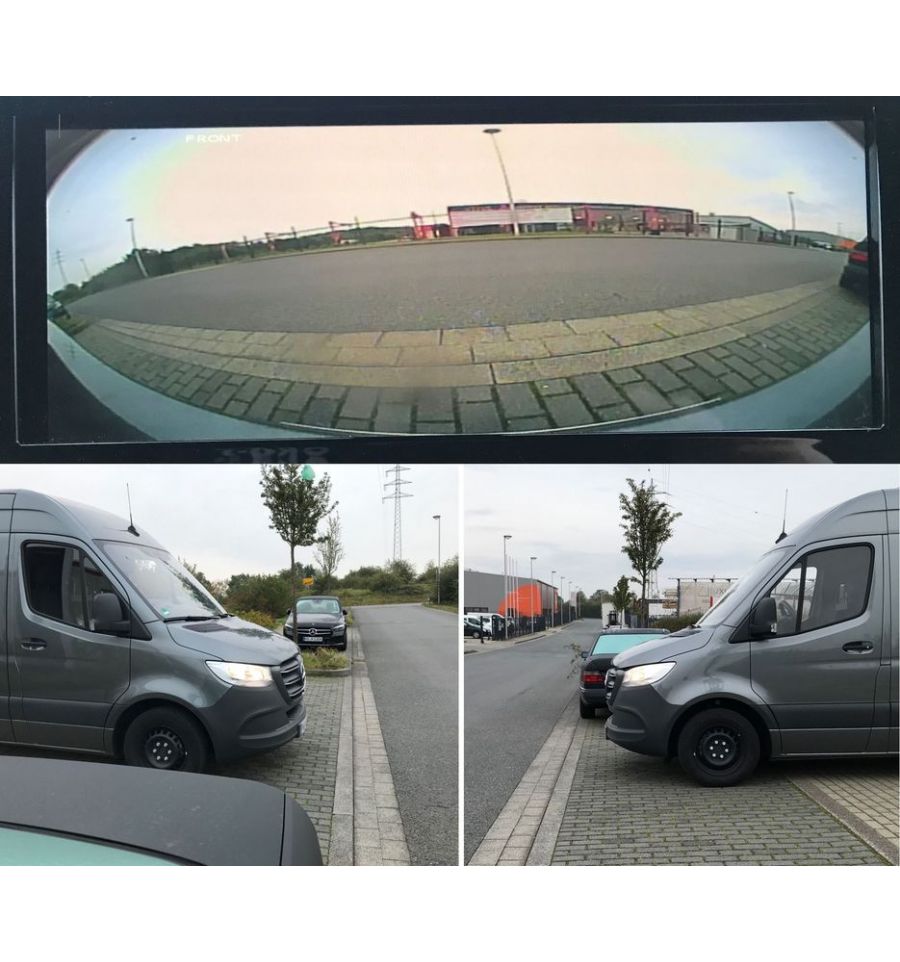

• Angle horizontal=175°, vertical=120°, diagonal=200°
• Guide-lines can be switched off
• Protection class IP69K
• Suitable for 12V and 24V electrical systems
• Suitable for permanent operation (connection to ACC)
• Mini 4pin-3V system harness with integrated throughput wire (blue)

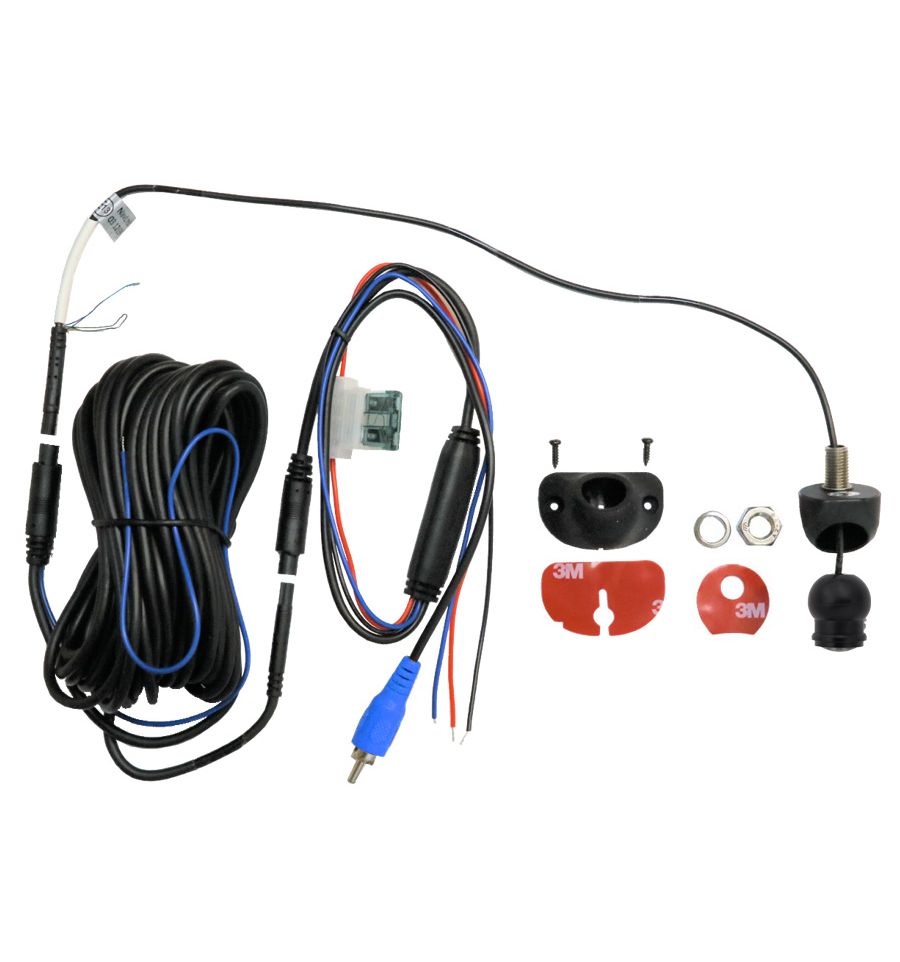

• 8.70m total system cable length, consists of:
  - 0.30m cable fixed on camera to female 4pin-3V (Diameter 5mm)
  - 8.00m extension cable male 4pin-3V to female 4pin-3V
  - 0.40m adapter male 4pin-3V to male RCA and power wires (open ends)
