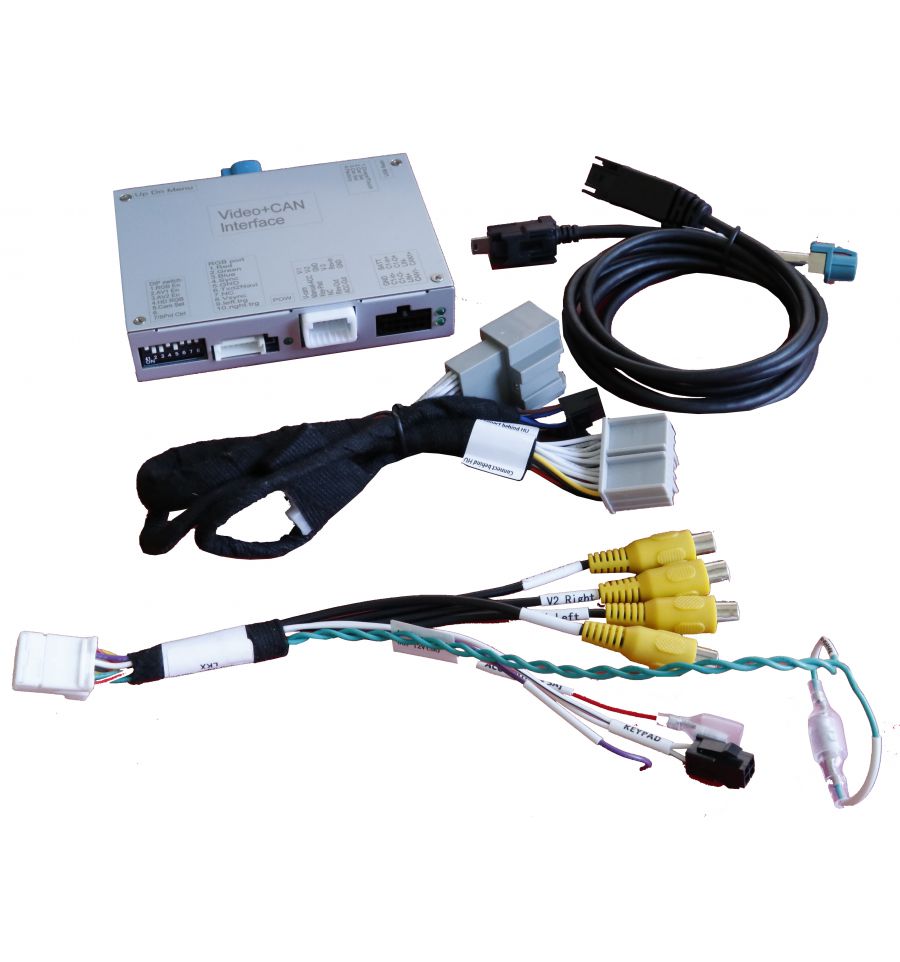

Video interface for Chevrolet MyLink 7"

Chevrolet Chevrolet

CI-RL4-R40-E-CH

New

Video interface for Chevrolet MyLink 7inch with separate black-box

More details

shipped in 24 h

€ 277,87

tax incl.

Worldwide shipping

24/48h Delivery

Secure payment

Car electronic experts since 1990

Video interface for Chevrolet MyLink 7inch with separate black-box

The r.LiNK interface allows to connect a rear-view-camera, front camera with auto switching and 2 further video-inputs. Compatible with Opel vehicles and Chevrolet Camaro with Radio R4.0 IntelliLink (only 7inch monitor with separate radio box).

Product features:

  • Video-inserter for factory-infotainment systems
  • 1 CVBS rear-view camera video-input
  • 1 CVBS front camera video-input
  • 2 CVBS video-inputs for after-market devices (e.g. USB-Player, DVB-T2 tuner, ...)
  • Automatic switching to rear-view camera input on engagement of the reverse gear
  • Automatic front camera switching after reverse gear for 10 seconds
  • Activatable parking guide lines for rear-view camera (not available for all vehicles)
  • Video-in-motion (ONLY for connected video-sources)
  • Video-inputs PAL and NTSC compatible




Compatibility:

ModelRadio / Navigation
Camaro model years from 2016
MyLink - 7inch monitor with separate radio-box





Specifications:

Operating voltage12V DC (7~25V)
Standby current5mA
Current consumption140mA@12V
Video input0.7~1V
Video input formatsPAL/NTSC
Operating temperature-40°C to +85°C
Dimensions video-box115 x 25 x 104mm (W x H x D)




Limitations:

  • The interface inserts ONLY video signals into the infotainment. For sound use the possibly existing factory-audio-AUX-input or a FM-modulator.
  • Automatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required.



Connections:

  • Video-insertion: mini USB
  • Power and CAN-bus: Plug & play (vehicle specific)
  • Video-input (2x): female RCA connector
  • Rear-view camera-input: female RCA connector
  • Front camera-input: RCA female connector


 Remember that in some states it is illegal to use the video in motion while driving!
