Audio - Video input interface for Seat Trinax RNS510 RNS810 Columbus, without factory RVC Expand

Audio - Video input interface for Seat RNS510 RNS810 Trinax Columbus, without factory RVC

Seat Seat

CI-C1-MFD3-PNP-SE

New

Multimedia-interface for the connection of one AV-source to the factory-navigation. With remote function for connected devices, rear-view camera-input, video-in-motion and trigger signals. For vehicles WITHOUT factory rear-view camera.
Only compatible with NTSC-cameras. Full plug&play.

More details

€ 269,67

tax incl.

Worldwide shipping

24/48h Delivery

Secure payment

Car electronic experts since 1990

Audio - Video and reverse camera input interface for Seat Trinax, RNS510, RNS810, Columbus without factory RVC.

The CI-C1-MFD3-PNP multimedia interface allows to connect one AV-source (after-market devices e.g. DVD player, DVB-T tuner) to the factory navigation system of the vehicle manufacturer. Very simple connection to the vehicle with the "Plug & Play" harness. If the AV-source is in the list of compatible devices, it is possible to control the AV-source by the factory infotainment. Additionally the connection of a rear-view camera is possible. Video-in-motion is included.


Product features:

  • Full plug and play multimedia interface
  • 1 AV-input with separate IR-control channels
  • Controls of after-market devices (e.g. DVD-player, DVD-changer, ...) by factory infotainment
  • After-market rear-view camera input
  • Automatic switching to rear-view camera input (optional coding necessary for switching from OEM-Modes)
  • Rear-view camera power (+12V max. 1A)
  • Power-on remote-out trigger-signal (+12V max 1A) to switch on connected devices
  • Video-in-motion


Compatibility:

Compatible with Seat vehicles with Trinax, RNS510, Columbus (all with min. version B with SW1100) or  RNS810 navigation systems and WITHOUT factory rear-view.


Limitations
:


Factory TV tunerMust NOT be installed
After-market rear-view cameraOnly compatible with NTSC-cameras.
Automatic switching to camera from OEM mode only works after coding the head-unit to rear-view camera per diagnosis computer or our optional available OBD-coder OBD-VW-R-xx (OPS, too)
OPSOn vehicles with OPS (optical parking system) the OPS control box must be coded to rear-view camera per diagnosis computer if an after-market rear-view camera should be installed.



Specifications(interface-box)

Operation voltage10.5 – 14.8V
Stand-by power drain<1mA
Operation power drain240mA
Power consumption3W
Temperature range-30°C to +80°C
Weight53g
Measurements106 x 30 x 71 mm (W x H x D)

Connections (Interface-box)

FRONTREAR
2 female RCA connector (Video In, R-Cam)male 4pin Molex connector
male 12pin Molex connector

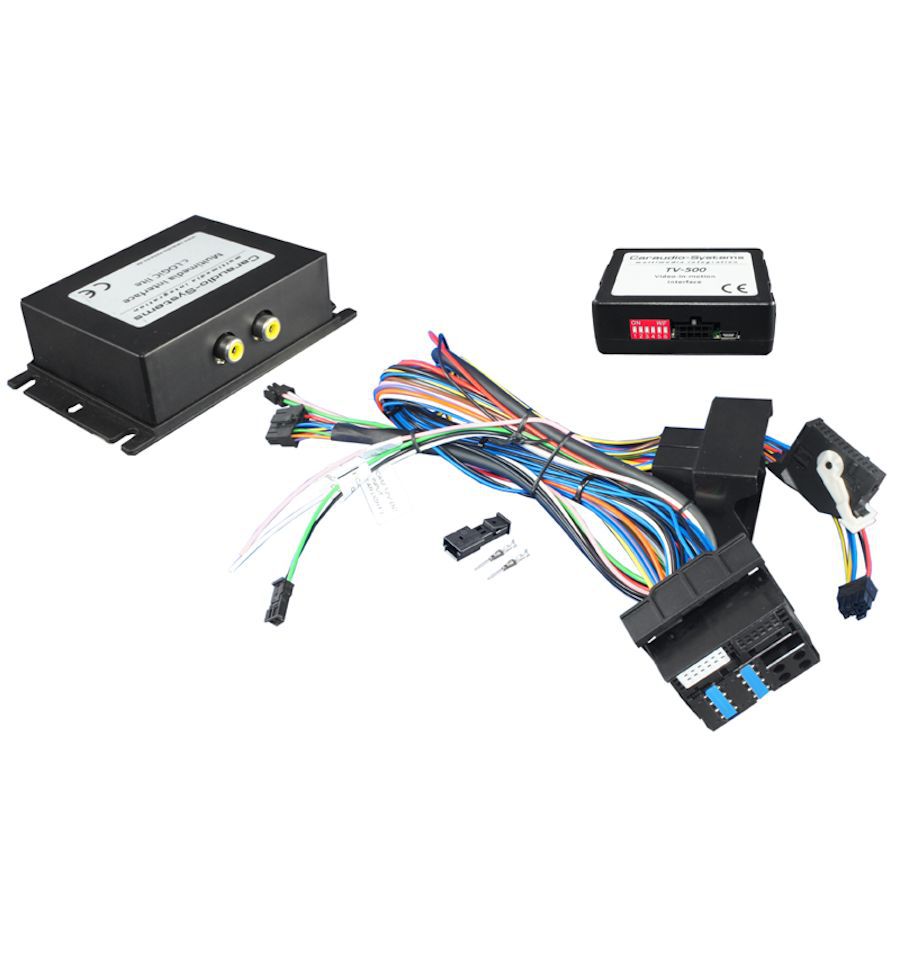

Delivery contents:
  • Interface-box
  • Plug 5 play Harness




Remember that in some states it is illegal to use the video in motion while driving!


The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.

SeatAltea, Altea XL, Leon 1P, Leon 5F, Toledo
CategoryRear View Camera Interfaces, Video integration, Video in Motion
