Aston Martin AMi rear and front camera input video interface

Aston Martin Aston Martin

CI-RL4-AMI

New

Video inserter for front - and rear-view camera and 2 video-sources.
Compatible with Aston Martin AMi

More details

€ 294,26

tax incl.

Worldwide shipping

24/48h Delivery

Secure payment

Car electronic experts since 1990

Video inserter for front - and rear-view camera and 2 video-sources.
Compatible with Aston Martin AMi

Product features

  • Video-inserter for factory-infotainment systems
  • 2 CVBS video inputs for back- and front camera
  • 2 CVBS video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner, ...)
  • Automatic switching to rear-view camera input on engagement of the reverse gear
  • Automatic front camera switching after reverse gear for 10 seconds
  • Manual switching to front camera by keypad or factory-button
  • Video-in-motion (ONLY for connected video-sources)
  • AV-inputs PAL/NTSC compatible


Compatibility

ModelloRadio/Navigazione
DB11 09/2016-AMi 2016


Limitations


Video only
The interface inserts ONLY video signals into the infotainment. For inserting Audio signals either the possibly existing factory audio-AUX-input or a FM-modulator can be used. For AUX option coding we offer OBD-coder CI-OBD-N45-X-01.
Factory rear-view cameraAutomatic switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required.







Specifications(interface-box)


Operating voltage12V DC (7~25V)
Standby current10mA
Current consumption280mA
Video input0.7~1V
Video input formatsPAL/NTSC
Operating temperature-40°C to +85°C
Dimensions video-box117 x 25 x 105mm (W x H x D)

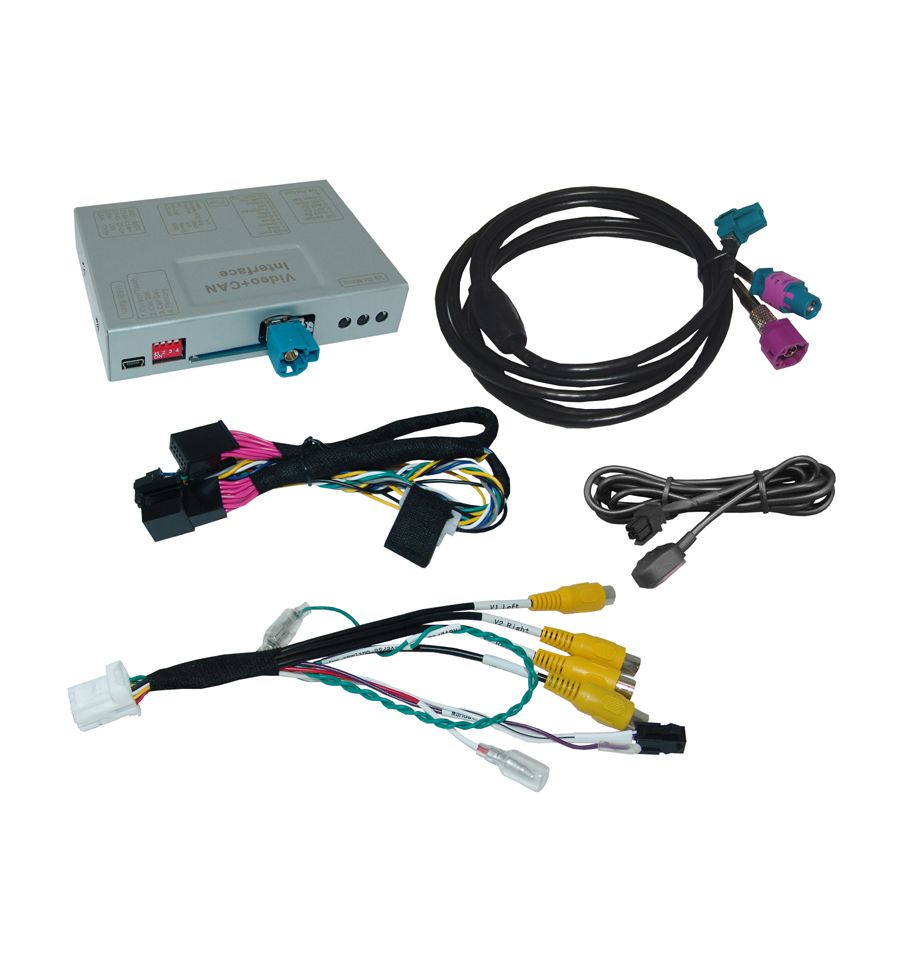

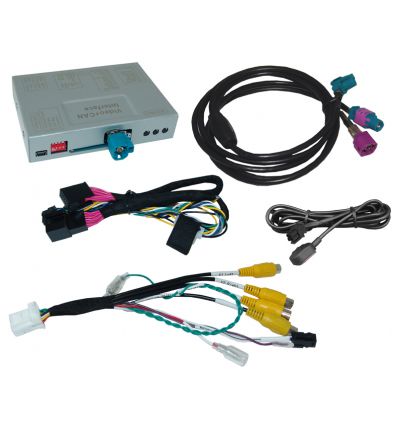

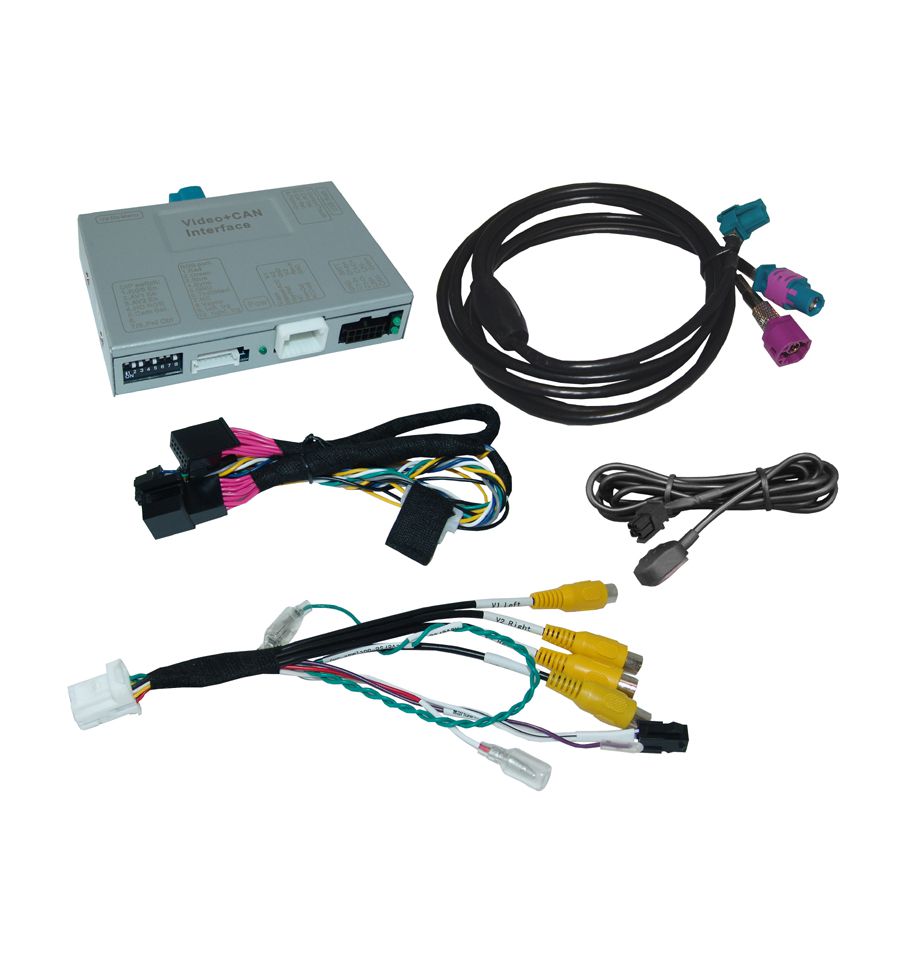

Connections (Interface-box)

  • Video-insertion: 4-pin HSD
  • Power: Open cable ends
  • Power and CAN-bus: Plug & play (vehicle specific)
  • Video-input (2x): RCA female connector
  • Rear-view camera-input: RCA female connector
  • Front camera-input: RCA female connector




Remember that in some states it is illegal to use the video in motion while driving!


The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.

CategoryRear View Camera Interfaces, Video integration
