New Video interface for Uconnect 8,4" Lancia Thema Expand

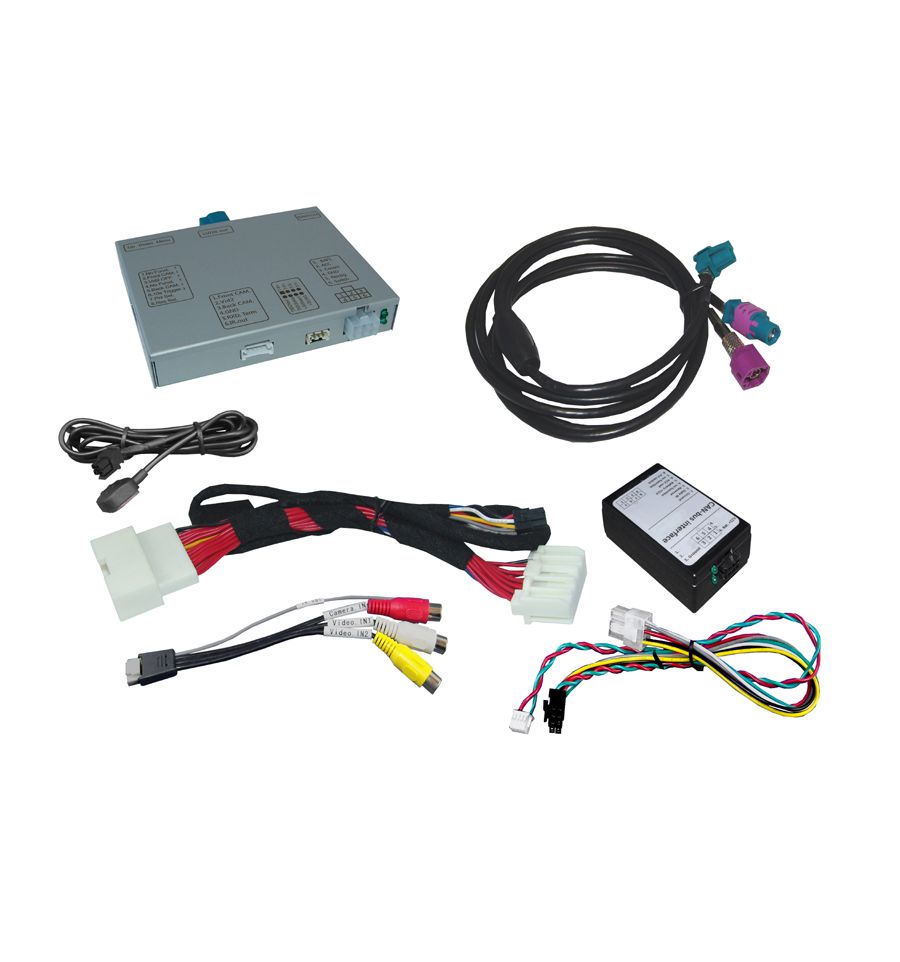

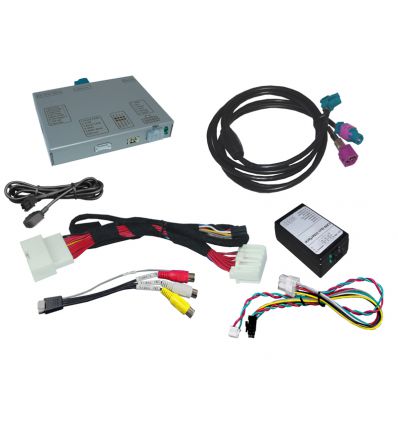

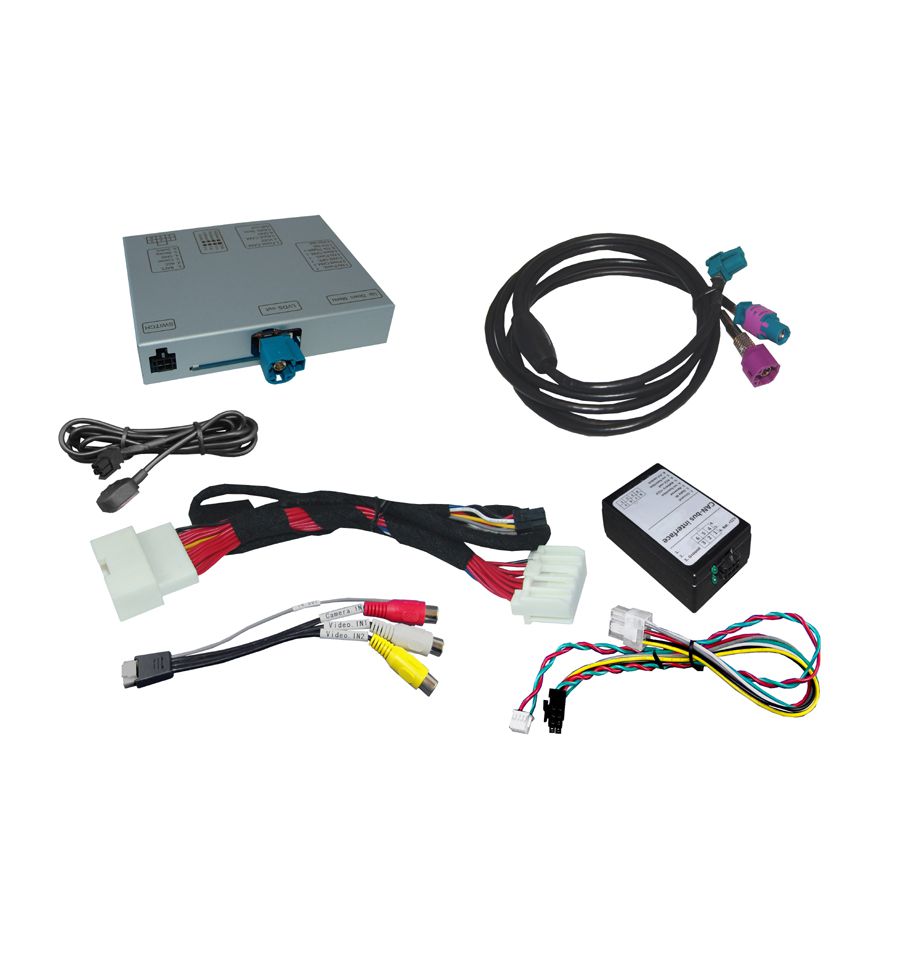

Video interface for Uconnect 8,4" Lancia Thema

Lancia Lancia

CI-RL2-UCON8-SM-LA

New

Video interface for  Lancia Thema Uconnect 8,4"navigation system with separate monitor.

More details

shipped in 24 h

€ 277,87

tax incl.

Worldwide shipping

24/48h Delivery

Secure payment

Car electronic experts since 1990

Video interface for  Lancia Thema Uconnect 8,4"navigation system with separate monitor.


This interface allows you to integrate an external video source to your cars factory fitted screen. Once connected it gives you the ability to connect an in car DVD player, games console (such as Playstation2 or Xbox), iPod video, digital TV tuner, rear view camera, car navigation GPS etc to keep your passengers entertained.

The multimedia interface has 2 video inputs and a rear camera input. The interface does not replace your original system - it offers perfect integration to maintain your OEM appearance. The interface connects directly to the head unit and you can select video source using button on the steering wheel,or the provided switch to change video source (depending by the systems):



 Uconnect Lancia New Thema


Product features:

  • Video-insertion
  • 2 video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner, .)
  • Rear-view camera video-input
  • Automatic switching to rear-view camera input on engagement of reverse gear.
  • Video-in-motion (ONLY for connected video-sources)
  • Compatible with factory rear-view camera
  • AV-inputs PAL/NTSC compatible

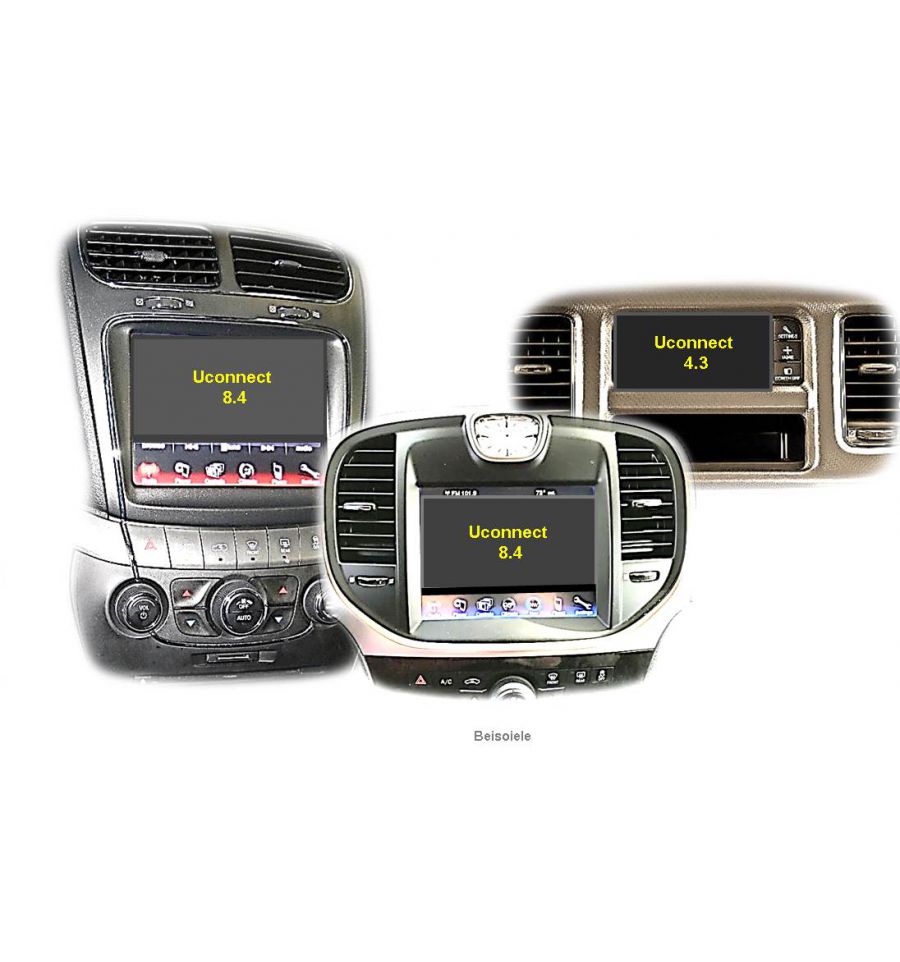

Compatibility: Compatible to Lancia Thema Uconnect 8,4"navigation system with separate monitor

ModelRadio / Navigation
  New Thema   Uconnect 8,4"navigation system with separate monitor





Limitations: The interface inserts ONLY video signals into the infotainment. For sound use the possibly existing factory-audio-AUX-input or a FM-modulator.



Specifications:



BATT/ACC range7V – 25V
Stand.by power drain<5mA
Power0.3A@12V
Power consumption2.4W
Video input0.7V˜1V
Video input formatsPAL/NTSC
RGB-video amplitude0.7V with 75 Ohm impedance
Temperature range-40°C to +85°C
Weight195g
Dimensions112 x 23 x 111 mm (B x H x T)


Connections:



FRONTREARLEFT SIDE
Male 8pin connector
(RGB)


Male 4pin connector
(keypad)
Male 6pin Molex connector
(power)
Male 8pin connector
(audio)

3 female RCA-ports
(Video IN 1 & 2, RVC)

Male 8pin connector
(no function)




Remember that in some states it is illegal to use the video in motion while driving!


The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.
