Video interface for Land Rover with Incontrol Touch 10" APIX2 CI-RL3-LR16-10-LR Expand

Video interface for Land Rover with Incontrol Touch 10" APIX2

Land Rover Land Rover

CI-RL3-LR16-10-LR

New

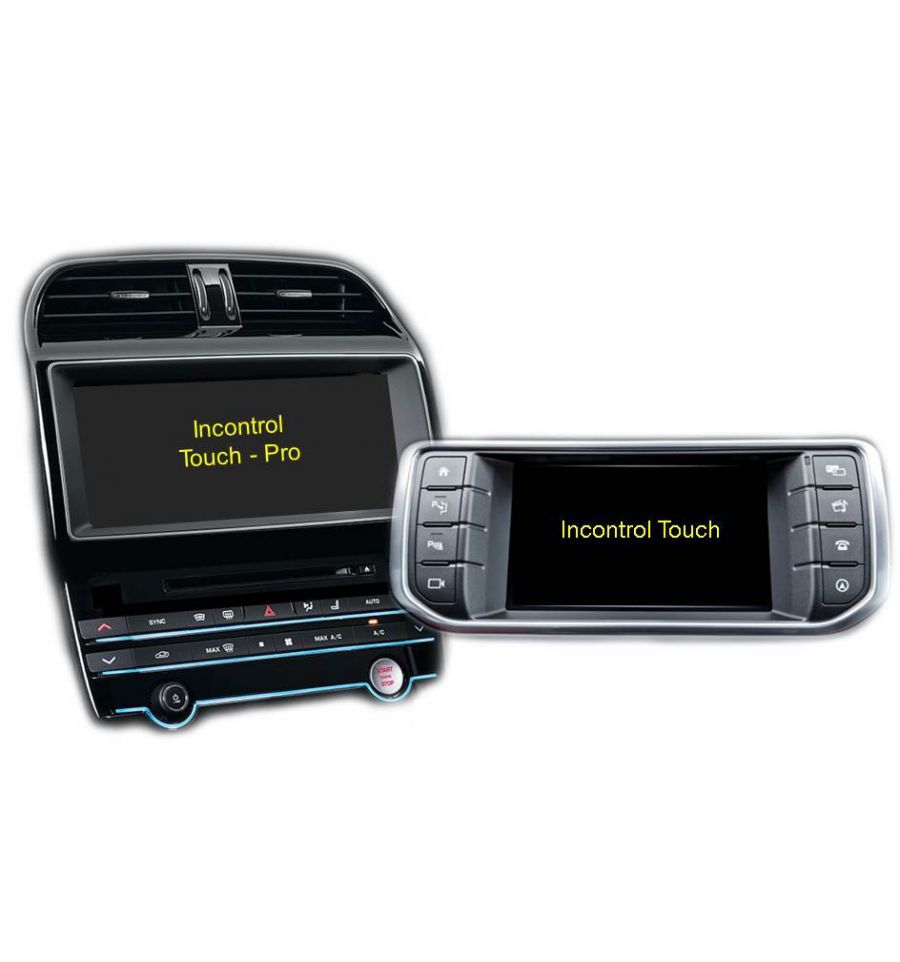

Video interface for Land Rover with Incontrol Touch Pro - 10.2inch monitor.

More details

shipped in 24 h

€ 376,23

tax incl.

Worldwide shipping

24/48h Delivery

Secure payment

Car electronic experts since 1990

Video interface for Land Rover with Incontrol Touch Pro - 10.2inch monitor.

For connection of 2 different video sources (upgraded devices, for example DVD player, DVB-T tuner), 1 rear camera input,Supports touch-screen and factory optical park-system display (OPS).

This interface allows you to integrate an external video source to your cars factory fitted screen. Once connected it gives you the ability to connect an in car DVD player, games console (such as Playstation2 or Xbox), iPod video, digital TV tuner, rear view camera, car navigation GPS etc to keep your passengers entertained.

The multimedia interface has 2 video inputs, a rear camera input. The interface does not replace your original system - it offers perfect integration to maintain your OEM appearance. The interface connects directly to the head unit and you can select video source using button on the steering wheel,or the provided switch to change video source (depending by the systems)




Product features:

  • Video-insertion for factory-infotainment systems
  • 2 CVBS video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner, .)
  • Rear-view camera CVBS video-input
  • Automatic switching to rear-view camera input on engagement of reverse gear
  • Activatable parking guide lines for rear-view camera (not available on all vehicles)
  • Video-in-motion (ONLY for connected video-sources)
  • Video-inputs NTSC compatible




Compatibility:

ModelRadio / Navigation
Discovery5 from 2017Incontrol Touch Pro 10.2inch monitor (24:9)
NOT compatible with Dual-View monitor!
Discovery Sport from 2017
Range Rover 2017
Range Rover Sport 2017
Range Rover Evoque from 2017


Touch-screen menu version identification:

Limitations:

  • The interface inserts ONLY video signals into the infotainment. For sound use the possibly existing factory-audio-AUX-input or a FM-modulator.
  • Automatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required.



Specifications:



BATT/ACC range7V – 25V
Stand.by power drain25mA
Power170mA@12V
Video input0.7V˜1V
Video input formatsNTSC
Temperature range-40°C to +85°C
Dimensions118 x 25 x 105mm (W x H x D)

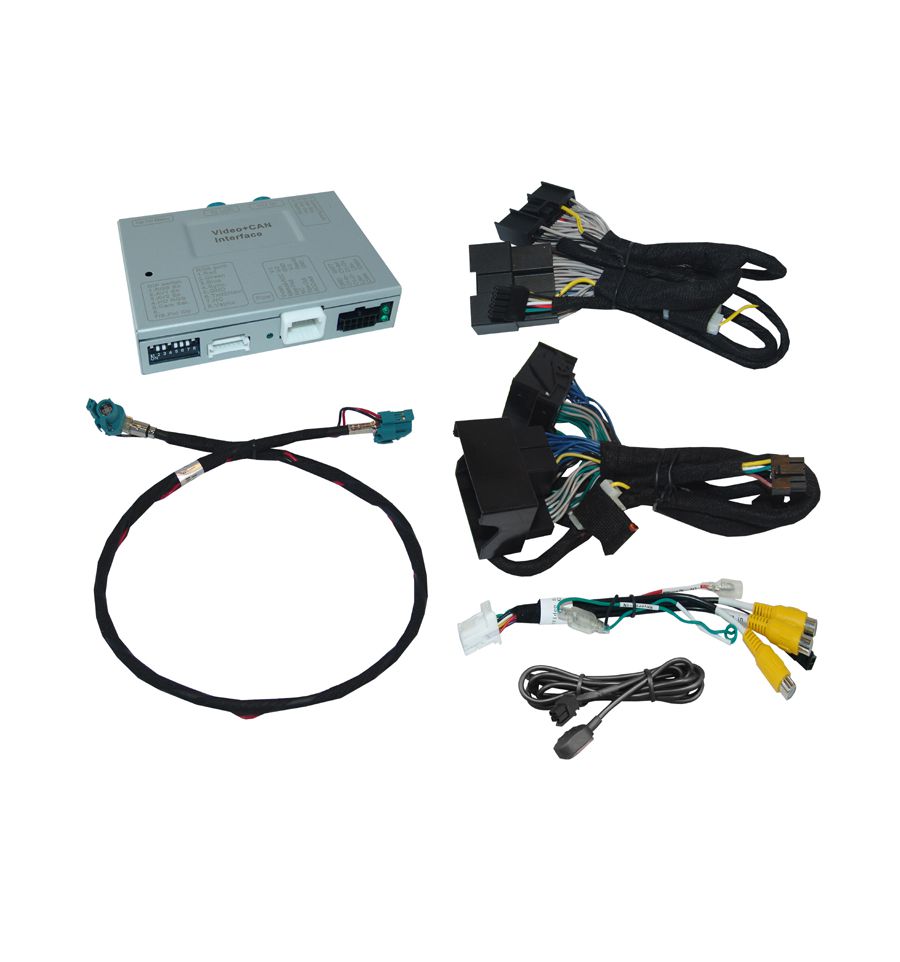

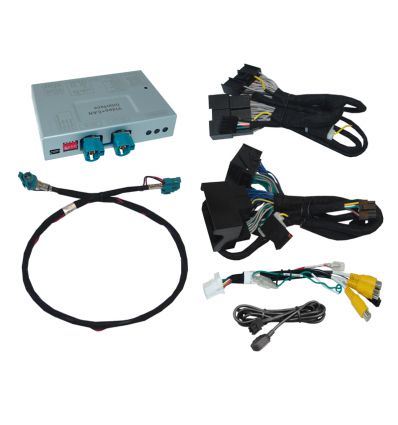

Connections:

  • Video-insertion: 4+2 pin HSD+2 (Apix2)
  • Power and CAN-bus: Plug & play
  • Video-input (2x): RCA female connector
  • Rear-view camera-input: RCA female connector




Remember that in some states it is illegal to use the video in motion while driving!


The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.

Land RoverDiscovery, Discovery Sport, Evoque, Freelander 2, Range Rover, Range Rover Sport
CategoryRear View Camera Interfaces, Video integration
