Video interface for Land Rover with Incontrol Touch 8" and 10" APIX2 Expand

Video interface for Land Rover with Incontrol Touch 8" and 10" APIX2

Land Rover Land Rover

CI-RL4-LR16-10-LR

New

Video interface for Land Rover with Incontrol Touch Pro - 8" and 10.2inch monitor.

More details

€ 499,00

tax incl.

Video interface for Land Rover with Incontrol Touch Pro - 8" and 10.2inch monitor.

For connection of 2 different video sources (upgraded devices, for example DVD player, DVB-T tuner), 1 rear camera input,Supports touch-screen and factory optical park-system display (OPS).

This interface allows you to integrate an external video source to your cars factory fitted screen. Once connected it gives you the ability to connect an in car DVD player, games console (such as Playstation2 or Xbox), iPod video, digital TV tuner, rear view camera, car navigation GPS etc to keep your passengers entertained.

The multimedia interface has 2 video inputs, a rear camera input. The interface does not replace your original system - it offers perfect integration to maintain your OEM appearance. The interface connects directly to the head unit and you can select video source using button on the steering wheel,or the provided switch to change video source (depending by the systems)




Product features:

  • Video-inserter for factory-infotainment systems
  • 1 CVBS rear-view camera video-input
  • 1 CVBS front camera video-input
  • 2 CVBS video-inputs for after-market devices (e.g. USB-Player, DVB-T2 tuner, ...)
  • Automatic switching to rear-view camera input on engagement of the reverse gear
  • Automatic front camera switching after reverse gear for 10 seconds
  • Activatable parking guide lines for rear-view camera (not available for all vehicles)
  • Activatable PDC (not available for all vehicles)
  • Video-in-motion (ONLY for connected video-sources)
  • Video-inputs NTSC compatible




Compatibility:

ModelNavigation
Discovery5 model year from 2017,
Discovery Sport model year from 2017,
Range Rover model year 2017,
Range Rover Sport model year 2017,
Range Rover Evoque model year 2017-2019

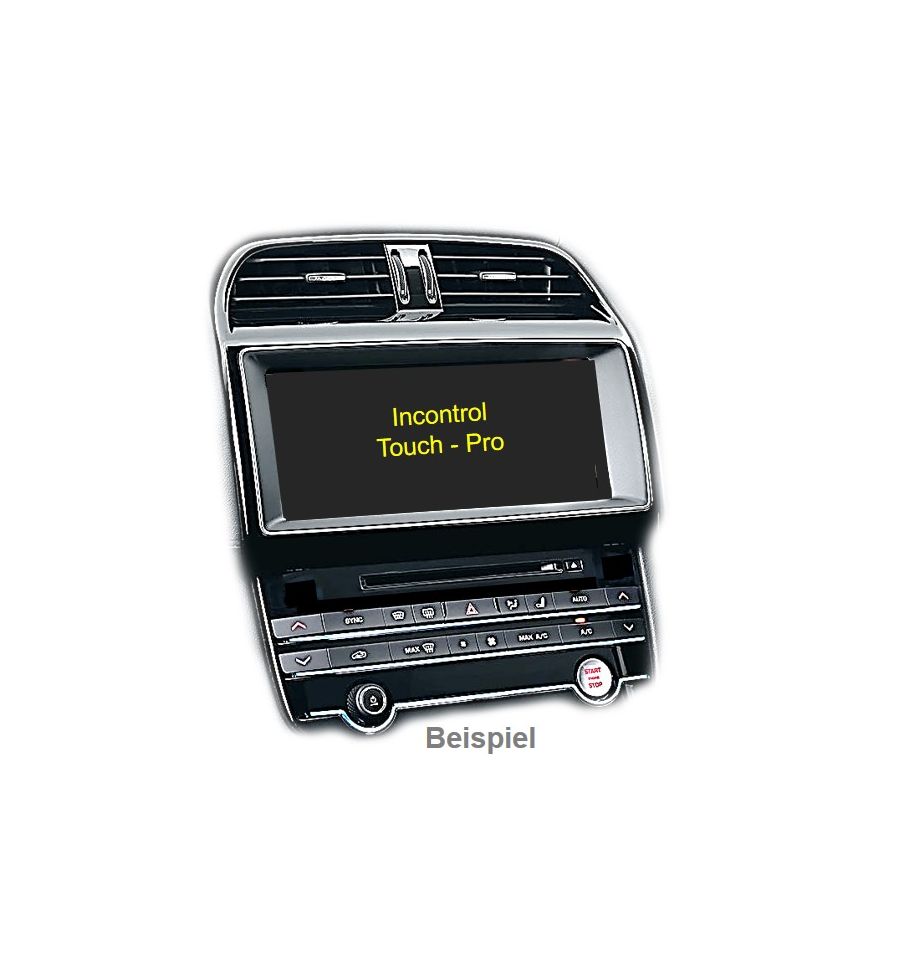

Incontrol Touch - 8 inch 16:9 monitor
Incontrol Touch Pro - 10.2 inch 24:9 monitor
NOT compatible with Dual-View monitor!
NOT compatible with Incontrol Touch Pro Duo 10.2inch 24:9 monitor!



Touch-screen menu version identification:

Limitations:

Video onlyThe interface inserts ONLY video signals into the infotainment. For inserting Audio signals either the possibly existing factory audio-AUX-input or a FM-modulator can be used. If 2 audio sources shall be connected to the infotainment, an additional electronic is necessary to switch them.
Factory rear-view cameraAutomatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required.
After market front cameraThe front camera will automatically be switched for 10 seconds after disengaging the reverse gear. A manually front camera switching is possible by external keypad.
PDC and guide linesDisplayed guide lines and PDC are not available in all vehicles.
Video input signalOnly NTSC video sources compatible.




Specifications:



BATT/ACC range7V – 25V
Stand.by power drain25mA
Power170mA@12V
Video input0.7V˜1V
Video input formatsNTSC
Temperature range-40°C to +85°C
Dimensions118 x 25 x 105mm (W x H x D)

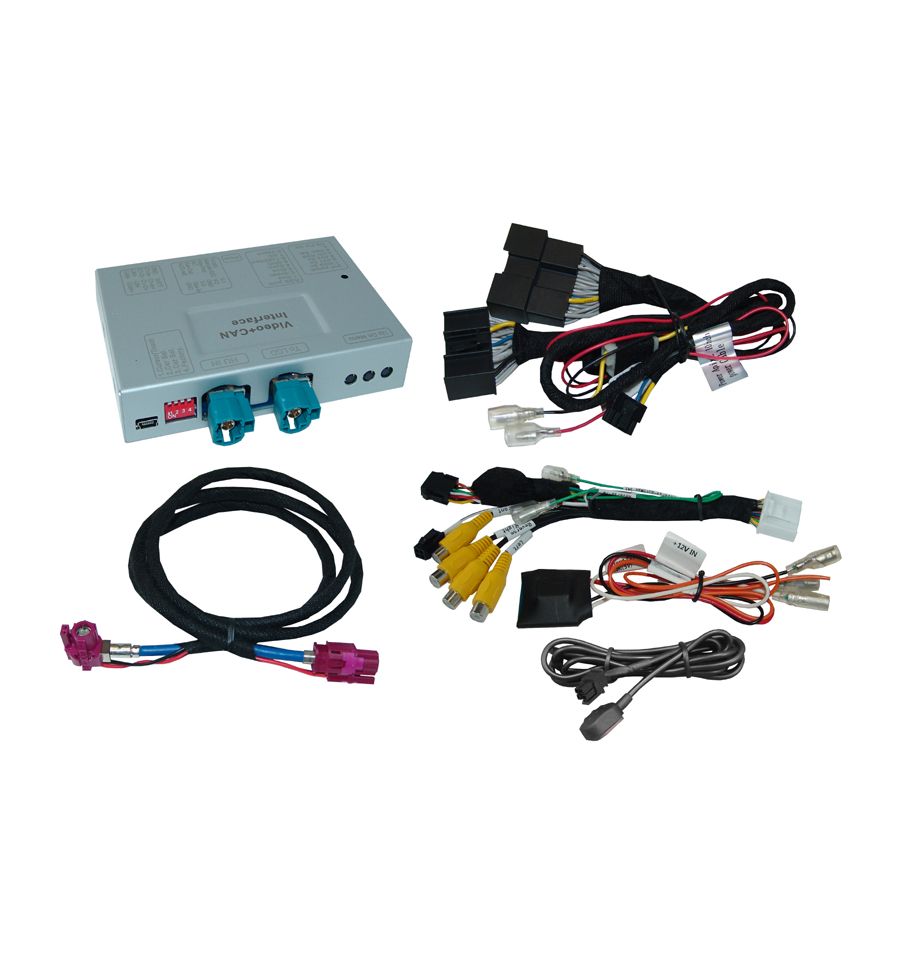

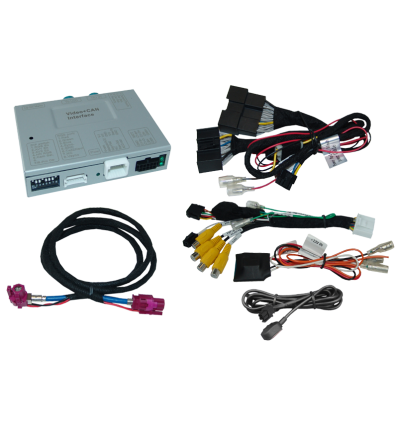

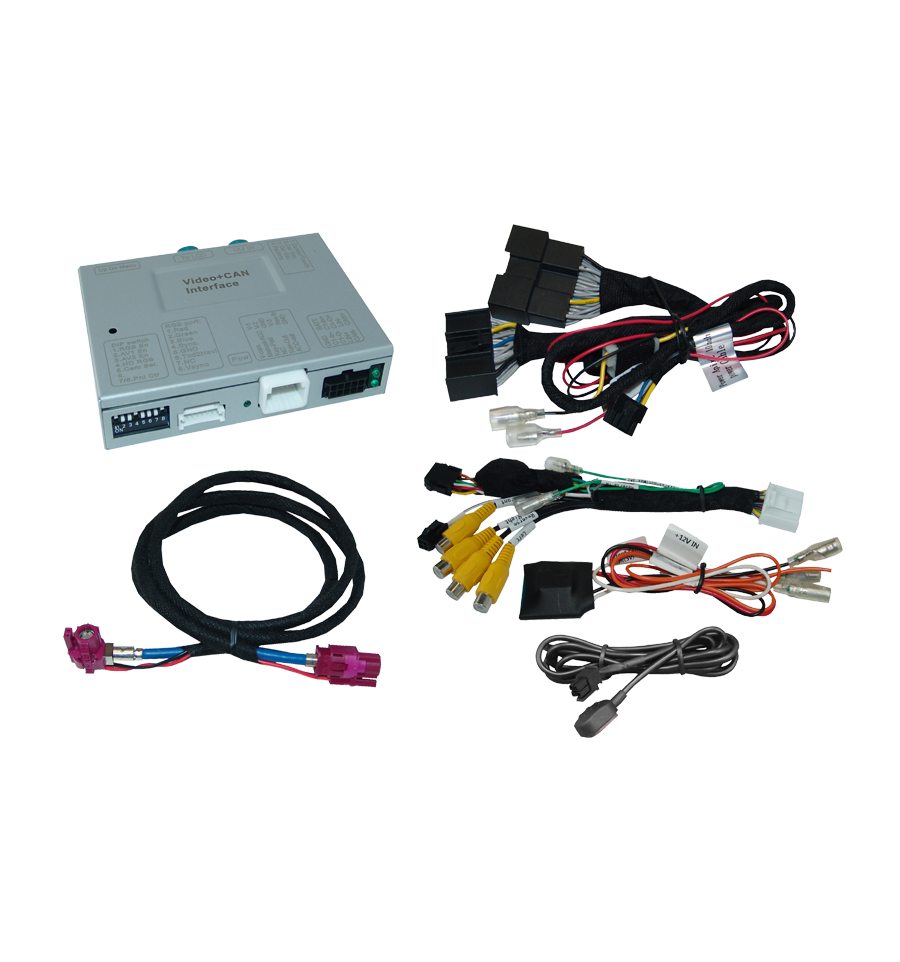

Connections:

  • Video-insertion: 4+2 pin HSD+2 (Apix2)
  • Power and CAN-bus: Plug & play
  • Video-input (2x): RCA female connector
  • Rear-view camera-input: RCA female connector




Remember that in some states it is illegal to use the video in motion while driving!


The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.

Land RoverDiscovery, Discovery Sport, Evoque, Freelander 2, Range Rover, Range Rover Sport
CategoryRear View Camera Interfaces, Video integration
