New Interface for Land Rover with Incontrol Touch 8" with touch-screen menu 4 Expand

Interface for Land Rover with Incontrol Touch 8" with touch-screen menu 4

Land Rover Land Rover

CI-C4-LR15-NC

New

c.LOGiC C4 multimedia-interface for the connection of 2 AV-sources to the factory-navigation. Touch-screen control for DVBT and DVD.
Including rear-view camera-input, rear-seat-entertainment-output, video-in-motion and trigger signals.

More details

€ 490,98

tax incl.

Worldwide shipping

24/48h Delivery

Secure payment

Car electronic experts since 1990

c.LOGiC C4 Land Rover Incontrol Touch

The c.LOGiC multimedia interface allows to insert a rear-view camera, a after-market navigation (NAV-NKSUNIR4) and two different AV-sources (e.g. USB-Player, DVB-T2 Tuner, ...) to the factory-infotainment system of the vehicle manufacturer.
With touch-screen control for after-market navigation. Video-in-motion is included.


Product features:

  • Plug & Play multimedia interface
  • 1 CVBS rear-view camera video-input
  • 1 CVBS after-market navigation video-input
  • 2 CVBS AV-input for after-market devices (e.g. USB-Player, DVB-T2 tuner, ...)
  • Optional control of navigation (NAV-NKSUNIR4) and two different devices by the factory touch-screen
  • Rear-view camera power (+12V max. 1A)
  • Video-in-motion (ONLY for connected video-sources)
  • Automatic switching to rear-view camera input on engagement of the reverse gear
  • Rear-seat-entertainment output for AV-sources connected to the c.LOGiC
  • USB update-port for software-updates by consumer

Compatibility

ModelNavigation
Discovery4 from 2014 to 2016Incontrol Touch - 8 inch 16:9 monitor
with touch-screen menu 4
Discovery Sport from 2015 to 2016
Range Rover Evoque from 2014 to 2016
Range Rover Sport from 2014 to 2016
Range Rover from 2014 to 2016
Freelander2 from 2014 to 2016

Limitations

Audio-AUXA factory audio-AUX input is required.
Video-sourcesOnly compatible to NTSC-sources.
Factory-PDCThe factory-PDC picture is not available by connecting the interface.
Acoustic signals are still existing.

Specifications

Operating voltage10.5~14.8V DC
Stand-by current<11mA
Current consumption36mA
Power consumption0.5W
Operating temperature range-30°C to +80°C
Dimensions105 x 30 x 84 mm (W x H x D)

Connectors

  • Video-insertion: fakra
  • Power and CAN-bus: Plug & play (vehicle specific)
  • AV-input (2x): each 2-channel RCA female connector (2 inputs to 1 output)
  • Rear-view camera-input: RCA female connector
  • After-market navigation-input: RCA female connector
  • SW update-port: female mini-USB

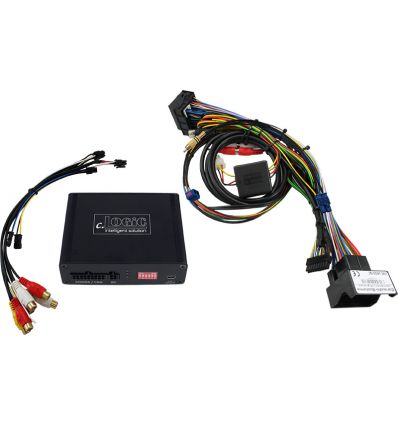

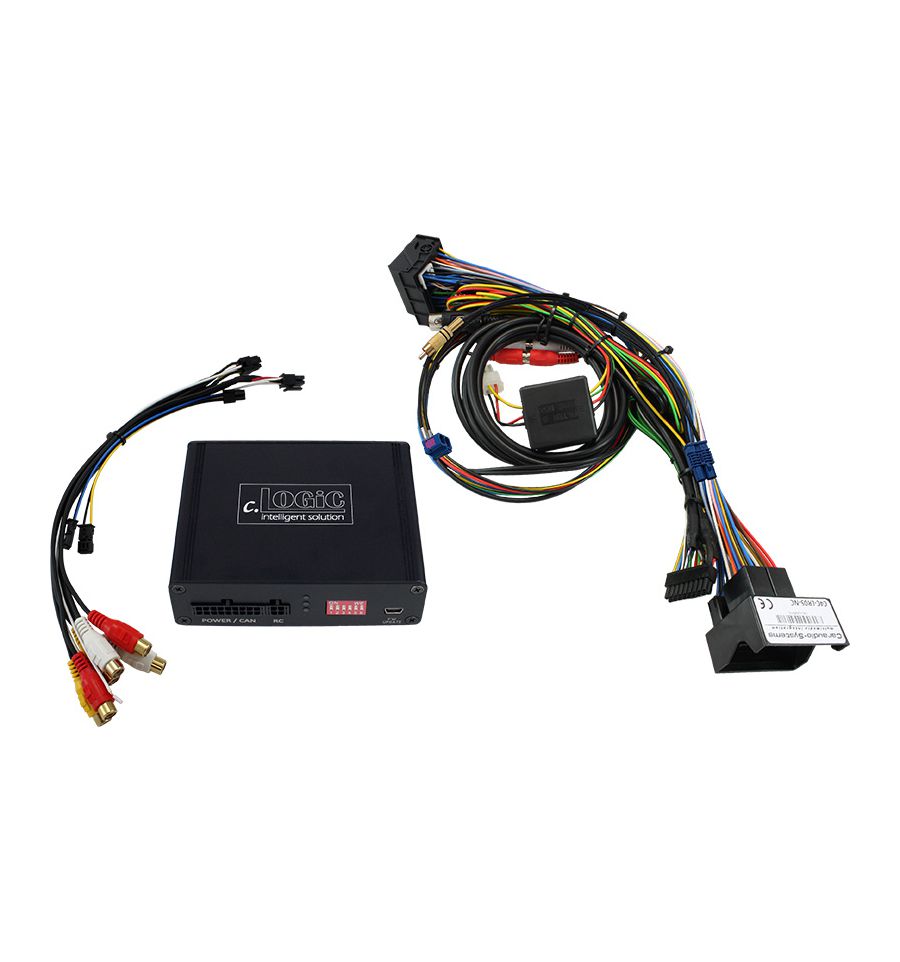

Delivery contents:

  • Interface-box C4C-M817-NC
  • Harness C4C-LR05-NC
  • AV-cable (2x) CAB-AV-6P
  • RCA-adapter CAB-RCA1-15
  • IR-cable C2C-IR

Remember that in some states it is illegal to use the video in motion while driving!


The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.

Land RoverDiscovery, Discovery Sport, Freelander 2, Range Rover, Range Rover Sport
CategoryRear View Camera Interfaces, Video integration, Video in Motion
