Video interface AHD/CVBS/HDMI for Nissan infotainment 10.1"
Video interface AHD/CVBS/HDMI for Nissan infotainment 10.1"
Video inserter for rear-view-camera, front camera with auto switching and 2 further video-inputs. CVBS and AHD compatible. Additional HDMI input. Compatible with VW vehicles with 13 inch monitor. .
Product features:
- Video-inserter for factory-infotainment systems
- 1 CVBS/AHD-input for rear-view camera
- 1 CVBS/AHD-input for front camera
- 2 CVBS/AHD-input for side-cameras or additional after-market video-sources (e.g., USB-device, DVB-T2 Tuner, etc.)
- All inputs NTSC and PAL compatible
Supported AHD resolutions 720p NTSC (30Hz), 720p PAL (25Hz), 960p NTSC (30Hz), 960p PAL (25Hz), 1080p NTSC (30Hz), 1080p PAL (25Hz) - 1 HDMI-input for HD rear-view camera or additional HDMI-sources (e.g., IOS/Android, laptop, streaming stick, DVD-Player, DVB-T2 Tuner, etc.)
- Automatic switching to rear-view camera input while reverse gear is engaged
- Automatic front camera switching after reverse gear for 5, 10, 15 or 20 seconds
- Activatable driving-path lines for rear-view camera (not available for all vehicles)
- Picture free during the car ride (only for inserted video-sources)
Compatibility:
| Model | Navigation |
|---|---|

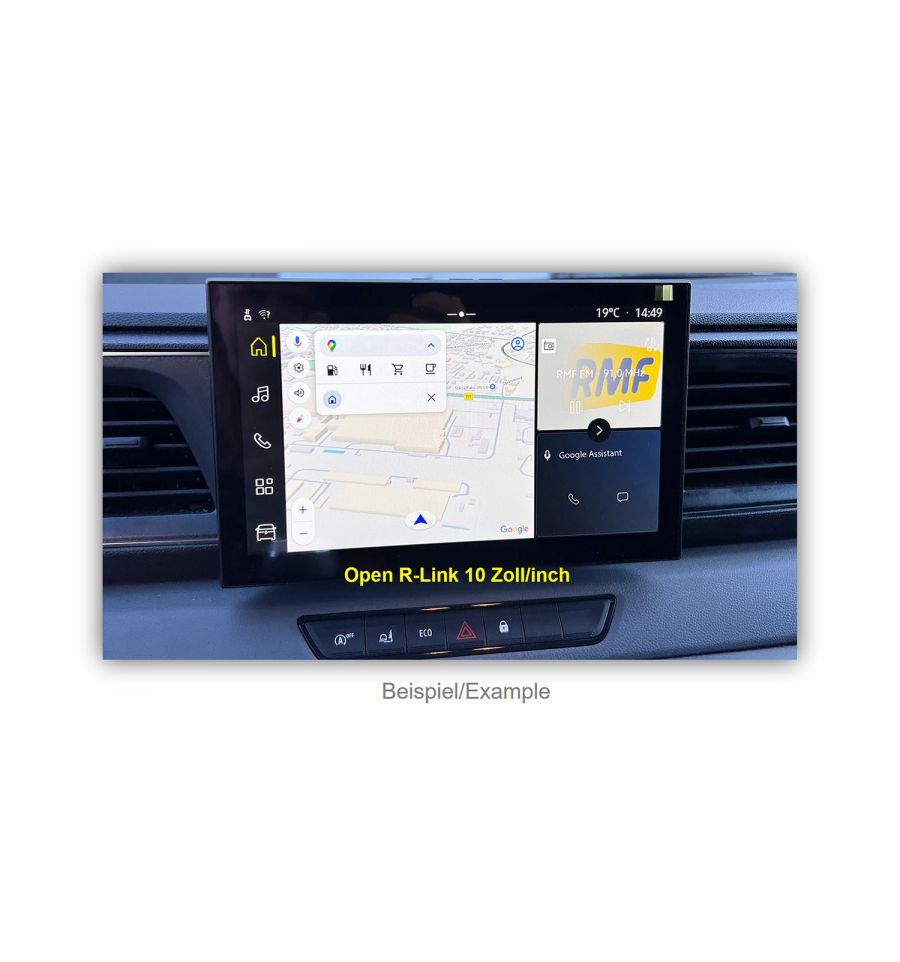

| Interstar from about 11/2024 | Infotainment with 10.1inch monitor |
Limitations:
| CAN-bus compatibility | CAN-bus compatibility of interface may to some vehicles have no or limited compatibility. This can show on installation as well as later. Interface and all its video-inputs can be operated with analogue trigger signals, without connection to vehicle CAN-bus. Yes, in this case, some features do not work, see hereinafter. |
| Video only | Interface inserts only video-signals into the infotainment. To insert audio signals a possibly existing factory audio-AUX-input or other optional products (e.g. FM-Modulator) must be used. For HDMI source, the audio is output via an analogue audio output (3.5mm jack socket). |
| Factory rear-view camera | Automatic switching to factory rear-view camera input is only possible while reverse gear is engaged. For deviating switching times optional accessories are required. |
| After market front camera | Front camera will automatically be switched to for 5, 10, 15 or 20 seconds (depending on menu setting) after disengaging the reverse gear. Manual switching to front camera is possible by external keypad. |
| Guide lines for rear-view camera | If the vehicle CAN bus is not fully compatible with the interface or if the connection is analogue, the movable guide lines function cannot be used. |
| Vehicles with cruise control | For vehicles with cruise control, the reverse gear signal must be connected in an analogue manner, otherwise the retrofit rear-view camera will be displayed when cruise control is activated. |
Specifications:
| BATT/ACC range | 12V DC (9~16V) |
| Stand-by power drain | about 0.1mA |
| Power consumption | about 210mA |
| Video input | 0.7~1V |
| Video input signal types | CVBS/AHD/HDMI |
| Signal standards CVBS/AHD | NTSC/PAL |
| Temperature range | -40°C bis +85°C |
| Dimensions interface-box | 117 x 25 x 97mm (W x H x D) |
| Dimensions daughter PCB | 165 x 5 x 70mm (W x H x D) |

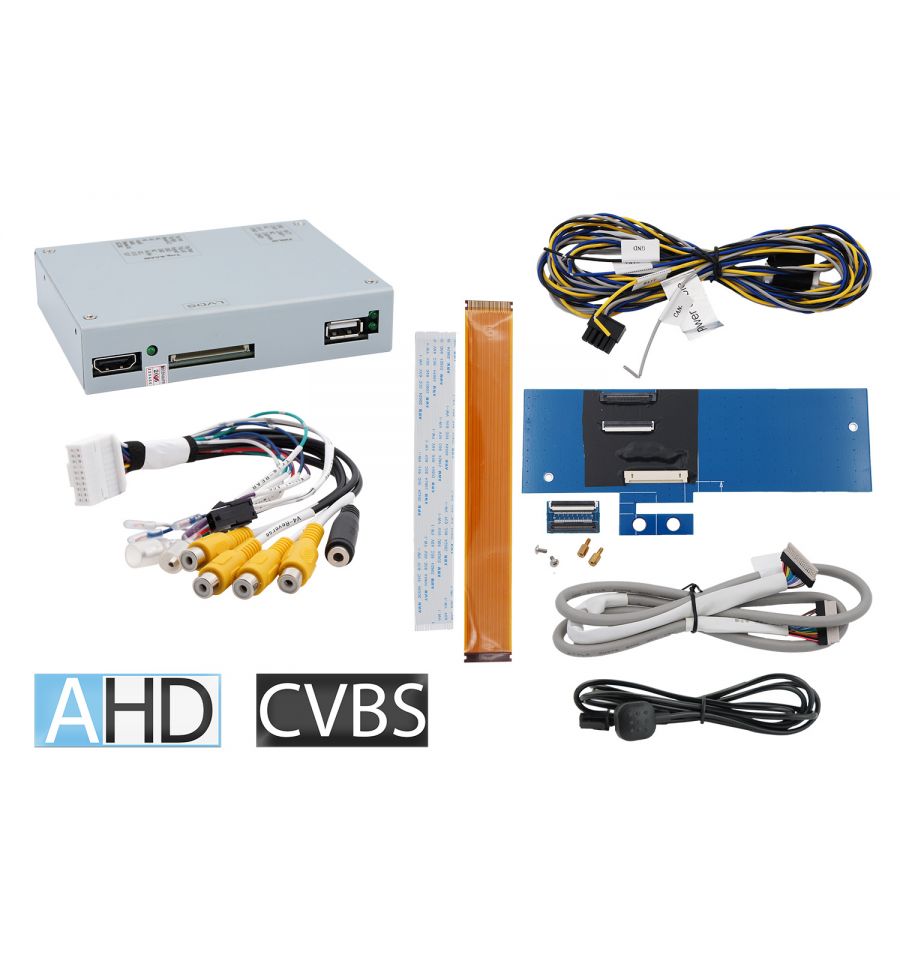

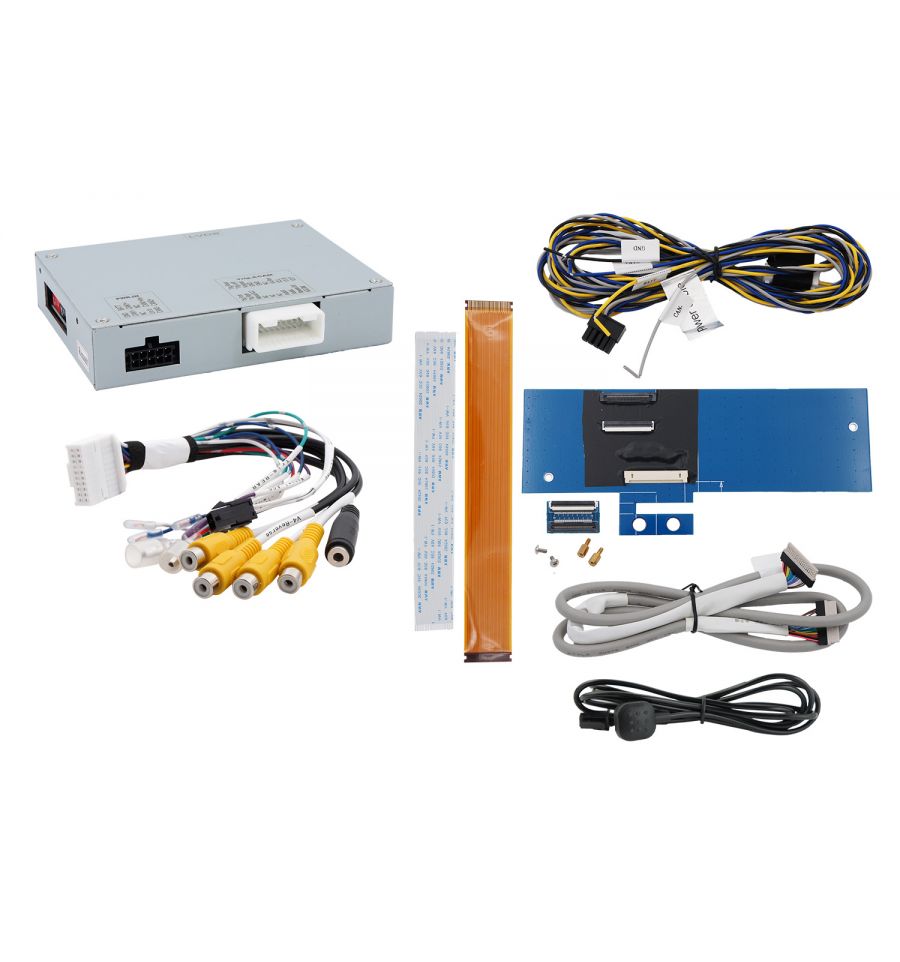

Connections:
- Video-insertion: Ribbon cable
- Power and CAN-bus: Open cable ends
- Video-input (2x): RCA female connector
- Rear-view camera-input: RCA female connector
- Front camera-input: RCA female connector
- Trigger wires (4x): Open cable ends
- Additional Video-input: HDMI
- HDMI Audio-output: Female 3.5mm jack connector
Remember that in some states it is illegal to use the video in motion while driving!
The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.
