SEAT MFD (4:3) Audio - Video and reverse camera input interface Expand

SEAT MFD1 (4:3) Audio - Video and reverse camera input interface

Seat Seat

CI-C1-MFD1-SE

New

Multimedia-interface for the connection of one AV-source to the factory-navigation. With remote function for connected devices, rear-view camera-input and trigger signals.

More details

€ 146,72

tax incl.

Worldwide shipping

24/48h Delivery

Secure payment

Car electronic experts since 1990

The CI-C1-MFD1 multimedia interface allows to connect one AV-source (after-market devices e.g. DVD player, DVB-T tuner) to the factory navigation system of the vehicle manufacturer. Very simple connection to the vehicle with the "Plug & Play" harness. If the AV-source is in the list of compatible devices, it is possible to control the AV-source by the factory infotainment. Additionally the connection of a rear-view camera is possible.


Product features:

  • Full plug and play multimedia interface
  • 1 AV-input with separate IR-control channels
  • Controls of after-market devices (e.g. DVD-player, DVD-changer, ...) by factory infotainment
  • After-market rear-view camera input
  • Automatic switching to rear-view camera input (on older MFD1 only from c.LOGiC mode)
  • Rear-view camera power (+12V max. 1A)
  • Power-on remote-out trigger-signal (+12V max 1A) to switch on connected devices


Compatibility:

Compatible with SEAT vehicles with MFD (4:3) navigation system.

ModelRadio / Navigation
IbizaMFD1 (4:3)
Alhambra


Limitations:

Factory TV tunerMust NOT be installed
After-market rear-view cameraAutomatic switching on RNS-D and on older MFD1 to camera only works from usbLOGiC mode. On newer MFD1 automatic switching works also from OEM modes.




Specifications
(interface-box)

Operation voltage10.5 – 14.8V
Stand-by power drain<1mA
Operation power drain240mA
Power consumption3W
Temperature range-30°C to +80°C
Weight95g
Measurements106 x 30 x 71 mm (W x H x D)


Connections (Interface-box)

FRONTREAR
2 female RCA connector (Video In, R-Cam)male 4pin Molex connector
male 12pin Molex connector

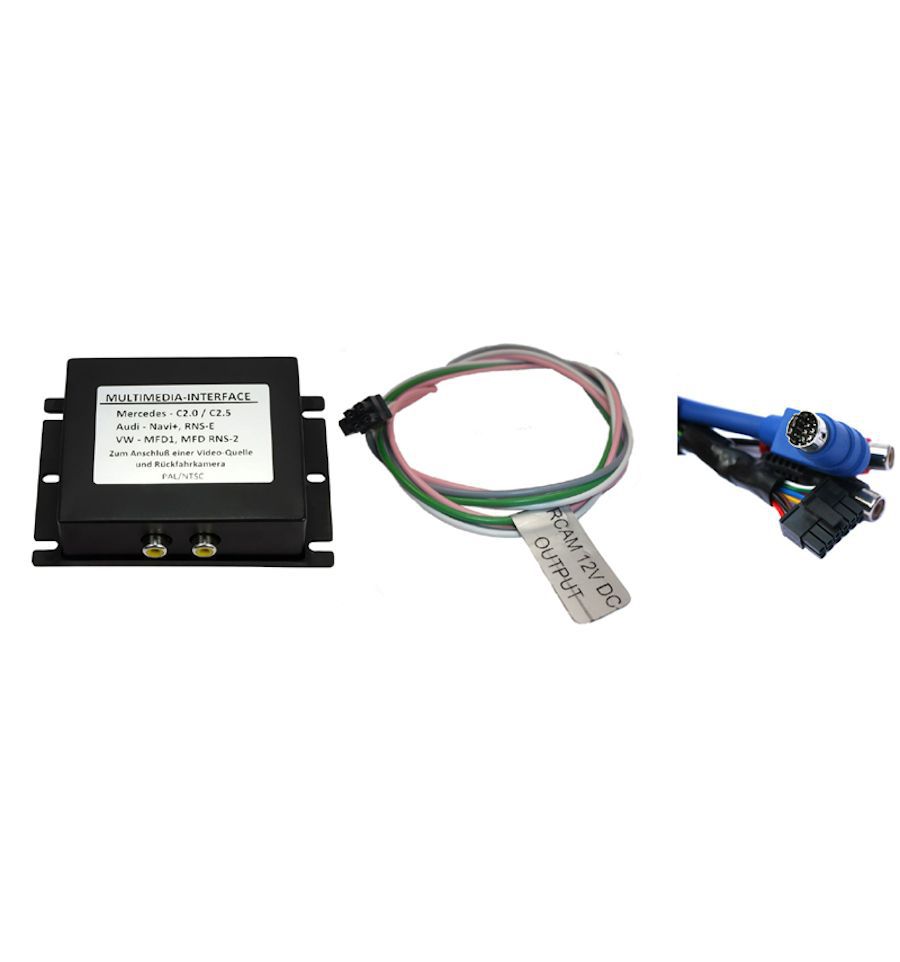

Delivery contents:
  • Interface-box
  • Plug & play Harness
SeatAlhambra, Ibiza
CategoryRear View Camera Interfaces, Video integration
