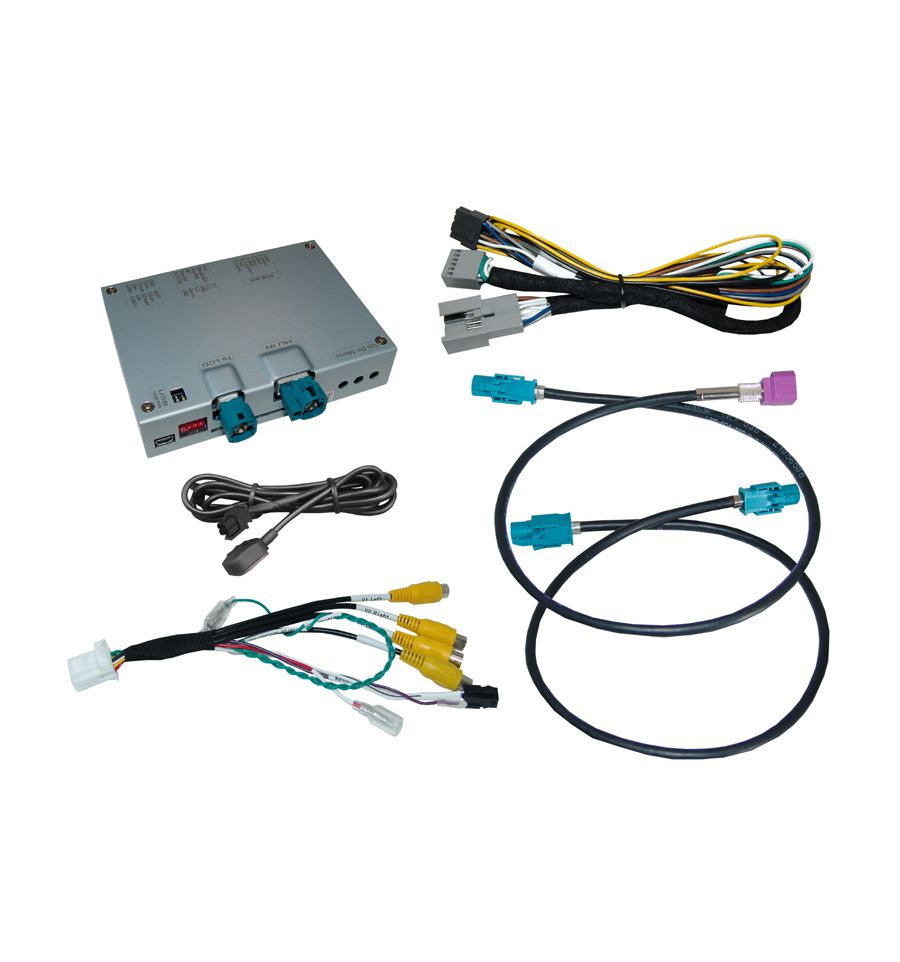

Video interface with rear camera input for Skoda MIB3 10 inch
shipped in 24 h
Video interface with rear camera input for Skoda MIB3 10 inch
The r.LiNK interface allows to insert a rear-view camera, a front camera with auto switching and two additional video sources (e.g. USB-player, DVB-T2 tuner, ...) to the factory-infotainment system of the vehicle manufacturer.
Product features:
- Video-inserter for factory-infotainment systems
- 1 CVBS rear-view camera video-input
- 1 CVBS front camera video-input
- 2 CVBS video-inputs for after-market devices (e.g. USB-Player, DVB-T2 tuner, ...)
- Automatic switching to rear-view camera input on engagement of the reverse gear
- Automatic front camera switching after reverse gear for 10, 15 or 20 seconds (adjustable)
- Activatable parking guide lines for rear-view camera (not available for all vehicles)
- Video-in-motion (ONLY for connected video-sources)
- Video-inputs PAL and NTSC compatible
Compatibility:
| Model | Radio / Navigation |

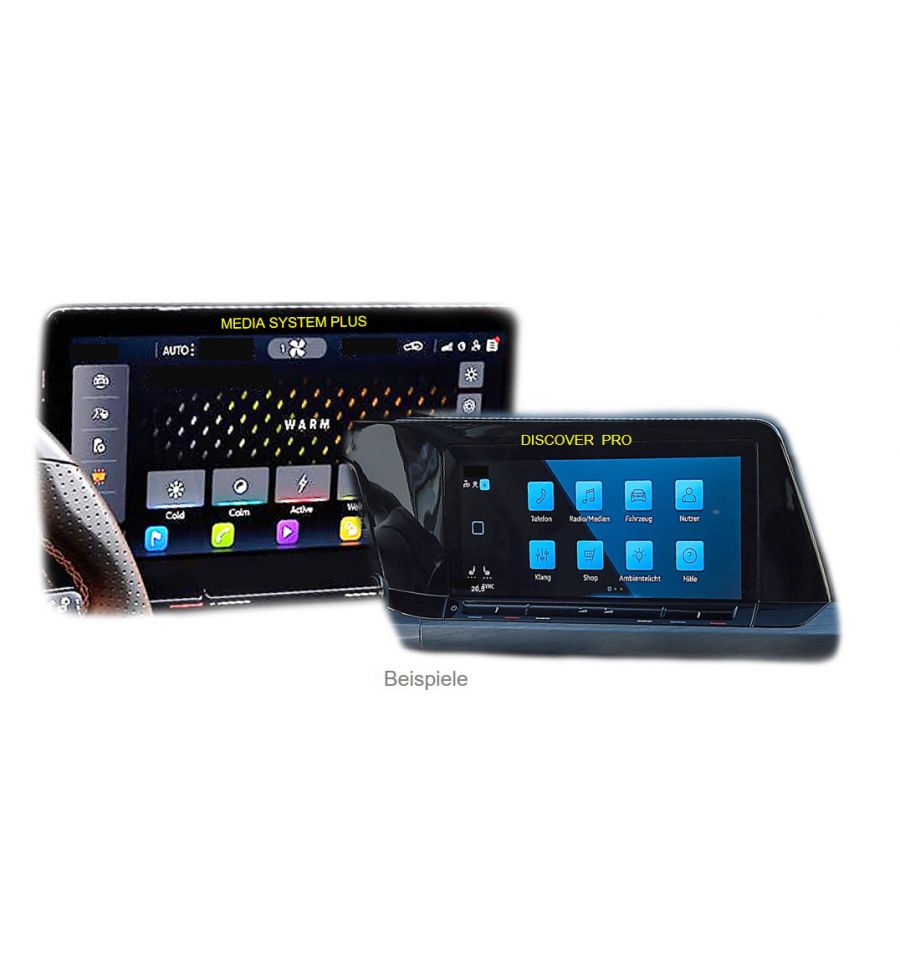

| Octavia4 (NX) from 03/2020 | MIB3 Standard and High - Bolero and Columbus - DIN head-unit with separate 10inch ultra-wide monitor. |
| Enyaq (5A) 11/2020- |
Limitations:
The interface inserts ONLY video signals into the infotainment. For inserting Audio signals either the possibly existing factory audio-AUX-input or a FM-modulator can be used. If 2 audio sources shall be connected to the infotainment, an additional electronic is necessary to switch them.
Automatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required.
The front camera will automatically be switched for 10, 15 or 20 seconds (adjustable) after disengaging the reverse gear. A manually front camera switching is possible by external keypad.
Displayed guidelines and PDC are not available in all vehicles.
Specifications:
| BATT/ACC range | 7V – 25V |
| Stand-by power drain | 10mA |
| Power | 270mA @12V |
| Video input | 0.7V˜1V |
| Video input formats | PAL/NTSC |
| RGB-video amplitude | 0.7V with 75Ohm impedance |
| Temperature range | -40°C to +85°C |
| Dimensions | 117 x 27 x 103mm (W x H x D) |

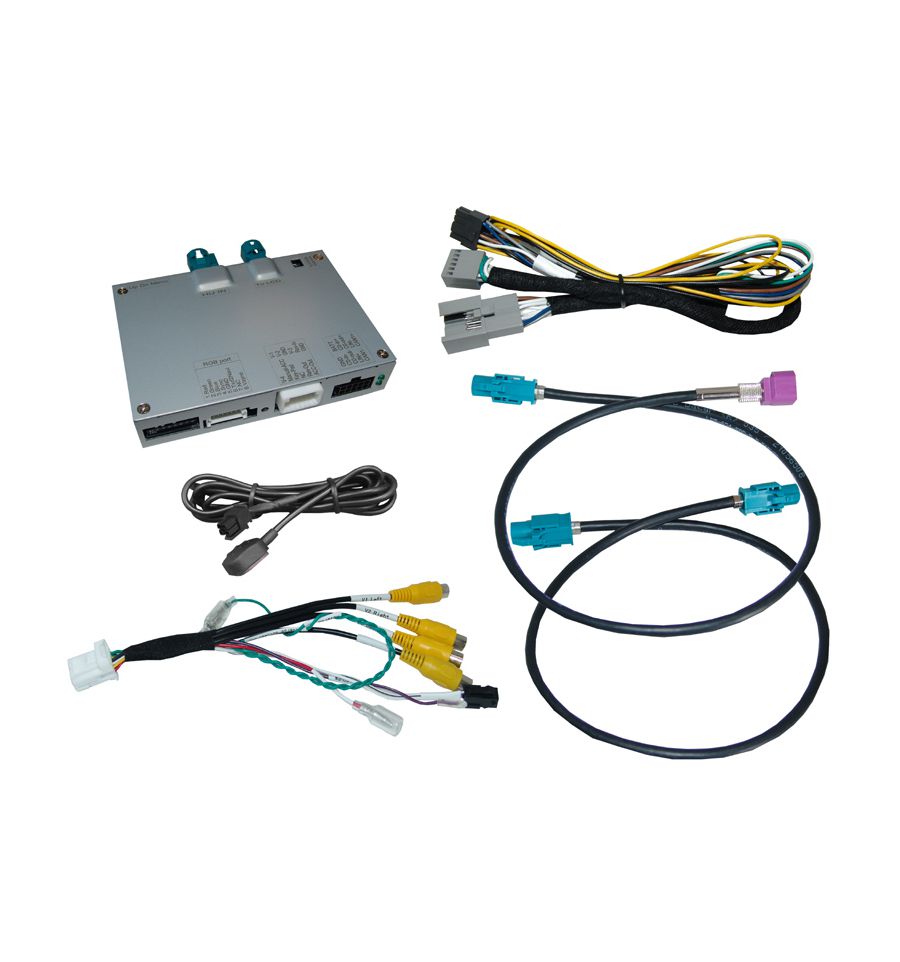

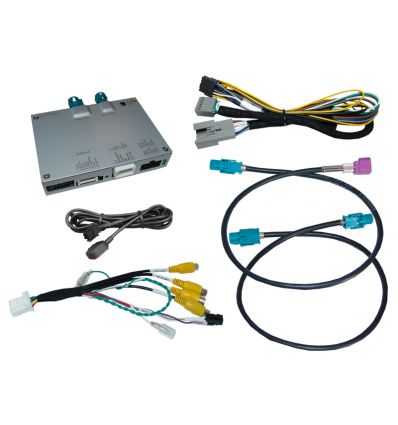

Connectors
- Video-insertion: 4-pin HSD
- Power and CAN-bus: Open cable ends (Power) and Plug & Play (Quadlock insert)
- Video-input (2x): RCA female connector
- Rear-view camera-input: RCA female connector
- Front camera-input: RCA female connector
Remember that in some states it is illegal to use the video in motion while driving!
The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.
| Skoda | Octavia4 (NX) |
| Category | Rear View Camera Interfaces, Video integration |
