New Video interface for Skoda with MIB2 Entry - Radio Swing Expand

Video interface for Skoda with MIB2 Entry - Radio Swing

Skoda Skoda

CI-RL2-MIB2-E-SK

New

Video interface for  Skoda with MIB2 Entry - Radio Swing - 5inch monitor.

More details

€ 261,48

tax incl.

Worldwide shipping

24/48h Delivery

Secure payment

Car electronic experts since 1990

Video interface for  Skoda with MIB2 Entry - Radio Swing - 5inch monitor.

The v.LINK interface allows to insert 1 external video source (upgraded devices, for example DVD player, DVB-T tuner) and 1 rear-view camera.

Product features:

  • Video-inserter for factory-infotainment systems
  • 1 CVBS rear-view camera video-input
  • 2 CVBS video-inputs for after-market devices (e.g. USB-Player, DVB-T2 tuner, ...)
  • Automatic switching to rear-view camera input on engagement of the reverse gear
  • Activatable parking guide lines for rear-view camera (not available for all vehicles)
  • Video-in-motion (ONLY for connected video-sources)
  • Video-inputs PAL and NTSC compatible




 Compatibility:

ModelRadio / Navigation
Fabia3 (NJ) from 2014 til 2017

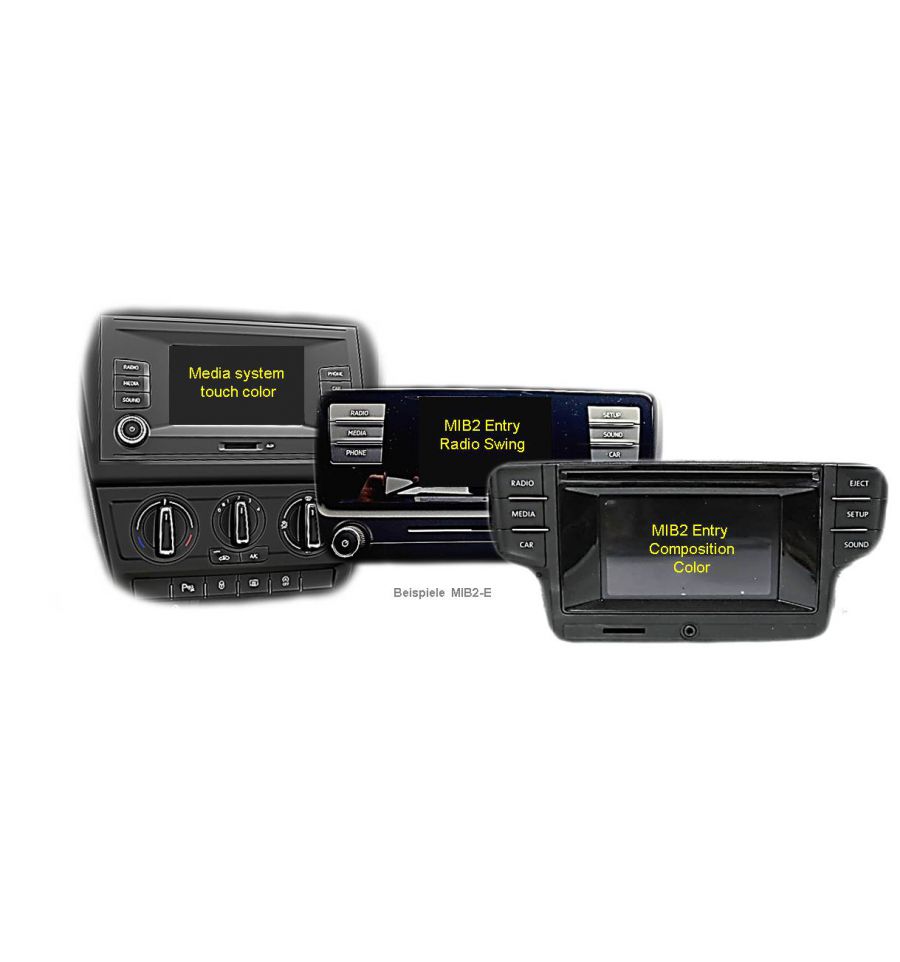

MIB2 Entry - Radio Swing
5inch monitor(color) and SD-slot without CD-drive

Octavia3 (5E) from 2012 til 2017
Rapid (NH1) from 2016 til 2017
Superb3 (3V) from 2015 til 2017
Yeti (5L) from 2015 til 2016

Limitations:

  • The interface inserts ONLY video signals into the infotainment. For inserting Audio signals either the possibly existing factory audio-AUX-input or a FM-modulator can be used. If 2 audio sources shall be connected to the infotainment, an additional electronic is necessary to switch them.
  • Automatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is require
  • Only NTSC compatible.



Specifications:

Operating voltage12 DC (7V ~ 25V)
Standby current10mA
Current consumption210mA
Video input0.7V˜1V
Video input formatsNTSC
Temperature range-40°C to +85°C
Dimensions video-box110 x 35 x 98 mm (W x H x D)
Dimensions CAN-box75 x 22 x 30mm (W x H x D)

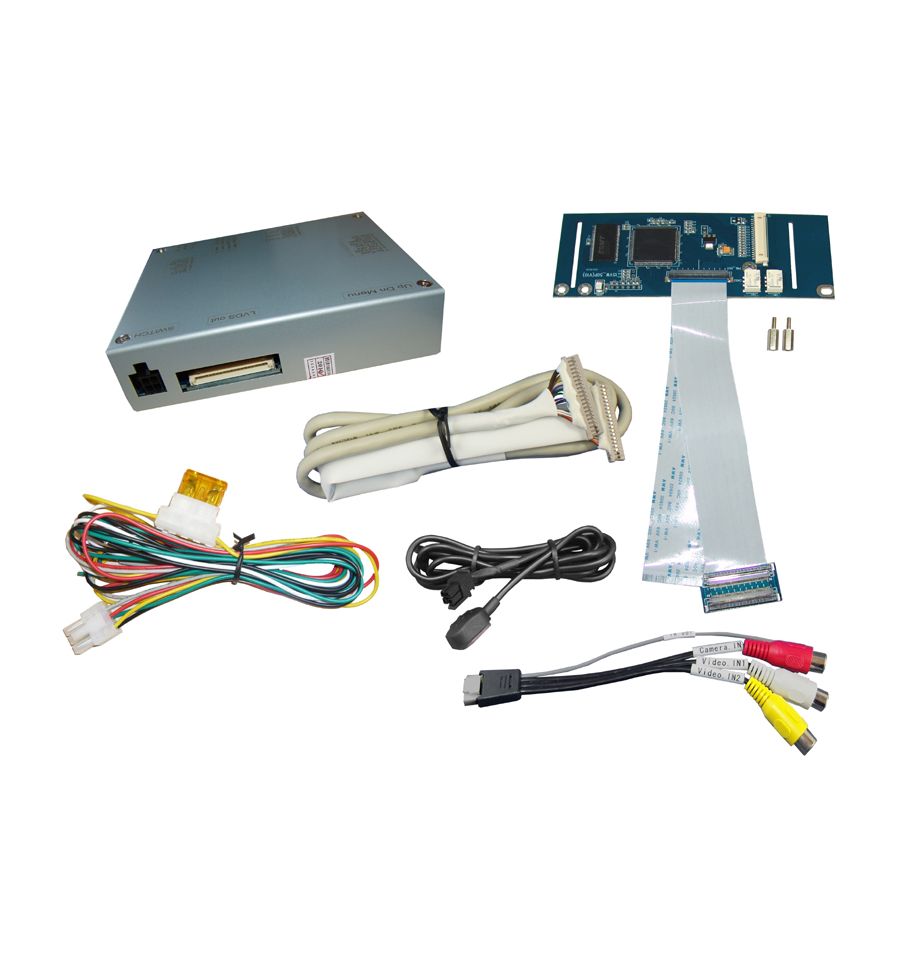

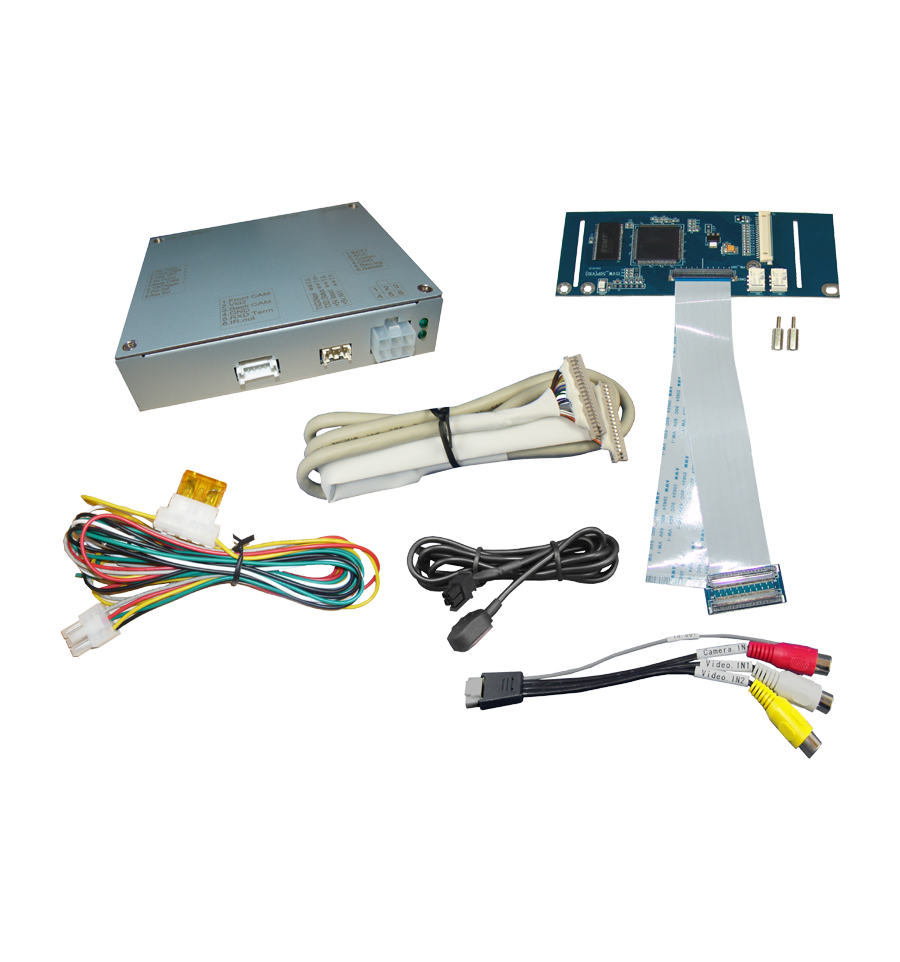

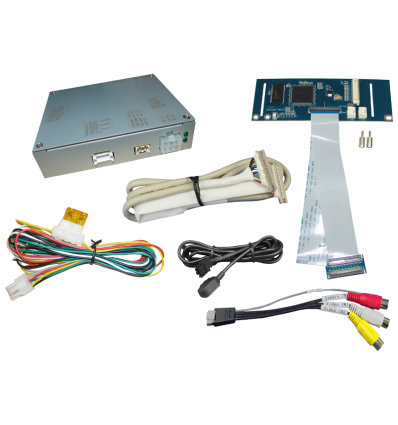

Connections:

  • Video-insertion: ribbon cable
  • Power and CAN-bus: open cable ends
  • 2 Video-input: RCA female connector
  • Rear-view camera-input: RCA female connector


Remember that in some states it is illegal to use the video in motion while driving!

The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.

SkodaFabia NJ, Octavia 5E, Rapid, Yeti 5L
CategoryRear View Camera Interfaces, Video integration
