New Skoda MIB3 video interface with rear and front camera input Expand

Skoda MIB3 video interface with rear and front camera input

Skoda Skoda

CI-HDA-MIB100-SK

New

Skoda MIB3 video interface with rear and front camera input

More details

€ 409,02

tax incl.

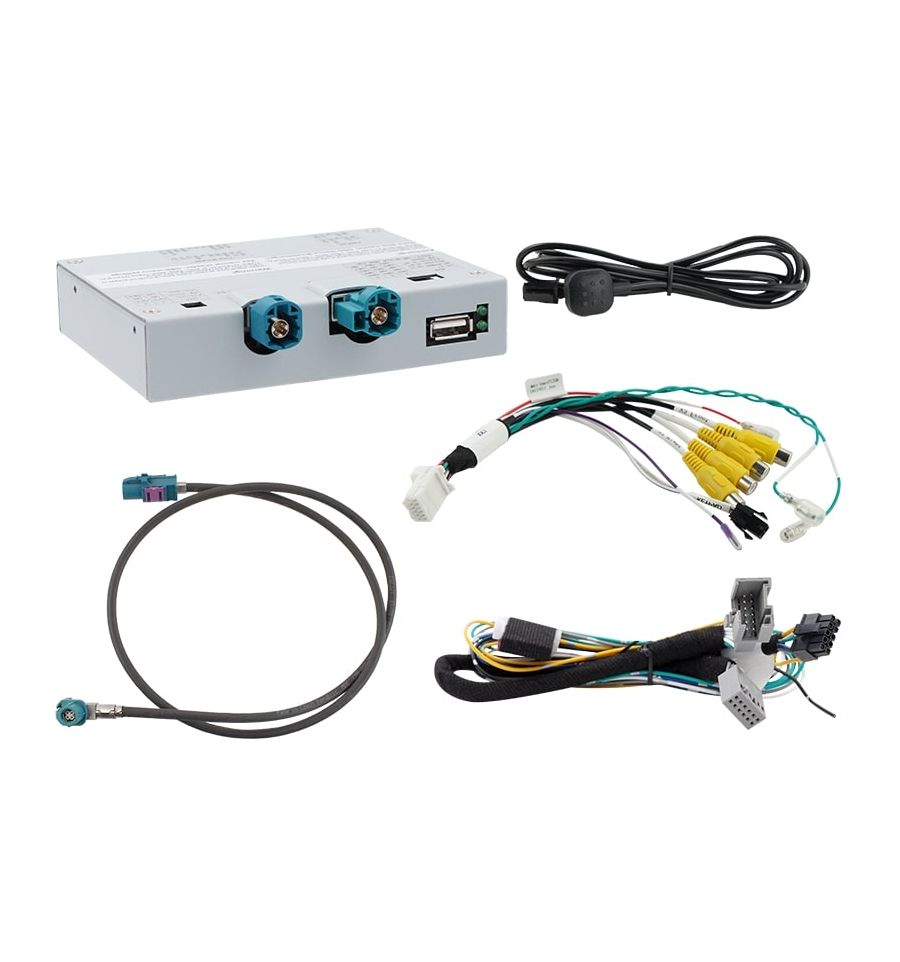

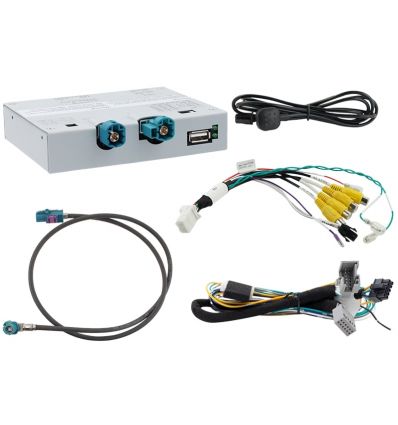

Skoda MIB3 video interface with rear and front camera input


This interface allows you to integrate a  rear-view camera, a front camera and 2 video-sources (upgraded devices, for example DVD player, DVB-T tuner).


Product features:

  • Video-inserter for factory-infotainment systems
  • 1 CVBS/AHD-input for rear-view camera
  • 1 CVBS/AHD-input for front camera
  • 2 CVBS/AHD-input for side-cameras or additional after-market video-sources (e.g., USB-device, DVB-T2 Tuner, etc.)
  • All inputs NTSC and PAL compatible
    Supported AHD resolutions 720p NTSC (30Hz), 720p PAL (25Hz), 960p NTSC (30Hz), 960p PAL (25Hz), 1080p NTSC (30Hz), 1080p PAL (25Hz)
  • Automatic switching to rear-view camera input while reverse gear is engaged
  • Automatic front camera switching after reverse gear for 5, 10, 15 or 20 seconds
  • Adjustable guide lines (fixed or movable) can be activated for rear-view camera (movable guide lines not available for all vehicles)
  • PDC graphics can be activated (not available for all vehicles)
  • Picture free during the car ride (only for inserted video-sources)




 Compatibility:

Elroq (PY) from 11/2024,
Enyaq (5A) from 11/2020,
Kodiaq2 (KM7) from 12/2023,
Octavia4 (NX) from 03/2020
Octavia4 Fave-Lift (PV) from 01/2024,
Superb4 (3Y) from 12/2023
MIB3 Standard or High - Bolero and Columbus infotainment - with DIN Head-Unit with separate 10inch, 12inch, 12.9inch or 13inch ultra-wide monitor

Limitations:

CAN-bus compatibilityCAN-bus compatibility of interface may to some vehicles have no or limited compatibility. This can show on installation as well as later. Interface and all its video-inputs can be operated with analogue trigger signals, without connection to vehicle CAN-bus. Yes, in this case, some features do not work, see hereinafter.
Video onlyInterface inserts only video-signals into the infotainment. To insert audio signals a possibly existing factory audio-AUX-input or other optional products (e.g. AUX-UNI0x, FM-Modulator) must be used.
Factory rear-view cameraAutomatic switching to factory rear-view camera input is only possible while reverse gear is engaged. For deviating switching times optional accessories are required.
Factory DVD playerNot compatible with Audi vehicles and VW Touareg with factory DVD player (factory DVD player no longer displays a picture)!
After market front cameraFront camera will automatically be switched to for 5, 10, 15 or 20 seconds (depending on menu setting) after disengaging the reverse gear. Manual switching to front camera is possible by external keypad.
Guide lines for rear-view camera and PDCIf the vehicle CAN bus is not fully compatible with the interface or if the connection is analogue, the moving guide lines and optical PDC display function cannot be used.



Specifications:

Operating voltage12V DC (9~16V)
Standby currentabout 4mA
Current consumption400mA
Video input0.7~1V
Video input signal typesCVBS/AHD
Signal standards CVBS/AHDNTSC/PAL
Temperature range-40°C bis +85°C
Dimensions video-box117 x 25 x 109mm (W x H x D)



Connectors

  • Video-insertion: 4pin HSD
  • Power: open cable ends
  • CAN-bus: Plug & play (Quadlock insert)
  • Video-input (2x): RCA female connector
  • Rear-view camera-input: RCA female connector
  • Front camera-input: RCA female connector
  • Trigger wires (4x): Open cable ends


Remember that in some states it is illegal to use the video in motion while driving!


The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.

CategoryRear View Camera Interfaces, Video integration
