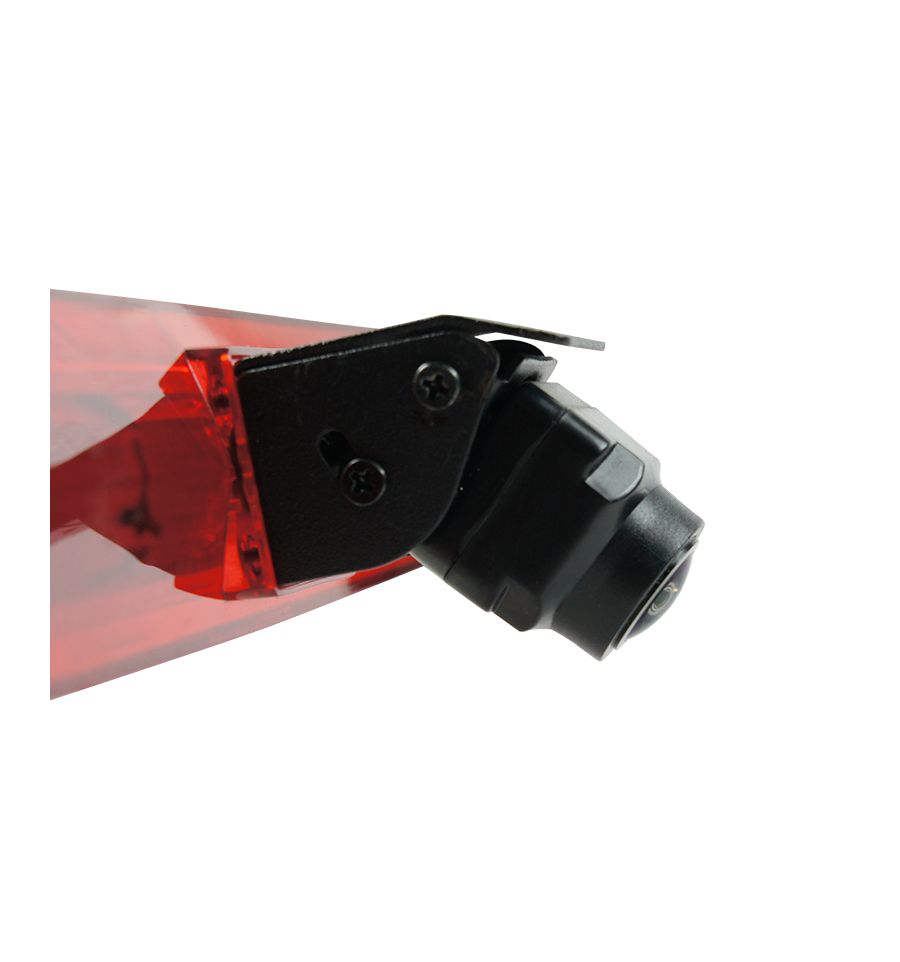

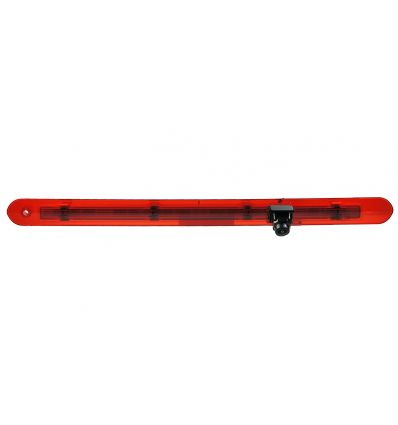

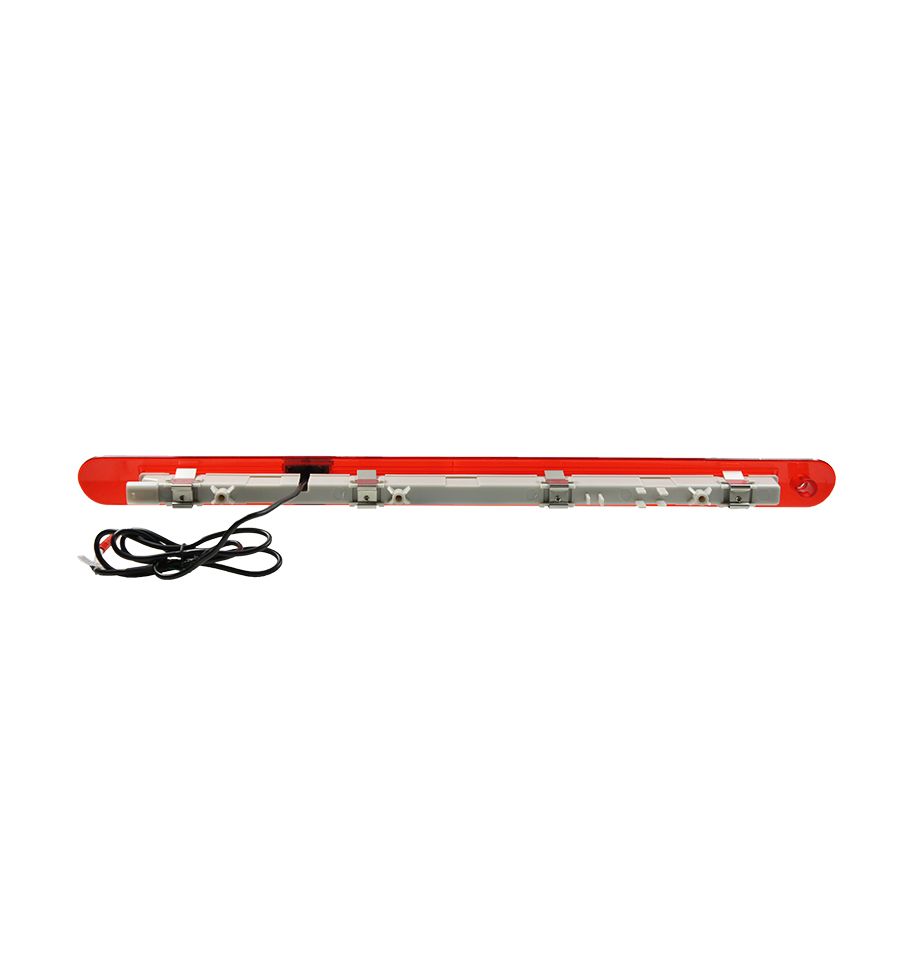

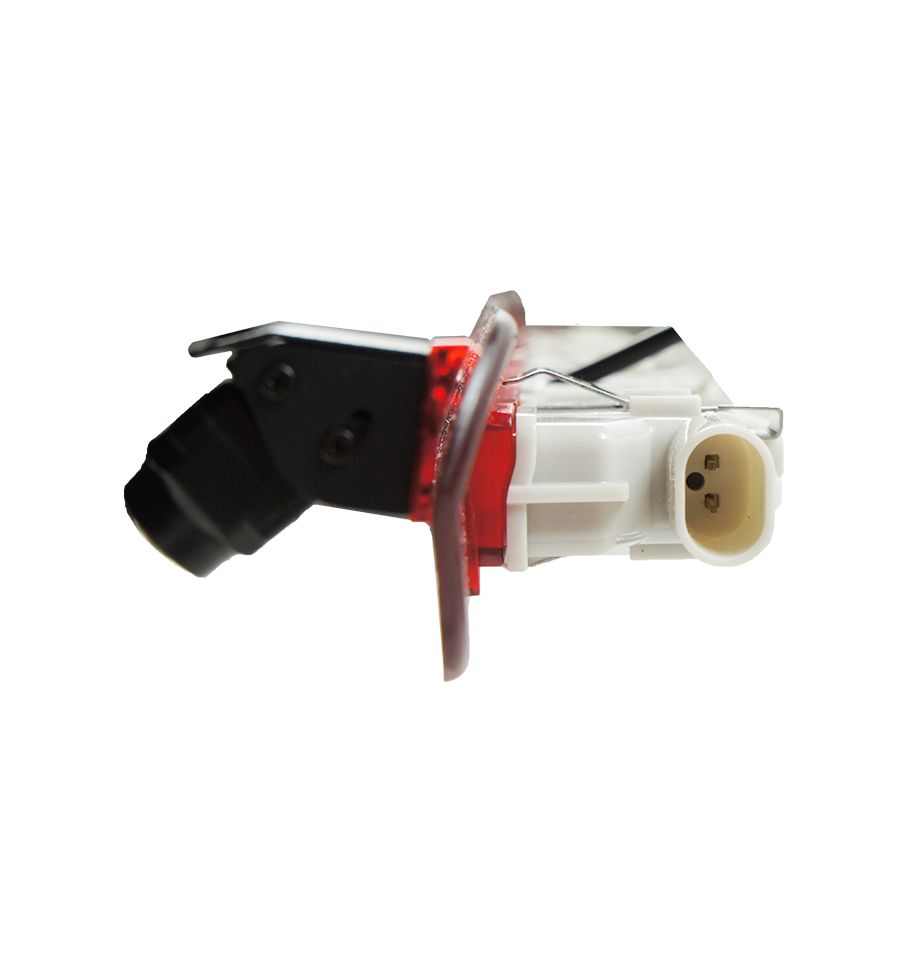

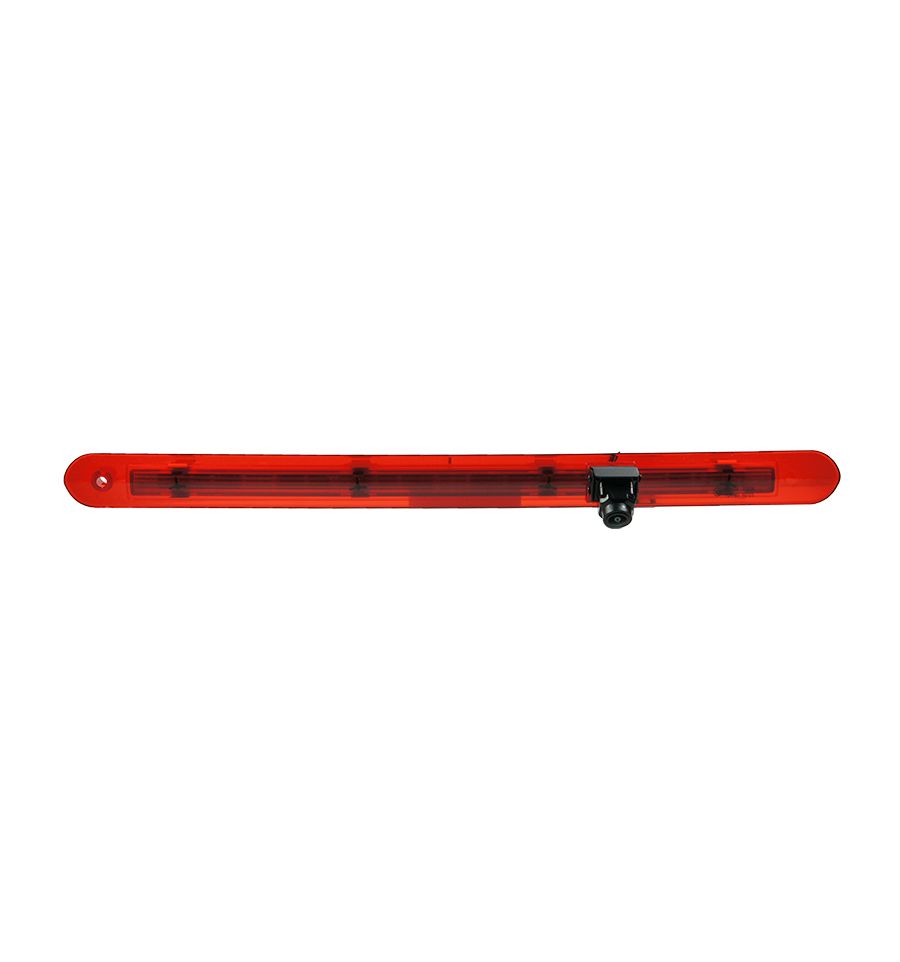

Vehicle-specific 3rd brake light with NTSC rear-view camera. Fits Mercedes Benz Vito W447 2016-. Vehicles with tail gate only (not for double door).
shipped in 24 h
Valutazione: Scrivi per primo una recensione!
Vehicle-specific exchange 3rd LED brake light with integrated rear-view camera. Easy assembly by replacing the factory 3rd brake light. Professional system harness with sufficient length and automotive connectors.
Easy to lay cable due to a small cable and connector diameter.
Product features
- Camera in vehicle-specific 3rd brake light
- Mounted by exchanging the factory 3rd brake light
- LED illumination integrated
- Integrated hole for wiper nozzle
- Camera position adjustable stepless vertically
- Sensor-type CMOS 1/4inch HD low-light sensitive
- NTSC format (800 TV lines)
- Bezel F1.2
- Light sensitivity 0.01 LUX
- Angle horizontal 160°, vertical 120°, diagonal 200°
- Mirrored picture (fixed)
- Guide-lines can be switched on by wire loop
- Protection class IP69
- Mini 4pin-BM system harness with integrated throughput wire (blue) for reverse signal

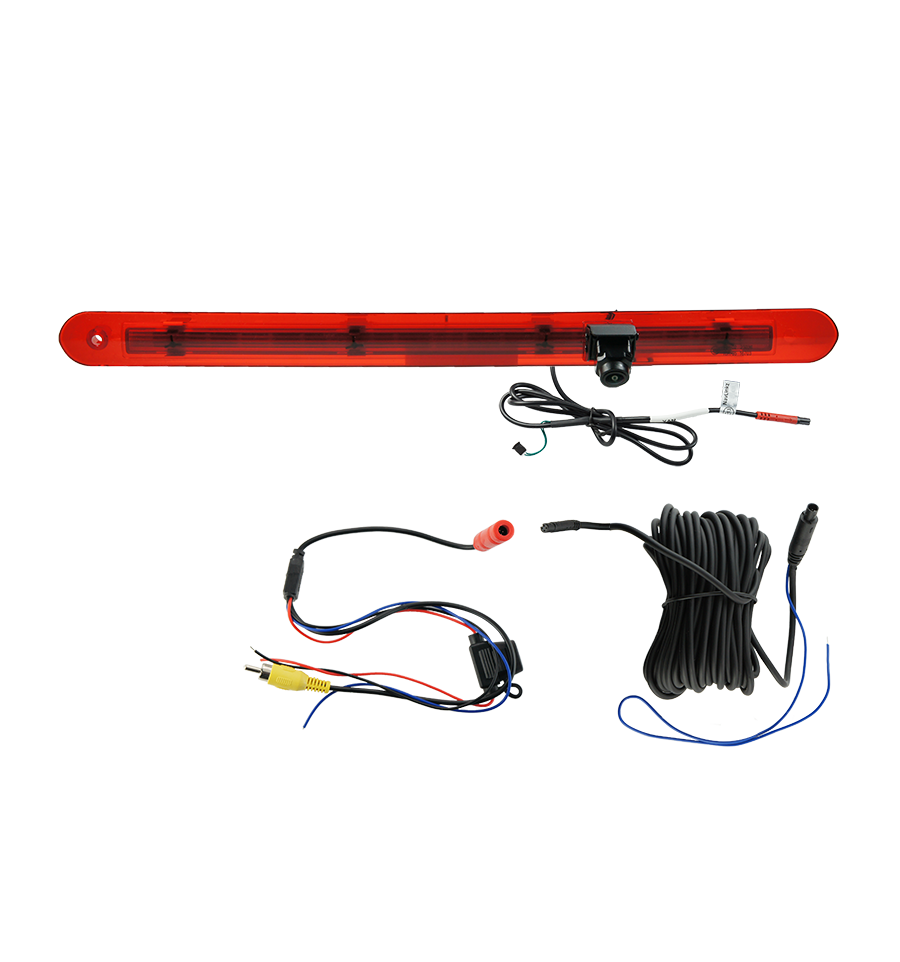

- 11.20m total system cable length, consists of:
- 0.80m cable fixed on camera to female 4pin-BM (diameter 5mm)
- 10.00m extension cable male 4pin-BM to female 4pin-BM
- 0.40m adapter male 4pin-BM to male RCA and power wires
Compatibility
| Brand | Model |
|---|---|
| Mercedes | Vito W447 model years 2016 up |
Dimensions
| Brake light with camera | approx 486 x 40 x 85mm (W x H x D) |
| Overhang length camera (from brake light) | approx 40mm |
| Installation opening | approx 455 x 22mm (W x H) |
| Installation opening depth | approx 44mm |
| Operating voltage | +12V DC |
| Current consumption | max. 50mA |
| Suitable for permanent power (ACC) | Yes |
| Operating temperature range | -30°C to +75°C |
| Storage temperature range | -40°C to +80°C |
NOTE:
Please check the size indications and the pictures of the camera for the compatibility with the vehicle, before buying!
| Category | Cameras RVC |
