RAM ProMaster Rear-view camera exchange brake light with CMOS and IR-LEDs

Dodge Dodge

CI-VAN-DUC03-RA

New

Vehicle specific camera for RAM ProMaster with CMOS sensor and IR-LEDs.
Would be changed with original brake light.

More details

€ 130,33

tax incl.

Worldwide shipping

24/48h Delivery

Secure payment

Car electronic experts since 1990

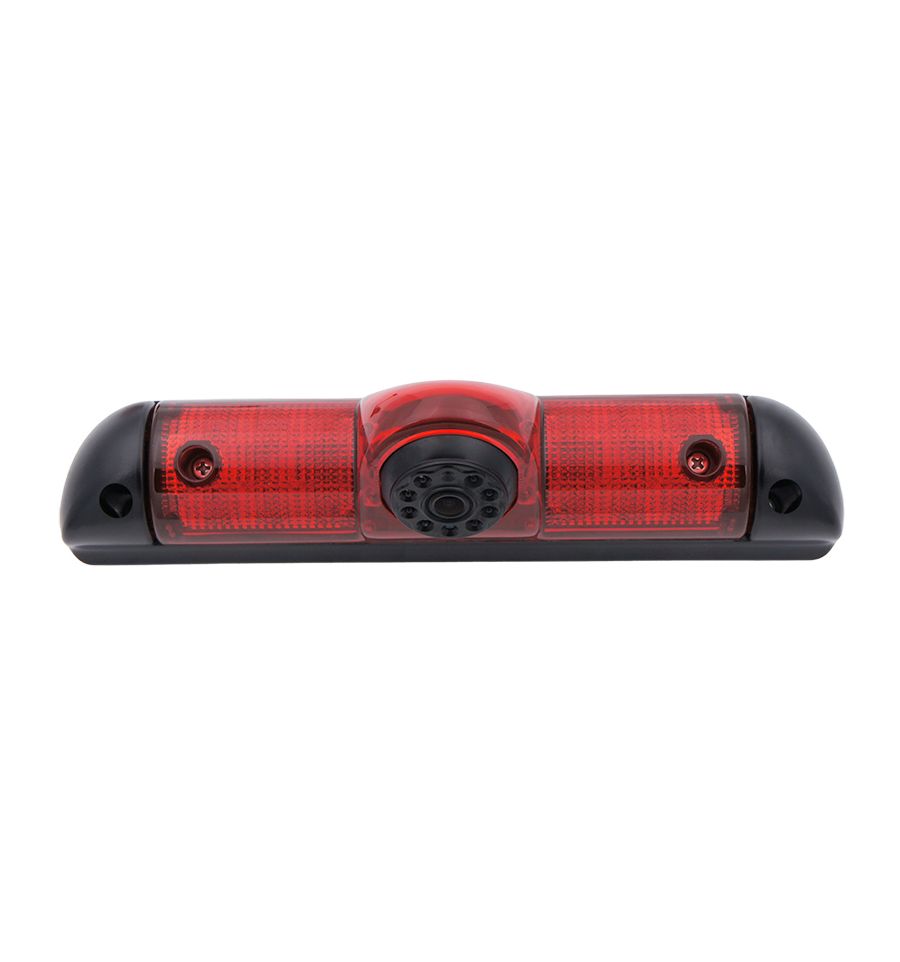

Brake light with NTSC rear-view camera compatible with RAM ProMaster with CMOS sensor, 16 IR-LEDs for night vision, 10m extension cable to cinch, 120° viewing angle.


Compatible with:

  •  ProMaster from 06/2006 up


NOTE:
Please check the size indications and the pictures of the camera for the compatibility with the vehicle, before buying!


Features:

  • Camera in vehicle-specific 3rd brake light
  • Mounted by exchanging the factory 3rd brake light
  • LED illumination integrated
  • Camera position adjustable in 3 steps vertically
  • Sensor-type CMOS 1/4inch HD low-light sensitive
  • NTSC format (800 TV lines)
  • Bezel F1.36
  • Light sensitivity 0.01 LUX
  • Infrared night vision LED
  • Angle horizontal 120°, vertical 90°, diagonal 150°
  • Mirrored picture (fixed)
  • Guide-lines can be switched off by jumper
  • Protection class IP69
  • Mini 4pin-BM system harness with integrated throughput wire (blue) for reverse signal

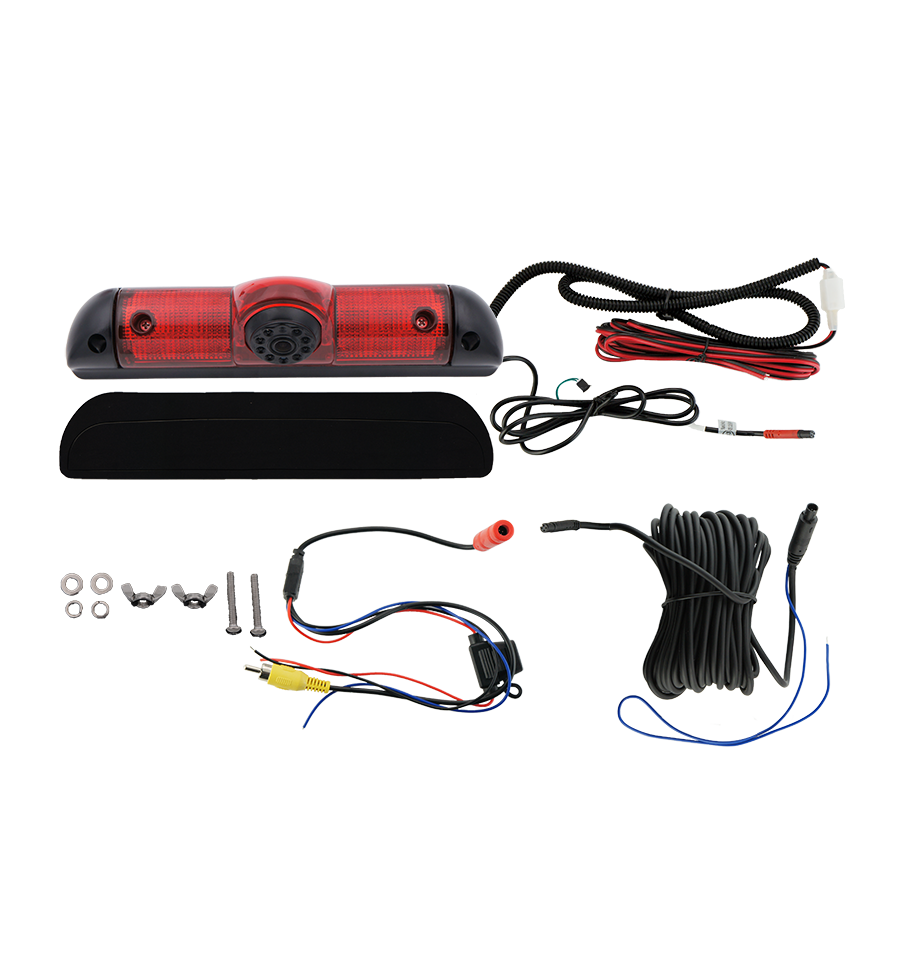

  • 11.20m total system cable length, consists of:
    - 0.80m cable fixed on camera to female 4pin-BM (diameter 5mm)
    - 10.00m extension cable male 4pin-BM to female 4pin-BM
    - 0.40m adapter male 4pin-BM to male RCA and power wires


Dimensions:

Brake light with cameraapprox 263 x 54 x 89mm (W x H x D)
Overhang length camera
(from brake light)
approx 64mm
Installation openingapprox 250 x 33mm (W x H)
Installation opening depthapprox 22mm

Operating voltage+12V DC
Current consumptionmax. 140mA
Suitable for permanent power (ACC)Yes
Operating temperature range-30°C to +75°C
Storage temperature range-40°C to +80°C
