New Skoda from MY2016 exchange rear door opener handle with integrated camera and switchable guide-lines Expand

Skoda from MY2016 exchange rear door opener handle with integrated camera and switchable guide-lines

Skoda Skoda

CI-VSC-E-AU15-SK

New

Skoda from MY2016 exchange rear door opener handle with integrated camera and switchable guide-lines

More details

€ 138,52

tax incl.

Worldwide shipping

24/48h Delivery

Secure payment

Car electronic experts since 1990

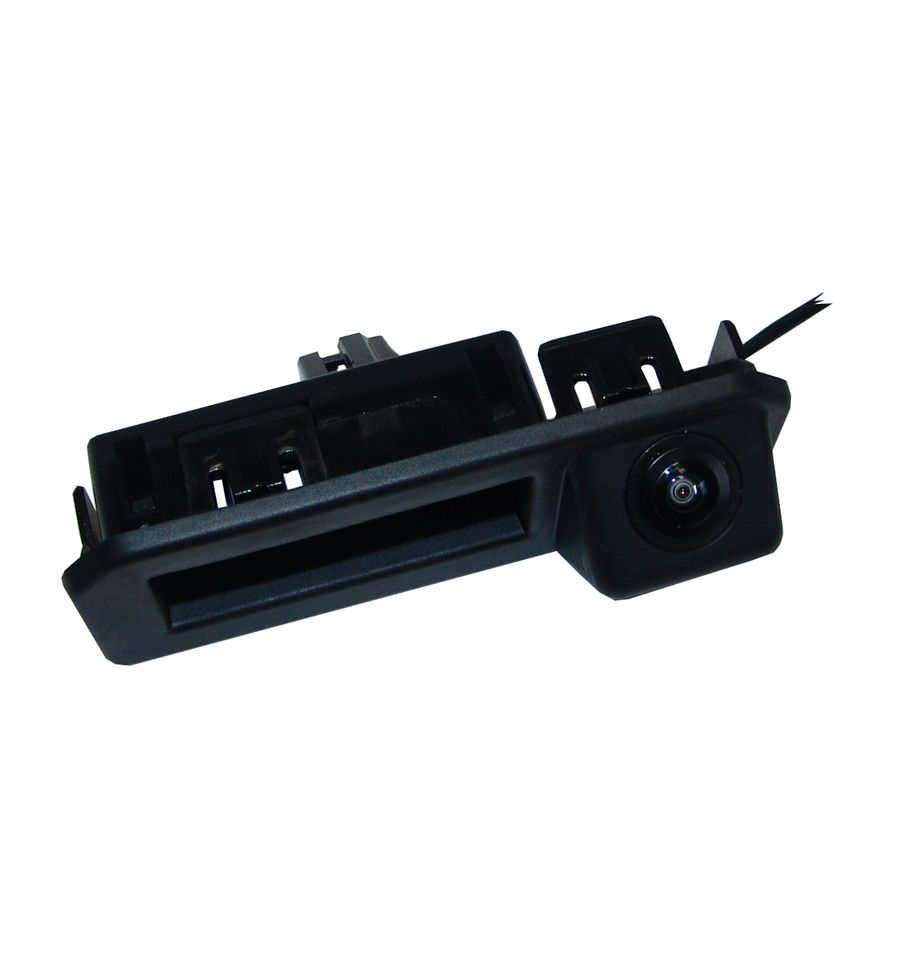

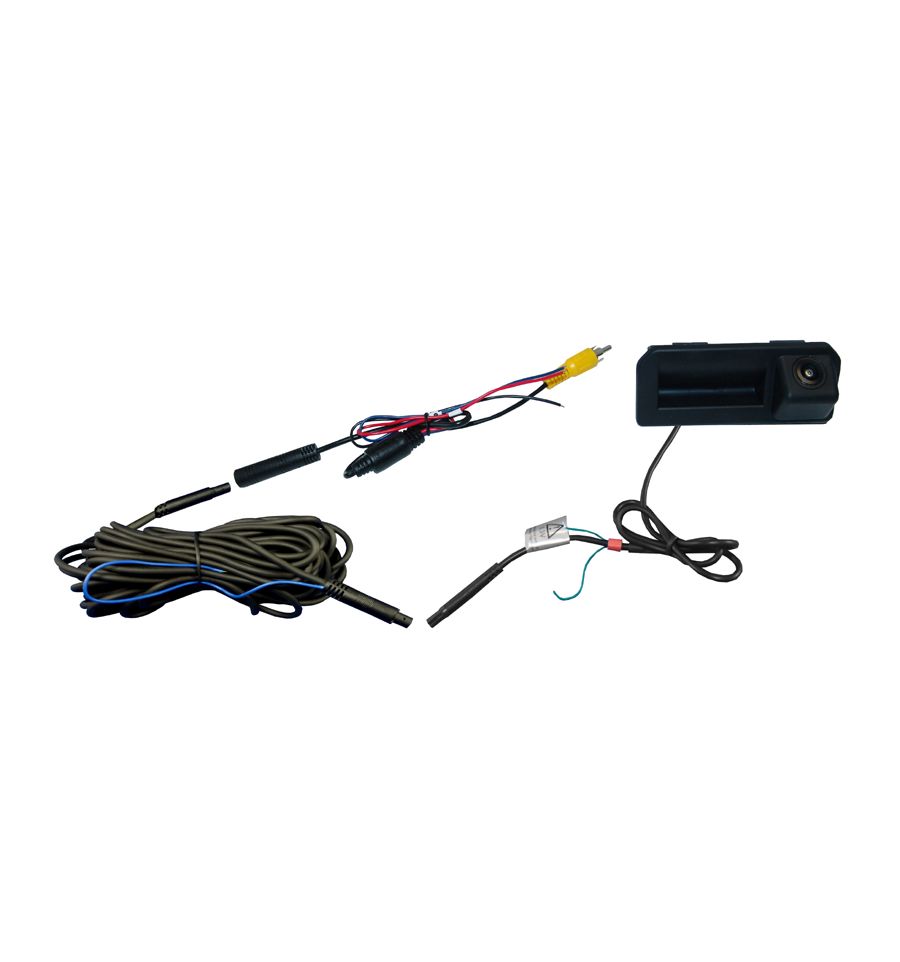

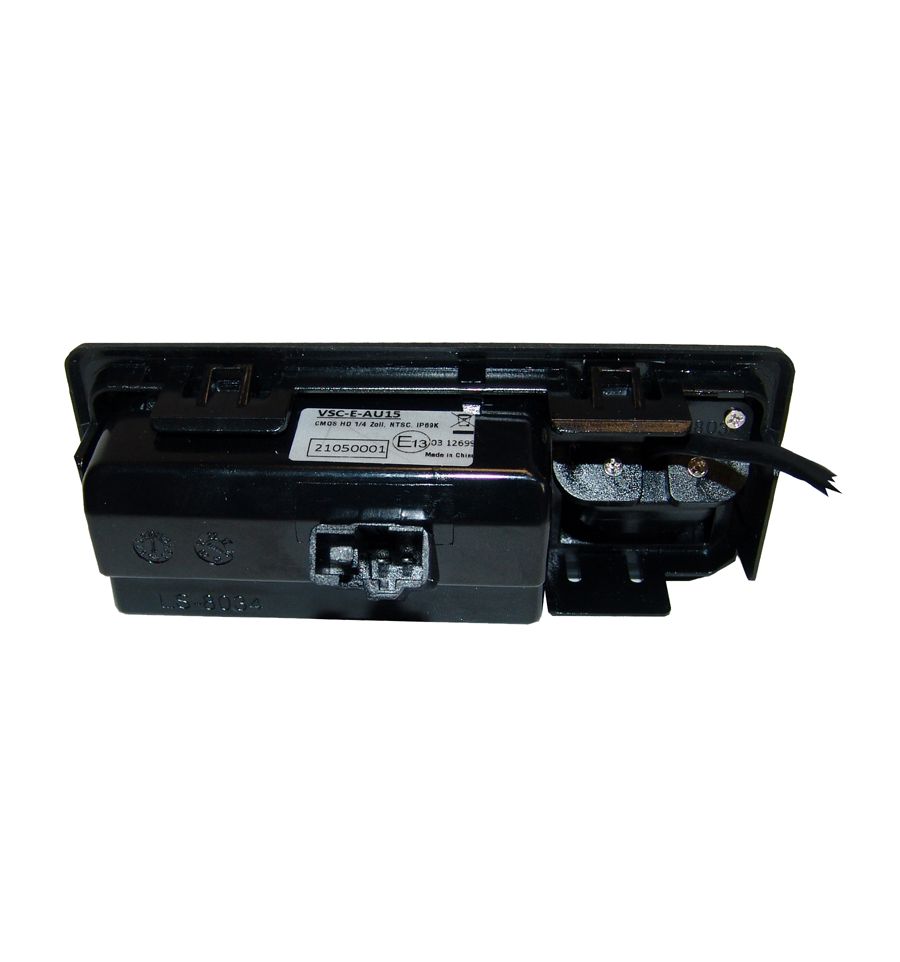

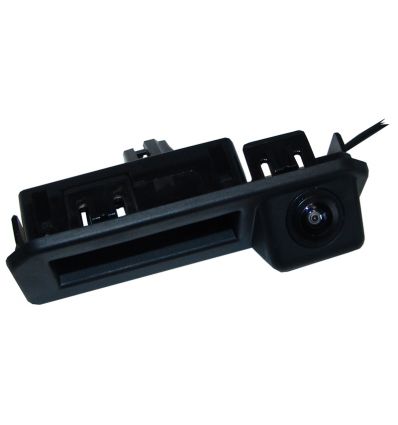

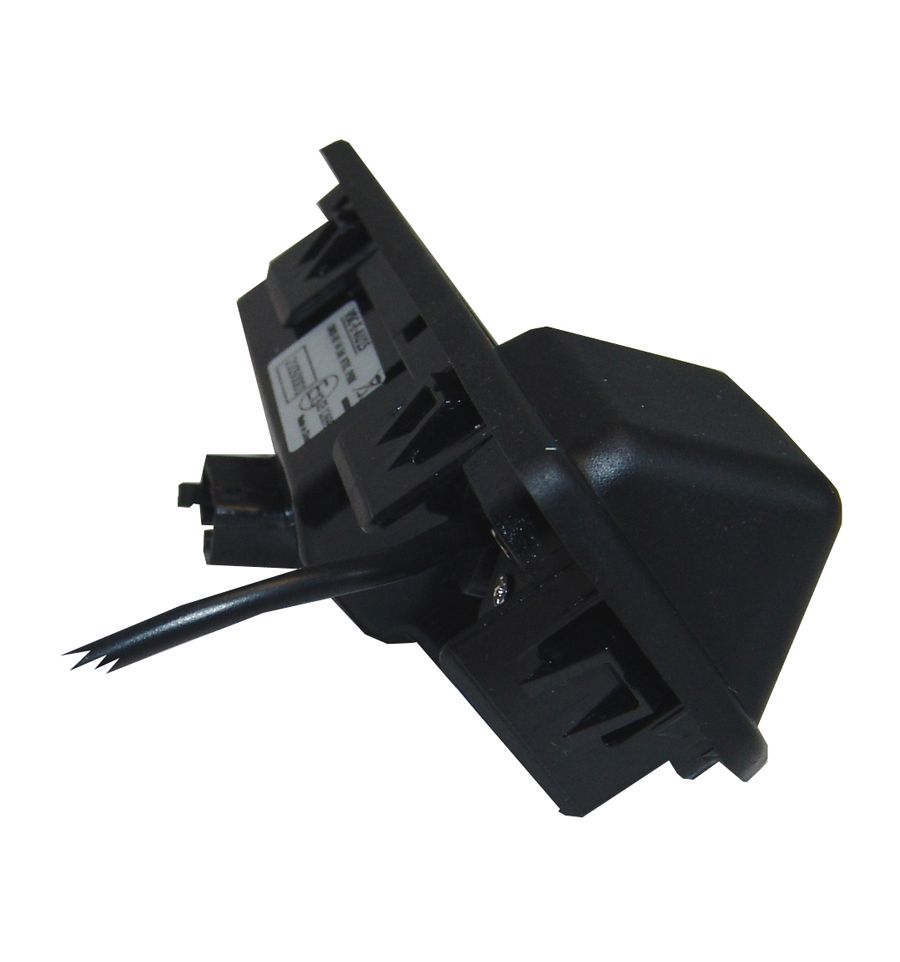

Vehicle-specific exchange rear door opener handle with integrated camera and switchable guide-lines. Easy assembling by replacing the factory rear door opener handle. Professional connector cable with enough length and automotive plug connection. Easy to lay the cable due to a small cable diameter. Additional wire for signal transfer, e.g. power supply or rear-view camera signal.

Compatible with:

  • Enyaq (5A) since 11/2020
  • Fabia3 (NJ) from 06/2016 til 08/2021
  • Fabia4 (PJ) since 09/2021
  • Kamiq (NW4) since 06/2019
  • Karoq (NU7) since 07/2017
  • Kodiaq (NS7) since 03/2017
  • Octavia4 (NX) since 03/2020
  • Octavia4 Combi (NX) since 03/2020
  • Rapid (NH) from 06/2016 til 02/2019
  • Rapid Spaceback (NH) from 06/2016 til 02/2019
  • Scala (NW1) since 01/2019
  • Superb3 (3V) since 04/2018
  • Superb3 Combi (3V) since 04/2018


NOTE:
Please check the size indications and the pictures of the camera for the compatibility with the vehicle, before buying!


Features:

  • Sensor type 1/3inch CMOS PC3089
  • Picture format NTSC
  • Resolution 720 x 480 Pixel
  • Min illumination 0.4 Lux
  • Angle horizontal 140°, vertical 105°, diagonal 180°
  • Mirrored image (fixed)
  • Parking guide lines, optional switchable
  • System cable with throughput, e.g. for reverse signal
  • Protection class IP69K
  • Colour of rear door opener handle and camera black
  • Total cable length 10m
  • Video connector RCA male connector
  • System connector camera 4pin BM
  • Diameter camera connector 5mm


Dimensions:

  • Overall 111 x 44 x 58mm (W x H x T)
  • Installation opening 105 x 40mm (W x H)



Operating voltage+12V DC (6V~16V)
Current consumption40mA
Power consumption0.5W
Weight incl. cable approx.230g
Operating temperature range-20°C to +70°C
CategoryCameras RVC
