Video interface for Smart Media-System with rear camera input

Smart Smart



Video interface for Smart Media-System, 2 video inputs and rear camera input

More details

shipped in 24 h

€ 245,08

tax incl.

Worldwide shipping

24/48h Delivery

Secure payment

Car electronic experts since 1990

Video interface for Smart Media-System, 2 video inputs and rear camera input

This interface allows you to integrate an external video source to your cars factory fitted screen. Once connected it gives you the ability to connect an in car DVD player, games console (such as Playstation2 or Xbox), iPod video, digital TV tuner, rear view camera, car navigation GPS etc to keep your passengers entertained.

The multimedia interface has 2 video inputs and a rear camera input.The interface does not replace your original system - it offers perfect integration to maintain your OEM appearance. The interface connects directly to the head unit and you can select video source using the provided switch to change video source


Product features:

  • Video-insertion for factory-infotainment monitors
  • 2 CVBS video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner, .)
  • Rear-view camera CVBS video-input
  • Automatic switching to rear-view camera input on engagement of reverse gear
  • Video-in-motion (ONLY for connected video-sources)
  • Video-inputs only NTSC compatible



Smart Media System (R-link) factory fitted on Smart ForTwo (C453/A453) from 09/2014, ForFour (W453) from 08/2014, Brabus Versions from 2016.



The interface inserts ONLY video signals into the infotainment. For sound use the possibly existing factory-audio-AUX-input or a FM-modulator.

Automatic switch to factory rear-view camera only while reverse gear is engaged. To delay the switch reset, additional electronics is required.



BATT/ACC range7V – 25V power drain<25mA
Video input0.7V˜1V
Video input formatsPAL/NTSC
Temperature range-40°C to +85°C
Dimensions video-box113 x 22 x 96mm (W x H x D)
Dimensions CAN-box73 x 22 x 45mm (W x H x D)

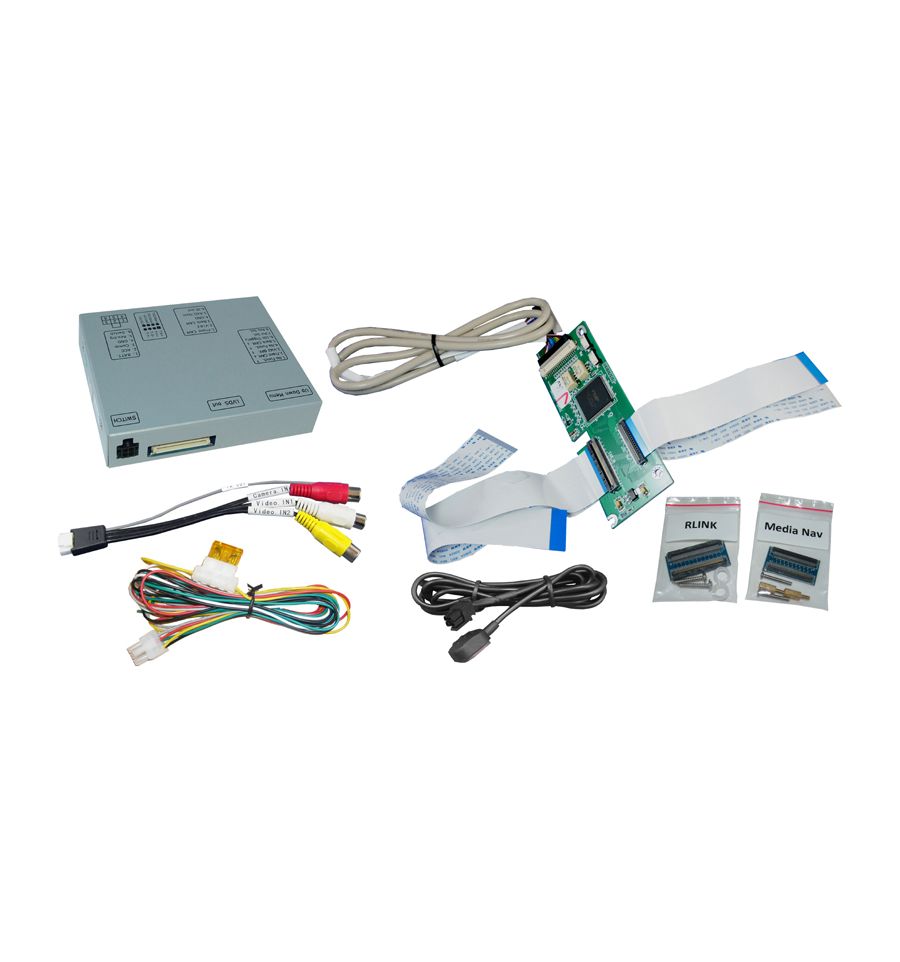

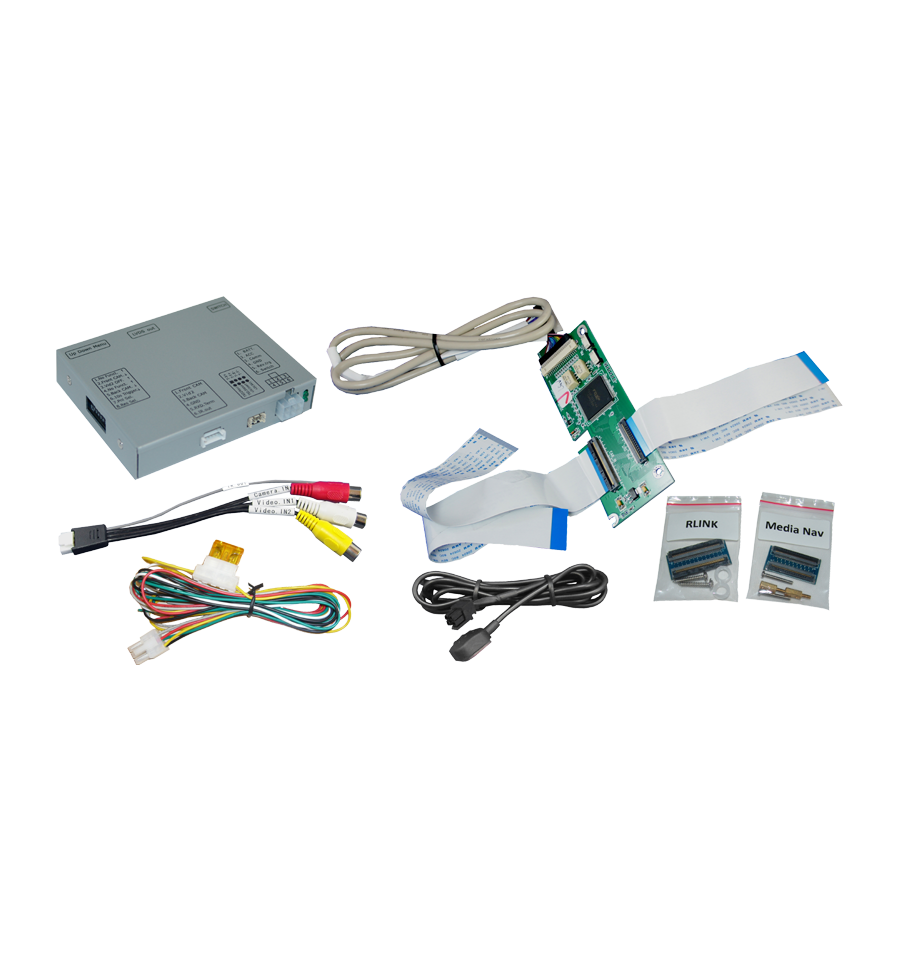

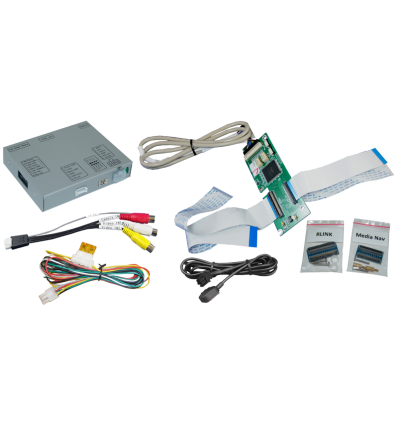

  • Video-insertion: ribbon-cable
  • Power: open cable ends
  • Video-input (2x): female RCA connector
  • Rear-view camera-input: female RCA connector


Remember that in some states it is illegal to use the video in motion while driving!

The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.
