New Iveco Daily 6 from model year 2014 Rear-view camera exchange brake light with CMOS Expand

Iveco Daily 6 from model year 2014 Rear-view camera exchange brake light with CMOS

Fiat Fiat

CI-VAN-DLY6

New

Vehicle-specific 3. brake light glass with NTSC rear-view camera to replace the factory glass. Fits Iveco Daily 6 from model year 2014.

More details

€ 146,72

tax incl.

Worldwide shipping

24/48h Delivery

Secure payment

Car electronic experts since 1990

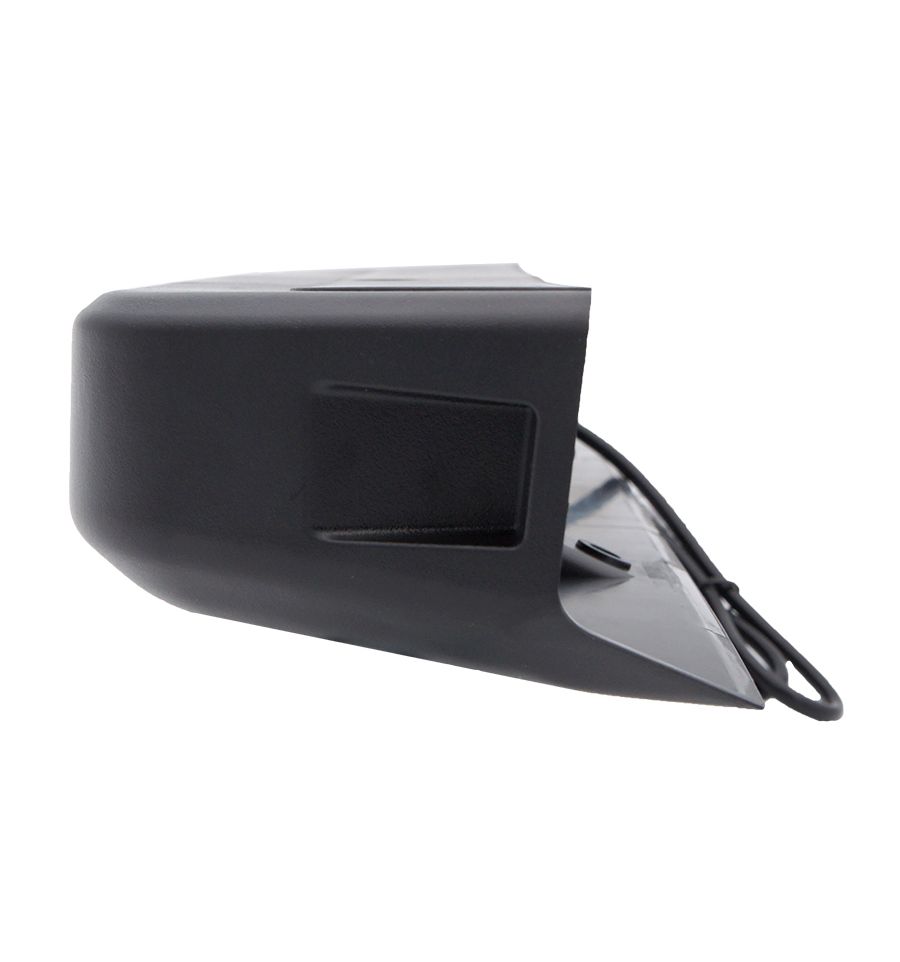

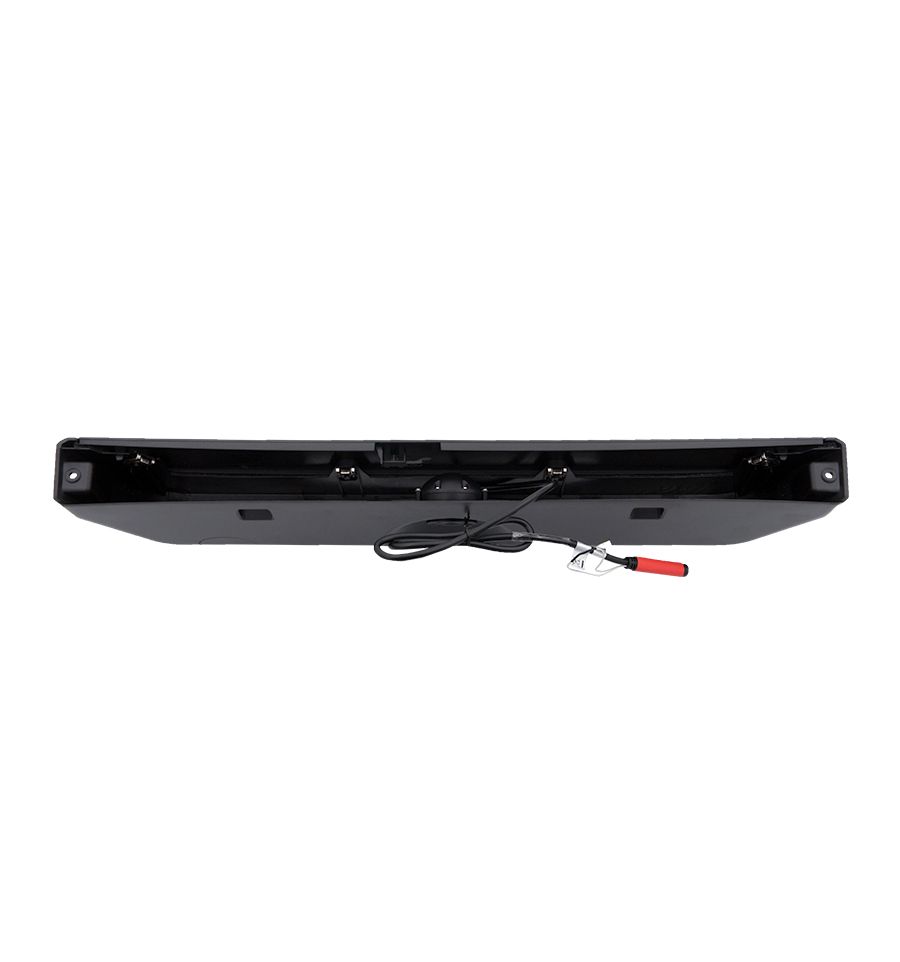

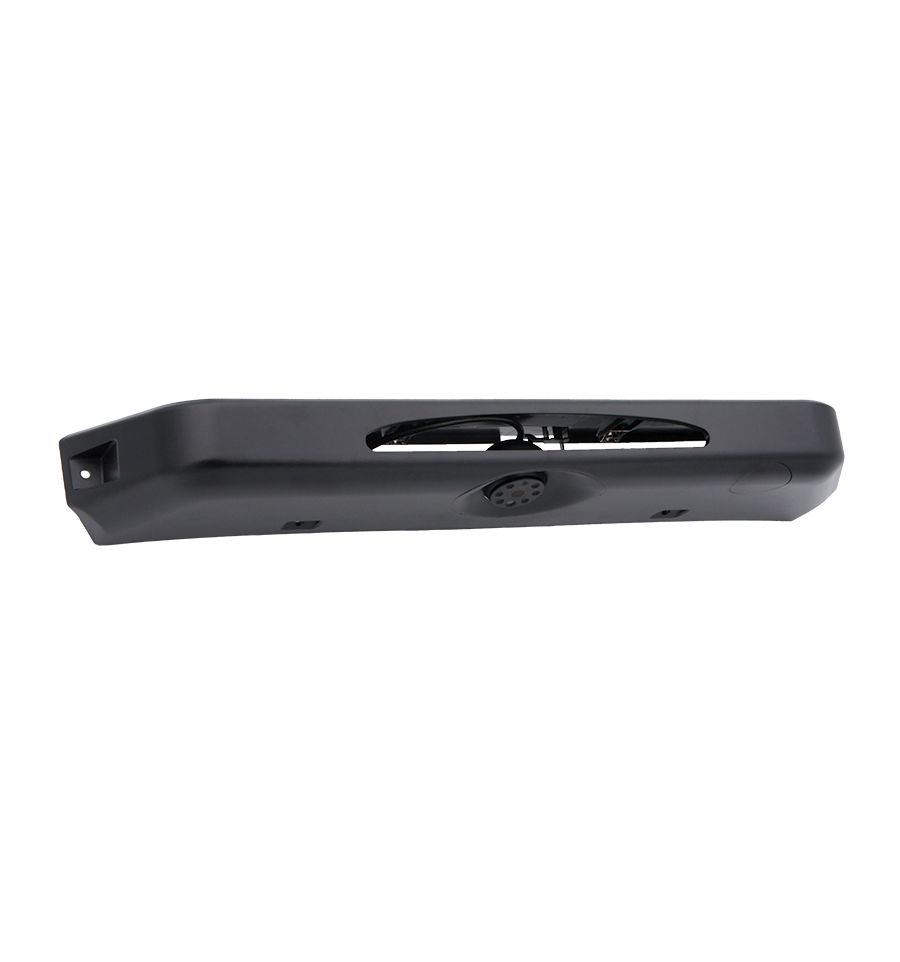

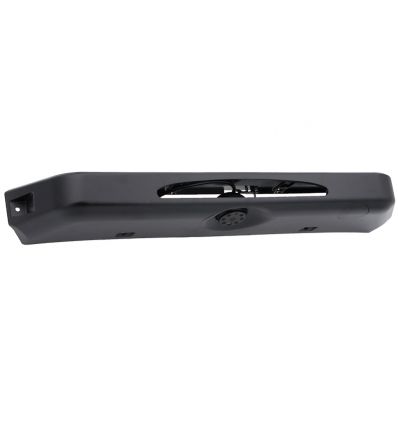

Vehicle-specific exchange brake light illumination-glass with rear-view camera. Easy assembling by replacing the factory brake light illumination-glass. Professional connector cable with enough length and automotive plug connection. Easy to lay the cable due to a small cable diameter.

Compatible with:

  • Iveco Daily 6 model year 2014 -2019


NOTE:
Please check the size indications and the pictures of the camera for the compatibility with the vehicle, before buying!


Features:

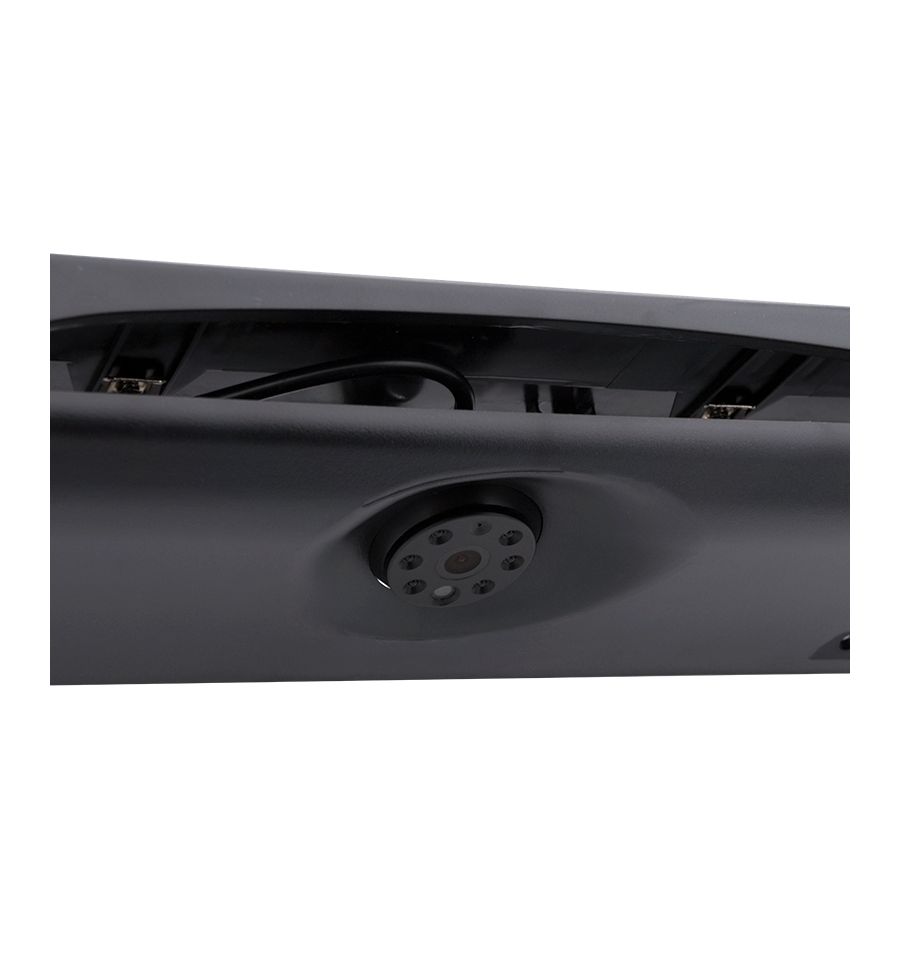

  • Camera in vehicle-specific 3rd brake light
  • Mounted by exchanging the factory 3rd brake light
  • Use of factory illumination
  • Camera position 3 steps adjustable vertically
  • Sensor-type CMOS 1/4 inch HD low-light sensitive
  • NTSC format (800 TV lines)
  • Aperture F1.36
  • Light sensitivity 0.01 Lux
  • Angle H = 110°, V = 80°, D = 140°
  • Mirrored picture (fixed)
  • Guide-lines can be switched off
  • Protection class IP69
  • 11.10m total system cable length, consists of:
    -0.70m cable fixed on camera to male 4pin-BM (Ø 10mm)
    -10.00m extension cable female 4pin-BM to male 4pin-BM
    -0.40m adapter female 4pin-BM to male RCA (with adapter) and power wires (open cable ends)

Brake light with cameraapprox 572 x 63 x 120mm (W x H x D)
Overhang length camera
(from brake light)
approx 58mm
Installation openingapprox 201 x 47mm (W x H)
Installation opening depthapprox 63mm

Operating voltage+12V DC
Current consumptionmax. 120mA
Suitable for permanent power (ACC)ACC
Operating temperature range-30°C to +75°C
Storage temperature range-40°C to +80°C
CategoryCameras RVC
