Brake light camera AHD/CVBS fits IVECO Daily7 2019-

Fiat Fiat

CI-VAN-DLY7-X

New

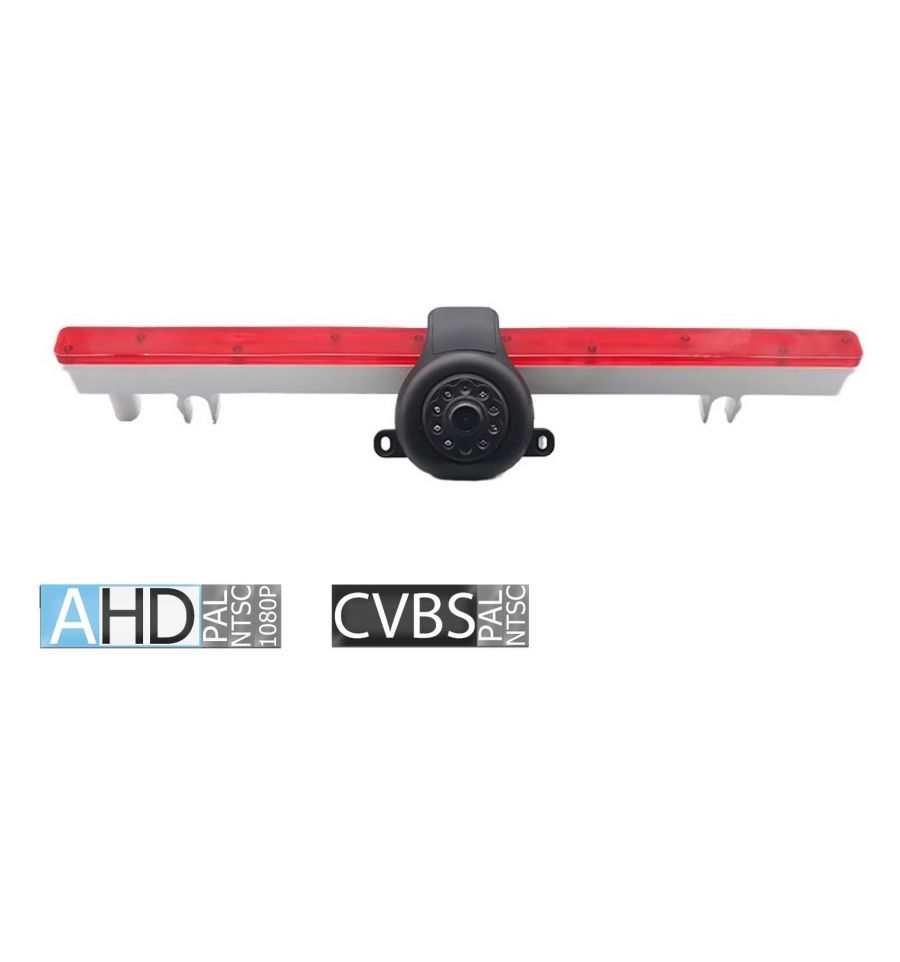

Vehicle-specific 3. brake light glass with switchable AHD1080p/CVBS and PAL/NTSC rear-view camera. Fits IVECO Daily 7 2019.

More details

€ 189,00

tax incl.

Vehicle-specific 3. brake light glass with switchable AHD1080p/CVBS and PAL/NTSC rear-view camera. Fits IVECO Daily 7 2019.

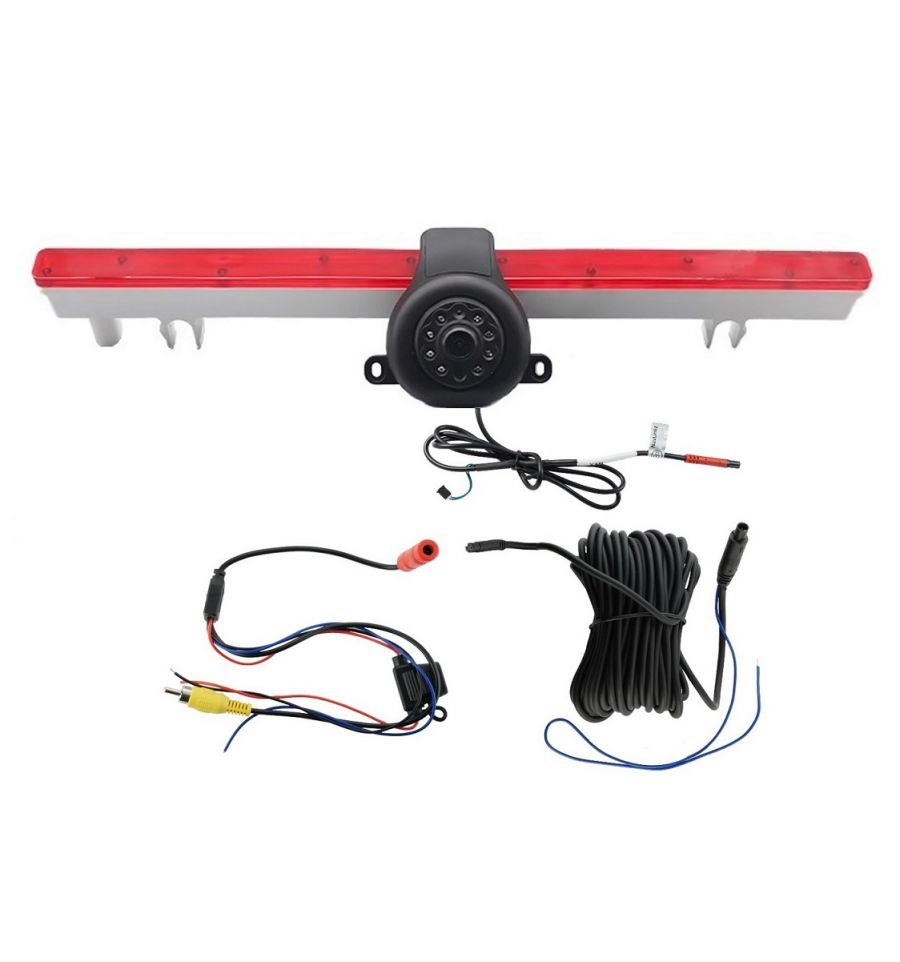

Vehicle-specific third brake light with integrated AHD/CVBS/PAL/NTSC rear-view camera (switchable). Easy assembly by replacing the factory third brake light.
Professional system harness with sufficient length and automotive connectors. Easy to lay cable due to a small cable and connector diameter. With IR-lighting for better visibility in the dark.


Product features

  • Camera in vehicle-specific 3rd brake light glass
  • Mounted by exchanging the factory 3rd brake light glass
  • Factory illumination is kept
  • Camera position adjustable in 3 steps vertically
  • Sensor-type CMOS 1/4 inch AHD/CVBS/PAL/NTSC switchable
  • Resolution 1080p
  • Frame rate 25fps (PAL) / 30fps (NTSC) switchable
  • Aperture F1.36
  • Light sensitivity 0.02 LUX
  • Infrared night vision LED
  • Angle horizontal 160°, vertical 90°, diagonal 185°
  • Mirrored picture (fixed)
  • Guidelines can be switched off
  • Protection class IP69
  • Mini 4pin-BM system harness, integrated throughput wire (blue) for rear-view signal
  • 11.80m total system cable length, consists of:
    - 1.40m cable fixed on camera to female 4pin-BM (⌀ 5mm)
    - 10.00m extension cable male 4pin-BM to female 4pin-BM
    - 0.40m adapter male 4pin-BM to male RCA and power wires


NOTE:
Please check the size indications and the pictures of the camera for the compatibility with the vehicle, before buying!

Compatibility

BrandModel
IVECODaily 7 from MY 2020 up


Dimensions

Overall with cameraapprox. 340 x 65 x 60mm (W x H x D)
Overhang cameraapprox. 18mm
Installation openingapprox. 340 x 19mm (W x H)
Installation opening depthapprox. 26-45mm


Specifications

Operating voltage+12V DC
Current consumptionmax. 190mA
Suitable for permanent power (ACC)No
Operating temperature range-30°C to +75°C
Storage temperature range40°C to +80°C
CategoryCameras RVC
