FORD Rear-view camera exchange license-plate illumination with guide-lines and warm-white LED for C-Max, Focus, Mondeo Expand

FORD Rear-view camera exchange license-plate illumination with guide-lines and warm-white LED for C-Max, Focus, Mondeo

Ford Ford

CI-VS3-FO22

New

FORD Rear-view camera exchange license-plate illumination with guide-lines and warm-white LED for C-Max, Focus, Mondeo

More details

€ 139,00

tax incl.

Worldwide shipping

24/48h Delivery

Secure payment

Car electronic experts since 1990

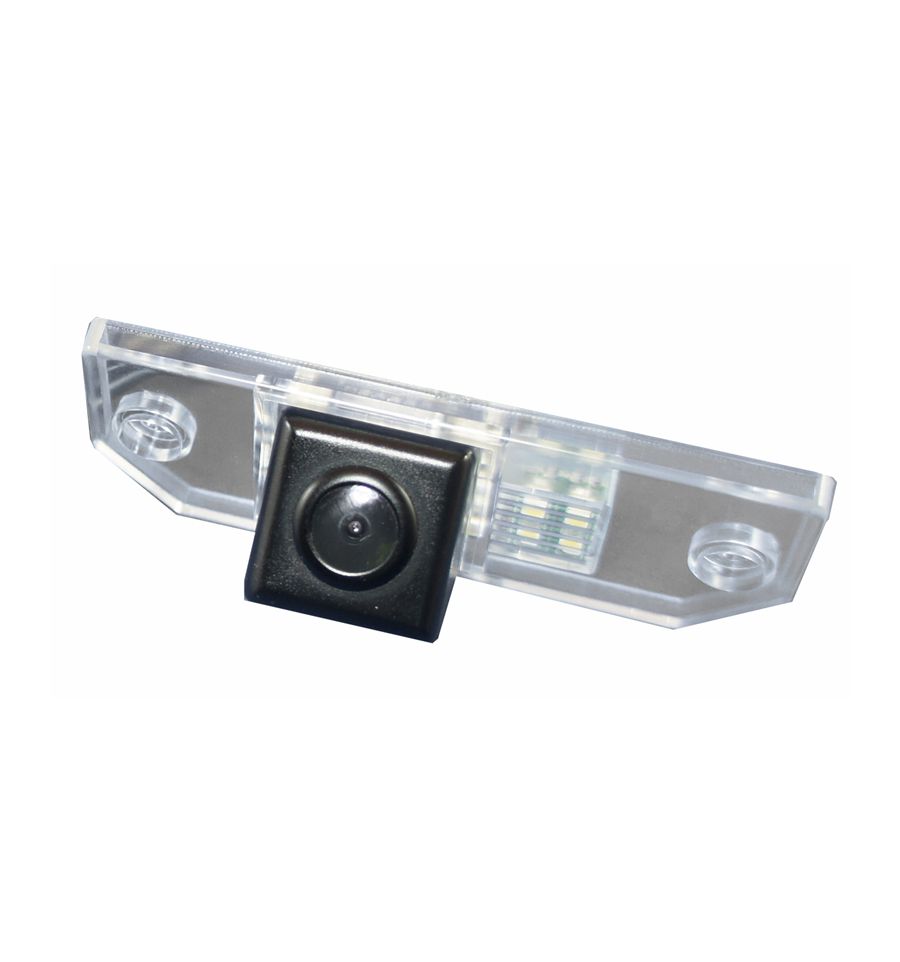

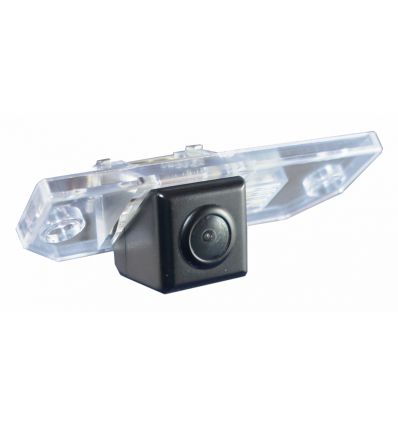

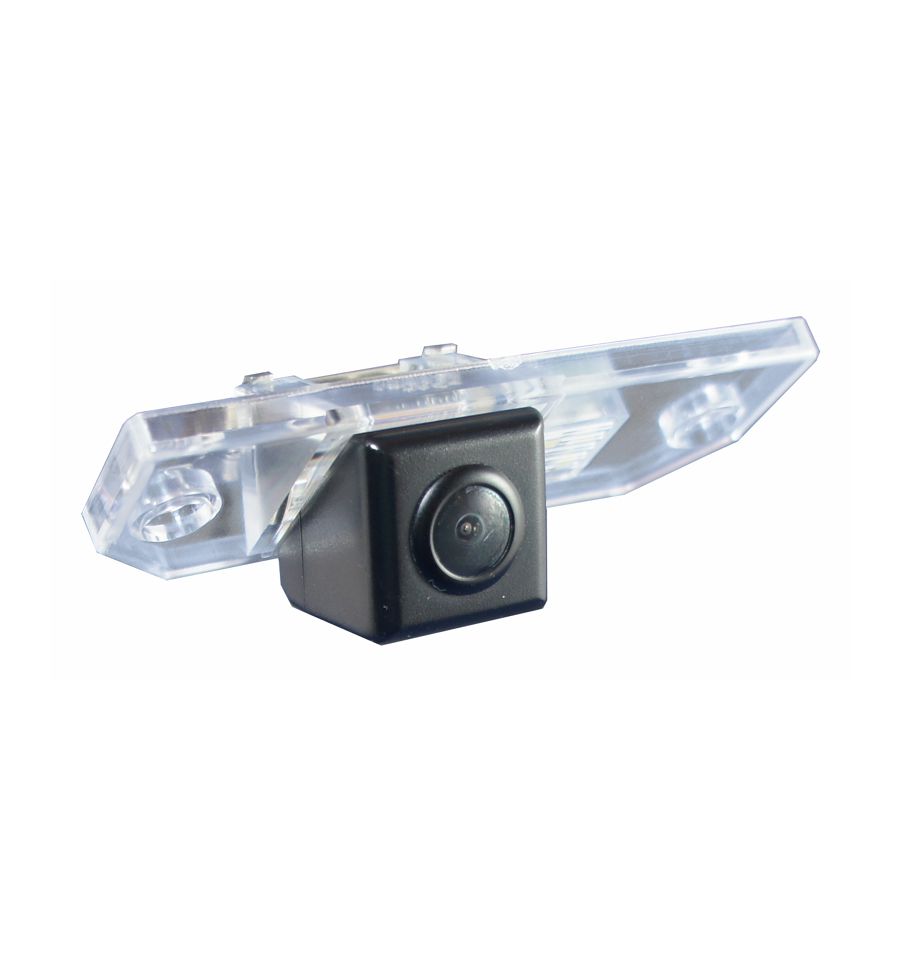

Mini-camera with vehicle specific license plate light with warm-white LED.
Simple installation due to replacement of the factory license plate light.
Professional set of system cables in adequate length and with automotive connectors.
Due to connectors with a small diameter the cable can easily be laid.
An additional cable core for signal transfer e.g. power supply or reversing signals.
Guidelines can be disabled.


Compatible with:
  • Mondeo (01)  2000-2007
  • Focus (C107)  2001-2004
  • C-Max  2007-2009

NOTE:
Please check the size indications and the pictures of the camera for the compatibility with the vehicle, before buying!


Properties:

  • Mini-camera with vehicle-specific number-plate illumination-glass
  • Water resistance IP69K
  • Sensor-type 1/3inch CMOS NTSC colour
  • Resolution 800 TV lines
  • Sensitivity 0.01Lux F1.2
  • Angle horizontal 120°, vertical 100°, diagonal 170°
  • Mirrored image (fixed)
  • Guide lines, optionally disengageable
  • Camera-cable 1.8m with 4pin 3V system-female connector (diameter 5.9mm)
  • Extension cable 4pin 3V, 8m with wire for signal throughput
  • System-connector system cable 4pin 3V with RCA connector and fuse
Dimensions:
  • Overall: L/W/D  86 x 32 x 36 mm
  • Cover glass: L/W/D 86 x 32 x 16.3 mm
  • Build-in hole: L/W  70 x 32 mm
  • Hole spacing: 70 mm


BATT/ACCrange6V - 26V
Power0.05A 12V
Power consumption0.6W
Weight incl. cable196g
Operating temperature-30°C to +70°C
FordC-Max, Focus, Mondeo
CategoryCameras RVC
