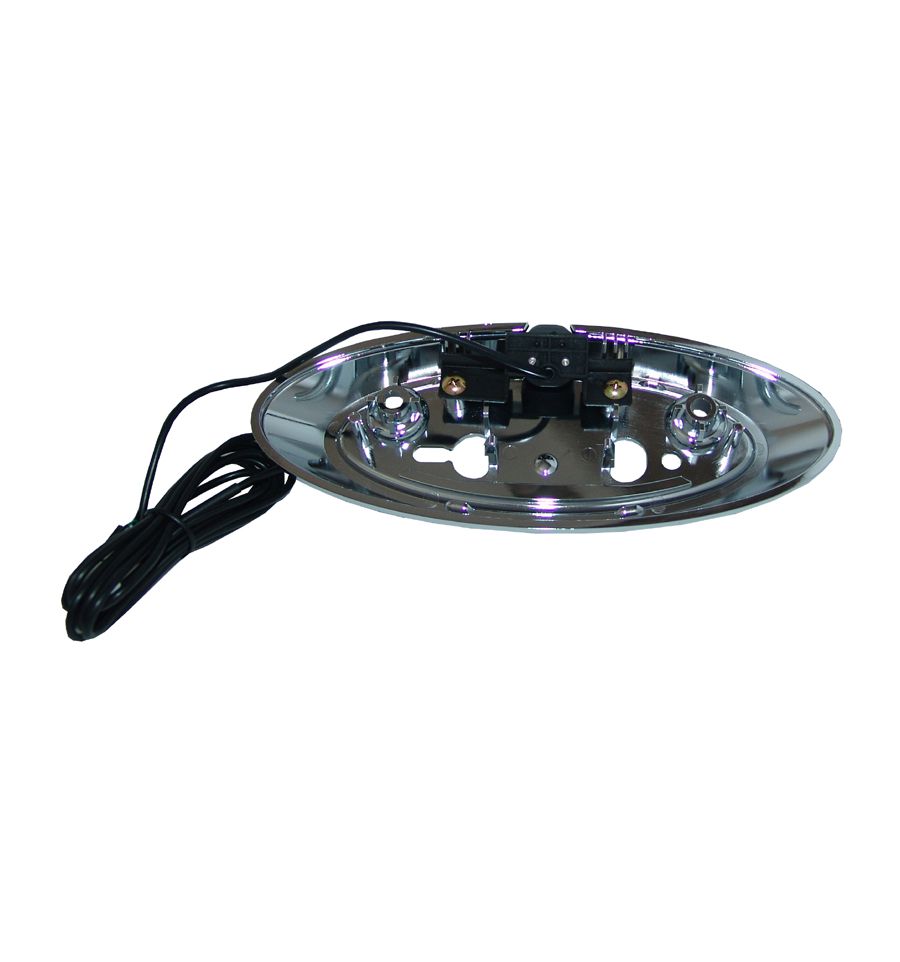

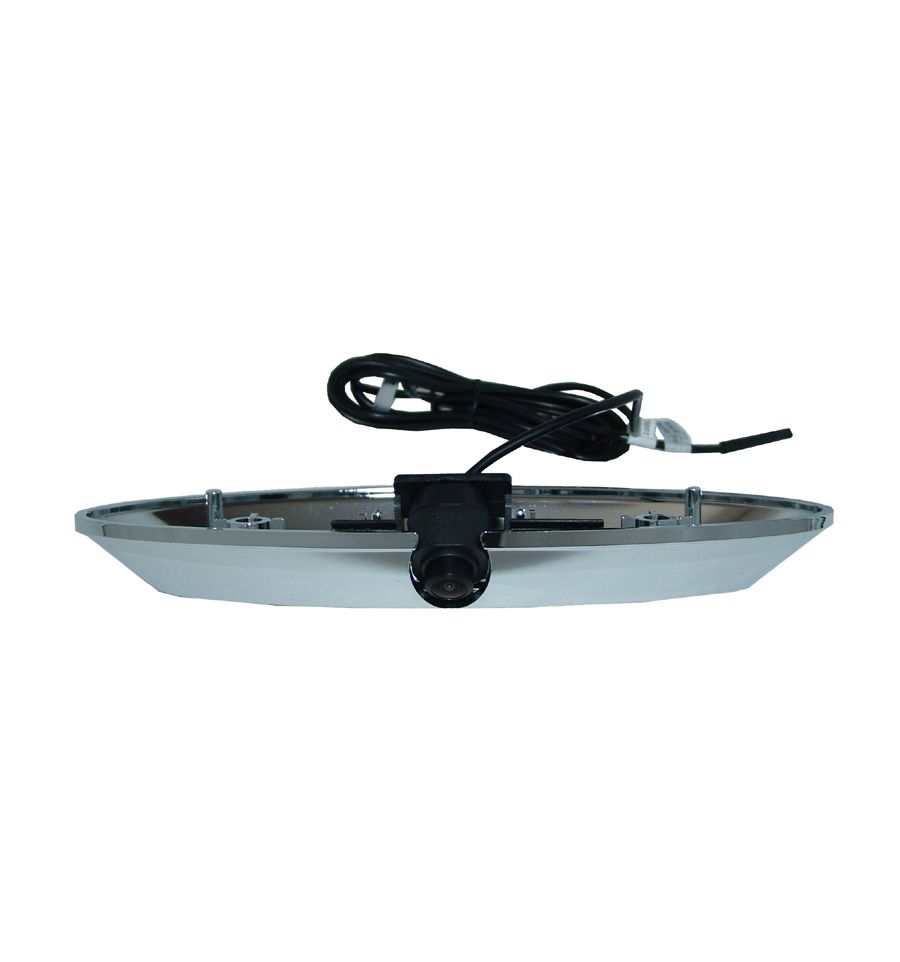

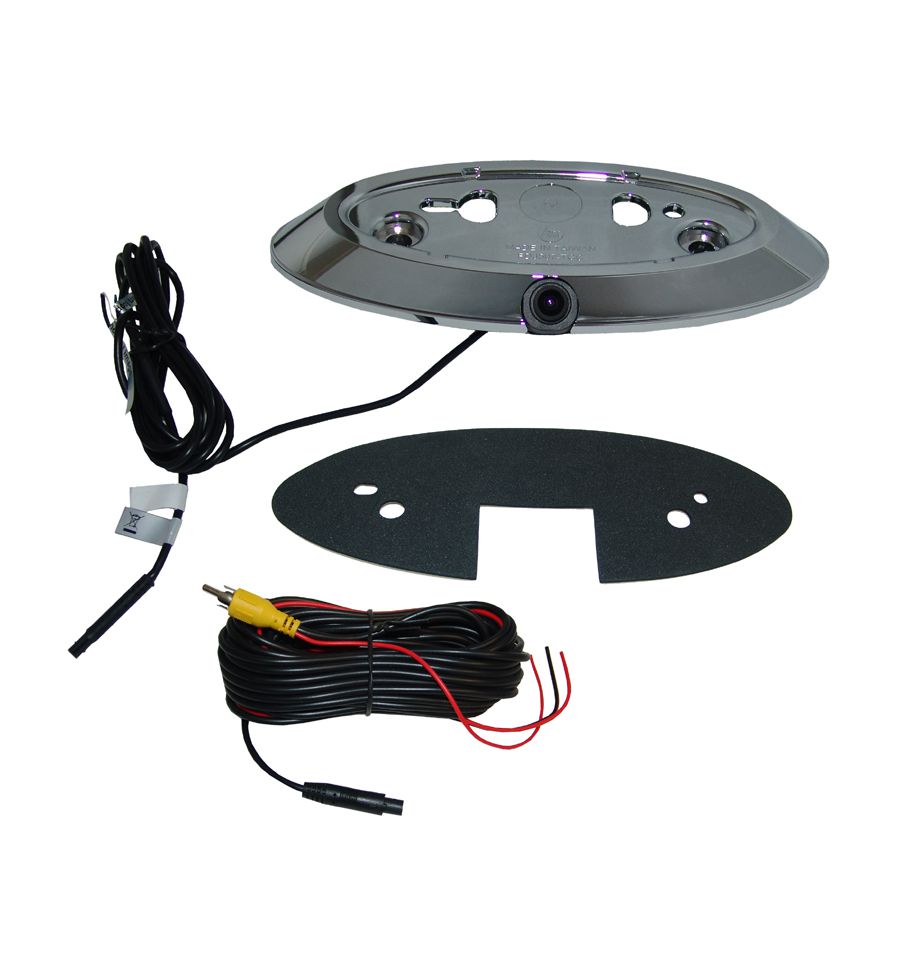

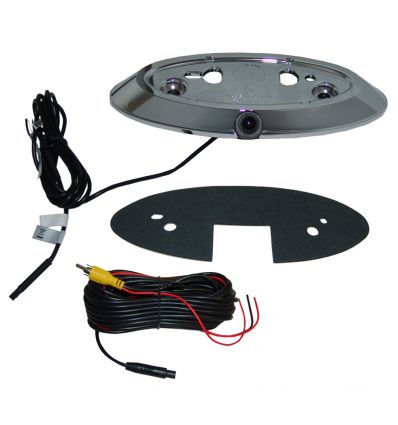

FORD Rear-view camera exchange license-plate illumination with guide-lines & warm-white LED for Ranger, F-150, F-250 Super Duty
CI-VSC-E-FO05
New
FORD Rear-view camera exchange license-plate illumination with guide-lines and warm-white LED for Transit
Valutazione: Scrivi per primo una recensione!
Mini-camera with vehicle specific license plate light with warm-white LED.
Simple installation due to replacement of the factory license plate light.
Professional set of system cables in adequate length and with automotive connectors.
Due to connectors with a small diameter the cable can easily be laid.
An additional cable core for signal transfer e.g. power supply or reversing signals.
Guidelines can be disabled.
Vehicle-specific exchange emblem frame with integrated camera and switchable guide-lines. Easy assembling by replacing the factory emblem frame. Professional connector cable with enough length and automotive plug connection. Easy to lay the cable due to a small cable diameter.
Compatible with:
NOTE:
Please check the size indications and the pictures of the camera for the compatibility with the vehicle, before buying!
Properties:
Dimensions:
Simple installation due to replacement of the factory license plate light.
Professional set of system cables in adequate length and with automotive connectors.
Due to connectors with a small diameter the cable can easily be laid.
An additional cable core for signal transfer e.g. power supply or reversing signals.
Guidelines can be disabled.
Vehicle-specific exchange emblem frame with integrated camera and switchable guide-lines. Easy assembling by replacing the factory emblem frame. Professional connector cable with enough length and automotive plug connection. Easy to lay the cable due to a small cable diameter.
Compatible with:
- Ranger
- F-150 2008-2017
- F-250 Super Duty 2011-2016
NOTE:
Please check the size indications and the pictures of the camera for the compatibility with the vehicle, before buying!
Properties:
- 1/3inch CMOS NTSC sensor (PC3089)
- Resolution 720 x 480 pixel (700 TV-lines)
- 0.1 Lux min illumination
- F1.2 aperture
- Angle horizontal 160°
- Mirrored image (fixed)
- Parking guide lines, optional disengageable
- Protection class IP69
- Exchange emblem frame and camera
- 1.8m Camera-cable with 4pin-BM system-female connector (diameter 5mm)
- 8m Extension cable (4pin-BM)
Dimensions:
- Overall: 230 x 90 x 37mm (W x H x D)
- Hole spacing: 119mm
| Operating voltage | 12V DC (6V~16V) |
| Current consumption | 40mA |
| Power consumption | 0.5W |
| Operating temperature | -20°C to +70°C |
| Storage temperature | -40°C to +85°C |
| Weight camera approx. | 290g |
| Ford | Ranger, F-150, F-250 |
| Category | Cameras RVC |
