New Video interface for Citroen Navidrive 3D NG4 Expand

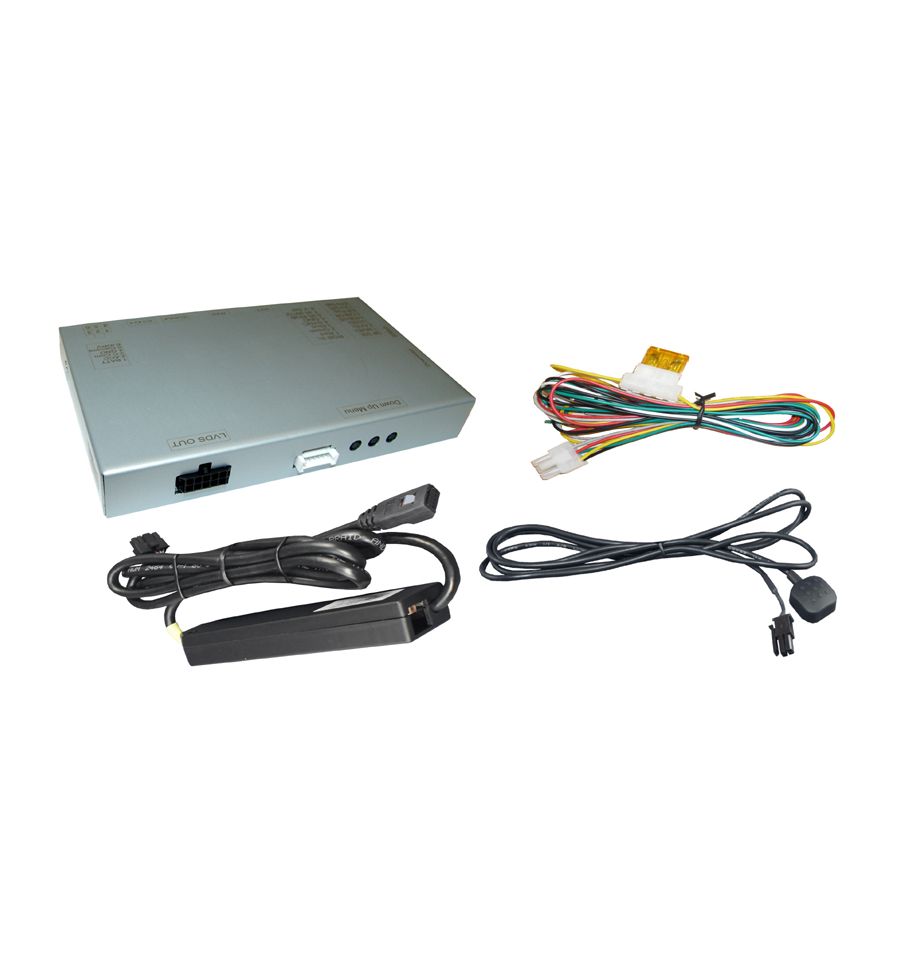

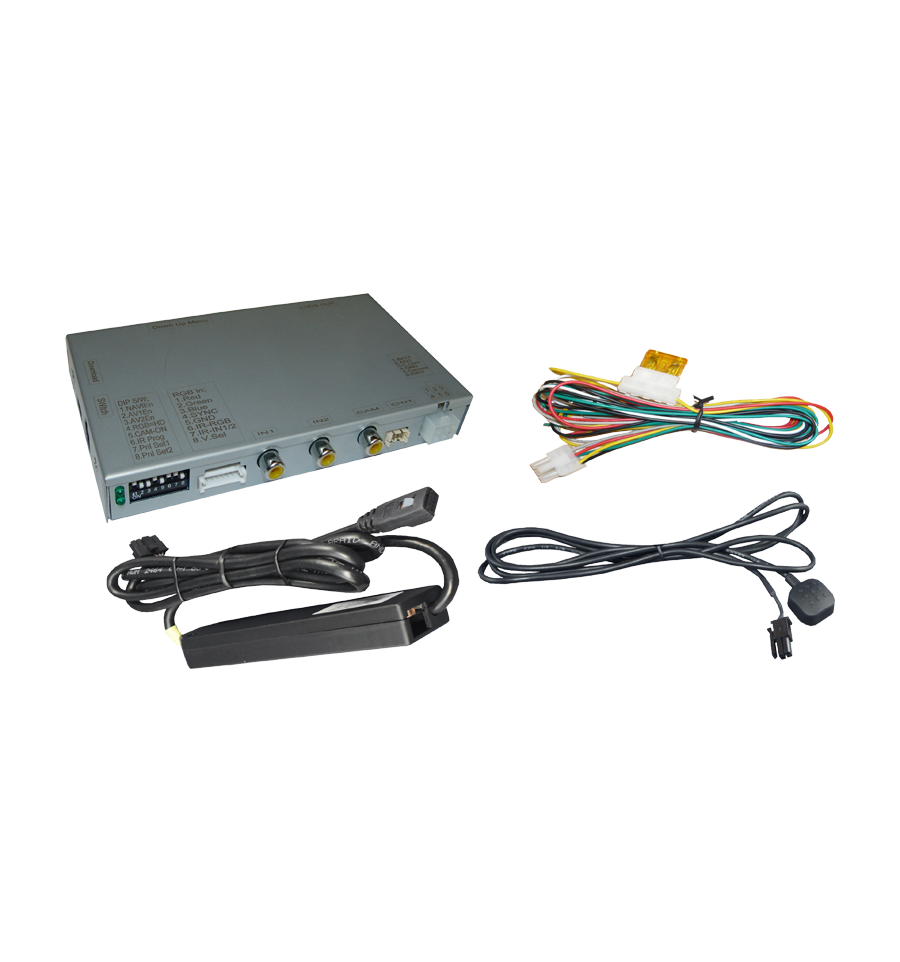

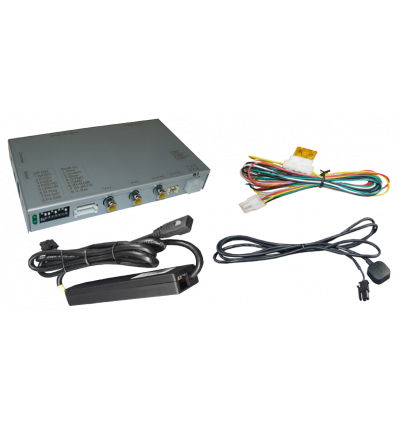

Video interface for Citroen Navidrive 3D - NG4

Citroen Citroen



Video Interface for Citroen Navidrive 3D - NG4, MyWay, eMyWay RNEG original navigation systems.

More details

€ 245,08

tax incl.

Worldwide shipping

24/48h Delivery

Secure payment

Car electronic experts since 1990

Video Interface for Citroen Navidrive 3D - NG4 original navigation systems.


Watch any video source on your original screen

This interface allows you to integrate an external video source to your cars factory fitted screen. Once connected it gives you the ability to connect an in car DVD player, games console (such as Playstation2 or Xbox), iPod video, digital TV tuner, rear view camera, car navigation GPS etc to keep your passengers entertained.

The multimedia interface has 2 video inputs, a rear camera input and a RGBS connection to add satellite navigation if you do not have a factory fitted option. The interface does not replace your original system - it offers perfect integration to maintain your OEM appearance. The interface connects directly to the head unit and you can select video source using the provided keypad.


C5 MyWay C4 MyWay


Product features:

  • Video-insertion for factory-infotainment monitors
  • 2 CVBS video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner, .)
  • Rear-view camera CVBS video-input
  • Automatic switching to rear-view camera input on engagement of reverse gear
  • RGB-input for after-market navigation
  • Video-in-motion (ONLY for connected video-sources)
  • Compatible with factory rear-view camera
  • AV-inputs PAL/NTSC compatible



Original MyWay RNEG,
Navidrive 3D - NG4, RT3(evo)-4-5 with 10pin connector

ModelRadio / Navigation
  Berlingo  > 2014

NaviDrive RT3evo/4/5,
NaviDrive 3D NG4,

  C3  2010 > 2016
  C3 Picasso  2009 > 2017
  C4  > 2014
  C4 Picasso  > 2013
  C5  2008 > 2017
  C6  > 2015
  DS3  2010 > 2015
  DS4  2011 > 2014
  DS5  2012 >
  Jumpy  2009 > 2015



The interface inserts ONLY video signals into the infotainment. For sound use the possibly existing factory-audio-AUX-input or a FM-modulator.

Automatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required.



BATT/ACC range7V – 25V power drain<5mA
Video input0.7V˜1V
Video input formatsPAL/NTSC
RGB-video amplitude0.7V with 75 Ohm impedance
Temperature range-40°C to +85°C
Dimensions video-box154 x 22 x 92 mm (W x H x D)
Dimensions CAN-box73 x 22 x 45 mm (W x H x D)


  • Video-insertion: 10-pin HSD
  • Power and CAN-bus: Plug & play
  • Video-input (2x): RCA connector
  • Rear-view camera-input: RCA connector


Remember that in some states it is illegal to use the video in motion while driving!

The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.

CitroenBerlingo, Jumpy, DS5, DS4, DS3, C8, C6, C5, C4 Picasso, C4, C3 Picasso, C3
CategoryVideo integration
