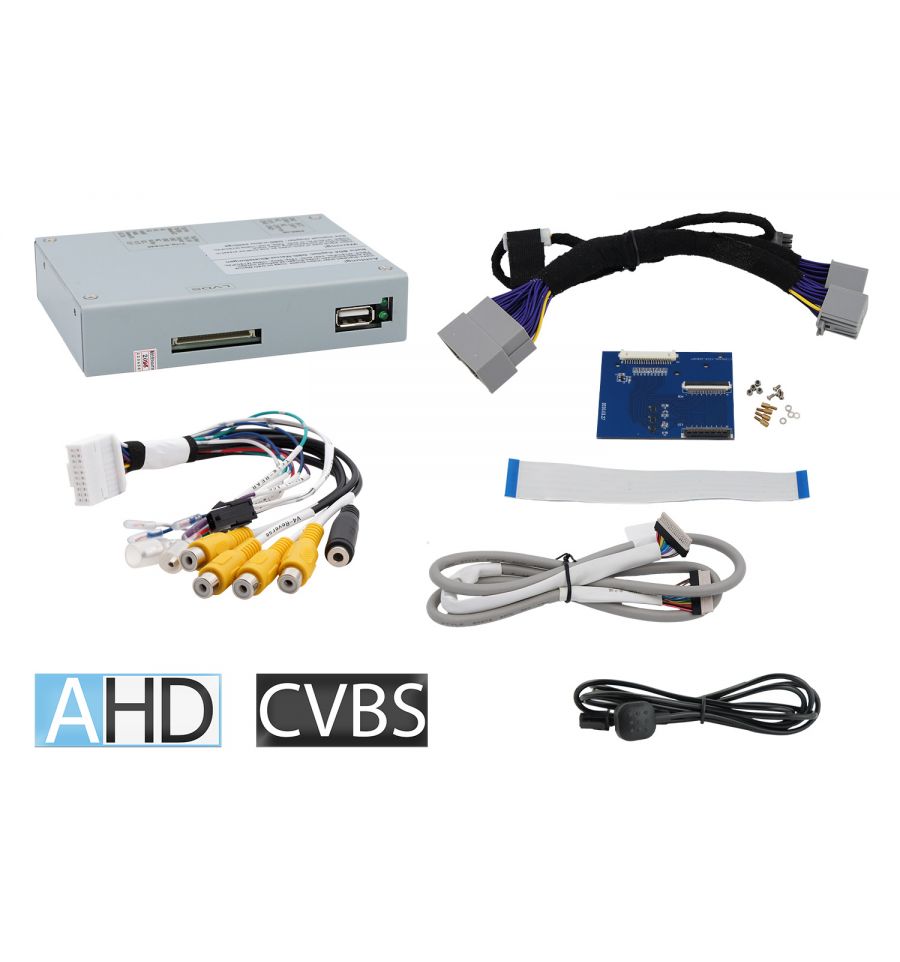

Video inserter for rear-view camera, front camera with auto switching and 2 video-sources. CVBS and AHD compatible.

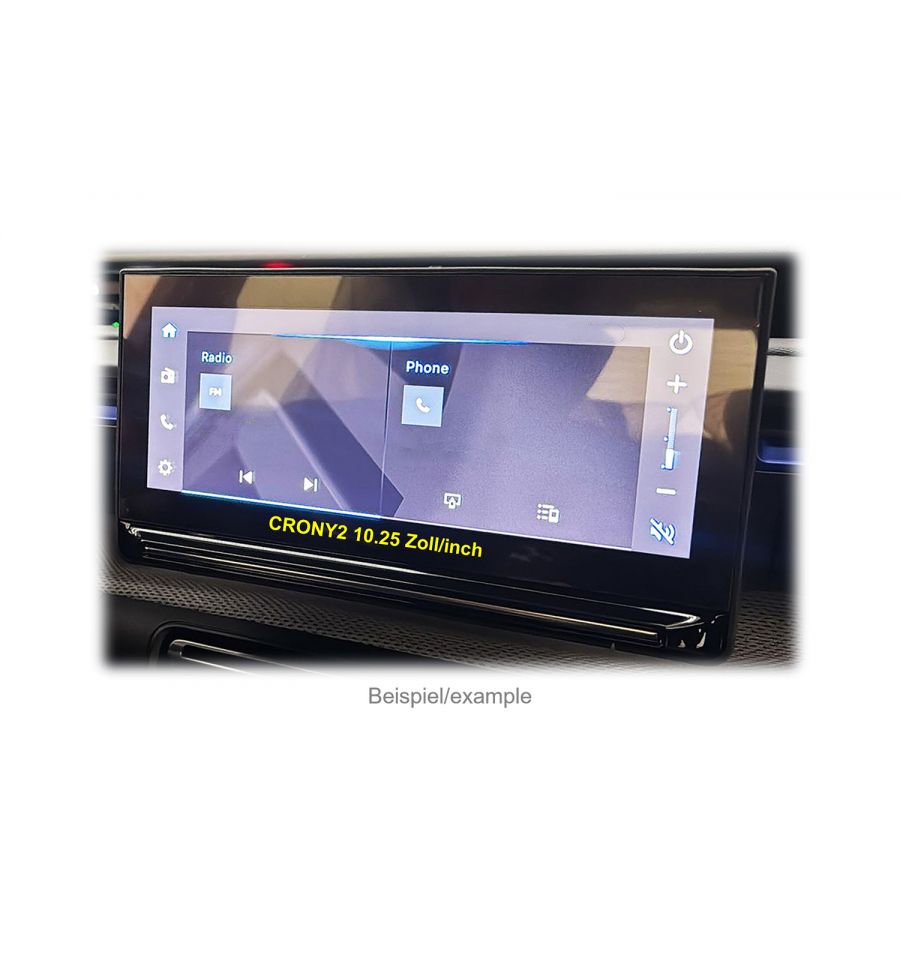

Compatible with Citroen CRONY2 with 10.25inch monitor
Video inserter for rear-view camera, front camera with auto switching and 2 video-sources. CVBS and AHD compatible.
Compatible with Citroen CRONY2 with 10.25inch monitor
Product features
- Video-insertion for factory infotainment systems
- 1 Rear-view camera AHD/CVBS video-input
- 1 AHD/CVBS front camera video-input
- 2 CVBS video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner, .)
- Supported AHD resolutions 720p NTSC (30Hz), 720p PAL (25Hz), 960p NTSC (30Hz),
960p PAL (25Hz), 1080p NTSC (30Hz), 1080p PAL (25Hz) - Automatic switching to rear-view camera input on engagement of reverse gear
- Automatic front camera switching after reverse gear for 10 seconds
- Video-in-motion (ONLY for connected video-sources)
- Compatible with factory rear-view camera
- AV-inputs PAL/NTSC compatible
Compatibility
| Model | Radio/Navigation |
| C3 4.G from 04/2024 | CRONY2 radio/nav by Bosch 10.25inch ALL-IN-ONE head-unit
|
| C3 Aircross 3.G from 06/2024 |
| CAN-bus compatibility | CAN-bus compatibility of interface may to some vehicles have no or limited compatibility. This can show on installation as well as later. Interface and all its video-inputs can be operated with analogue trigger signals, without connection to vehicle CAN-bus. Yes, in this case, some features do not work, see hereinafter. |
| Video only | Interface inserts only video-signals into the infotainment. To insert audio signals a possibly existing factory audio-AUX-input or other optional products (e.g. AUX-UNI0x, FM-Modulator) must be used. |
| Factory rear-view camera | Automatic switching to factory rear-view camera input is only possible while reverse gear is engaged. For deviating switching times optional accessories are required. |
| After market front camera | Front camera will automatically be switched to for 5, 10, 15 or 20 seconds (depending on menu setting) after disengaging the reverse gear. Manual switching to front camera is possible by external keypad. |
| Guide lines for rear-view camera | If the vehicle CAN bus is not fully compatible with the interface or if the connection is analogue, the moving guide lines function cannot be used. |
The interface have to be installed in the monitor panel (the cover needs to be opened)!
Specifications(interface-box)
| Operation voltage | 7V – 25V |
| Stand-by power drain | <10mA |
| Video input | 0.7V - 1V |
| Video input format | NTSC |
| RGB-video amplitude | 0.7V with 75 Ohm impedance |
| Temperature range | -40°C to +85°C |
| Dimensions video-box | 119×24×95 mm (W×H×D) |

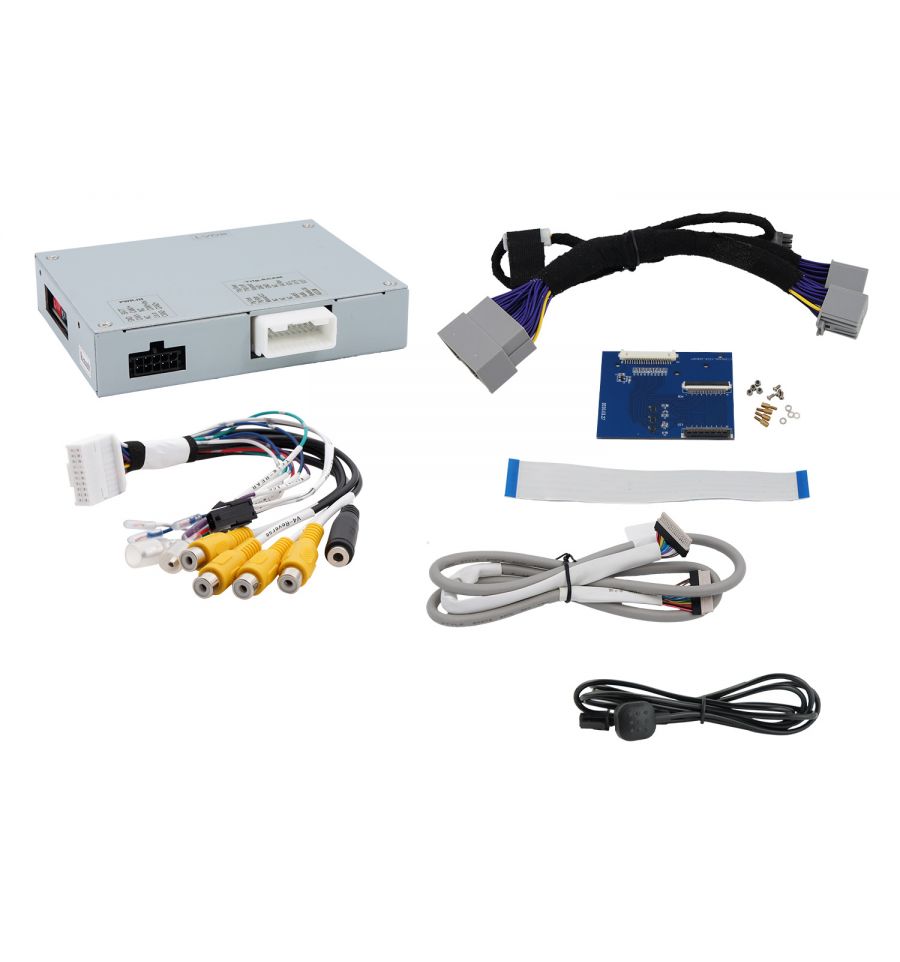

Connections (Interface-box)
- Video-insertion: Ribbon cable
- Power and CAN-bus: p&p
- Video-input (2x): RCA female connector
- Rear-view camera-input: RCA female connector
- Front camera-input: RCA female connector
- Trigger wires (4x): Open cable ends
Remember that in some states it is illegal to use the video in motion while driving!
The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.
