JAGUAR Touchscreen 1.1 - Reverse and front camera input interface Expand

JAGUAR Touchscreen 1.1 Reverse and front camera input interface

Jaguar Jaguar

CI-RL2-GVIF-JA

New

Video inserter for front- and rear-view camera and another video-source.
Compatible with Jaguar vehicles with Touchscreen navigation system version 1.1.

More details

€ 228,69

tax incl.

Worldwide shipping

24/48h Delivery

Secure payment

Car electronic experts since 1990

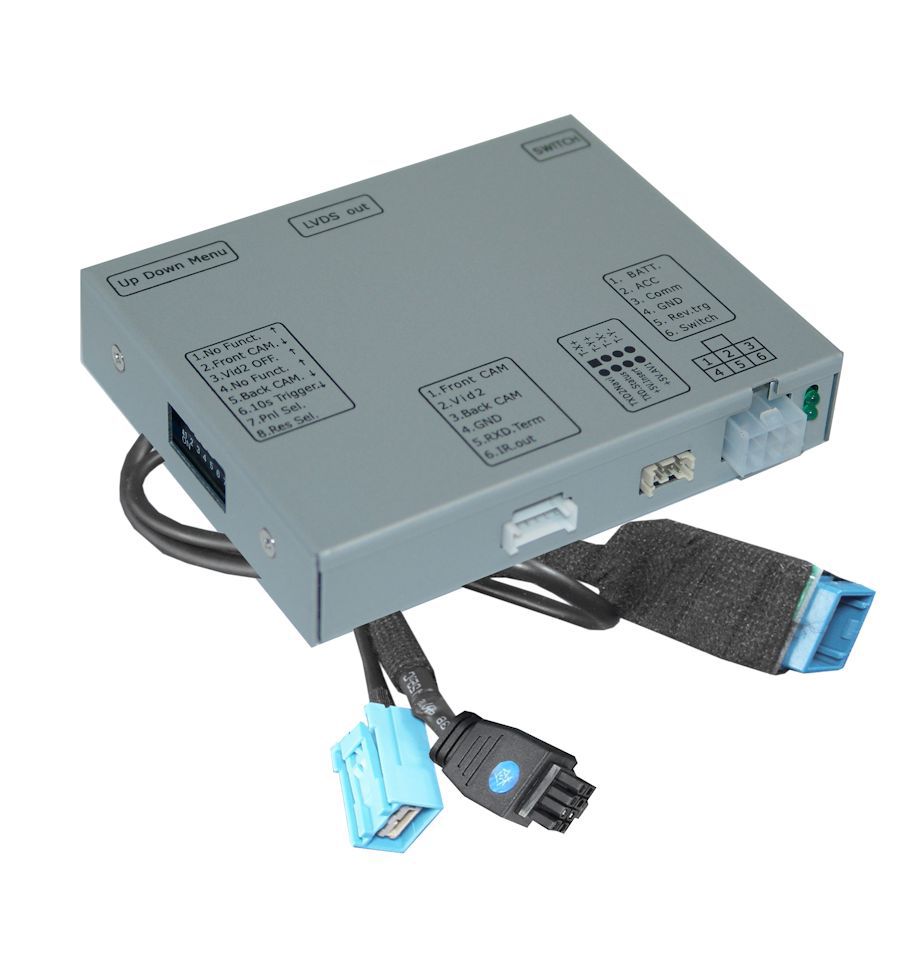

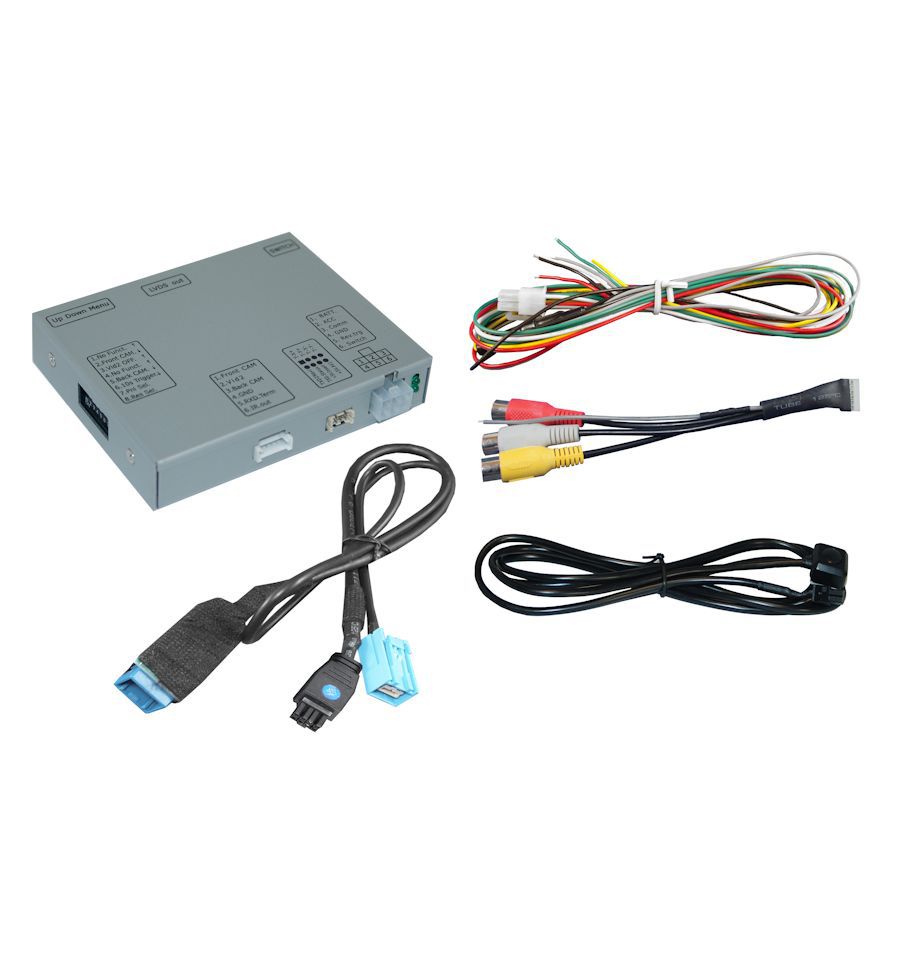

Video inserter compatible with Jaguar vehicles with Touchscreen navigation system version 1.1 (Menu 2). For connection of a front-, rear-view camera and another video source.

Product features

  • Video-inserter for factory-infotainment monitors
  • Back and front camera CVBS video-input
  • CVBS video-input for after-market devices (e.g. DVD-Player, DVB-T tuner, ...)
  • Automatic switching to rear-view camera input on engagement of the reverse gear
  • Manual switching to front camera by external keypad or factory button
  • Video-in-motion (ONLY for connected video-sources)
  • AV-inputs NTSC compatible



Compatibility
Compatible with Jaguar vehicles with factory Touchscreen navigation version 1.1 (Menu 2) systems

ModelRadio/Navigation
Jaguar XF (X250)  2007 - 2011
Touchscreen navigation version 1.1 (Menu 2)
(Only vehicles with factory navigation)
Jaguar XK (X150)  2007 - 2014



Limitations

Video only
The interface inserts ONLY video signals into the infotainment. For inserting Audio signals either the possibly existing factory audio-AUX-input or a FM-modulator can be used.
Factory rear-view cameraAutomatic switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required.
video-insertionThe inserted video can only be seen in map mode of factory navigation (the automatically switching to an after-market rear-view camera, too).
with touch-screen version 1Blue GVIF connectors of vehicle and interface must be cut and soldered (exchanged for each other).
Video SourcesOnly compatible to NTSC Video Sources.



Specifications(interface-box)

Operation voltage7V – 25V
Stand-by power drain<10mA
Video input0.7V - 1V
Video input formatsNTSC
RGB-video amplitude0.7V with 75 Ohm impedance
Temperature range-40°C to +85°C
Dimensions113×22×92 mm (W×H×D)





Connections (Interface-box)

  • Video-insertion: standard/special blue GVIF
  • Power and CAN-bus: Plug & play
  • Video-input: RCA connector
  • Rear-view camera-input: RCA connector
  • Front camera-input: RCA connector




Remember that in some states it is illegal to use the video in motion while driving!


The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.

JaguarXF, XK
CategoryRear View Camera Interfaces, Video integration
