Video interface for Jaguar with touch-screen version 3.1 Expand

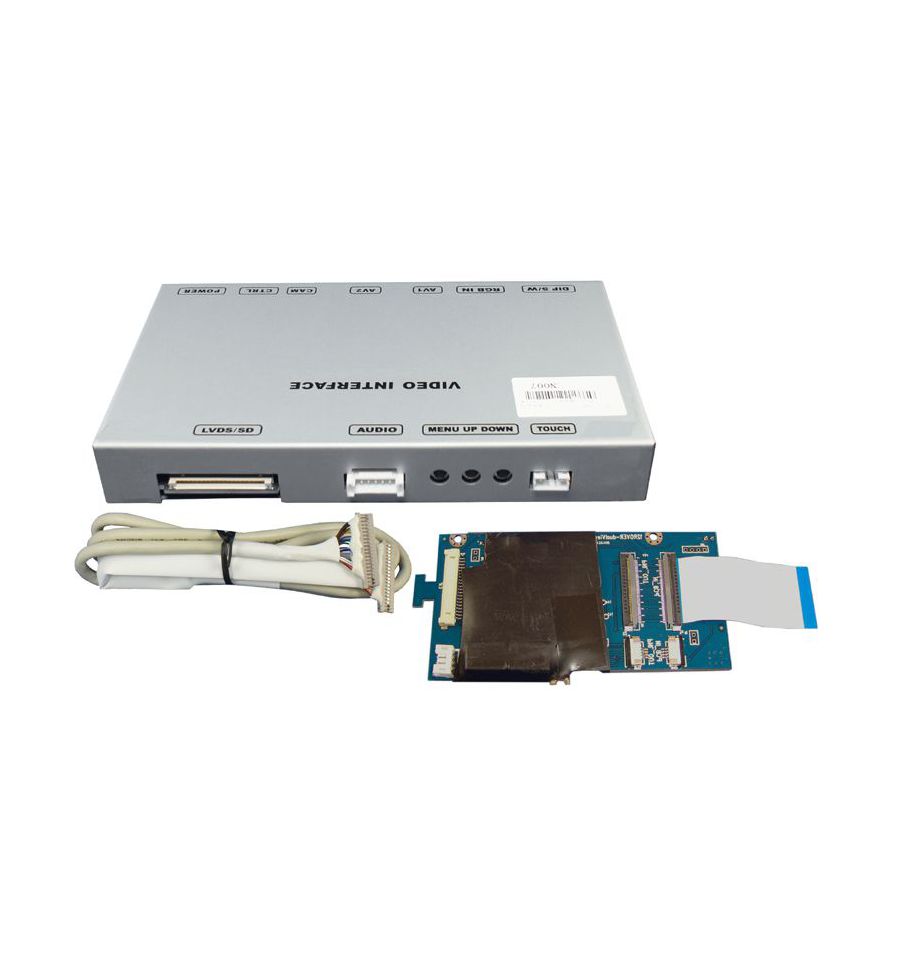

Video interface for Jaguar with touch-screen version 3 and 3.1

Jaguar Jaguar

CI-VL2-LR14-OPS-JA

New

Video interface for Jaguar with touch-screen version 3 and 3.1 ,  8"monitor with or without original navigation system

More details

shipped in 24 h

€ 294,26

tax incl.

Worldwide shipping

24/48h Delivery

Secure payment

Car electronic experts since 1990

Video interface for Jaguar with touch-screen version 3 and 3.1 ,  8"monitor with or without original navigation system

For connection of 2 different video sources (upgraded devices, for example DVD player, DVB-T tuner), 1 RGB source and 1 Supports touch-screen and factory optical park-system display (OPS).



This interface allows you to integrate an external video source to your cars factory fitted screen. Once connected it gives you the ability to connect an in car DVD player, games console (such as Playstation2 or Xbox), iPod video, digital TV tuner, rear view camera, car navigation GPS etc to keep your passengers entertained.

The multimedia interface has 2 video inputs, a rear camera input and a RGBS connection to add satellite navigation if you do not have a factory fitted option. The interface does not replace your original system - it offers perfect integration to maintain your OEM appearance. The interface connects directly to the head unit and you can select video source using button on the steering wheel,or the provided switch to change video source (depending by the systems)




Product features:

  • Video-insertion for factory-infotainment systems
  • 2 CVBS video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner, .)
  • Built-in audio-switch (no audio-insertion)
  • Touch-screen support for after-market navigation
  • Rear-view camera CVBS video-input
  • Automatic switching to rear-view camera input on engagement of reverse gear
  • Support of the factory optical park-system display (OPS)
  • RGB-input for after-market navigation
  • Video-in-motion (ONLY for connected video-sources)
  • AV-inputs PAL/NTSC compatible




Compatibility:

  • Jaguar with touch-screen version 3 (resistive), 8"monitor with or without original navigation system, can be fitted with original OPS system
  • Jaguar with touch-screen version 3.1 (capacitive), 8"monitor with or without original navigation system, can be fitted with original OPS system
ModelRadio / Navigation
 XF (X250) 2012 - 2013Touch screen 3 (resistive)
(with touch-screen menu 3)
 XJ (X351) 2010 - 2013
 F-Type 2013 - 2015  Touch screen 3.1 (capacitive)
(with touch-screen menu 3)
 XF (X250) 2014 - 2015
 XJ (X351) 2014 - 2015



Limitations:

The interface inserts ONLY video signals into the infotainment. For sound use the possibly existing factory-audio-AUX-input or a FM-modulator.

Automatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required.

The interface have to be installed in the monitor panel (the cover needs to be opened!).



Specifications:



BATT/ACC range7V ~ 25V
Stand.by power drain<10mA
Power0.2A@12V
Video input0.7V˜1V
Video input formatsPAL/NTSC
RGB-video amplitude0.7V with 75 Ohm impedance
Temperature range-40°C to +85°C
Dimensions video-box158 x 22 x 92 mm (W x H x D)
Dimensions CAN-box73 x 22 x 30 mm (W x H x D)


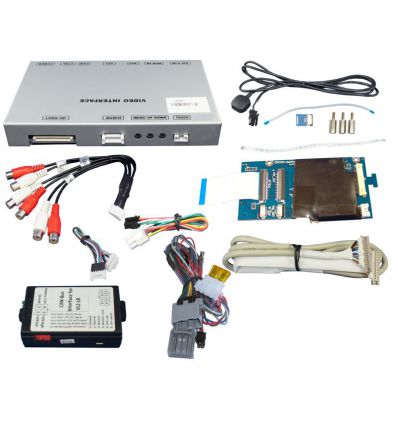

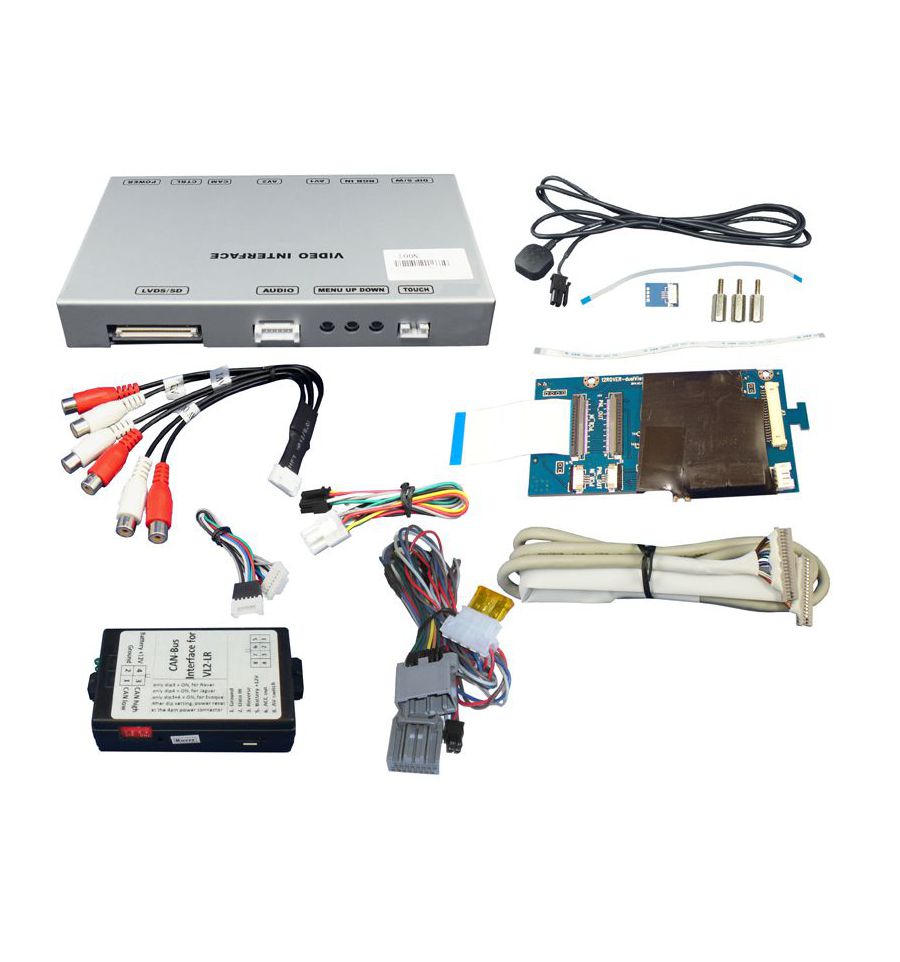

Connections:

  • Video-insertion: ribbon cable
  • Power and CAN-bus: Plug & play (vehicle specific)
  • Video-input (2x): RCA female connector
  • Rear-view camera-input: RCA female connector
  • Audio-switch: each 2-channel RCA female connector (2 inputs to 1 output)




Remember that in some states it is illegal to use the video in motion while driving!


The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.
