LANDROVER TS Navigation Vers2 Audio - Video and reverse camera input interface Expand

LAND ROVER Touch-Screen 2 Audio - Video and reverse camera input interface

Land Rover Land Rover

CI-C1-LR10

New

Multimedia-interface for the connection of one AV-source to the factory-navigation. With remote function for connected devices, rear-view camera-input (optional adapter CAB-LR10-R required), video-in-motion and trigger signals. Compatible with NTSC cameras only.

More details

€ 519,00

tax incl.

Worldwide shipping

24/48h Delivery

Secure payment

Car electronic experts since 1990

The CI-C1-LR10 multimedia interface allows to connect one AV-source (after-market devices e.g. DVD player, DVB-T tuner) to the factory navigation system of the vehicle manufacturer. Very simple connection to the vehicle with the "Plug & Play" harness. If the AV-source is in the list of compatible devices, it is possible to control the AV-source by the factory infotainment. Additionally the connection of a rear-view camera is possible. Video-in-motion is included.


Product features:

  • Full plug and play multimedia interface
  • 1 AV-input with separate IR-control channels
  • Controls of after-market devices (e.g. DVD-player, DVD-changer, ...) by factory infotainment
  • After-market rear-view camera input (optional adapter CAB-LR10-R is necessary)
  • Automatic switching to rear-view camera input (only from c.LOGiC mode)
  • Rear-view camera power (+12V max. 1A)
  • Power-on remote-out trigger-signal (+12V max 1A) to switch on connected devices
  • Video-in-motion


Compatibility:

Compatible with Land Rover vehicles with Touch-screen navigation system version 2.

ModelRadio / Navigation
Range Rover Vogue (L322) 2010 - 2012Touch Screen Navigation version 2
Range Rover Sport (L320) 2010 - 2011
Discovery 3 (L319) 2010 - 2011


Limitations:

Factory TV tunerMust NOT be installed. If uninstalled, optical ring must be closed.
After-market rear-view cameraCompatible with NTSC cameras only. Optionally available adapter CAB-LR10-R is necessary to connect.




Specifications
(interface-box)

Operation voltage10.5 – 14.8V
Stand-by power drain<1mA
Operation power drain180mA
Power consumption2.5W
Temperature range-30°C to +80°C
Weight95g
Measurements106 x 30 x 71 mm (W x H x D)

Connections (Interface-box)

FRONTREAR
3 female RCA (2x Audio In, Video In)4pin Molex connector
8pin Molex connector
Female MOST®-connector

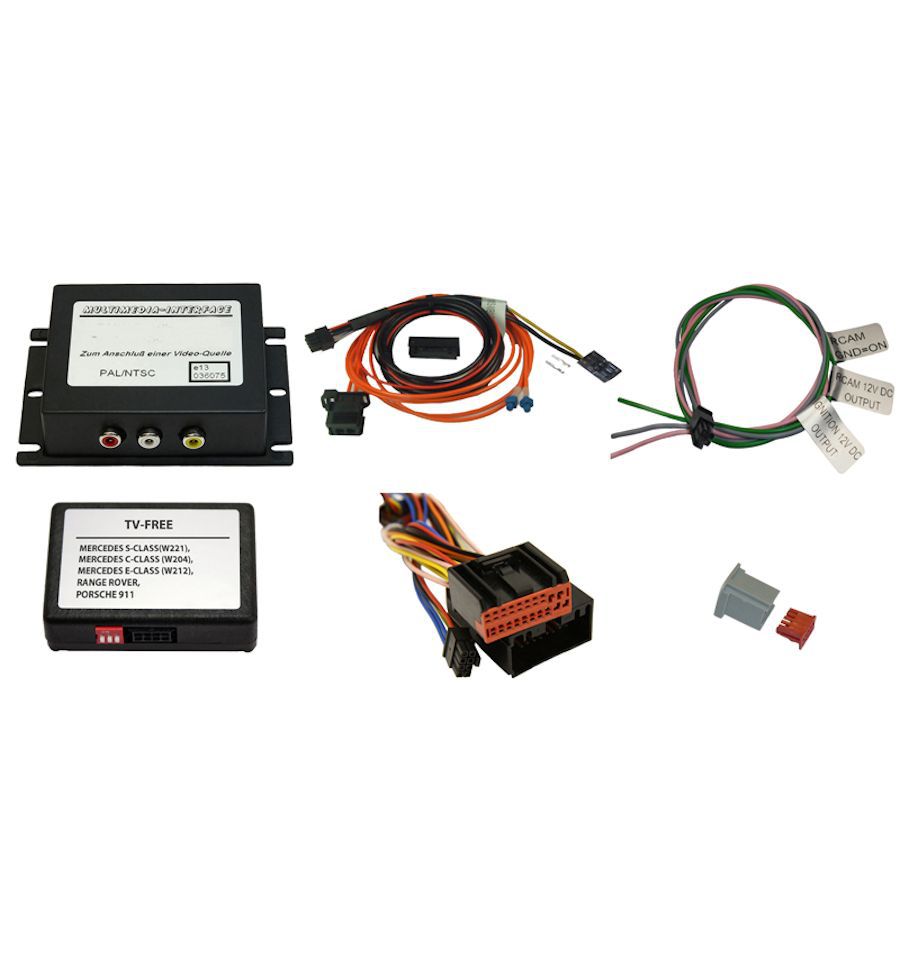

Delivery contents:
  • Interface-box
  • Plug & play Harness




Remember that in some states it is illegal to use the video in motion while driving!

The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.

Land RoverDiscovery, Range Rover, Range Rover Sport
CategoryRear View Camera Interfaces, Video integration, Video in Motion
