Dual DVB-T2 tuner with USB audio/video player. Expand

Dual DVB-T2 tuner with USB audio/video player.

CI-DVB-LINK51

New

Small housing dual DVB-T2 tuner with best reception performance and automatic frequency switching. MPEG2/MPEG4 DVB-T2 and HEVC/H265/264 DVB-T2 video compatible. Integrated USB2.0 port for playback of audio and video files. Controllable by our LOGIC interfaces.

More details

shipped in 24 h

€ 269,67

tax incl.

Worldwide shipping

24/48h Delivery

Secure payment

Car electronic experts since 1990

Valutazione:
(1 recensione)

Small housing dual DVB-T tuner with best reception performance and automatic frequency switching. MPEG2/MPEG4 DVB-T2 and HEVC/H265/264 DVB-T2 video compatible. Integrated USB2.0 port for playback of audio and video files. Controllable by our LOGIC interfaces.


Video/Audio output


- 1 Video outputs RCA
- 1 Audio output: 2 channel RCA
- Format: 4:3 / 16:9


Receiver section


- 2 antenna inputs female type Fakra
- 5V Phantom feed for active antennas
- Quick-Scan


Features


- USB port 2.0 for music + films + pictures
- Audio format: mp3, WAV, AAC
- Video format: MPEG-I/II/IV, VOB, AVI, DivX, Xvid, MKV, TS, MOV, RMVB
- Picture format: JPEG, BMP, GIF, PNG, TIFF
- Recording function of TV and radio
- Recording format: *.TSV (TV recording), *.TSA (Radio recording)
- DVB-T2 HEVC/H265/264 compatible
- DVB-T MPEG2/MPEG4 compatible
- OSD language: German, English, French, Portuguese, Spanish, Italian, Dutch,         Finish and many more

- Auto Channel Search
- EPG - Electronic program guide
- AFS - Auto frequency switching


Limitation

The tuner does not support pay-TV decryption and there will be no upgrade possible to achieve this!

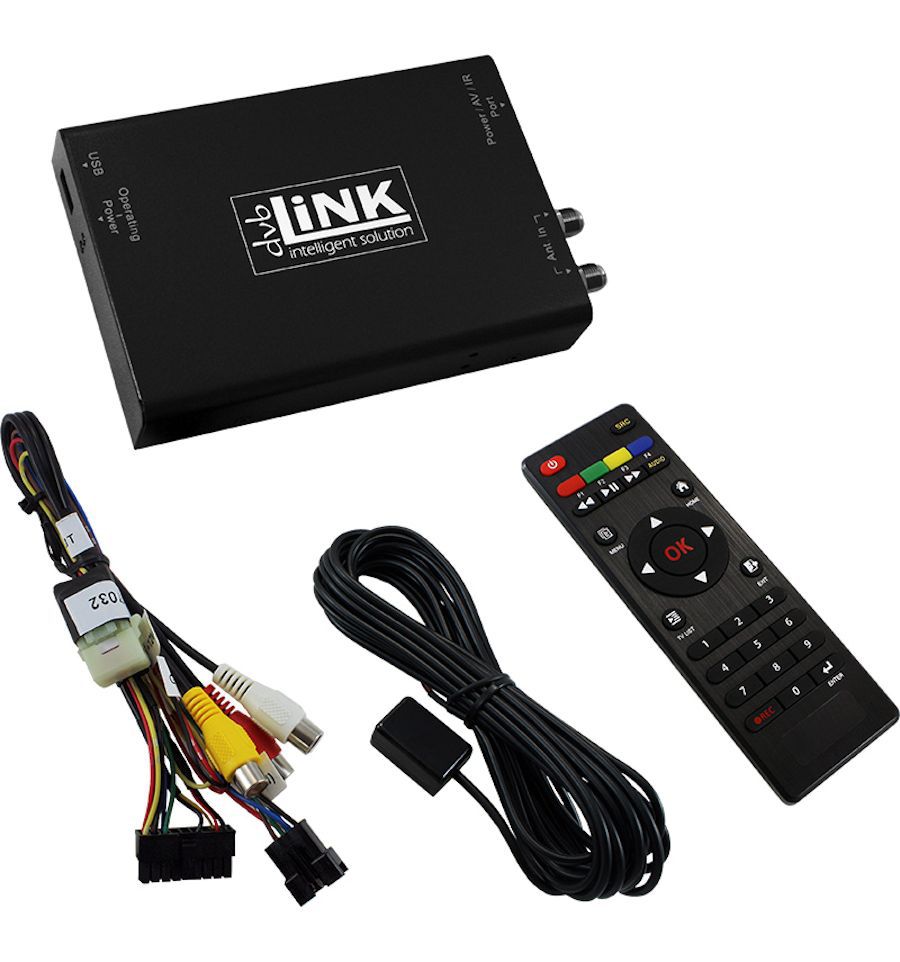

Accesory


- IR-sensor
- USB extension cable
- IR remote control
- Power connection
- Manual
- Bracket and screws for attachment
-DVB-LINK51 Tuner


Power


- Input voltage: 9 - 16 V  DC
- Power consumption: 5,5 Watt max.


Dimension


- Dimension (B x H x L) :136 mm x 95 mm x 25 mm
- Weight: 0,292kg


Optionally accesory


- Active DVB-T antenna: ANT-12


*AFS - Auto Frequency Switching is a smart feature that allows the user to watch a channel when moving between 2 cities/areas where the channel is broadcasted in different frequencies.

For example, channel "ABC" in city A is broadcasted on frequency 474MHz. In city B, this channel "ABC" is broadcasted on frequency 490MHz.

After having scanned in each region once, when moving from city A to city B or vice versa, user can keep watching the channel "ABC" without performing auto search to find the new frequency in city B.

When AFS is activated while scanning, the tuner recognizes equals channel names.

Each channel is only saved on one program place.

All frequencies a channel has been found on are saved in an invisible database.
