Video interface for BMW Business/Professional CIC-E and CIC F-series, PIP function. Expand

Video interface for BMW Business/Professional CIC-E and CIC F-series

BMW BMW

CI-RL3-CIC-BM

New

Video Interface for BMW Professional Navigation CIC, Business Navigation M-ASK, radio CHAMP and 4pin LVDS monitor plug.

More details

shipped in 24 h

€ 261,48

tax incl.

Worldwide shipping

24/48h Delivery

Secure payment

Car electronic experts since 1990

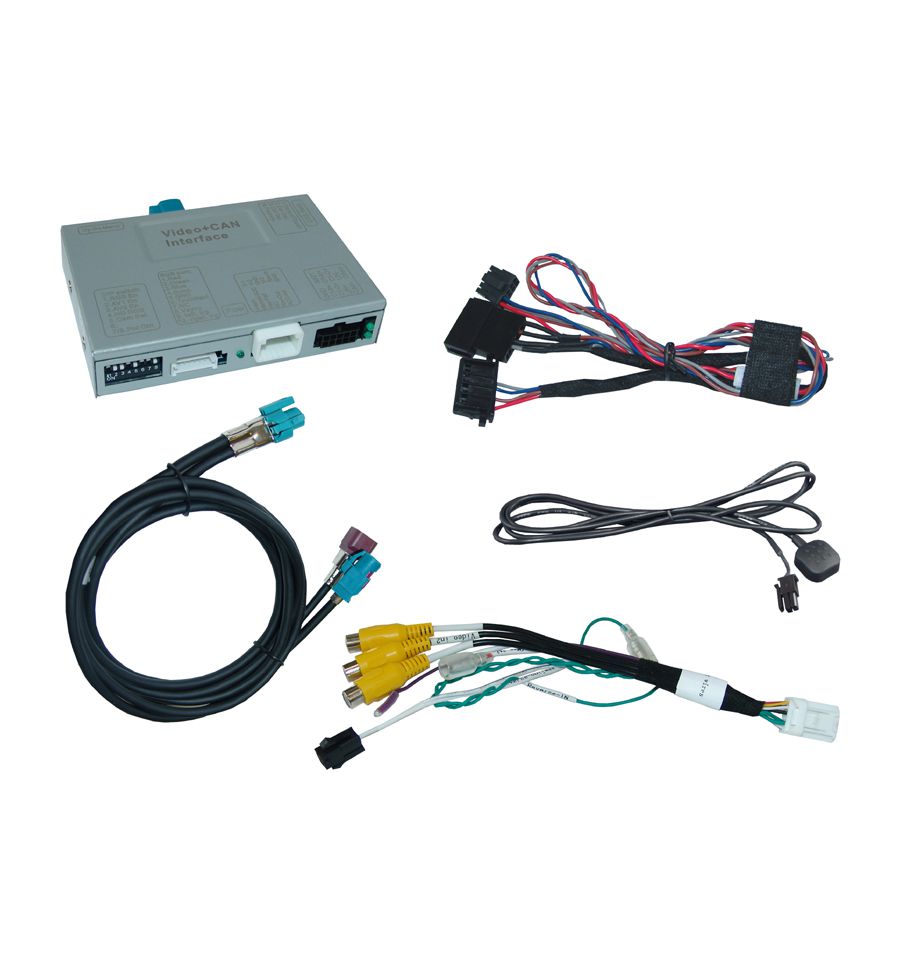

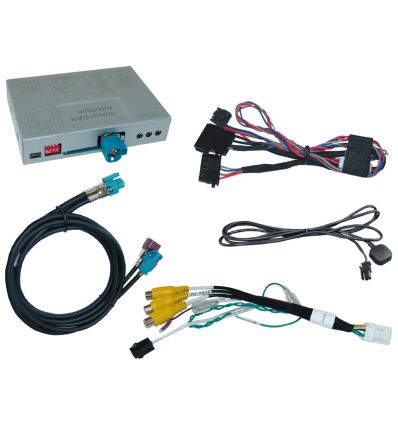

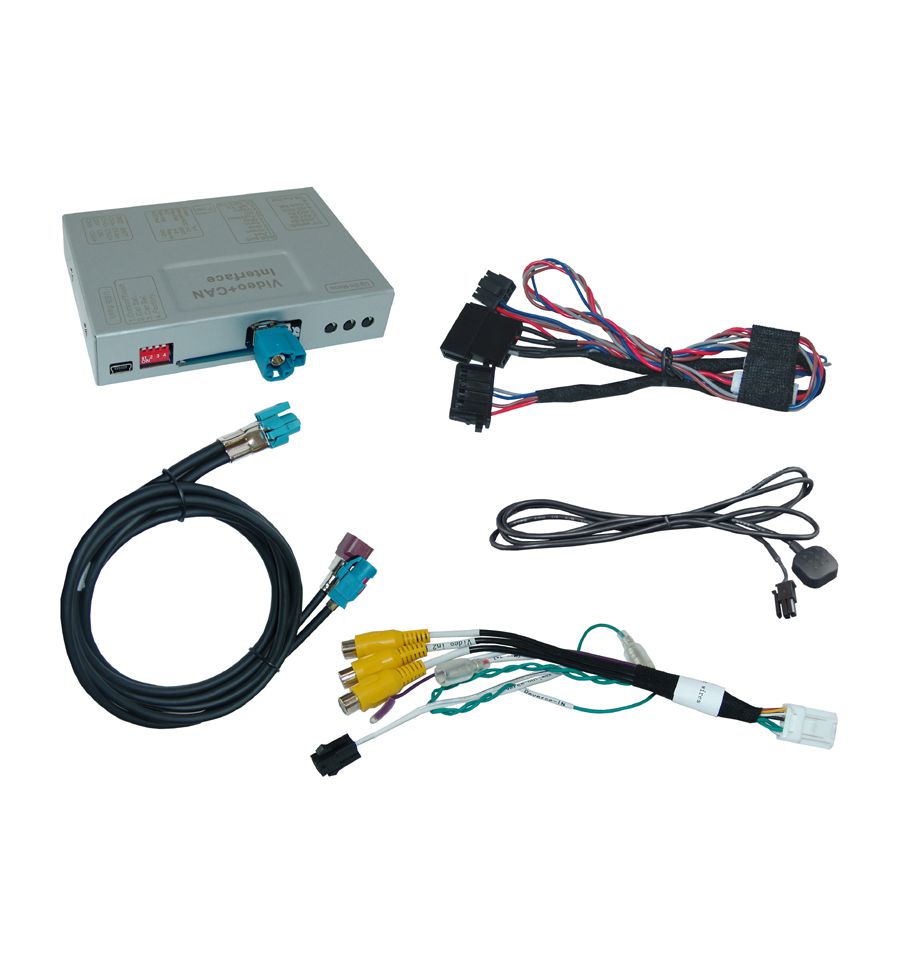

Video Interface for BMW Professional Navigation CIC, Business Navigation M-ASK, radio CHAMP and 4pin LVDS monitor plug.

This interface allows you to integrate an external video source to your cars factory fitted screen. Once connected it gives you the ability to connect an in car DVD player, games console (such as Playstation2 or Xbox), iPod video, digital TV tuner and a rear view camera.

The multimedia interface has 2 video inputs and a rear camera input. The interface does not replace your original system - it offers perfect integration to maintain your OEM appearance.

Product features:

  • Video-insertion for factory-infotainment monitors
  • 2 CVBS video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner, .)
  • Built-in audio-switch (no audio-insertion)
  • Rear-view camera CVBS video-input
  • Automatic switching to rear-view camera input on engagement of reverse gear.
  • Video-in-motion (ONLY for connected video-sources)
  • Compatible with factory rear-view camera
  • AV-inputs PAL/NTSC compatible
  • Ultra-wide picture mode 24:9 (only with ultra-wide screens 8.8" and 10.2")




 Compatibility:

Compatible to BMW vehicles with Professional Navigation CIC, Business Navigation M-ASK, radio CHAMP (6.5inch, 8.8inch and 10.25inch monitor) and with 4pin HSD LVDS monitor plug.

ModelSeries
  Series 1  E87
  Series 3  E90 E91 E92
  Series 5  E60 E61 F10 F11
  Series 6  E63 F12 F13 F14
  Series 7  F01 F02
  GT 5  F07
  X1
 E84
  X3 F25
  X5 E70
  X6 E71


Mentioned F-series vehicles only til approx 06/2012.



Limitations:

Video onlyThe interface inserts ONLY video signals into the infotainment. For sound use the possibly existing factory-audio-AUX-input or a FM-modulator.
Factory rear-view cameraAutomatic switch-back from inserted video to factory rear-view camera only while reverse gear is engaged. To delay the switch-back time, additional electronics is required.



Specifications:



BATT/ACC range7V – 25V
Stand.by power drain<10mA
Power0.2A@12V
Video input0.7V˜1V
Video input formatsPAL/NTSC
RGB-video amplitude0.7V with 75 Ohm impedance
Temperature range-40°C to +85°C
Dimensions video-box182 x 24 x 100 mm (B x H x T)
Dimensions CAN-box73 x 22 x 45 mm (W x H x D)


Connections:

  • Video-insertion: 4-pin HSD
  • Power and CAN-bus: Plug & play
  • Video-input (2x): RCA connector
  • Rear-view camera-input: RCA connector
  • Audio-switch: 2-channel RCA connector




Remember that in some states it is illegal to use the video in motion while driving!


The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.

BMWGT5 F07, X6 E71, X5 E70, X3 F25, X1 E84, 7 Series F01 / F02, 6 Series F12 F13, Serie 6 E63-64, 5 Series F10 / F11, Serie 5 E60 61, Serie 3 E90 91 92 93, Serie 1 E81 82 87 88
CategoryVideo integration
