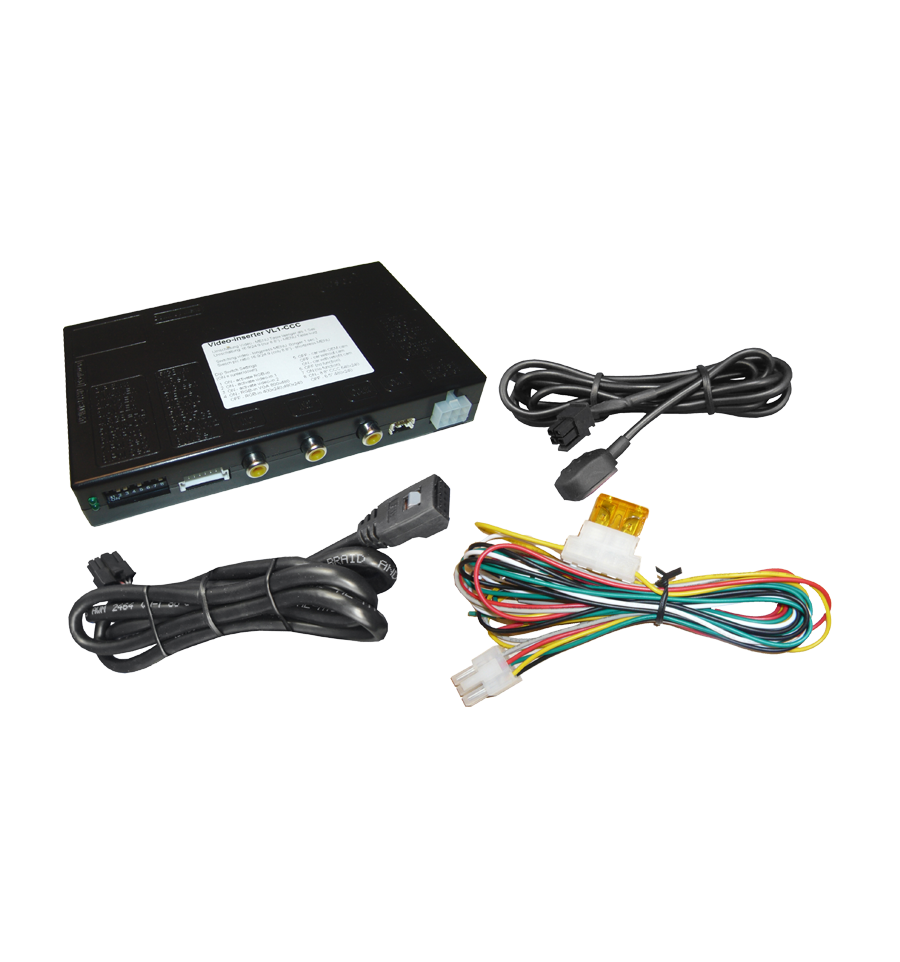

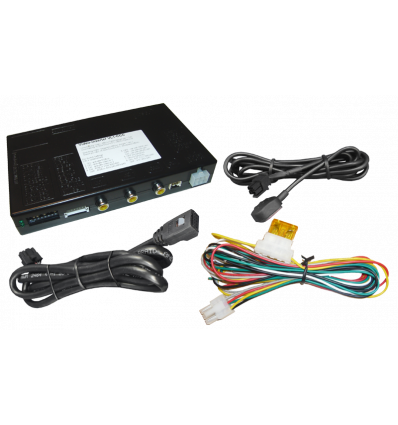

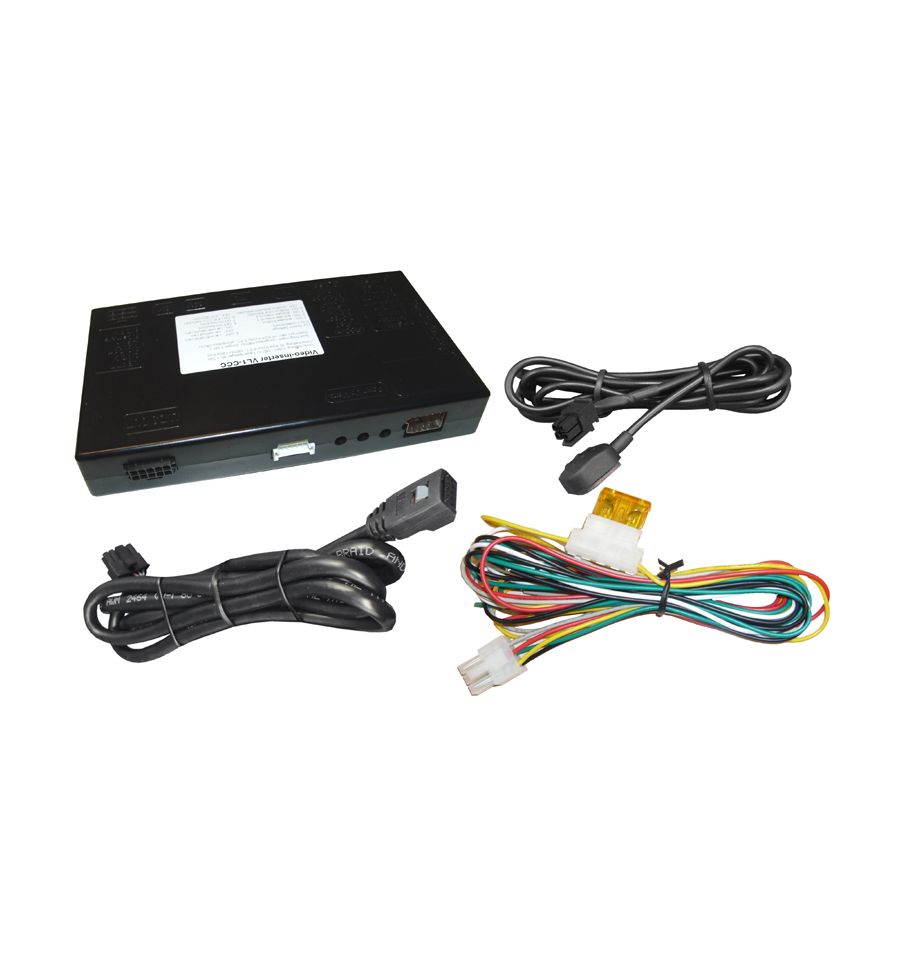

New Video interface for BMW Business/Professional CCC with 6.5 inch or 8.8 inch with 10pin LVDS connector. Expand

Video interface for BMW Business/Professional CCC with 6.5 inch or 8.8 inch with 10pin LVDS connector.

BMW BMW

CI-VL1-CCC

New

Video Interface for BMW Professional Navigation CCC, Business Navigation M-ASKradios with 6.5 inch or 8.8 inch with 10pin LVDS connector.

More details

shipped in 24 h

€ 220,49

tax incl.

Worldwide shipping

24/48h Delivery

Secure payment

Car electronic experts since 1990

Video Interface for BMW Professional Navigation CCC, Business Navigation M-ASKradios with 6.5 inch or 8.8 inch with 10pin LVDS connector.


This interface allows you to integrate an external video source to your cars factory fitted screen. Once connected it gives you the ability to connect an in car DVD player, games console (such as Playstation2 or Xbox), iPod video, digital TV tuner, rear view camera, car navigation GPS etc to keep your passengers entertained.

The multimedia interface has 2 video inputs, a rear camera input and a RGBS connection to add satellite navigation if you do not have a factory fitted option.The interface does not replace your original system - it offers perfect integration to maintain your OEM appearance.




Product features:

  • Video-insertion
  • 2 CVBS video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner, .)
  • Rear-view camera CVBS video-input
  • Automatic switching to rear-view camera input on engagement of reverse gear.
  • RGB-input for after-market navigation
  • Video-in-motion (ONLY for connected video-sources)
  • Compatible with factory rear-view camera
  • AV-inputs PAL/NTSC compatible
  • Ultra-wide picture mode 24:9 (only with ultra-wide screens 8.8")

 Compatibility:

Compatible to BMW vehicles with Professional Navigation CCC, Business Navigation M-ASK navigation systems or radio with 6.5 inch or 8.8 inch monitor with 10pin LVDS connector.


ModelSeries
  Series 1   E87
  Series 3  E90 E91 E92 E93
  Series 5  E60 E61
  Series 6  E63 E64
 X5 E70
 X6 E71



Limitations:

Video onlyThe interface inserts ONLY video into the infotainment, for sound use the FM-modulator or factory AUX which can be coded by dealership or our OBD-coders if not already available in the vehicle or the AUX-in interface AUX-110 or a Dension gateway 500.
Factory rear-view cameraWhile reverse gear is engaged ONLY the picture of the after-market rear-view camera is visible!
Ultra-wide modeOnly available for ultra-wide screens 8.8inch.



Specifications:



BATT/ACC range7V – 25V
Stand.by power drain<5mA
Power0.3A@12V
Video input0.7V˜1V
Video input formatsPAL/NTSC
RGB-video amplitude0.7V with 75 Ohm impedance
Temperature range-40°C to +85°C
Dimensions video-box182 x 24 x 100 mm (W x H x D)
Dimensions CAN-box73 x 22 x 45 mm (W x H x D)


Connections:

  • Video-insertion: 10-pin HSD
  • Power and CAN-bus: Plug & play
  • Video-input (2x): RCA connector
  • Rear-view camera-input: RCA connector




Remember that in some states it is illegal to use the video in motion while driving!


The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.

BMWSerie 1 E81 82 87 88, Serie 3 E90 91 92 93, Serie 5 E60 61, Serie 6 E63-64, X5 E70, X6 E71
CategoryVideo integration
