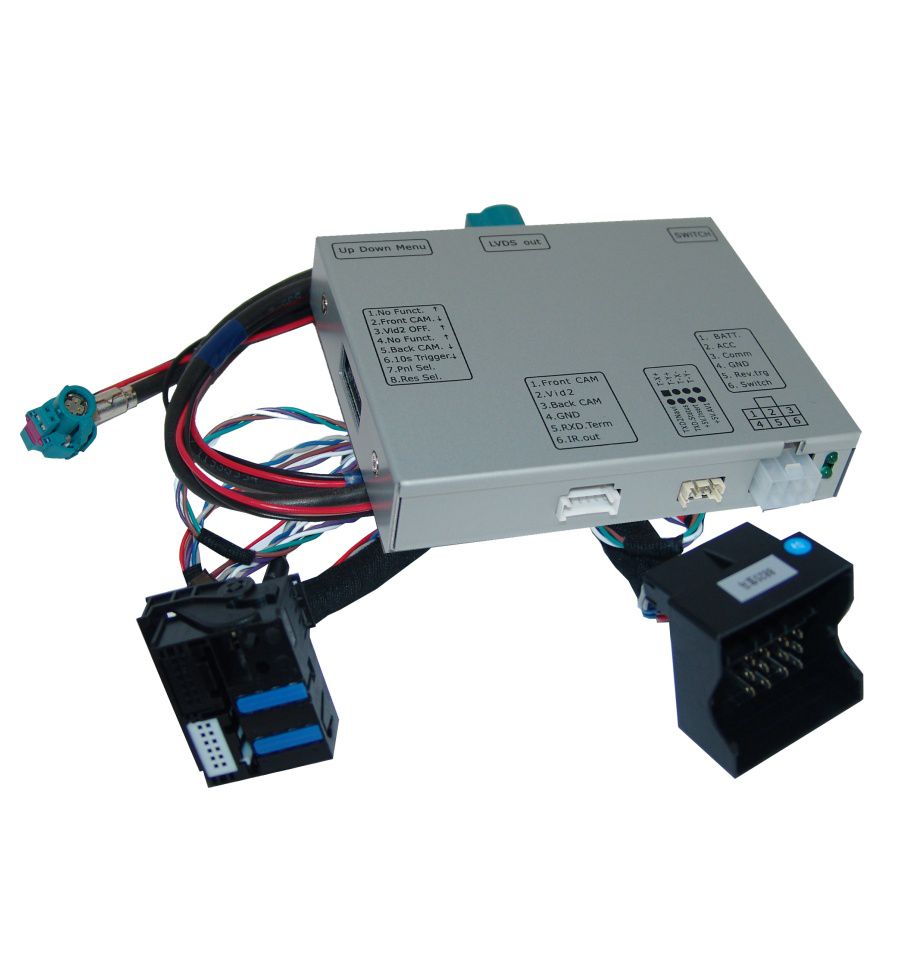

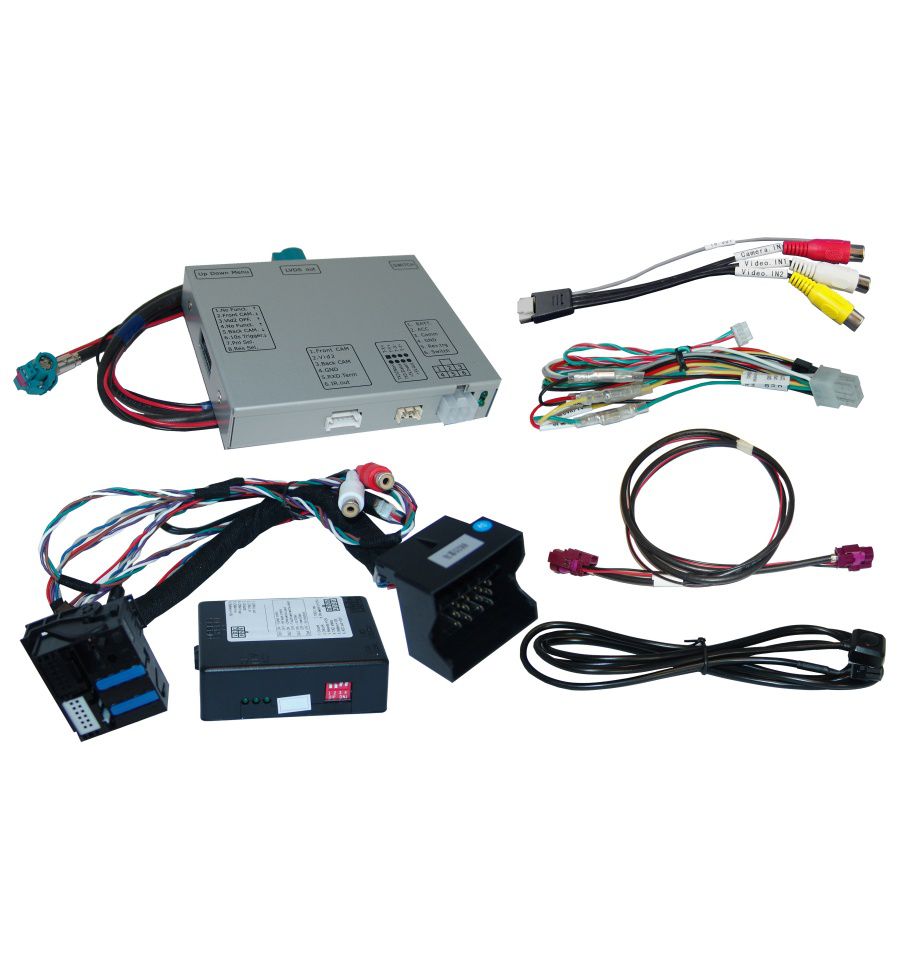

Video interface with Rear and front camera inputs for NBT Business/Professional BMW (APIX)
CI-RL2-NBT-BM
New
Video interface with Rear and front camera inputs for NBT Business / Professional BMW or radio with 6.5 inch, 8.8 inch or 10.2 inch monitor with 4+2pin HSD+2 LVDS plug.
shipped in 24 h
Video interface with Rear and front camera inputs for NBT Business / Professional BMW or radio with 6.5 inch, 7inch, 8.8 inch or 10.2 inch monitor with 4+2pin HSD+2 LVDS plug.
This interface allows you to integrate a rear view and a front view camera to your car factory fitted screen. Once connected it gives you an additional video input to connect an in car DVD player, games console iPod video, digital TV tuner.
Product features:
- Video-inserter for factory-infotainment monitors
- Rear and front camera CVBS inputs.
- CVBS video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner, .)
- Automatic switching to rear-view camera input on engagement of reverse gear
- Manual Switching to Front Camera by Keypad or factory button
- Video-in-motion (ONLY for connected video-sources)
- Activatable Parking Guide Lines for Rear-View Camera (not all vehicles)
- Picture-in-picture mode combining after-market rear-view picture(s) with factory parking sensor graphic
- AV-inputs PAL/NTSC compatible
- Ultra-wide picture mode 24:9 (only with ultra-wide screens 8.8" and 10.2")
Compatibility:
Compatible to BMW vehicles with Business/Professional NBT navigation systems or radio with 6.5 inch, 7inch, 8.8 inch or 10.2 inch monitor with 4+2pin HSD+2 LVDS plug.
| Model | Navigation |
| 1-series (F20/F21/F44/F52) | Radios, S6UNA Navigation, S606ABusiness Navigation - F-series - 6.5inch or 7inch monitor (from approx 06/2012 til 06/2017) or S609A Professional Navigation - NBT- F-series - 8.8inch or 10.25inch monitor (with old main menu and from approx 06/2012 til approx 05/2016) |
| 2-series (F22/F23/F45/F46) | |
| 3-series (F30/F31/F32/F33/F34) | |
| 4-series (F32/F33/F35/F36) | |
| 5-series (F10/F11) | |
| 6-series (F06/F12/F13) | |
| 7-series (F01/F02/F03) | |
| X1 (F48) | |
| X2 (F47) | |
| X3 (F25) | |
| X4 (F26) | |
| X5 (F15) | |
| X6 (F16) | |
| M2 (F82) | |
| M4 (F87) | |
| M5 (F90) |
Limitations:
The interface inserts ONLY video signals into the infotainment. For sound use the possibly existing factory-audio-AUX-input or a FM-modulator.
Automatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required.
Only available for ultra-wide screens 8.8inch/10.2inch. (Ultra-wide mode)
Specifications:
| BATT/ACC range | 7V ~ 25V |
| Stand.by power drain | <10mA |
| Power | 0.7A@12V |
| Video input | 0.7V˜1V |
| Video input formats | PAL/NTSC |
| RGB-video amplitude | 0.7V with 75 Ohm impedance |
| Temperature range | -40°C to +85°C |
| Dimensions video-box | 133 x 22 x 92 mm (W x H x D) |
| Dimensions CAN-box | 87 x 27 x 65 mm (W x H x D) |
Connectors
- Video-insertion: 4+2-pin HSD+2
- Power and CAN-bus: Plug & play (vehicle specific)
- Video-input: female RCA connector
- Front- and rear-view camera-input: female RCA connector
Remember that in some states it is illegal to use the video in motion while driving!
The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.
| BMW | Serie 1 F20 / F21, X6 F16, X5 F15, X4 F26, X3 F25, X1 F48, 7 Series F01 / F02, 6 Series F12 F13, 5 Series F10 / F11, Serie 4 F32 / F33, Serie 3 F30 / F31, Serie 2 F22/F23/F45/F46 |
| Category | Rear View Camera Interfaces, Video integration |
