BMW Rear-view camera exchange rear door opener handle with guide-lines for 2-3-4-5series, X1, X3, X4, X5, X6
CI-VSC-E-BM12
New

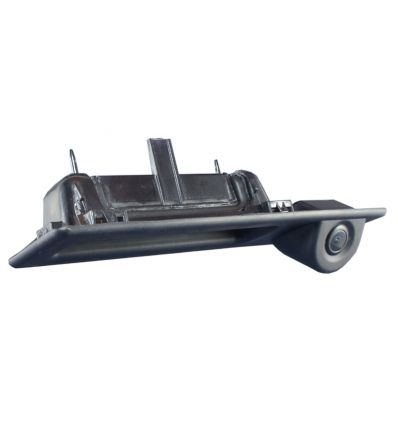

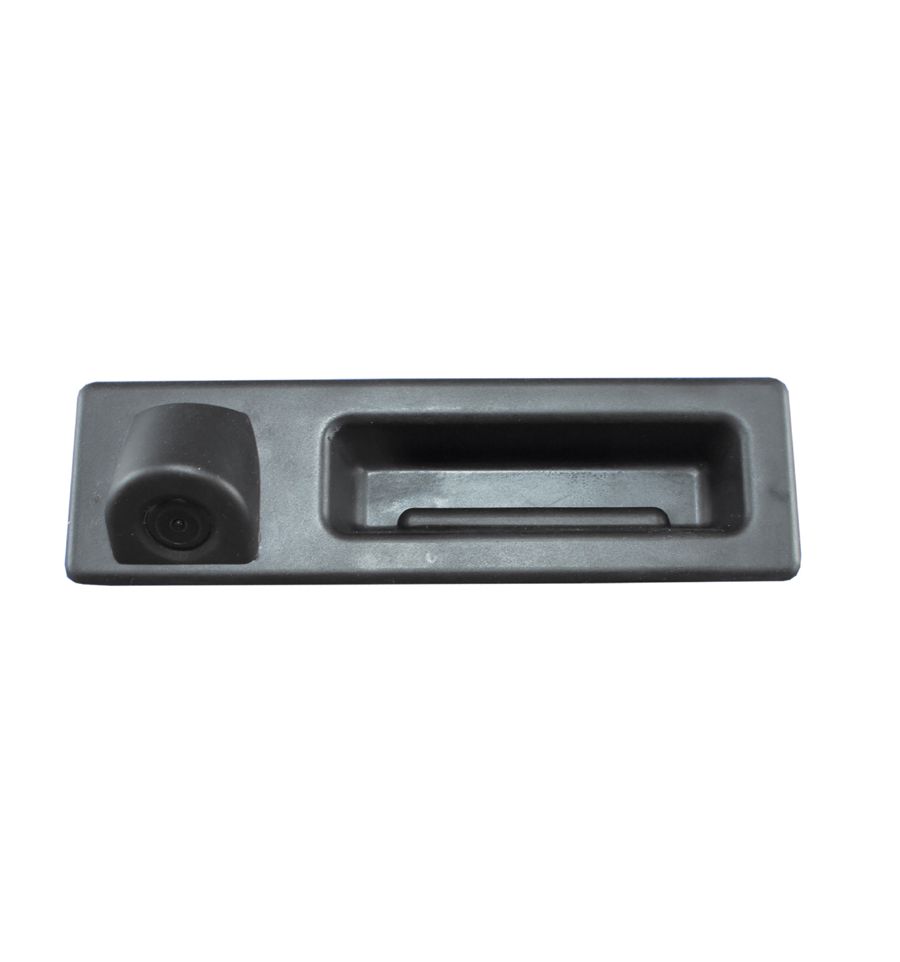

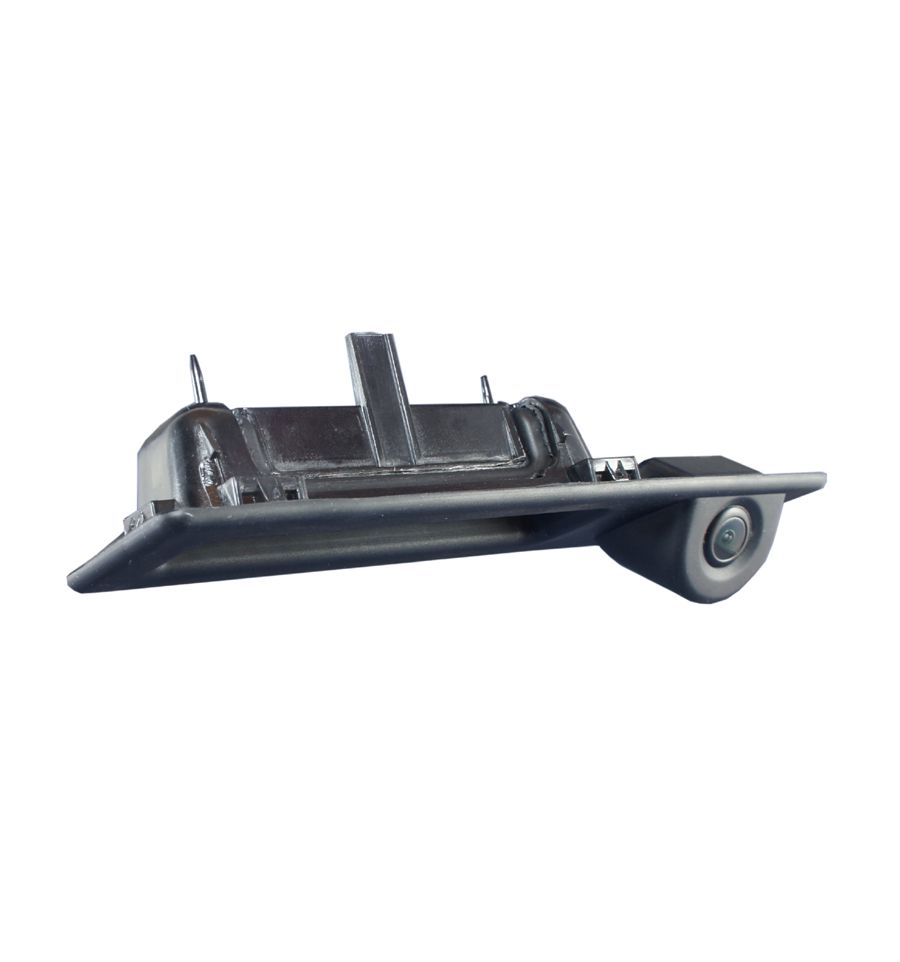

Vehicle specific changeable rear door opener handle with camera and switchable guide-lines
Mini-camera with vehicle specific tailgate-doorknob.
Simple installation due to replacement with the factory tailgate-doorknob. Professional set of system cables in adequate length and with automotive connectors. Due to connectors with a small diameter the cable can easily be laid. Additional cable core for signal transfer, e.g. power supply or reversing signals. With switchable guidelines.
Compatible with:
NOTE:
Please check the size indications and the pictures of the camera for the compatibility with the vehicle, before buying!
Properties:
Dimensions:
Simple installation due to replacement with the factory tailgate-doorknob. Professional set of system cables in adequate length and with automotive connectors. Due to connectors with a small diameter the cable can easily be laid. Additional cable core for signal transfer, e.g. power supply or reversing signals. With switchable guidelines.
Compatible with:
- BMW 2series (F22/F22LCI/F87M2/F87M2LCI/F23/F23LCI/F45/F45LCI/F46/F46LCI)
- BMW 3series (F30/F30LCI/F80M3/F80M3LCI/F31/F31LCI/F34GT/F34GTLCI) 2012 >
- BMW M3 (F80 / F80LCI) 2014 >
- BMW 4series (F32/F32LCI/F82M4/F8M4LCI/F33/F33LCI/F83M4/F83M4LCI/F36GranCoupe/F36GranCoupeLCI)
- BMW M4 (F82 / F83)
- BMW 5series (F10 / F10LCI / F11 / F11LCI) 2010 >
- BMW X1 (F48) 2015 >
- BMW X3 (F25) 2011 >
- BMW X4 (F26)
- BMW X5 (F15 / F85) 2013 >
- BMW X6 (F16 / F86) 2014 >
- vehicles with trunk handle with BMW part number 5124 7368752 and 5124 7463161
NOTE:
Please check the size indications and the pictures of the camera for the compatibility with the vehicle, before buying!
Properties:
- 1/3inch CMOS NTSC sensor (PC3089)
- Resolution 720 x 480 pixel (700 TV-lines)
- 0.1 Lux min illumination
- F1.2 aperture
- Angle diagonal 170°, horizontal 130°, vertical 90°
- Mirroring (fixed)
- Parking guide lines, optional disengageable
- Protection class IP68
- Black rear door opener handle and camera

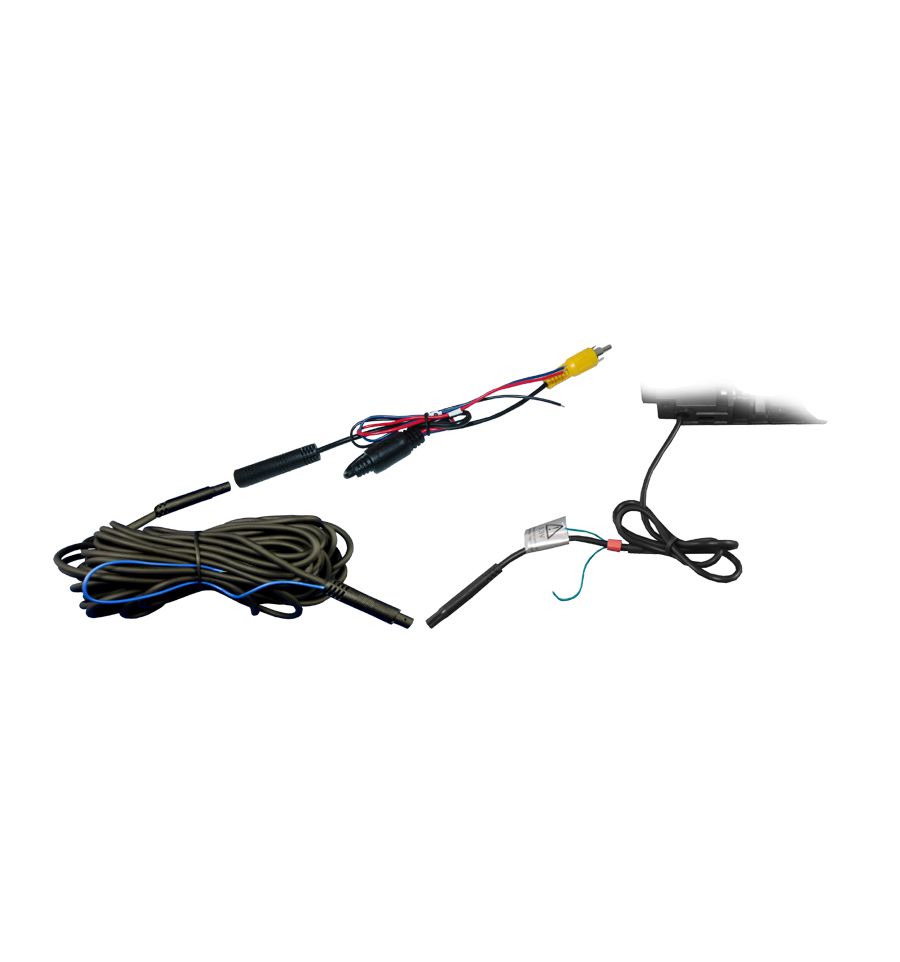

- 1.8m Camera-cable with 4-Pin-BM system-female connector (diameter 5mm)
- 8m Extension cable (4-Pin-BM) with wire for signal throughput
- System-connector system cable 4-Pin-BM with RCA connector and fuse
Dimensions:
- Overall L/W/D 215 x 53 x 65mm (W x H x T)
- Installation opening L/W 131 x 42mm (W x H)
| BMW | Serie 2 F22/F23/F45/F46, X6 F16, X5 F15, X4 F26, X3 F25, X1 F48, 5 Series F10 / F11, Serie 4 F32 / F33, Serie 3 F30 / F31 |
| Category | Cameras RVC |
