Video interface for Jeep 7" Uconnect Compass - Renegade from 2017

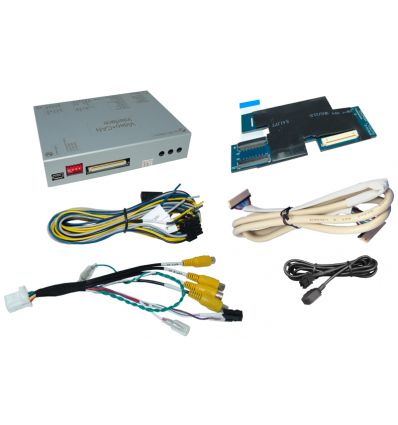

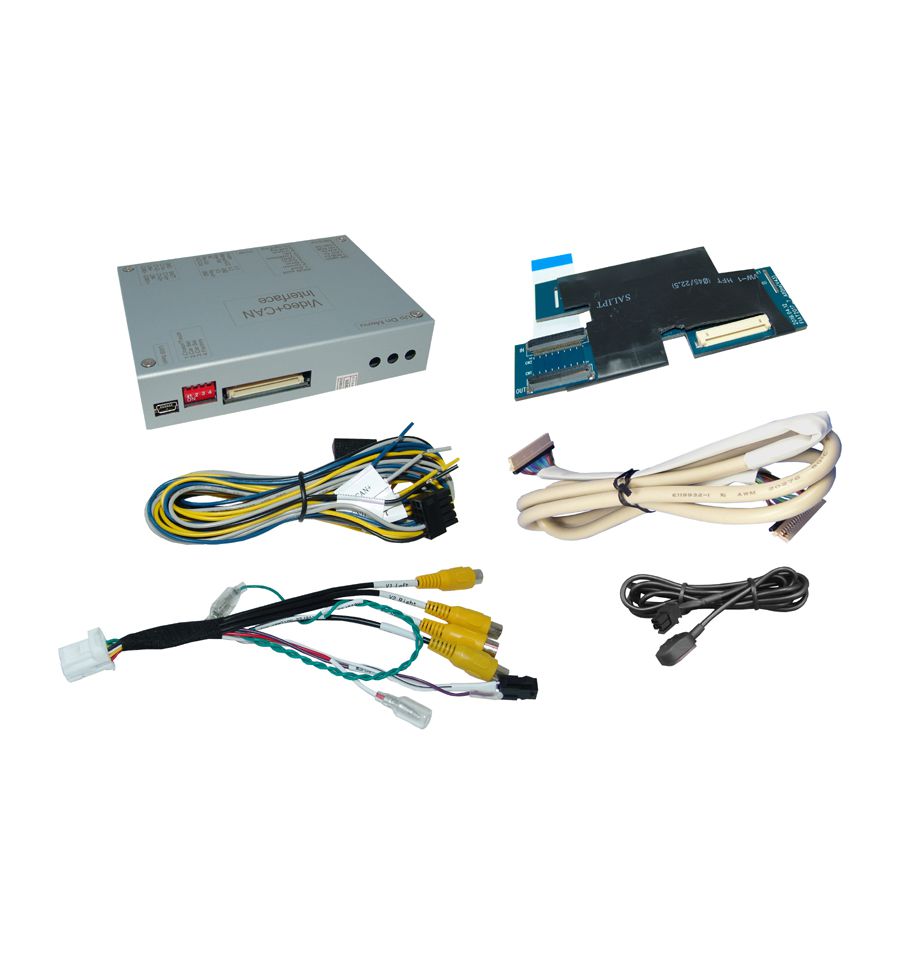

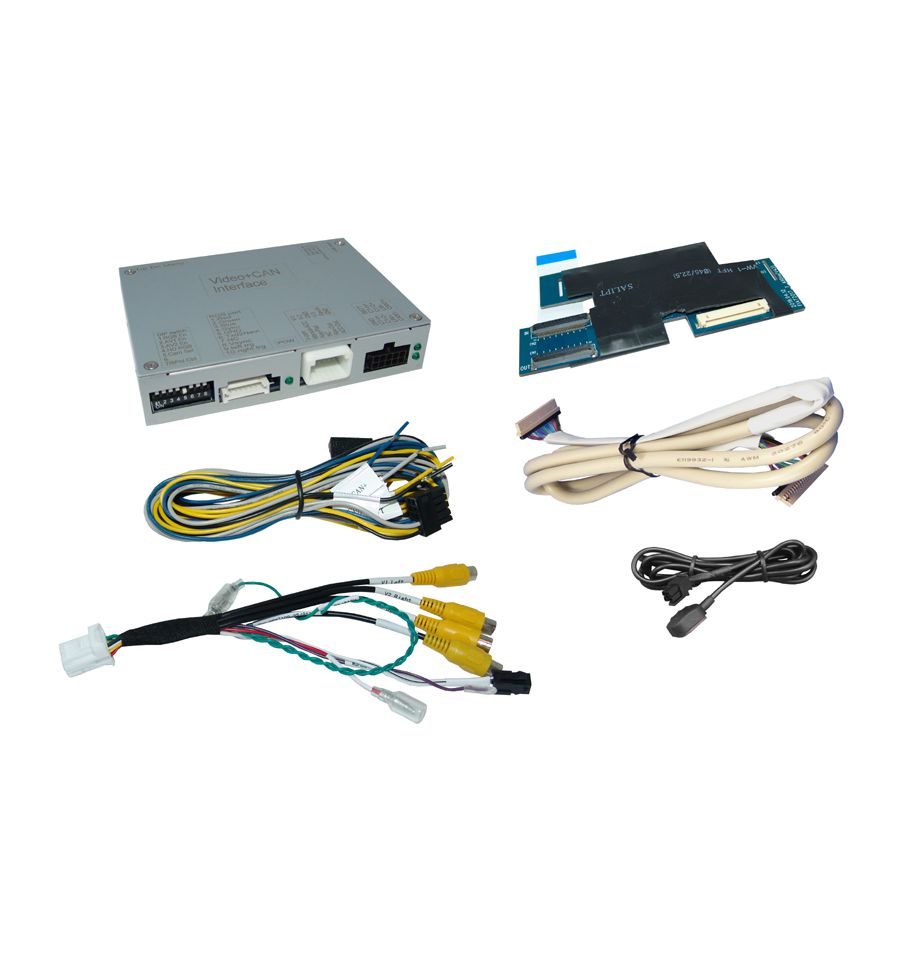

The r.LINK interface allows to connect a rear-view camera front camera with auto switching and 2 video-sources. (e.g. DVD-player, DVB-T tuner, ...) to the factory-infotainment system.


Product features:

  • Video-insertion
  • 2 video-input for after-market devices (e.g. DVD-Player, DVB-T tuner, .)
  • Rear-view camera video-input
  • Front camera video input

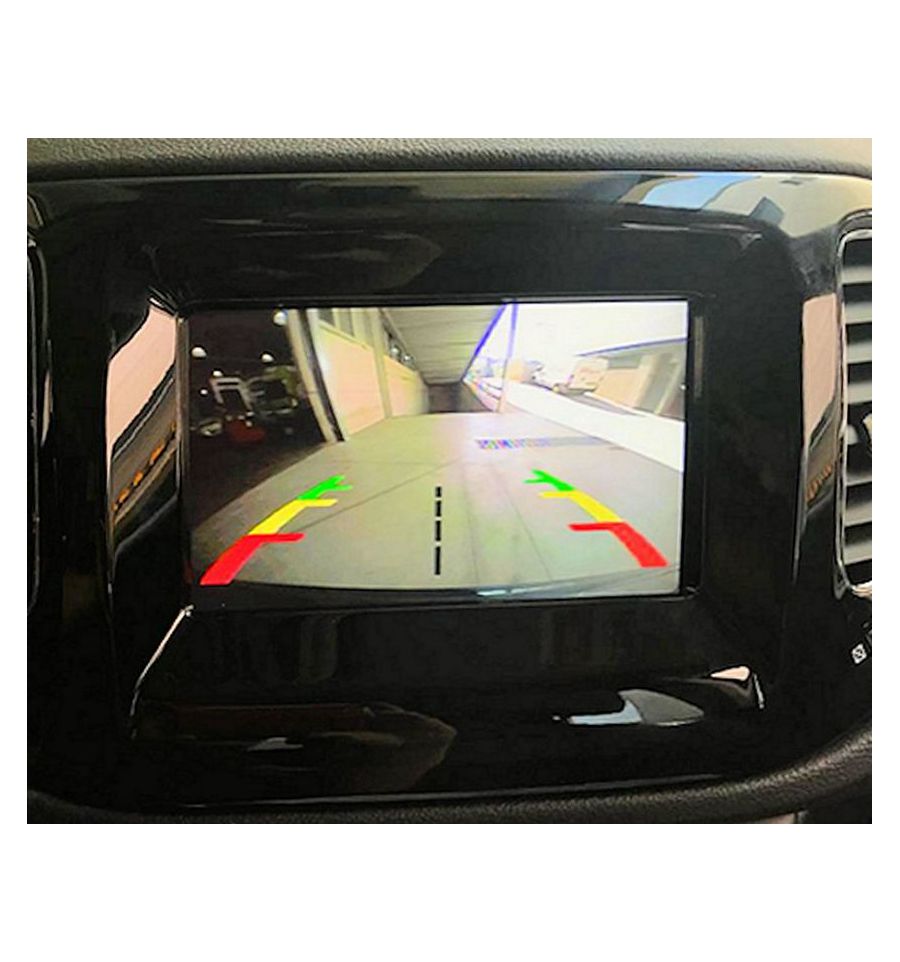

  • Automatic switching to rear-view camera input on engagement of reverse gear
  • Automatic front camera switching after reverse gear for 10 seconds
  • Video-in-motion (ONLY for connected video-sources)
  • AV-inputs NTSC compatible only




Compatibility:

ModelSystem
Jeep Compass from 2017 New (2017 >) Uconnect 7"
Jeep Renegade from 2017





Limitations:

Video onlyThe interface inserts ONLY video signals into the infotainment. For inserting Audio signals either the possibly existing factory audio-AUX-input or a FM-modulator can be used.
Picture formatOnly compatible with NTSC
Factory rear-view cameraAutomatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required.
The interface have to be installed in the monitor panel (the cover needs to be opened!)



Specifications:



BATT/ACC range7V – 25V
Stand.by power drain<10mA
Power0.7A@12V
Video input0.7V˜1V
Video input formatsNTSC
Temperature range-40°C to +85°C
Dimensions video-box154 x 22 x 92 mm (W x H x D)


Connections:

  • Video-input: RCA connector
  • Rear-view camera-input: RCA connector



Remember that in some states it is illegal to use the video in motion while driving!


The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.

JeepCompass, Renegade
CategoryRear View Camera Interfaces, Video integration
