Jeep Uconnect 5" front and rear camera inputs video interface Expand

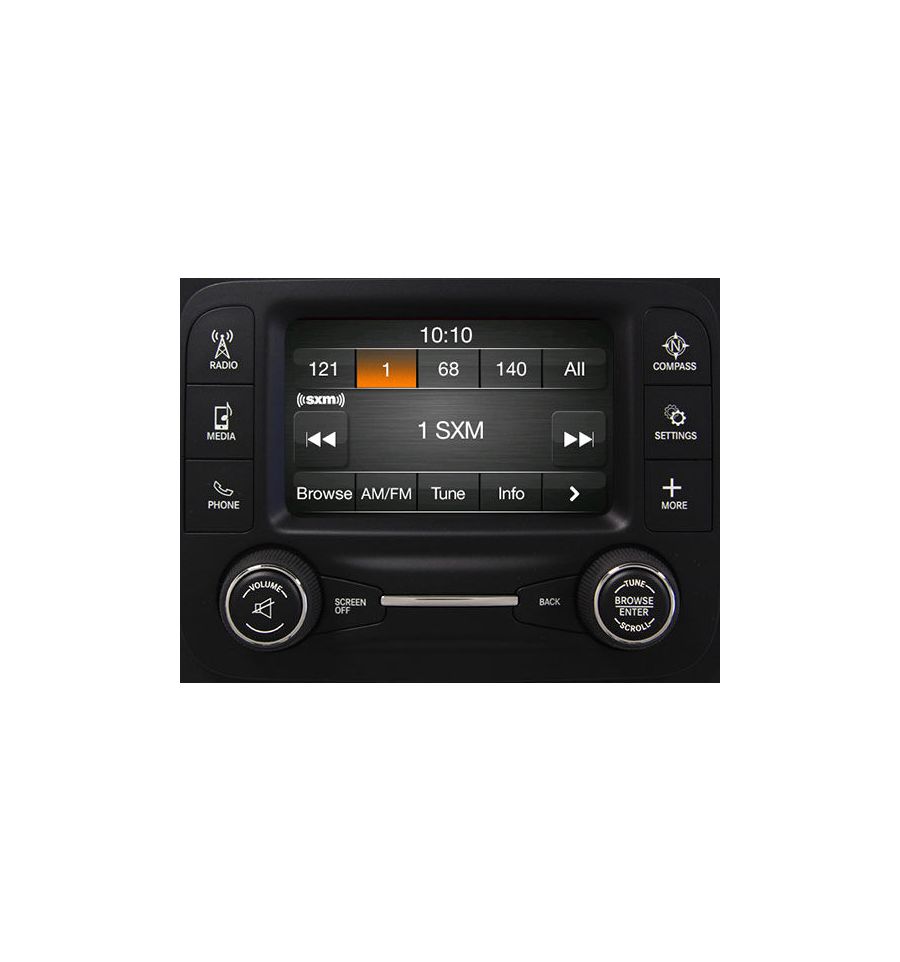

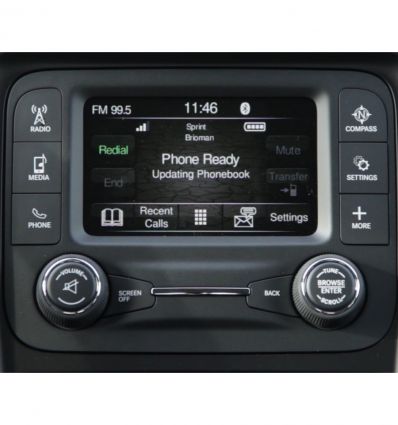

Jeep Uconnect 5" front and rear camera inputs video interface

Jeep Jeep

CI-UCON5N-JE

New

Video interface with front and rear camera inputs for Jeep Uconnect 5" (Radio - Radio Live) VP2/RA2 with DIN-shell behind front-panel.

More details

shipped in 24 h

€ 277,87

tax incl.

Worldwide shipping

24/48h Delivery

Secure payment

Car electronic experts since 1990

Video interface with front and rear camera inputs for Jeep Uconnect 5" (Radio - Radio Live) VP2/RA2 with DIN-shell behind front-panel.




Main features:

  • Video-insertion for factory-infotainment systems
  • Rear and front camera CVBS video-inputs.
  • 1 CVBS video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner, .)
  • Automatic switching to rear-view camera input on engagement of reverse gear
  • Manual Switching to Front Camera by Keypad or factory button
  • Activatable parking guide lines for rear-view camera (not available on all vehicles)
  • Video-in-motion (ONLY for connected video-sources)
  • Compatible with factory rear-view camera
  • AV-inputs PAL/NTSC compatible
  • Full integration with the original system



Compatibility:

ModelSystem
 Renegade 2014 > Uconnect 5" (Radio - Radio Live) with 1 DIN shell (behind front panel)
 Cherokee 2014 >



Limitations:

  • Head unit must be temporary opened to install this interface, professional installation is required.
  • The interface inserts ONLY video signals into the infotainment. For sound use the possibly existing factory-audio-AUX-input or a FM-modulator.
  • Automatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required.

Specifications


BATT/ACCrange7V - 25V
Stand by power drain<40mA
Power0.3A@12V
Video input0.7V - 1V
Video input formatsPAL/NTSC
RGB-video amplitude0.7V with 75 Ohm impedanz
Temperature range-40°C to +85°C
Dimensions video-box118 x 23 x 86 mm (W x H x D)

Connectors

  • Video-insertion: ribbon cable
  • Power and CAN-bus: Plug & play
  • Video-input (2x): RCA connector
  • Rear-view camera-input: RCA connector


Remember that in some states it is illegal to use the video in motion while driving!
The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.

JeepCherokee, Renegade
CategoryRear View Camera Interfaces, Video integration
