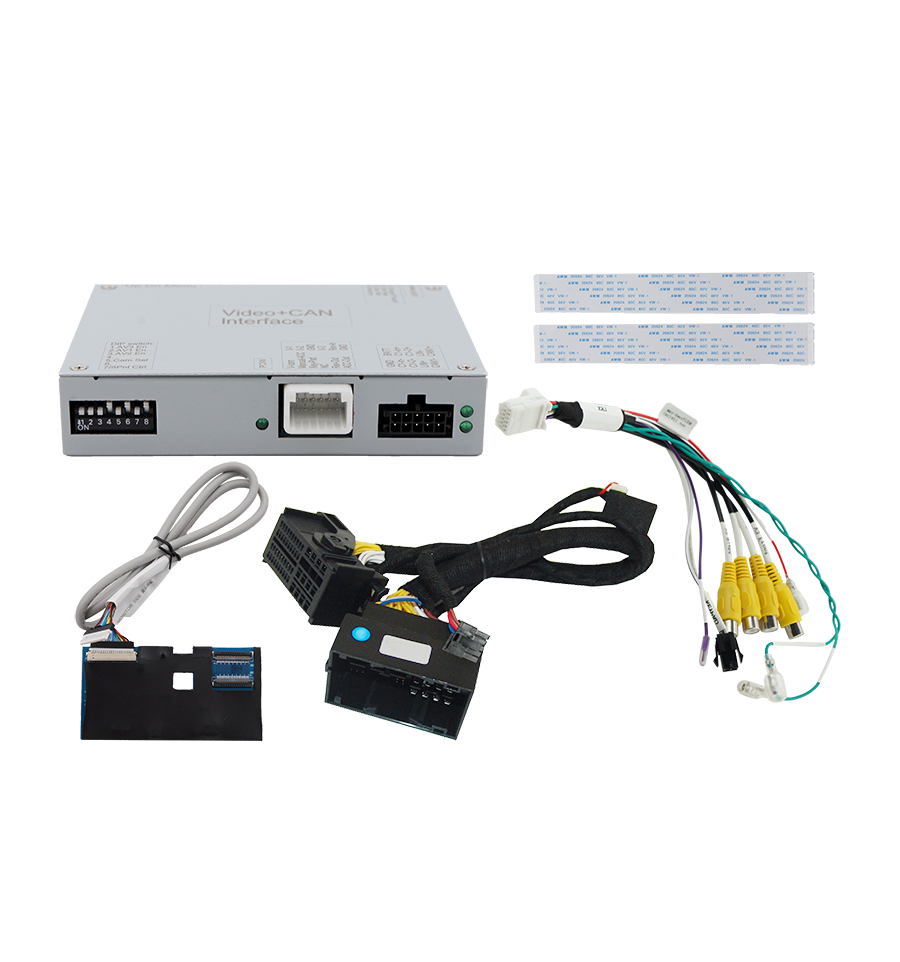

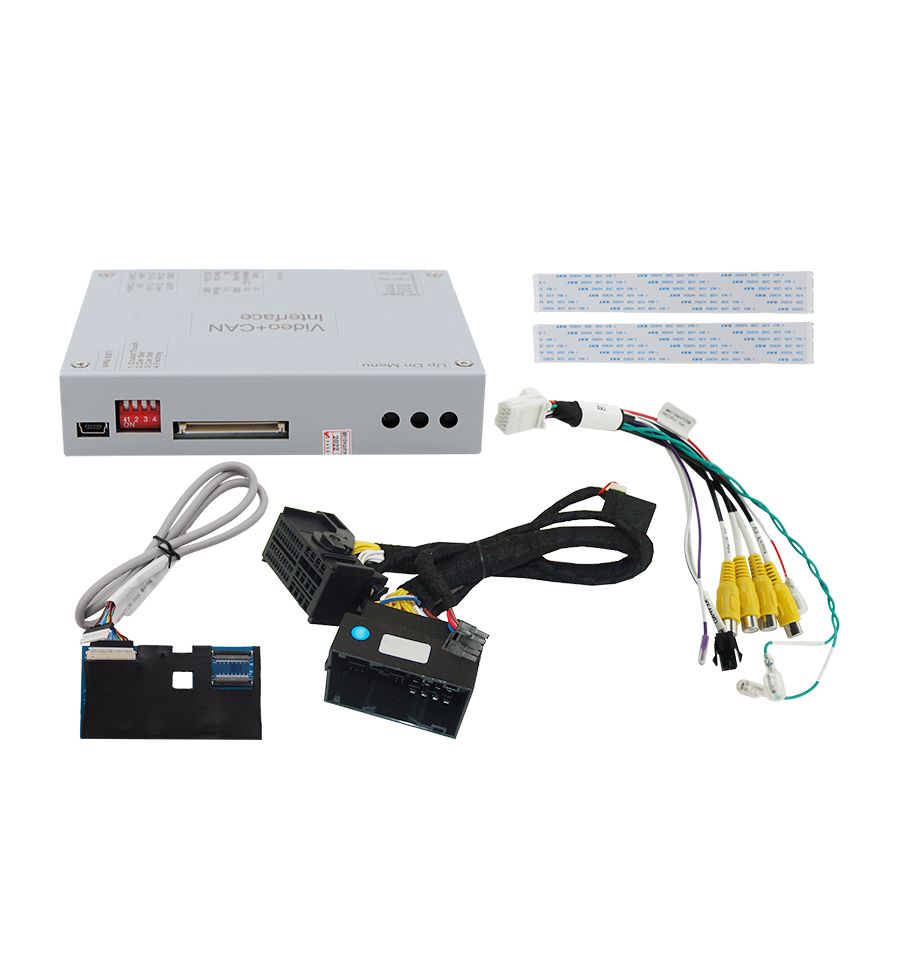

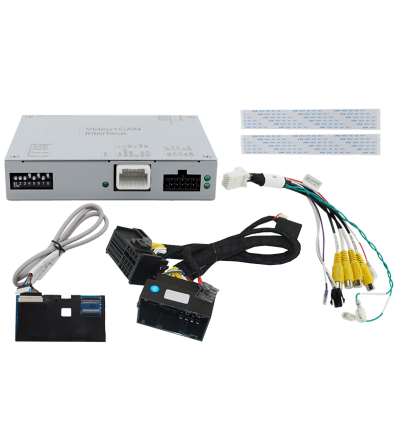

Jeep Uconnect 8.4" since MY2020 video interface with rear and front camera inputs


The video interface allows to insert a rear-view camera, a front camera with auto switching and two additional video sources (e.g. USB-player, DVB-T2 tuner, ...) to the factory-infotainment system of the vehicle manufacturer.

Product features:

  • Video-insertion for factory infotainment systems
  • 1 Rear-view camera CVBS video-input
  • 1 CVBS front camera video-input
  • 2 CVBS video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner, .)
  • Automatic switching to rear-view camera input on engagement of reverse gear
  • Automatic front camera switching after reverse gear for 10 seconds
  • Video-in-motion (ONLY for connected video-sources)
  • Activatable Parking Guide Lines for Rear-View Camera (not all vehicles)
  • Compatible with factory rear-view camera
  • AV-inputs PAL/NTSC compatible



Compatibility:

ModelloRadio / Navigazione
  Compass since MY2021

Uconnect 4C VP2RFP (Fiat 520) with 8.4 inch monitor, All-in-one

Continental

Renegade since MY2020

Attention: Not compatible with Jeep Compass since model year 2021 with Uconnect5 with 8.4inch tablet monitor and all-in-one head unit.

Limitations:

  • The interface inserts ONLY video signals into the infotainment. For sound use the possibly existing factory-audio-AUX-input or a FM-modulator.
  • If 2 AV-sources shall be connected to the infotainment an additional electronic is required.
  • Automatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required.


Specifications:

BATT/ACC range7V – 25V
Stand.by power drain<10mA
Power0.4A@12V
Video input0.5V˜2V
Video input formatsNTSC
Temperature range-40°C to +85°C
Dimensions118 x 25 x 104 mm (W x H x D)

Connections:

  • Video-insertion: 4-pin HSD
  • Power and CAN-bus: Plug & play
  • Video-input (2x): RCA connector
  • Rear and front camera-input: RCA connector


Remember that in some states it is illegal to use the video in motion while driving!


The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.

JeepCompass, Renegade
CategoryRear View Camera Interfaces, Video integration
