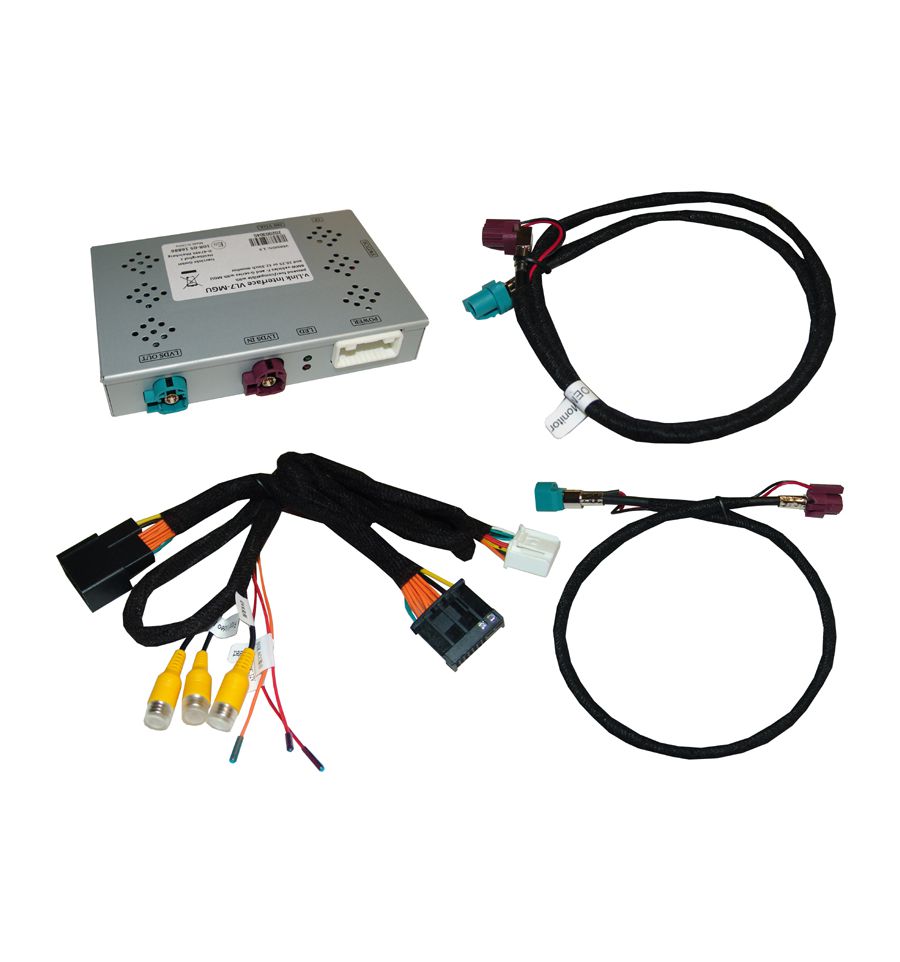

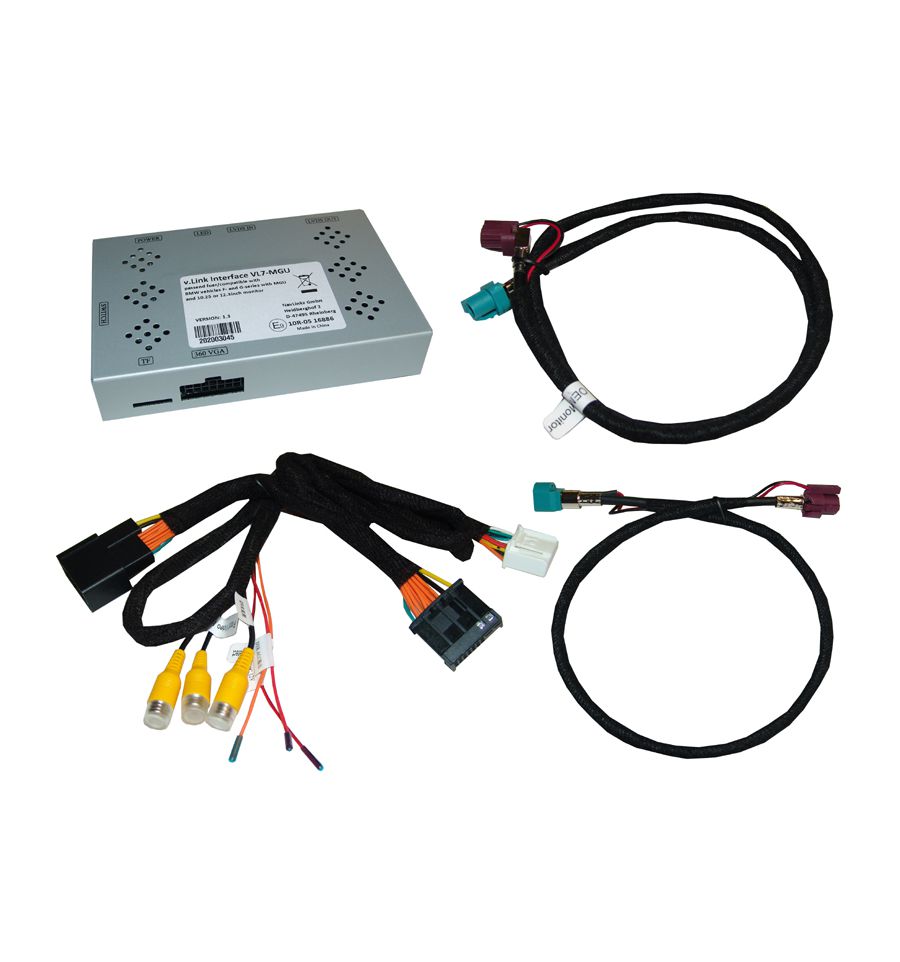

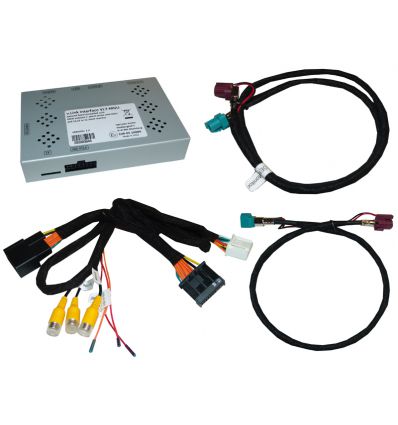

BMW MGU Video interface with Rear and front camera inputs

BMW BMW

CI-VL7-MGU-BM

New

Video interface with Rear and front camera inputs for MGU systems BMW vehicles F-and G-series with 10.25inch or 12.3inch monitor with HSD+2 LVDS plug.

More details

shipped in 24 h

€ 368,03

tax incl.

Worldwide shipping

24/48h Delivery

Secure payment

Car electronic experts since 1990

Video interface with Rear and front camera inputs for MGU systems BMW vehicles F-and G-series with 10.25inch or 12.3inch monitor with HSD+2 LVDS plug.



This interface allows you to integrate a rear view and a front view camera to your car factory fitted screen. Once connected it gives you an additional video input to connect an in car DVD player, games console iPod video, digital TV tuner.




Product features:

  • Video-inserter for factory-infotainment systems
  • 1 CVBS input for a rear-view camera
  • 1 CVBS input for a front camera
  • 1 CVBS video-input for a after-market device (e.g. USB-Player, DVB-T2 tuner, ...)
  • Automatic switching to rear-view camera input on engagement of the reverse gear
  • Automatic front camera switching after disengaging reverse gear for 10 seconds
  • Activatable dynamic parking guide lines for rear-view camera (not available on all vehicles)
  • Video-in-motion (ONLY for connected video-sources)
  • Video-inputs NTSC compatible

Compatibility:

ModelNavigation
  F series
S609A Professional Navigation
S6UPA Navigation Plus
- MGU - F+G-series
ONLY 10.25 or 12.3inch monitors
  G series



Limitations:

The interface inserts ONLY video signals into the infotainment. For inserting Audio signals either the possibly existing factory audio-AUX-input or a FM-modulator can be used. If 2 audio sources shall be connected to the infotainment, an additional electronic is necessary to switch them.

Automatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required.





Specifications:



BATT/ACC range7V ~ 25V
Stand.by power drain1mA
Power290mA@12V
Video input0.7V˜1V
Video input formatsNTSC
Temperature range-40°C to +85°C
Dimensions CAN-box130 x 88 x 25 mm (W x H x D)

Connectors

  • Video-insertion: 4+2pin HSD+2
  • Power and CAN-bus: Plug & play
  • Video-input (2x): RCA female connector
  • Rear-view camera-input: RCA female connector
  • Front camera-input: RCA female connector


Remember that in some states it is illegal to use the video in motion while driving!


The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.

BMWSerie 1 F20 / F21, X6 F16, X5 F15, X4 F26, X3 F25, X1 F48, 7 Series F01 / F02, 6 Series F12 F13, 5 Series F10 / F11, Serie 4 F32 / F33, Serie 3 F30 / F31, Serie 2 F22/F23/F45/F46
CategoryRear View Camera Interfaces, Video integration
