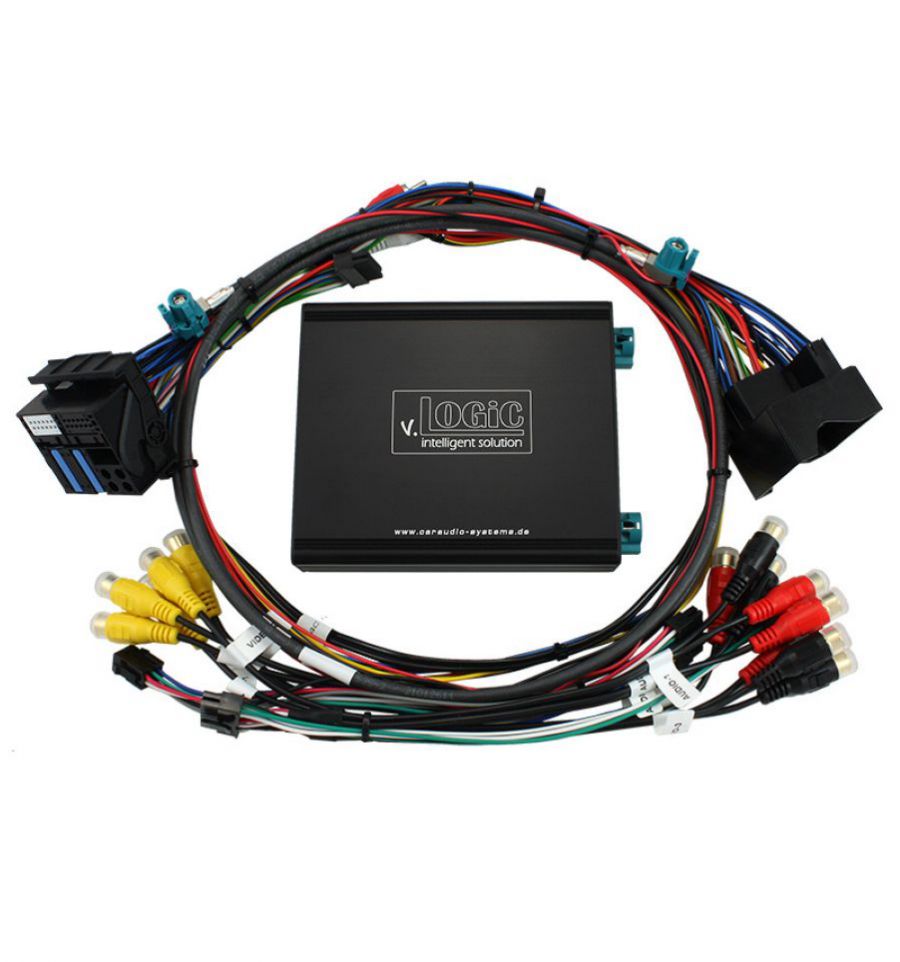

v.LOGiC Media-controller for BMW F-series NBT, 4+2pin HSD Expand

v.LOGiC Media-controller for F-series BMW Business/Professional NBT, 4+2pin HSD

BMW BMW

CI-V4-NBT-BM

New

v.LOGiC Media-controller for F-series BMW Business/Professional NBT and 6.5inch, 7inch, 8.8inch or 10.25inch monitor and HDS+2 LVDS monitor plug.

More details

shipped in 24 h

€ 343,44

tax incl.

Worldwide shipping

24/48h Delivery

Secure payment

Car electronic experts since 1990

v.LOGiC Media-controller for F-series BMW Business/Professional NBT and 6.5inch, 7inch, 8.8inch or 10.25inch monitor and 4+2pin LVDS monitor plug.

V4 media-controller - 3 AV-inputs with device control + rear-view camera input + front camera integration & more
The The V4 media-controller allows to connect up to three different AV-sources (after-market devices e.g. DVD player, DVB-T tuner) to the factory navigation system of the vehicle manufacturer.If the AV-source(s) is/are in the list of compatible devices, it is possible to control the AV-source(s) by the factory infotainment. Additionally the connection of a rear-view camera is possible and an output to rear-seat entertainment is available. A front camera can be integrated through the third AV-input. Rear-view and front camera act jointly with each other and with the factory infotainment. From all operation modes, the video is automatically switched to connected factory and after-market cameras according to the users needs and switched back to previous video after the parking maneuver is finished. Video-in-motion is included for AV-sources that are connected to the factory infotainment through the V4.

Product features:

  • Plug and play media-controller with controls by factory infotainment
  • Own on-screen display and setup
  • No coding of vehicle/factory-infotainment necessary
  • On 8.8inch and 10.25inch 24:10 ultrawide monitor 5 picture format modes (split-mode, 16:9, 16:9 zoom, full screen and full screen zoom)
  • On 6.5inch and 7inch 16:9 monitor 2 picture format modes (full screen and zoom)
  • 3 AV-inputs
  • Controls of after-market devices (e.g. DVB-T tuner, DVD-player, DAB tuner) by factory infotainment (iDrive)
  • 2 trigger outputs (+12V max. 1A), separately adjustable switching events
  • Video-in-motion
  • Rear-view camera input
  • Interactive lane lines
  • Automatic switching to rear-view camera input on engagement of reverse gear from all operation modes
  • AV3 can be used for front camera (automatic swtiching on parking maneuver, automatic return at 20km/h)
  • Manual switching to rear-view camera
  • Manual return from rear-view and front camera (cancellation of automatic switching)
  • Picture-in-picture mode combining after-market rear-view and front camera picture(s) with factory parking sensor graphics
  • Compatible with all factory video accessories (e.g. rear-view camera, TV-tuner)
  • Rear-seat-entertainment output for AV-sources connected to the V4
  • USB update-port for software-updates by consumer

 Compatibility:

Compatible to BMW vehicles with Business with 6.5inch, 7inch monitor or Professional NBT with 8.8inch or 10.25inch monitor with 4+2pin HSD+2 LVDS plug.

ModelRadio/Navigation
1 series (F20/21/44/52)Radios and Business navigation
6.5inch or 7inch monitor
(vehicles from approx 06/2012)

or

Professional navigation NBT
8.8" or 10.25" monitor
(vehicles from approx 06/2012 til approx 05/2016)
with old main menu
2 series (F22/23/45/46)
3 series (F30/31/34)
4 series (F32/F33/F35/F36)
5 series (F10/F11)
6 series (F06/F12/F13)
7 series (F01/F02/F03)
X1 (F48)
X2 (F47)
X3 (F25)
X4 (F26)
X5 (F15)
X6 (F16)
M2 (F82)
M4 (F87)
M5 (F90)


Limitations:

Factory USB-port: The AUDIO connection is different if the vehicle is with factory USB-port, please see the note in the manual!

PDC / interactive lane lines: PDC, picture in picture and interactive lane lines function is not simultaneously usable



Specifications:

Operation voltage10.5V – 14.8V
Stand-by power drain<0.1mA
Operation power drain190mA
Power consumption2.6W
Temperature range-20°C to +80°C
Measurements141 x 30 x 105 mm



Connectors

  • Video-insertion: 4+2-pin HSD
  • Power and CAN-bus: Plug & play
  • Video-input (3x): RCA connector
  • Rear-view camera-input: RCA connector
  • Audio-input (3x): 2-channel RCA connector


Remember that in some states it is illegal to use the video in motion while driving!


The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.

BMWSerie 1 F20 / F21, X6 F16, X5 F15, X4 F26, X3 F25, X1 F48, 7 Series F01 / F02, 6 Series F12 F13, 5 Series F10 / F11, Serie 4 F32 / F33, Serie 3 F30 / F31, Serie 2 F22/F23/F45/F46
CategoryRear View Camera Interfaces, Video integration, Video in Motion
