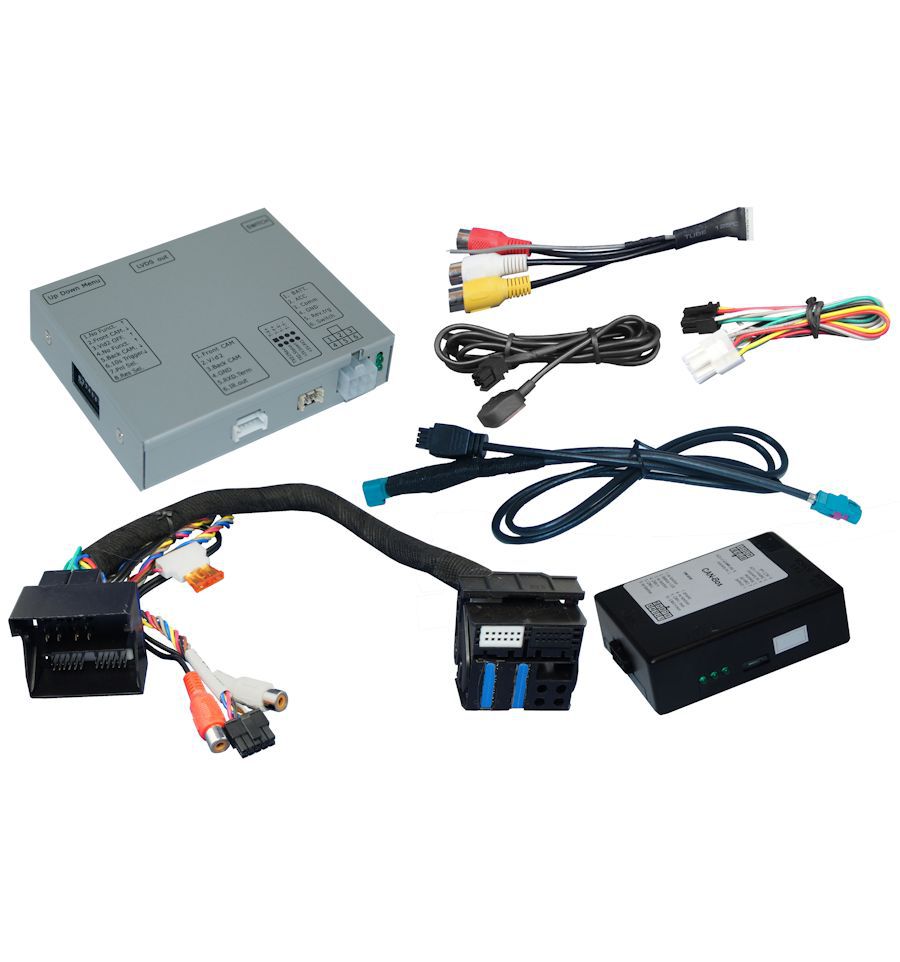

MERCEDES NTG4.5 Reverse and front camera input interface Expand

MERCEDES NTG4.5 Reverse and front camera input interface

Mercedes Mercedes

CI-RL2-MBN45

New

Video inserter for front- and rear-view camera and another video-source.
Compatible with Mercedes Benz vehicles generation NTG4.5 with Comand Online or Audio20.

More details

€ 245,08

tax incl.

Worldwide shipping

24/48h Delivery

Secure payment

Car electronic experts since 1990

Video inserter compatible with Mercedes Benz vehicles with Comand Online NTG4.5 and Audio20 NTG4.5/5. For connection of a front-, rear-view camera and another video source.

Product features

  • Video-inserter for factory-infotainment monitors
  • Back and front camera CVBS video-input
  • CVBS video-input for after-market devices (e.g. DVD-Player, DVB-T tuner, ...)
  • Automatic switching to rear-view camera input on engagement of the reverse gear
  • Manual switching to front camera by external keypad or Comand-button
  • Activable parking guide lines for rear-view camera (not all vehicles)
  • Video-in-motion (ONLY for connected video-sources)
  • AV-inputs PAL / NTSC compatible



Compatibility

Compatible with Mercedes Benz vehicles with Comand Online NTG4.5 and Audio20 NTG4.5 with 4pin HSD LVDS connector on the monitor

ModelRadio/Navigation
A-class (W176)  07/2012 > 08/2015
Comand Online NTG4.5

Audio20 NTG4.5
B-class (W246)  11/2011 > 10/2015
C-class (W204)  03/2011 > 10/2014
C-class Coupe (C204)  06/2011 > 2014
CLA-Coupe (C117) 01/2013 > 09/2014
CLS-Coupe (C218)  06/2011 > 07/2014
E-class (S/W212)  06/2011 > 10/2014
E-class Coupe (C207)  06/2011 > 05/2015
G-model (G463)  07/2012 > 09/2016
GL-class (X166)  11/2011 > 08/2016
GLA-class (X156)  09/2013 > 08/2015
GLK-class (X204)  01/2011 >
ML-class (W166)  11/2011 > 07/2015
SLK-class (R172)  03/2011 > 2015
SL-class (R231)  2012 > 09/2015

NTG 4.5 Systems Mercedes
W117W204-W166R172
W176 W246W212W212 FL
W218W246 FLW463
 X166



Limitations

Video only
The interface inserts ONLY video signals into the infotainment. For inserting Audio signals either the possibly existing factory audio-AUX-input or a FM-modulator can be used. For AUX option coding we offer OBD-coder CI-OBD-N45-X-01.
Factory media-interfaceIf available, its AUX cable with 3.5mm jack (available at MB) can be used for audio insertion. While used for audio insertion, the Apple adapter or USB adapter cannot be used simultaneously.
Factory rear-view cameraAutomatic switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required.



Specifications(interface-box)

Operation voltage7V – 25V
Stand-by power drain10mA
Video input formatsPAL/NTSC
RGB-video amplitude0.7V with 75 Ohm impedanz
Temperature range-40°C to +80°C
Dimensions113 x 22 x 92 mm (W x H x D)

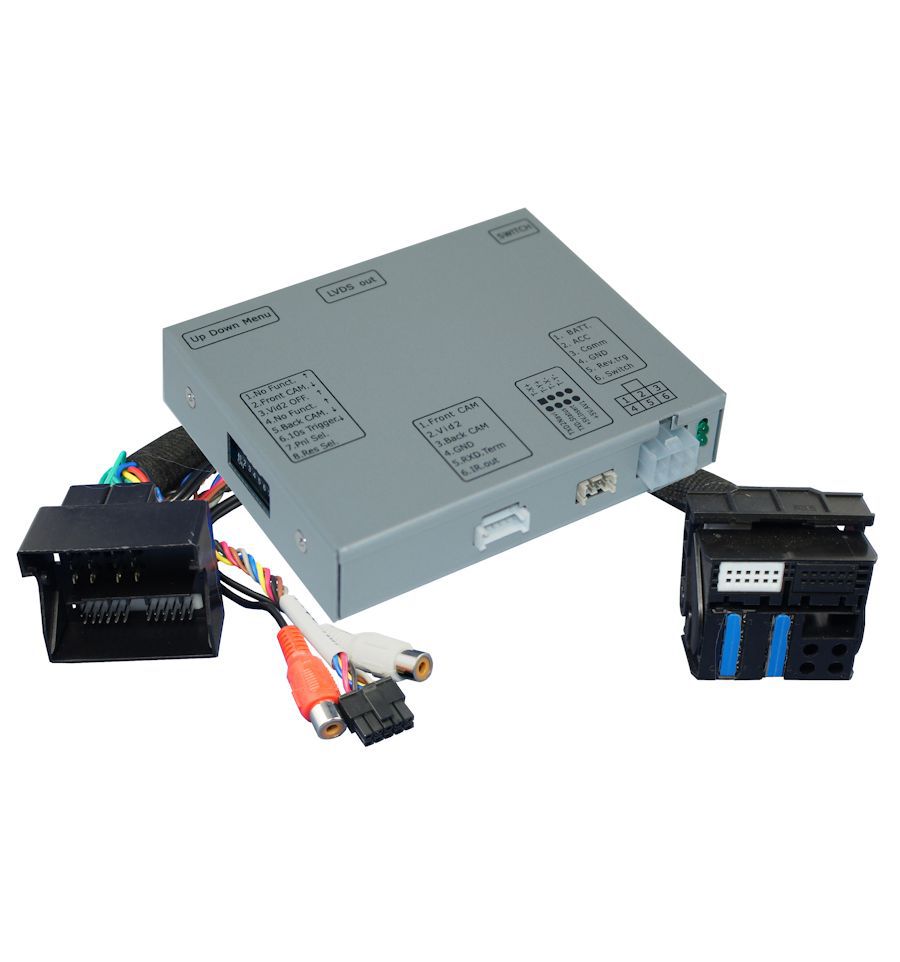

Connections (Interface-box)

  • Video-insertion: 4-pin HSD
  • Power and CAN-bus: Plug & play
  • Video-input: RCA connector
  • Rear-view camera-input: RCA connector
  • Front camera-input: RCA connector




Remember that in some states it is illegal to use the video in motion while driving!


The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.

MercedesCLA Coupè C117, GLA X156, CLS Coupè C218, SLK Class R172, SL Class R231, ML Class W166, GLK Class X204, GL Class X166, Class G W463, E Class W212, E Class Coupè C207, C Class W204, C Class Coupè C204, B Class W246, A Class W176
CategoryRear View Camera Interfaces
