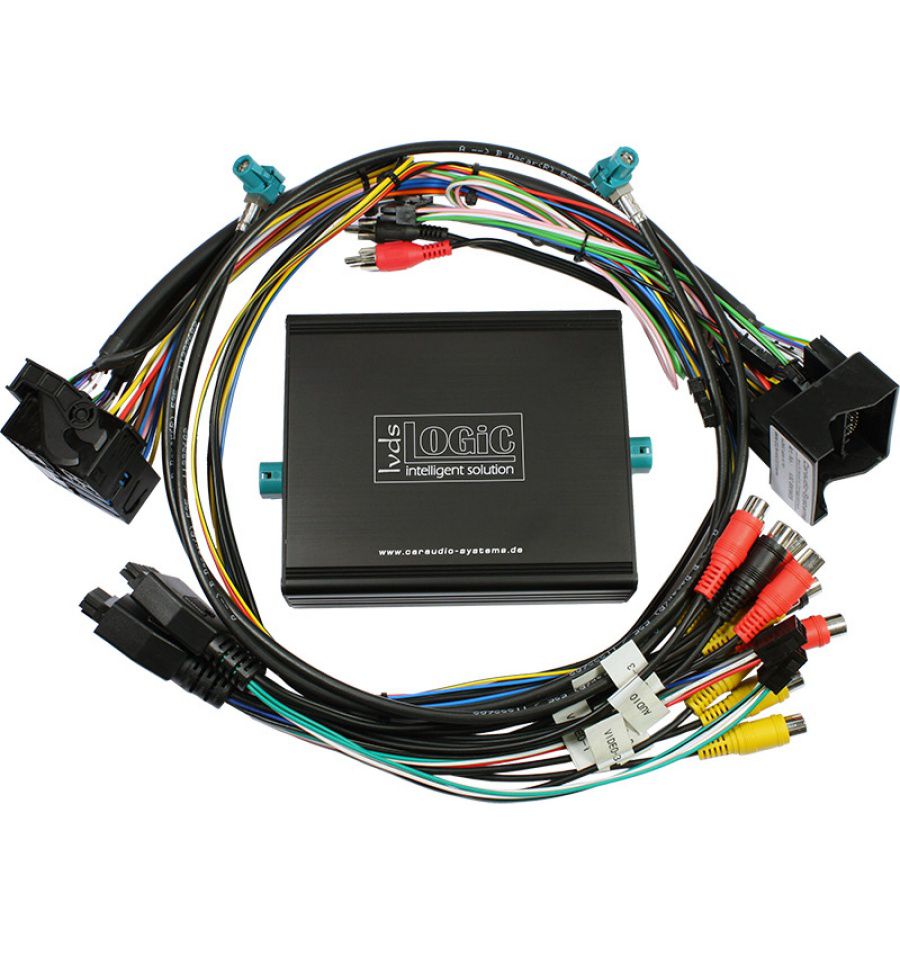

v.LOGiC Media-controller for Mercedes NTG 4.5 with Comand Online or Audio20 Expand

v.LOGiC Media-controller for Mercedes NTG 4.5 with Comand Online or Audio20

Mercedes Mercedes

CI-V4-NTG45

New

v.LOGiC Media-controller for Mercedes NTG 4.5 with Comand Online or Audio20 with colour display and 4pin LVDS monitor plug.

More details

shipped in 24 h

€ 327,05

tax incl.

Worldwide shipping

24/48h Delivery

Secure payment

Car electronic experts since 1990

v.LOGiC Media-controller for Mercedes NTG 4.5 with Comand Online or Audio20 with colour display and 4pin LVDS monitor plug.

V4 media-controller - 3 AV-inputs with device control + rear-view camera input + front camera integration & more
The V4 media-controller allows to connect up to three different AV-sources (after-market devices e.g. DVD player, DVB-T tuner) to the factory navigation system of the vehicle manufacturer.If the AV-source(s) is/are in the list of compatible devices, it is possible to control the AV-source(s) by the factory infotainment. Additionally the connection of a rear-view camera is possible and an output to rear-seat entertainment is available. A front camera can be integrated through the third AV-input. Rear-view and front camera act jointly with each other and with the factory infotainment. From all operation modes, the video is automatically switched to connected factory and after-market cameras according to the users needs and switched back to previous video after the parking maneuver is finished. Video-in-motion is included for AV-sources that are connected to the factory infotainment through the V4.

Product features:

  • Plug and play media-controller with controls by factory infotainment
  • Own on-screen display and setup
  • 2 picture format modes, 4:3 and full screen
  • 3 AV-inputs
  • Controls of after-market devices (e.g. DVB-T tuner, DVD-player, DAB tuner) by factory infotainment
  • 2 trigger outputs (+12V max. 1A), separately adjustable switching events
  • Video-in-motion (only for video-sources connected to the V4)
  • Rear-view camera input
  • Automatic switching to rear-view camera input on engagement of reverse gear from all operation modes
  • AV3 can be used for front camera (automatic swtiching on parking maneuver, automatic return at 20km/h)
  • Manual switching to rear-view camera
  • Manual return from rear-view and front camera (cancellation of automatic switching)
  • Compatible with all factory video accessories (e.g. rear-view camera, TV-tuner)
  • Rear-seat-entertainment output for AV-sources connected to the V4
  • USB update-port for software-updates by consumer


Compatibility:

Compatible to Mercedes Benz vehicles with Comand Online NTG4.5 and Audio 20 NTG4.5 with 4pin HSD LVDS connector.

ModelYear
  A-class (W176) 07/2012 - 08/2015Comand Online NTG4.5
Audio20 NTG4.5
  B-class (W246) 11/2011 - 10/2014
  C-class (W204) 03/2011 - 10/2014
  C-class Coupé (C204) 06/2011 - 2014
  CLA-Coupé (C117) 01/2013 - 09/2014
  E-class (S/W212) 06/2011 - 10/2014
  E-class Coupé (C207) 06/2011 - 05/2015
  CLS-Coupé (C218) 06/2011 - 07/2014
  G-model (G463) 07/2012 - 09/2016
  GL-class (X166) 11/2012 - 08/2016
  GLA-class (X156) 09/2013 - 08/2015
  GLK-class (X204) from 01/2011
  ML-class (W166) 11/2011 - 07/2015
  SLK-class (R172) 03/2011 - 2015
  SL-class (R231) 2012 - 09/2015



NTG 4.5 Systems Mercedes
W117W204-W166R172
W176 W246W212W212 FL
W218W246 FLW463
 X166



Limitations:

Audio-AUX A factory audio-AUX input is required. On some head-units it is already activated. If not, it is necessary to code the head-unit to audio-AUX by diagnosis computer.

Factory-media-interface The AUDIO connection is different if the vehicle is with factory media-interface, see the note in chapter "Connection to the vehicle-AUX-input" of the manual, please!



Specifications:

Operation voltage10.5V – 14.8V
Stand-by power drain<0.1mA
Operation power drain0190mA
Power consumption2.6W
Temperature range-20°C to +80°C
Weight285g
Measurements141 x 30 x 105 mm


Connectors:

  • Video-insertion: 4pin HSD
  • Power and CAN-bus: Plug & play
  • Video-input (3x): RCA connector
  • Rear-view camera-input: RCA connector
  • Audio-input (3x): 2-channel RCA connector


Remember that in some states it is illegal to use the video in motion while driving!


The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.

MercedesCLA Coupè C117, GLA X156, CLS Coupè C218, SLK Class R172, SL Class R231, ML Class W166, GLK Class X204, GL Class X166, E Class W212, E Class Coupè C207, C Class W204, C Class Coupè C204, B Class W246, A Class W176
CategoryRear View Camera Interfaces, Video integration, Video in Motion
