New MERCEDES NTG5.5 Comand Online AHD/CVBS/HDMI rear and front camera input interface Expand

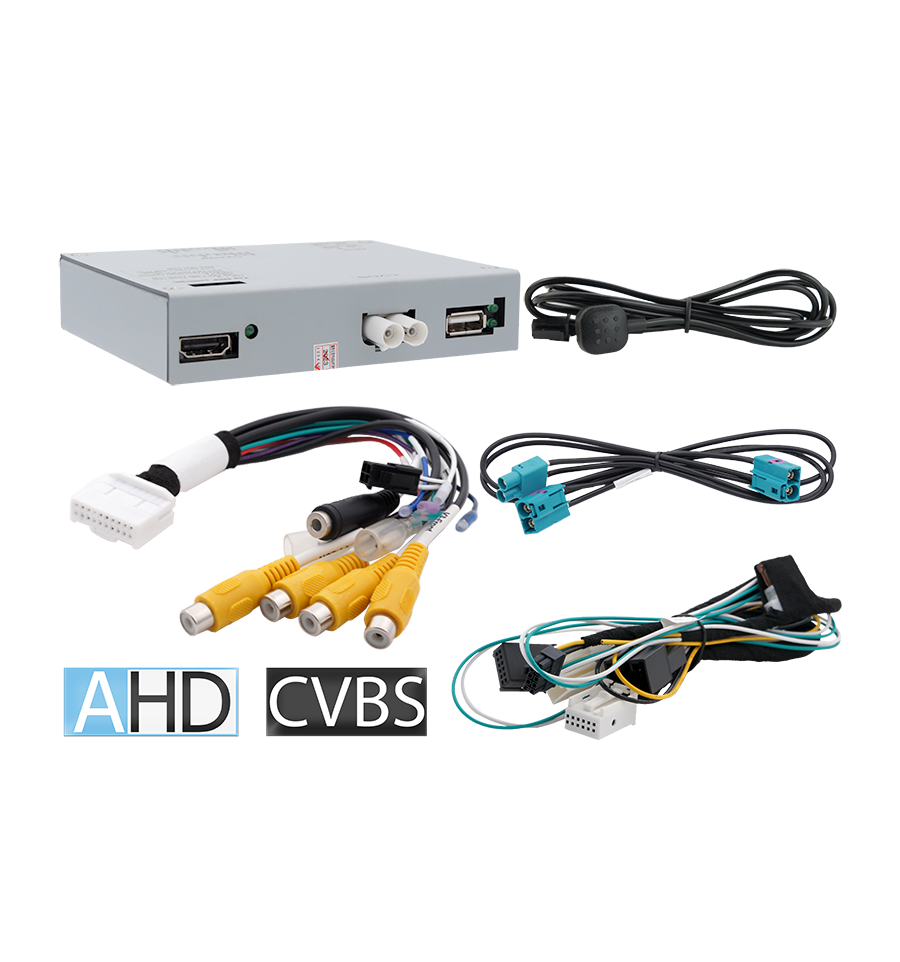

MERCEDES NTG5.5 Comand Online AHD/CVBS/HDMI rear and front camera input interface

Mercedes Mercedes

CI-HDV-MBN55

New

Video inserter for rear-view camera, front camera with auto switching and 2 video-sources.

CVBS and AHD compatible.

Additional HDMI input. Compatible with Mercedes Benz vehicles with Comand Online or Audio 20 NTG5.5 with 7, 8, 10.25 or 12.3inch monitor.

More details

€ 343,44

tax incl.

Worldwide shipping

24/48h Delivery

Secure payment

Car electronic experts since 1990

Video inserter for rear-view camera, front camera with auto switching and 2 video-sources. CVBS and AHD compatible. Additional HDMI input. Compatible with Mercedes Benz vehicles with Comand Online or Audio 20 NTG5.5 with 7, 8, 10.25 or 12.3inch monitor.

Product features

  • Video-inserter for factory-infotainment systems
  • 1 CVBS/AHD-input for rear-view camera
  • 1 CVBS/AHD-input for front camera
  • 2 CVBS/AHD-input for side-cameras or additional after-market video-sources (e.g., USB-device, DVB-T2 Tuner, etc.)
  • All inputs NTSC and PAL compatible
  • Supported AHD resolutions 720p NTSC (30Hz), 720p PAL (25Hz), 960p NTSC (30Hz), 960p PAL (25Hz), 1080p NTSC (30Hz), 1080p PAL (25Hz)
  • 1 HDMI-input for HD rear-view camera or additional HDMI-sources (e.g., IOS/Android, laptop, streaming stick, DVD-Player, DVB-T2 Tuner, etc.)
  • Automatic switching to rear-view camera input while reverse gear is engaged
  • Automatic front camera switching after reverse gear for 5, 10, 15 or 20 seconds
  • Activatable driving-path lines for rear-view camera (not available for all vehicles)
  • Picture free during the car ride (only for inserted video-sources)



Compatibility

ModelRadio/Navigation

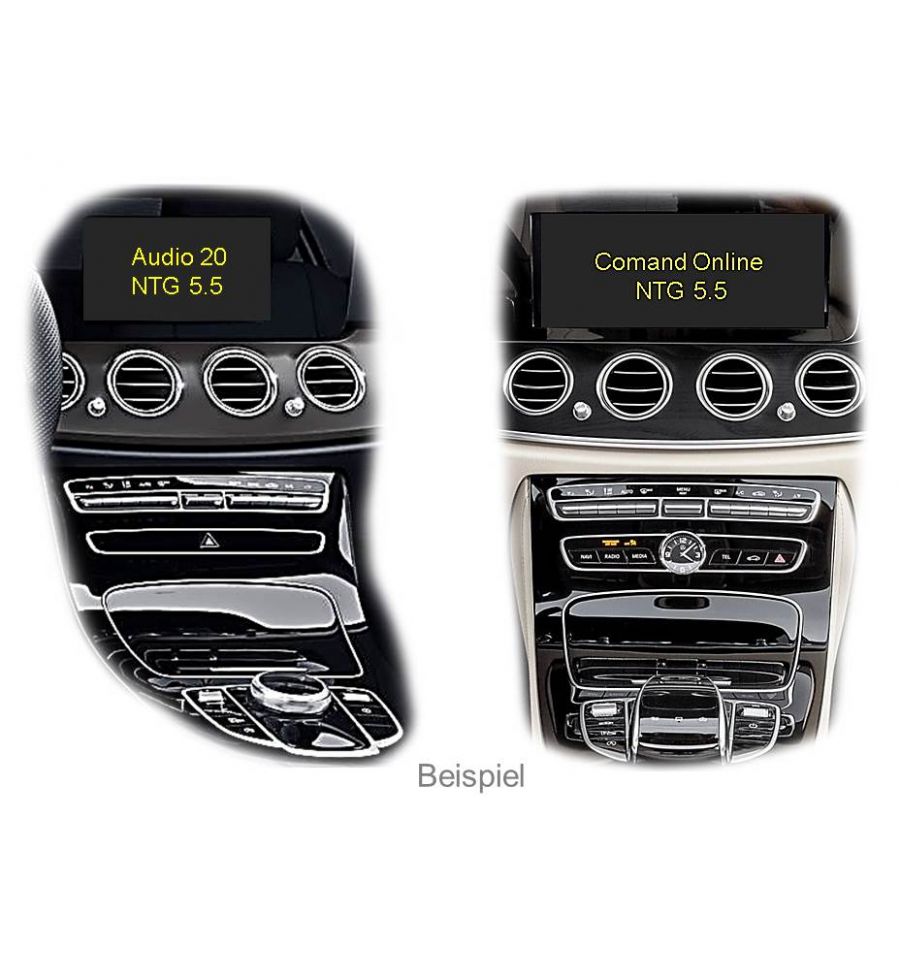

Comand Online or Audio20 NTG5.5 with 7inch, 8inch, 10.25inch or 12.3inch monitor
Only for vehicles without factory TV-tuner!
 C (W205) 08/2018 - 11/2020
 C T-Model (S205) 08/2018 - 02/2021
 C Convertible (A205) 08/2018 - 03/2023
 C Coupé (C205) 08/2018 - 03/2023
 CLS-Coupé (C257) 02/2018 - 07/2020
 E (W213) 04/2016 - 06/2020
 E T-Model (S213) 04/2016 - 06/2020
 E convertible (A238) 09/2017 - 06/2020
 E Coupé (C238) 09/2017 - 06/2020
 G (G463) 05/2018
 GLC (X253) MY2019
 GT AMG 4 porte (X290) 09/2018 - 06/2020
 S-Coupé (C217) 05/2017 - 08/2020
 S (V/X/W222) 05/2017 - 11/2020



Limitations

Video only
The interface inserts ONLY video signals into the infotainment. For inserting Audio signals either the possibly existing factory audio-AUX-input or a FM-modulator can be used. For AUX option coding we offer OBD-coder CI-OBD-N45-X-01.
Factory rear-view cameraAutomatic switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required.
 TV Tuner Only for vehicles without factory TV-tuner.



Specifications(interface-box)

Operation voltage7V – 25V
Stand-by power drain<10mA
Video input0.7V - 1V
Video input formatNTSC
RGB-video amplitude0.7V with 75 Ohm impedance
Temperature range-40°C to +85°C
Dimensions video-box113×22×92 mm (W×H×D)
Dimensions CAN-box87×27×65 mm (W×H×D)

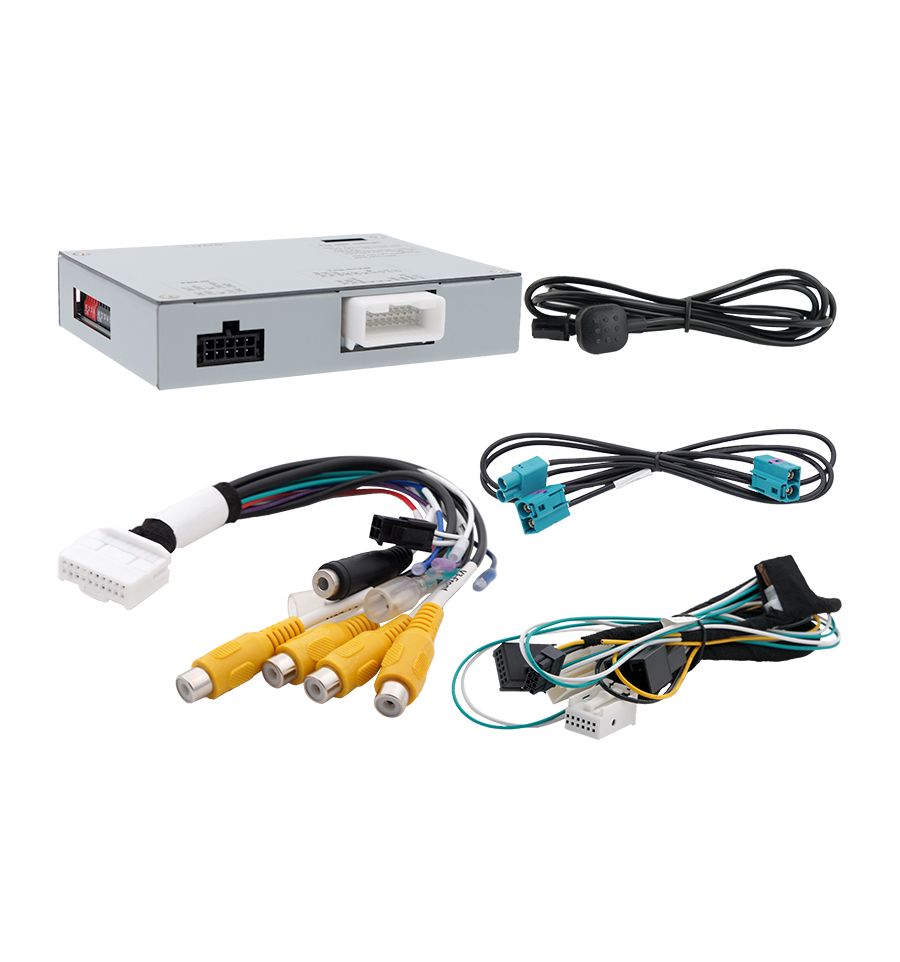

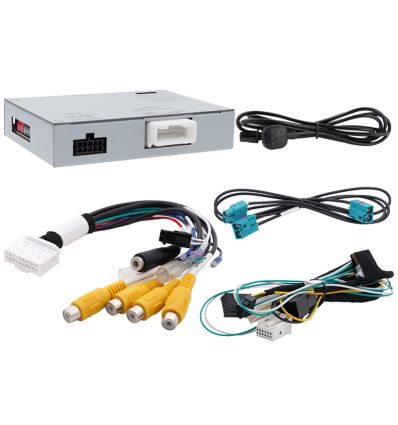

Connections (Interface-box)

  • Video-insertion: Double Fakra
  • Power and CAN-bus harness
  • Video-inputs (2x): RCA connector
  • Rear-view camera-input: RCA connector
  • Front camera-input: RCA connector




Remember that in some states it is illegal to use the video in motion while driving!


The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.
