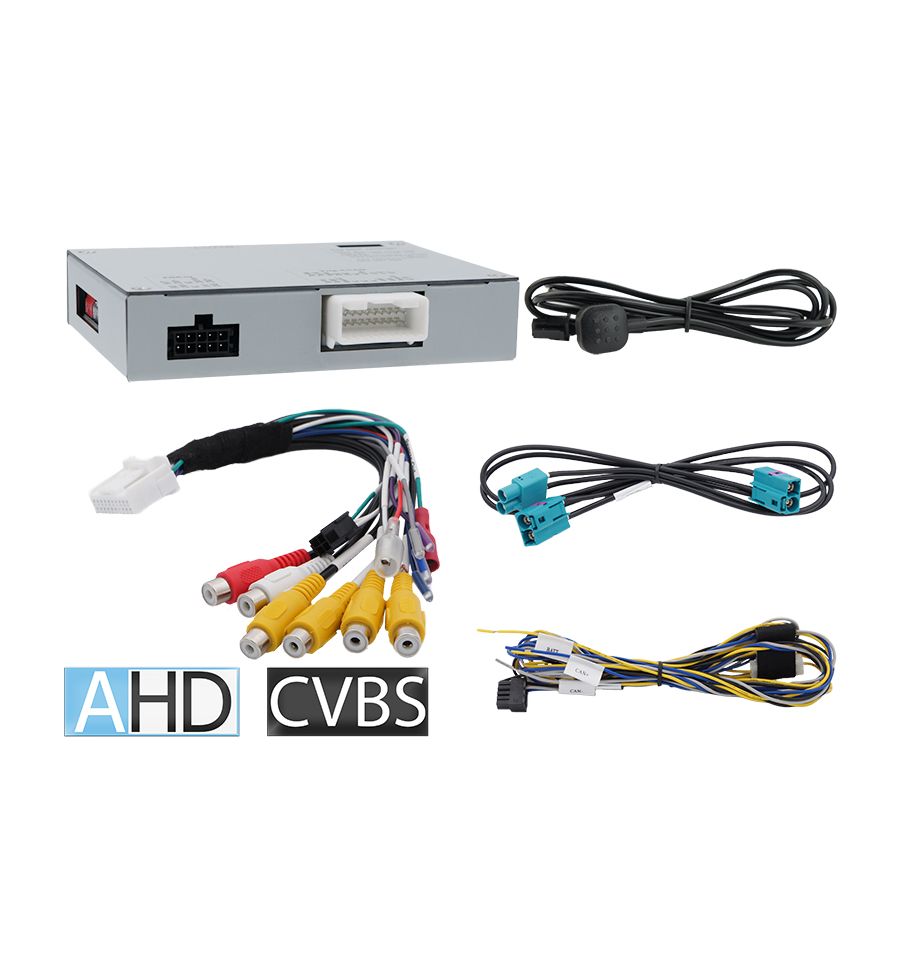

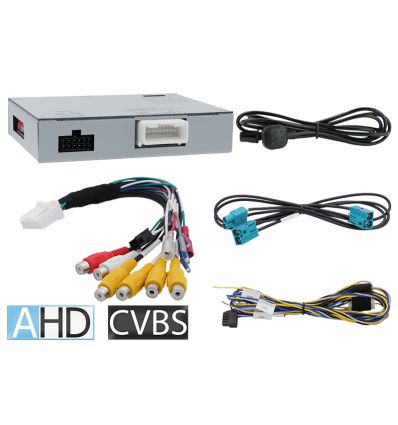

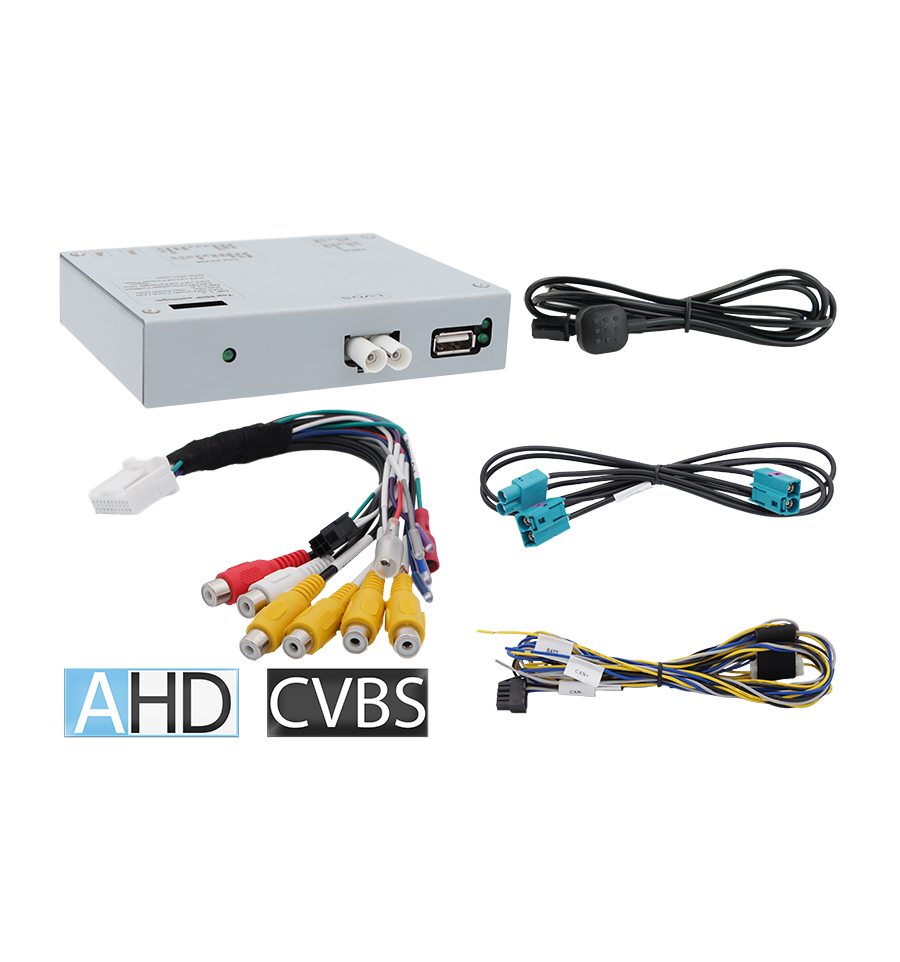

Video inserter for rear-view camera, front camera with auto switching and 2 video-sources. CVBS and AHD compatible.

Compatible with Mercedes Benz MBUX NTG6 systems with 7, 10.25 ir 12 inch monitor.

More details

€ 310,66

tax incl.

Video inserter for rear-view camera, front camera with auto switching and 2 video-sources. CVBS and AHD compatible.

Compatible with Mercedes Benz MBUX NTG6 systems with 7, 10.25 ir 12 inch monitor.

Product features

  • Video-insertion for factory infotainment systems
  • 1 Rear-view camera AHD/CVBS video-input
  • 1 AHD/CVBS front camera video-input
  • 2 CVBS video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner, .)
  • Supported AHD resolutions 720p NTSC (30Hz), 720p PAL (25Hz), 960p NTSC (30Hz),
    960p PAL (25Hz), 1080p NTSC (30Hz), 1080p PAL (25Hz)
  • Automatic switching to rear-view camera input on engagement of reverse gear
  • Automatic front camera switching after reverse gear for 10 seconds
  • Video-in-motion (ONLY for connected video-sources)
  • Compatible with factory rear-view camera
  • AV-inputs PAL/NTSC compatible



Compatibility

ModelNavigation
A-class (W177) from 05/2018,
B-class (W247) from 12/2018,
Citan (W420) from 10/2021,
CLA coupe (C118) from 03/2019,
CLA shooting brake (X118) from 07/2019,
CLS coupe (C257) from 07/2020-,
E-class (W213) from 06/2020 til 08/2023,
E-class T-model (S213) from 06/2020 til 08/2023,
E-class coupe (C238) from 06/2020 til 10/2023,
E-class convertible (A238) from 06/2020 til 10/2023,
EQA SUV (H243) from 02/2021,
EQB SUV (X243) from 11/2021,
EQC (N293) from 05/2019 til 05/2023,
EQT (W420) from 05/2023,
EQV (W447) from 10/2020,
GLA (H247) from 02/2020,
GLB (X247) from 09/2019,
GLC coupe (C253) about 05/2019 til 03/2023,
GLC SUV (X253) about 05/2019 til 07/2022,
GLE coupe (C167) from 11/2019,
GLE SUV (V167) from 10/2018,
GLS (X167) from 04/2019,
GT AMG 4door (X290) from 06/2020,
Sprinter (W907/W910) from 06/2018,
T-class (W420) from 2022,
V-class (W447) from 03/2020
Comand Online NTG6/MBUX with 7inch, 10.25inch or 12inch monitor




Limitations

Video onlyThe interface inserts ONLY video signals into the infotainment. For inserting Audio signals either the possibly existing factory audio-AUX-input or a FM-modulator can be used. If 2 audio sources shall be connected to the infotainment, an additional electronic is necessary to switch them.
Factory rear-view cameraAutomatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required.
After market front cameraThe front camera will automatically be switched for 10 seconds after disengaging the reverse gear. A manually front camera switching is possible by external keypad.
Video input signalOnly NTSC video sources compatible.
Guide linesAvailable only for vehicles with 7inch monitor, not for 10inch monitor. If the interface does not receive the required information from the vehicle guide lines won’t be supported.





Specifications(interface-box)

Operation voltage7V – 25V
Stand-by power drain<10mA
Video input0.7V - 1V
Video input formatNTSC
RGB-video amplitude0.7V with 75 Ohm impedance
Temperature range-40°C to +85°C
Dimensions video-box119×24×95 mm (W×H×D)





Connections (Interface-box)

  • Video-insertion: Double Fakra
  • Power
  • Video-inputs (2x): RCA connector
  • Rear-view camera-input: RCA connector
  • Front camera-input: RCA connector




Remember that in some states it is illegal to use the video in motion while driving!


The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.
