Video inserter AHD/CVBS for front - and rear-view camera and 2 video-sources.

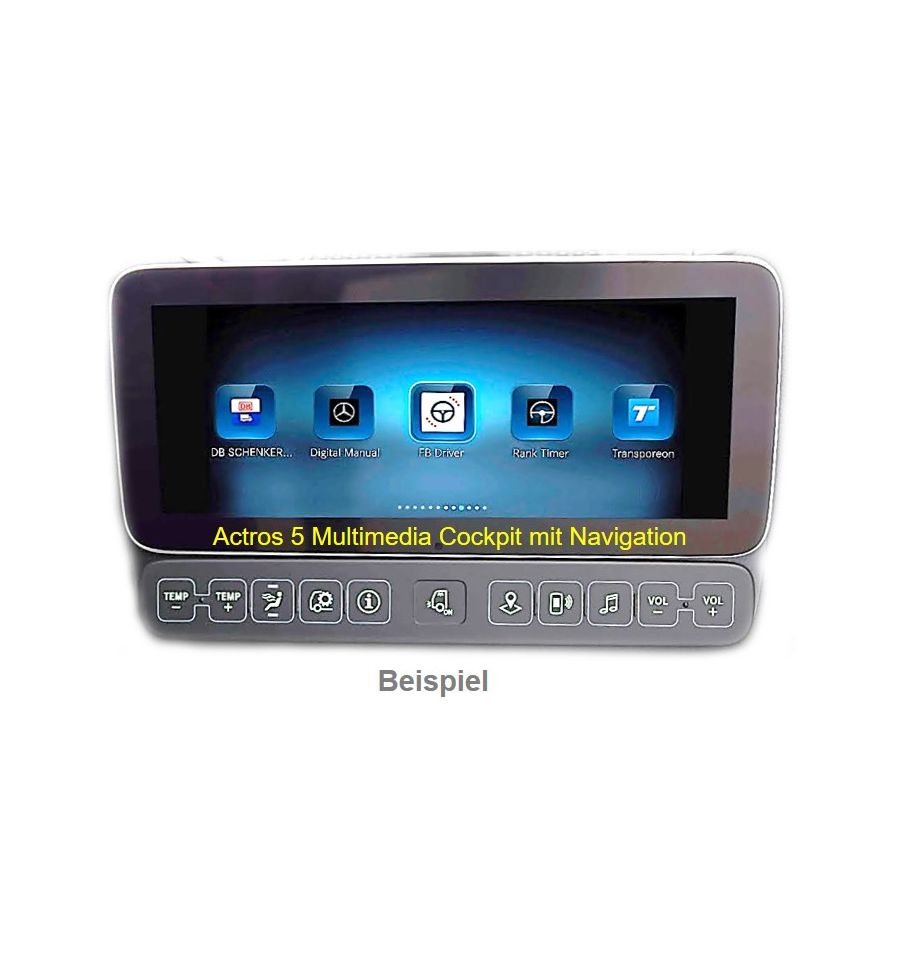

Compatible with MERCEDES Actros 5 - Arocs 10,25" monitor

More details

€ 392,62

tax incl.

Video inserter AHD/CVBS for front - and rear-view camera and 2 video-sources.
Compatible with MERCEDES Actros 5 - Arocs 10,25" monitor

Product features

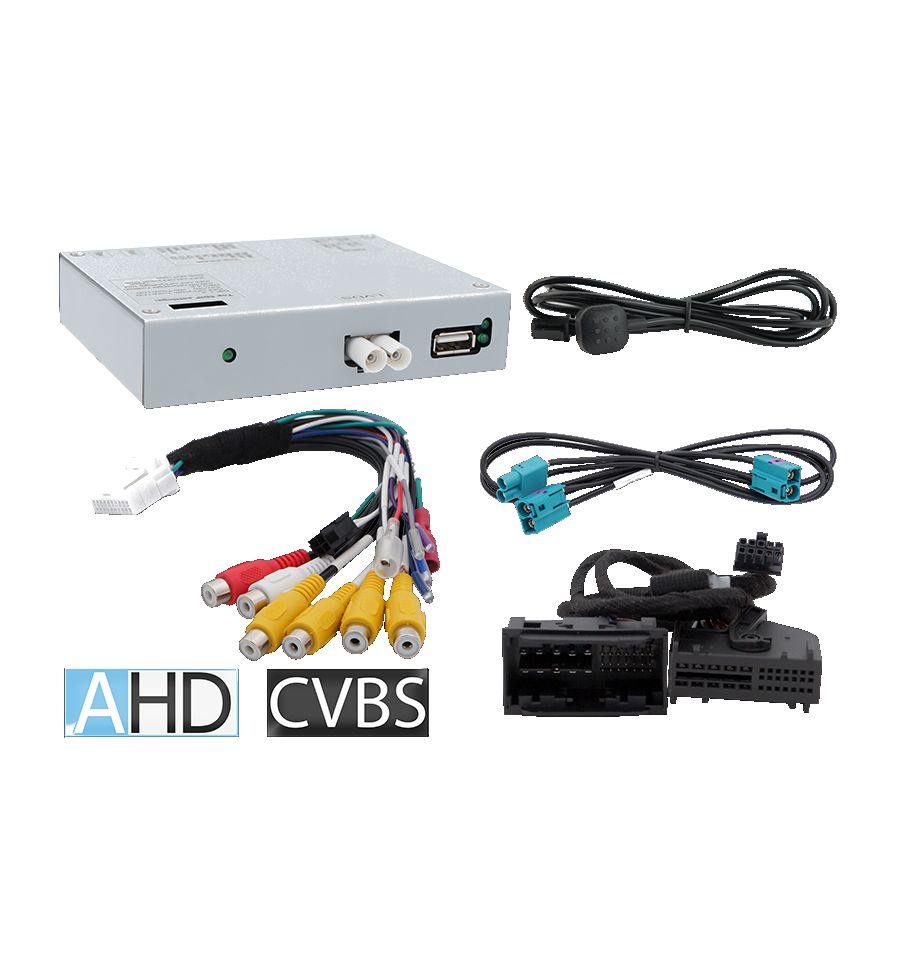

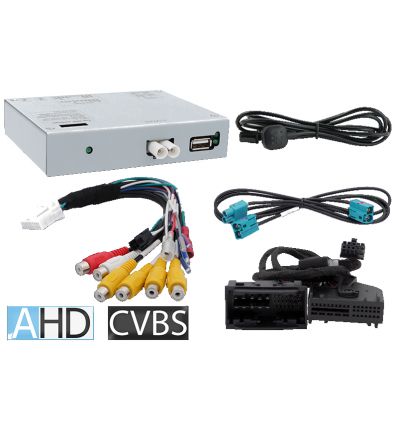

  • Video-inserter for factory-infotainment systems
  • 1 CVBS/AHD-input for rear-view camera
  • 1 CVBS/AHD-input for front camera
  • 2 CVBS/AHD-input for side-cameras or additional after-market video-sources (e.g., USB-device, DVB-T2 Tuner, etc.)
  • All inputs NTSC and PAL compatible
    Supported AHD resolutions 720p NTSC (30Hz), 720p PAL (25Hz), 960p NTSC (30Hz), 960p PAL (25Hz), 1080p NTSC (30Hz), 1080p PAL (25Hz)

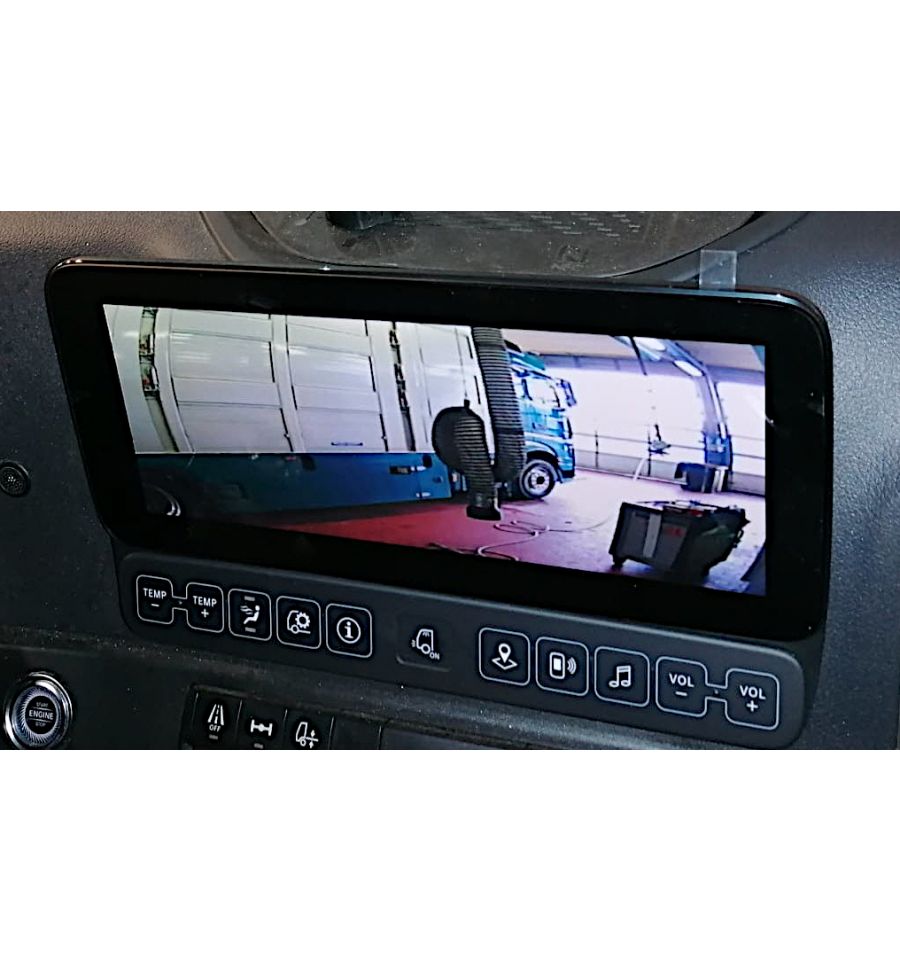

  • Automatic switching to rear-view camera input while reverse gear is engaged
  • Automatic front camera switching after reverse gear for 5, 10, 15 or 20 seconds
  • Adjustable guide lines (fixed or movable) can be activated for rear-view camera (movable guide lines not available for all vehicles)
  • Picture free during the car ride (only for inserted video-sources)


Compatibility



ModelRadio/Navigation
Actros 5 since 2018

Multimedia Cockpit with 10,25inch monitor
with navigation

OR

Without navigation and with 31pin radio connector

Arocs since 2020

Limitations
CAN-bus compatibilityCAN-bus compatibility of interface may to some vehicles have no or limited compatibility. This can show on installation as well as later. Interface and all its video-inputs can be operated with analogue trigger signals, without connection to vehicle CAN-bus. Yes, in this case, some features do not work, see hereinafter.
Video onlyThe interface inserts ONLY video signals into the infotainment. For inserting audio signals either the possibly existing factory audio-AUX-input or a FM-modulator can be used. If 2 audio sources shall be connected to the infotainment, an additional electronic is necessary to switch them.
Factory rear-view cameraAutomatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required.
After market front cameraThe front camera will automatically be switched for 10 seconds after disengaging the reverse gear. A manually front camera switching is possible by external keypad.
Guide lines for rear-view cameraIf the vehicle CAN bus is not fully compatible with the interface or if the connection is analogue, the moving guide lines function cannot be used.





Specifications(interface-box)

Operating voltage12V DC (9~16V)
Standby currentabout 6mA
Current consumption310mA
Video input0.7~1V
Video input signal typesCVBS/AHD
Signal standards CVBS/AHDNTSC/PAL
Temperature range-40°C bis +85°C
Dimensions video-box115 x 25 x 109mm (W x H x D)




Connections (Interface-box)
  • Video-insertion: Double Fakra
  • Power and CAN-bus: Open cable ends
  • Video-input (2x): RCA female connector
  • Rear-view camera-input: RCA female connector
  • Front camera-input: RCA female connector
  • Trigger wires (4x): Open cable ends


Remember that in some states it is illegal to use the video in motion while driving!


The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.

CategoryRear View Camera Interfaces, Video integration
