Mercedes NTG3 or NTG4 with Comand APS, Audio50 APS or Audio20.Video interface with rear/front camera inputs Expand

Mercedes NTG3 or NTG4 with Comand APS, Audio50 APS or Audio20.Video interface with rear/front camera inputs

Mercedes Mercedes

CI-RL4-MBN4

New

Video Interface for Mercedes vehicles generation NTG3 or NTG4 with Comand APS, Audio50 APS or Audio20.with colour display and 10pin LVDS monitor plug, with rear and front camera inputs

More details

shipped in 24 h

€ 277,87

tax incl.

Worldwide shipping

24/48h Delivery

Secure payment

Car electronic experts since 1990

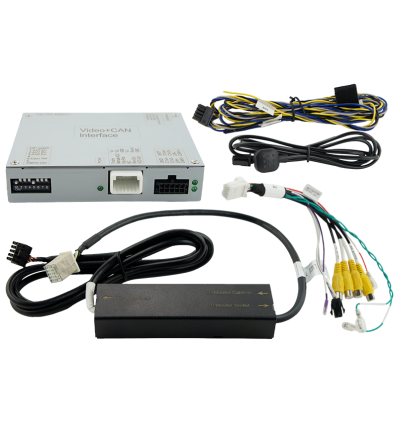

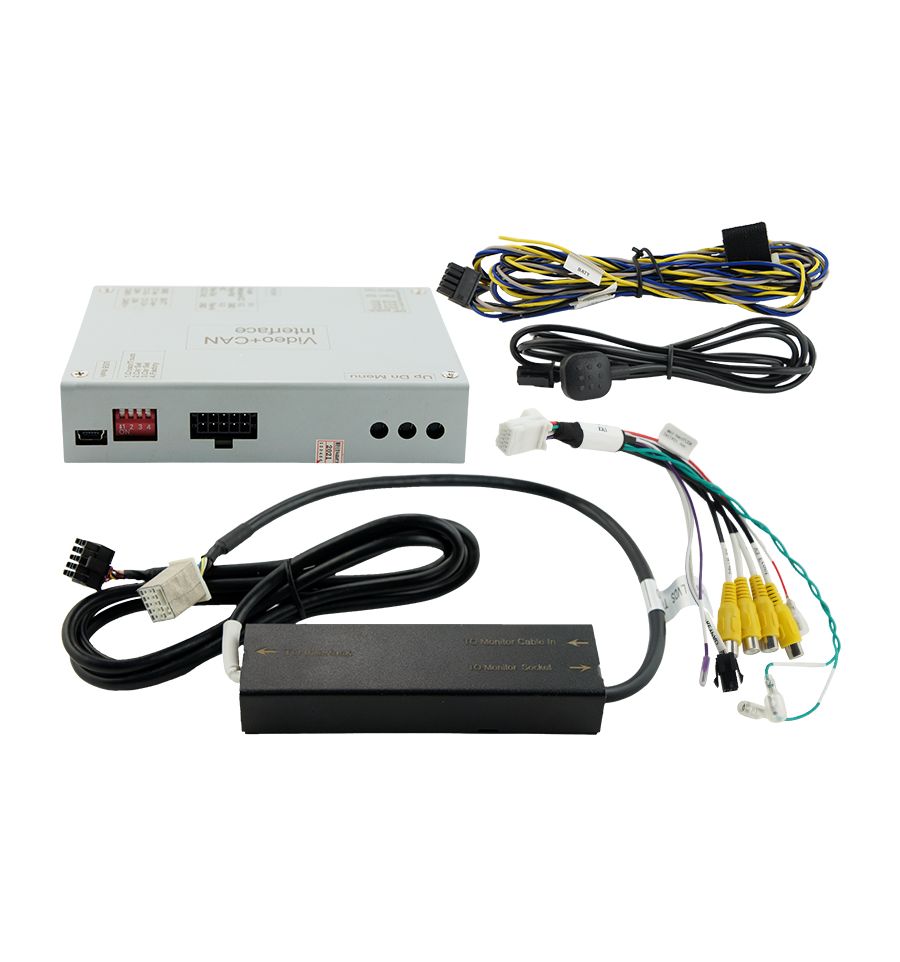

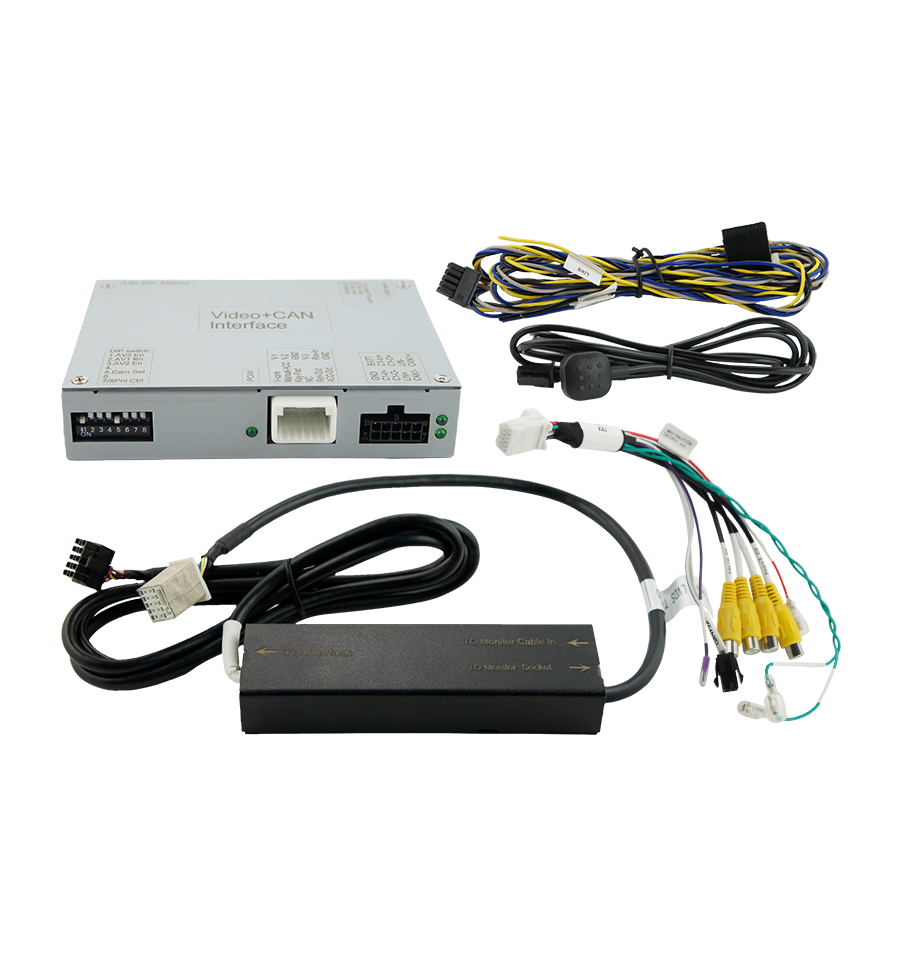

Video Interface for Mercedes vehicles generation NTG3 or NTG4 with Comand APS, Audio50 APS or Audio20.with colour display and 10pin LVDS monitor plug, with rear and front camera inputs

The video interface allows to insert a rear-view camera, a front camera with auto switching and two additional video sources (e.g. USB-player, DVB-T2 tuner, ...) to the factory-infotainment system of the vehicle manufacturer.


Product features:

  • Video-insertion for factory infotainment systems
  • 1 Rear-view camera CVBS video-input
  • 1 CVBS front camera video-input
  • 2 CVBS video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner, .)
  • Automatic switching to rear-view camera input on engagement of reverse gear
  • Automatic front camera switching after reverse gear for 10 seconds
  • Video-in-motion (ONLY for connected video-sources)
  • Activatable Parking Guide Lines for Rear-View Camera (not all vehicles)
  • Compatible with factory rear-view camera
  • AV-inputs PAL/NTSC compatible




 Compatibility:

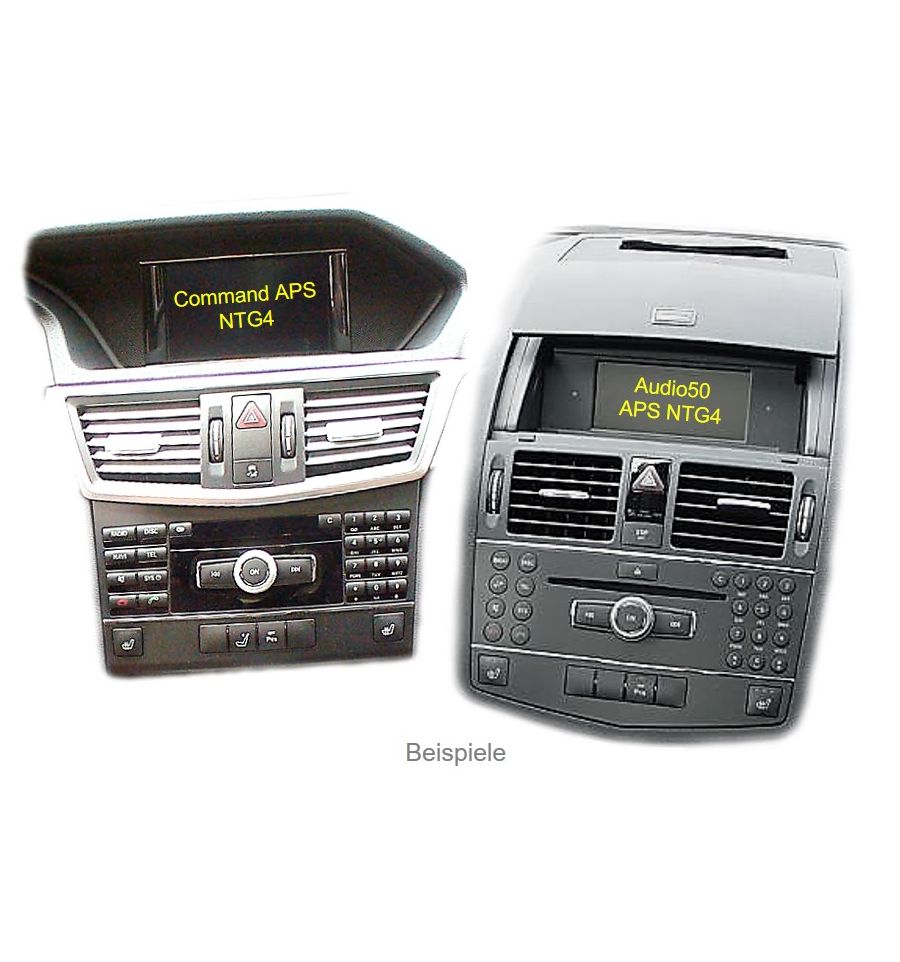

Compatible to Mercedes Benz vehicles gerneration NTG3 or NTG4 with Comand APS, Audio50 APS or Audio20 and 10pin LVDS monitor plug.

ModelNavigation
  Class C (W204) 03/2007 - 02/2011Comand APS HD NTG3
Comand APS NTG4
Audio20 NTG4
Audio50 APS NTG4
  Class CL (C216) 01/2006 - 05/2009
  Class CLC (CL203) from 09/2008
  Class E (W212) 04/2009 - 05/2011
  Class E Coupè (W207) 05/2009 - 05/2011
  CLS Coupè (C218) 01/2011 - 05/2011
  Class GLK (X204) from 09/2008
  Class S (W221) 10/2005 - 05/2009
  Class SLS (C197) from 03/2010





Limitations:

The interface inserts ONLY video signals into the infotainment. For sound use the possibly existing factory-audio-AUX-input or a FM-modulator.

Automatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required.



Specifications:



BATT/ACC range7V – 25V
Stand.by power drain<5mA
Power0.3A@12V
Video input0.7V˜1V
Video input formatsPAL/NTSC
RGB-video amplitude0.7V with 75 Ohm impedance
Temperature range-40°C to +85°C
Dimensions video-box152 x 21 x 90 mm (W x H x D)
Dimensions CAN-box73 x 22 x 45 mm (W x H x D)


Connections:

  • Video-insertion: 10-pin LVDS
  • Power and CAN-bus: Plug & play
  • Video-input (2x): RCA connector
  • Rear/front-view camera-input: RCA connector




Remember that in some states it is illegal to use the video in motion while driving!


The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.

MercedesC Class W204, CLS Coupè C218, SLS Class C197, S Class W221, GLK Class X204, E Class W212, E Class Coupè W207, CLC Class CL203, Class CL C216
CategoryVideo integration
