New RVC NTSC CMOS188°,mini ball-shape,mirr.,lines,black Expand

RVC NTSC CMOS188°,mini ball-shape,mirr.,lines,black

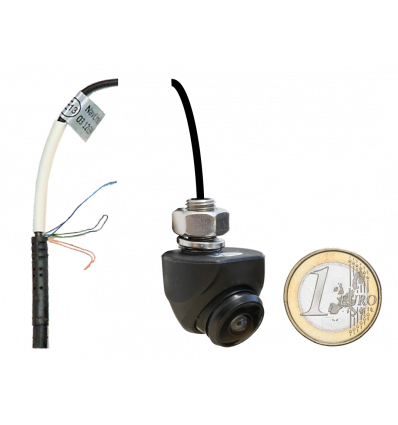

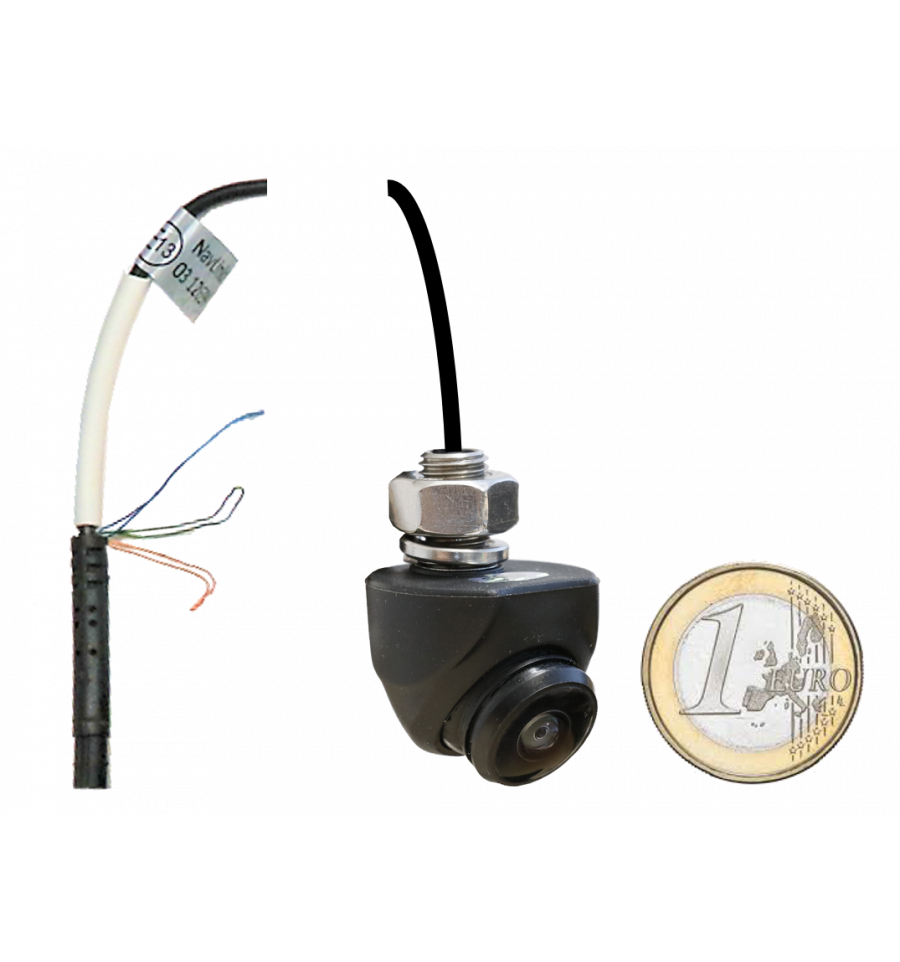

Mini mount-under camera with adjustable ball head NTSC, 1/4 inch CMOS HD with wide angle 188° diagonal in black. Can also be used as front camera. Switchable guide lines, adjustable for car/truck. mount-under/mount on possible. IP69K. Total 8,70m cable. Smaller than standard cameras on the market!

More details

shipped in 24 h

€ 122,13

tax incl.

Worldwide shipping

24/48h Delivery

Secure payment

Car electronic experts since 1990

Mini NTSC front and rear-view camera with adjustable ball head with 2 housings.
Simple installation through threaded tube with cable guide and counternut (housing 1) or screw or adhesive housing (housing 2).

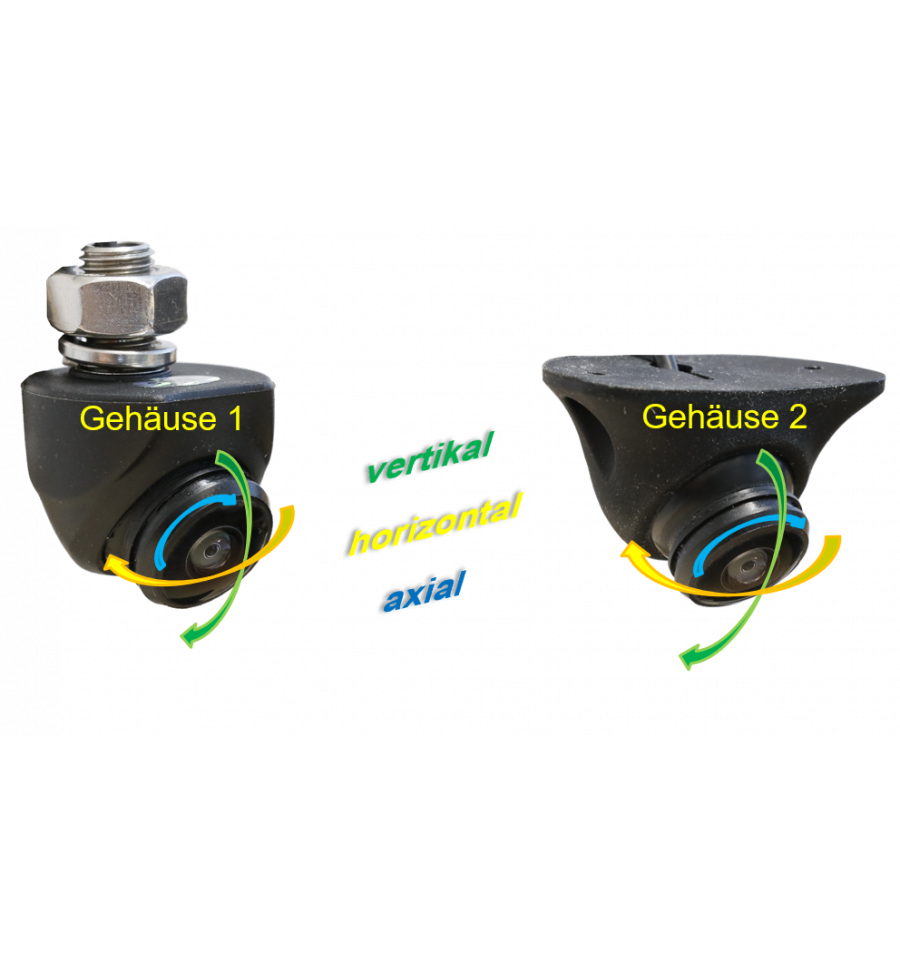

Horizontal mount-under and vertical mount-on possible by rotating the ball.

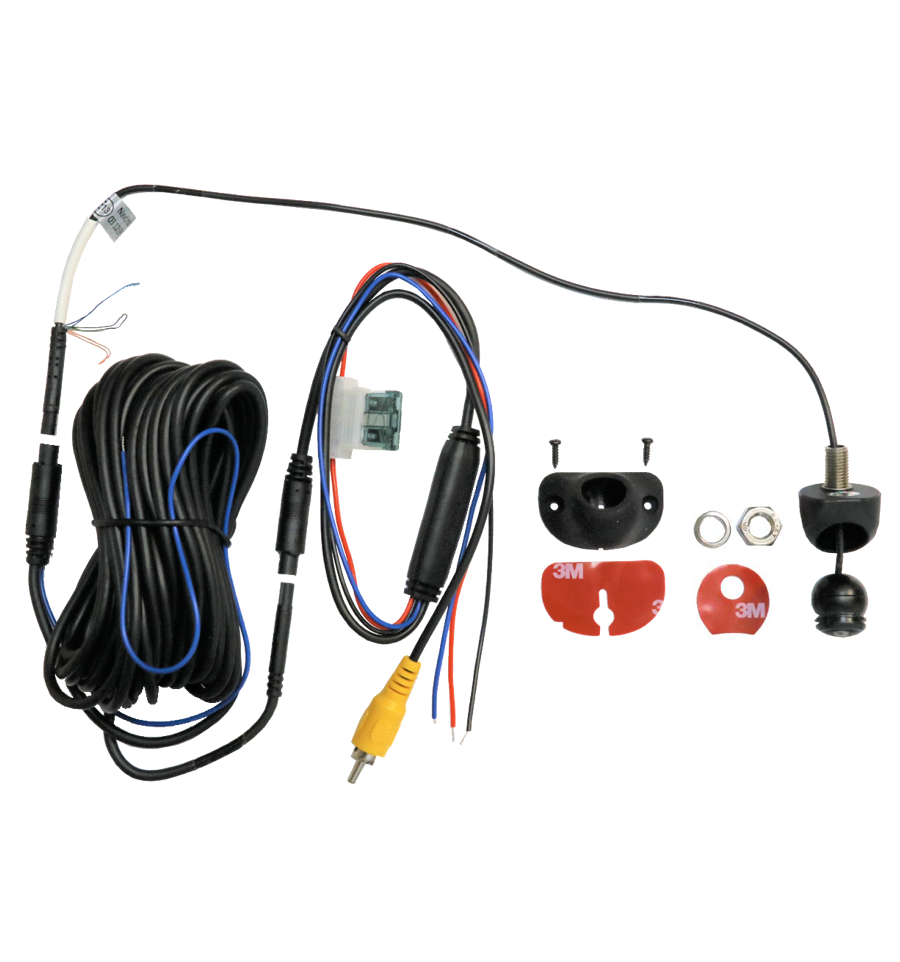

Professional connector cable with enough length and automotive plug connection.
Easy to lay the cable due to a small cable diameter.

Product features:

  • Mini ball camera NTSC (black) with 2 housings
  • Housing 1: Cable-guided thread tube with counternut
  • Housing 2: Screw or glue fixing
  • Optional housing 3: Rubber ring for in-mount (Article No. HD-B168-02 must be ordered separately)
  • Horizontal mount-under and vertical mount-on possible (by rotating the ball)
  • System cable with throughput wire, e.g. for reverse signal
  • Mirroring can be switched off - suitable also as front camera
  • Sensor type CMOS 1/4 inch HD low-light sensitive
  • Bezel F1.2
  • Light sensitivity 0.01Lux, 800 TV lines
  • Angle horizontal=168°, vertical=118°, diagonal=188°
  • Guide-lines can be switched off
  • Guide-lines‘ width selectable between car or truck
  • Protection class IP69K
  • Suitable for permanent operation (connection to ACC)
  • Video connection: RCA male connector
  • System cable of camera: 4pin 3V

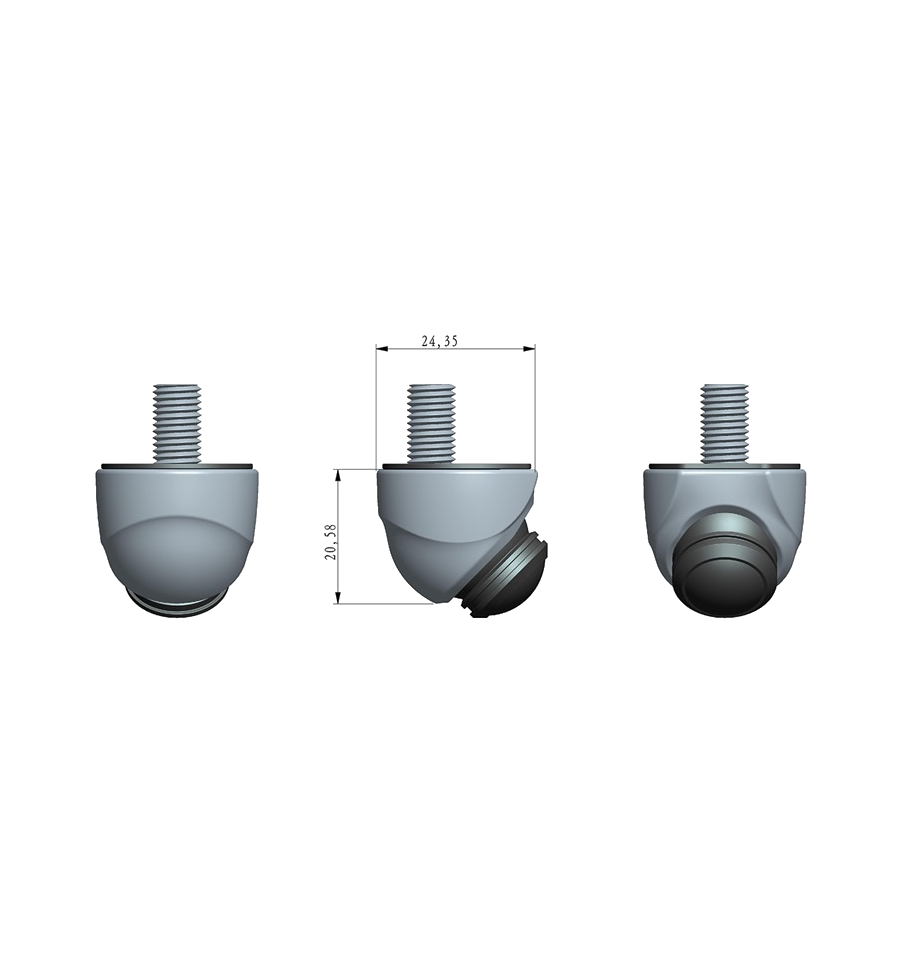

Camera housing without thread tube (housing 1)24.2 x 24.35 x 22mm (W x D x H)
Diameter camera connector4.5mm
Total cable length8.70m

Operating voltage+12V/24V DC (6~28V)
Current consumption50mA
Operating temperature-30°C to +75°C
Storage temperature-40°C to +80°C

CategoryCameras RVC
