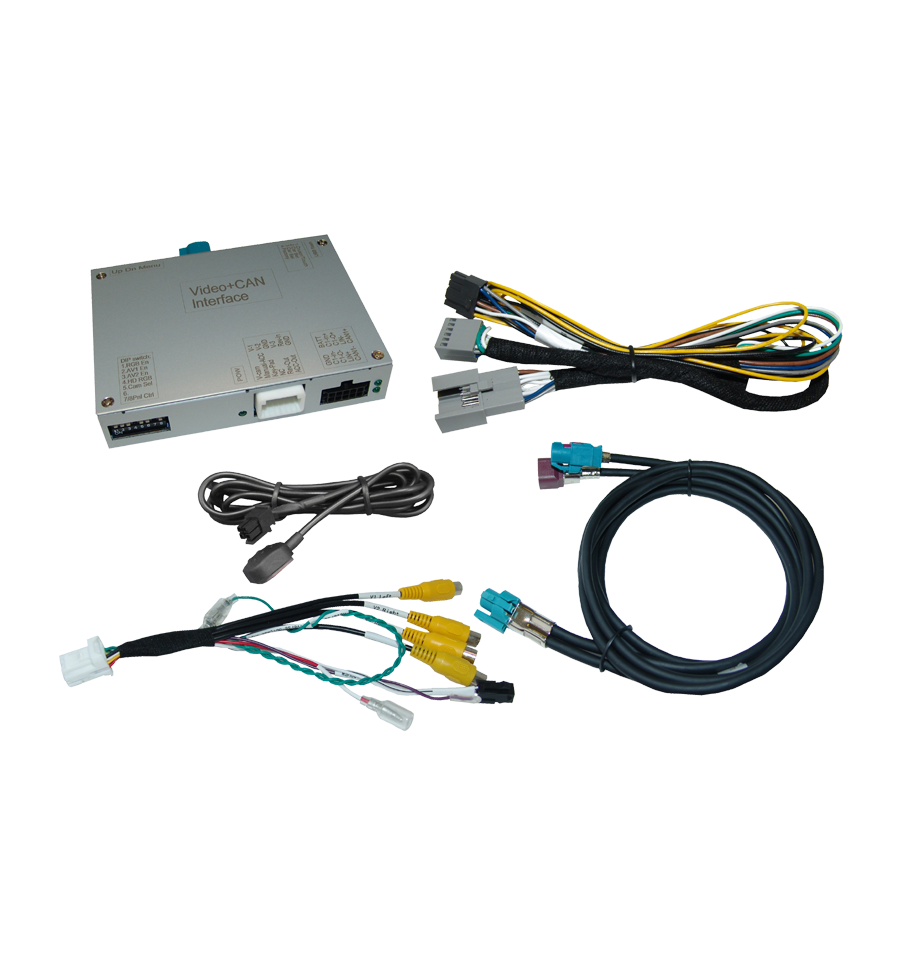

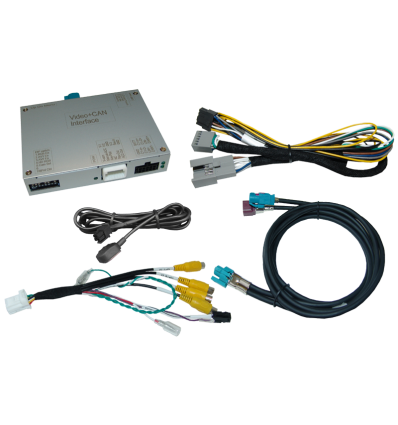

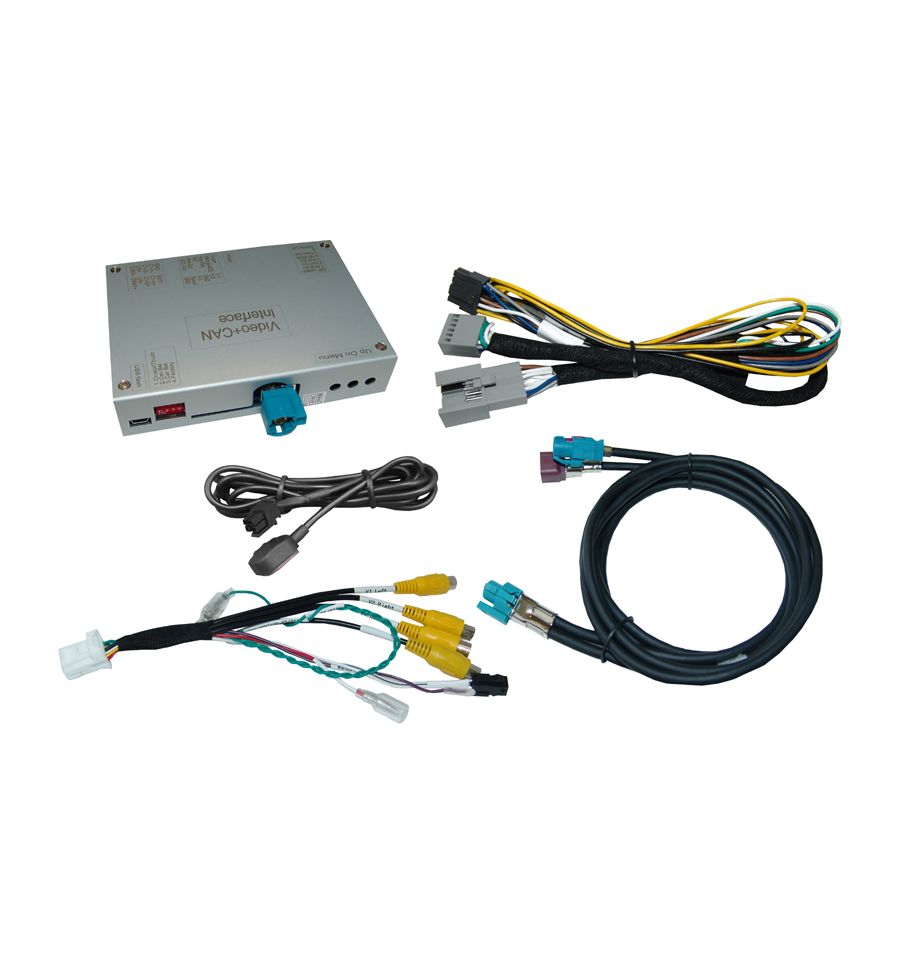

Video interface for Skoda MIB/MIB2 - High/Columbus and Standard/Bolero/Amundsen

The r.LINK interface allows to connect a rear-view camera and two additional video-sources (e.g. DVD-player, DVB-T tuner, ...) to the factory-infotainment system.




Product features:

  • Video-inserter for factory-infotainment systems
  • 1 CVBS rear-view camera video-input
  • 1 CVBS front camera video-input
  • 2 CVBS video-inputs for after-market devices (e.g. USB-Player, DVB-T2 tuner, ...)
  • Automatic switching to rear-view camera input on engagement of the reverse gear
  • Automatic front camera switching after reverse gear for 10/15/20 seconds
  • Activatable parking guide lines for rear-view camera (not available for all vehicles)
  • Video-in-motion (ONLY for connected video-sources)
  • Video-inputs NTSC and PAL compatible




Compatibility:

Skoda MIB/MIB2 - High/Columbus and Standard/Bolero/Amundsen 5.8inch/6.5inch/8inch monitors.
NOT COMPATIBLE with 9.2inch monitor(2018).

ModelloRadio / Navigazione
  Fabia 3 (NJ) 2014 >

MIB/MIB2 - High/Columbus and
Standard/Bolero/Amundsen
5.8inch, 6.5inch or 8inch monitor

  Kamiq (NW4) 06/2019 >
  Karoq (NU7) 2018 >
  Kodiaq (NS7) 2017 >
  Octavia 3 (5E) 2012 >
  Rapid (NH1) 2016 >
  Superb 3 (3V) 2015 >

Limitations:

Video onlyThe interface inserts ONLY video signals into the infotainment. For inserting Audio signals either the possibly existing factory audio-AUX-input or a FM-modulator can be used.
Picture formatOnly compatible with NTSC
Factory rear-view cameraAutomatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required.



Specifications:



BATT/ACC range7V – 25V
Stand.by power drain<10mA
Power0.7A@12V
Video input0.7V˜1V
Video input formatsNTSC
Temperature range-40°C to +85°C
Dimensions154 x 22 x 92 mm (W x H x D)


Connections:

  • Video-insertion: 4-pin HSD
  • Power and CAN-bus: Plug & play
  • Video-input: RCA connector
  • Rear-view camera-input: RCA connector
  • front-view camera-input: RCA connector






Remember that in some states it is illegal to use the video in motion while driving!


The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.

SkodaFabia NJ, Octavia 5E, Rapid
CategoryVideo integration
