Opel Combo D Rear-view camera exchange brake light with CMOS Expand

Opel Combo D Rear-view camera exchange brake light with CMOS

Opel Opel

CI-VAN-DOB-OP

New

Vehicle spezific camera compatible with Opel Combo D with CMOS sensor. Would be changed with original brake light. For vehicles with double door.

More details

€ 130,33

tax incl.

Worldwide shipping

24/48h Delivery

Secure payment

Car electronic experts since 1990

Vehicle-specific exchange brake light illumination-glass with rear-view camera. For vehicles with tailgate and double door. Easy assembling by replacing the factory brake light illumination-glass. Professional connector cable with enough length and automotive plug connection. Easy to lay the cable due to a small cable diameter.

Compatible with:

  •  Combo D from 01/2012 til 08/2017 - Only vehicles with double door (not suitable for tail gate) Due to the arc of the tail gate, it is not possible to see the bumper and towing bar


NOTE:
Please check the size indications and the pictures of the camera for the compatibility with the vehicle, before buying!


Features:

  • Camera in vehicle-specific 3rd brake light
  • Mounted by exchanging the factory 3rd brake light
  • LED illumination integrated
  • Camera position adjustable stepless vertically
  • Sensor-type CMOS 1/4inch HD low-light sensitive
  • NTSC format (800 TV lines)
  • Bezel F1.36
  • Light sensitivity 0.01 LUX
  • Angle horizontal 160°, vertical 120°, diagonal 200°
  • Mirrored picture (fixed)
  • Guide-lines can be switched on by wire loop
  • Protection class IP69
  • Mini 4pin-BM system harness with integrated throughput wire (blue) for reverse signal

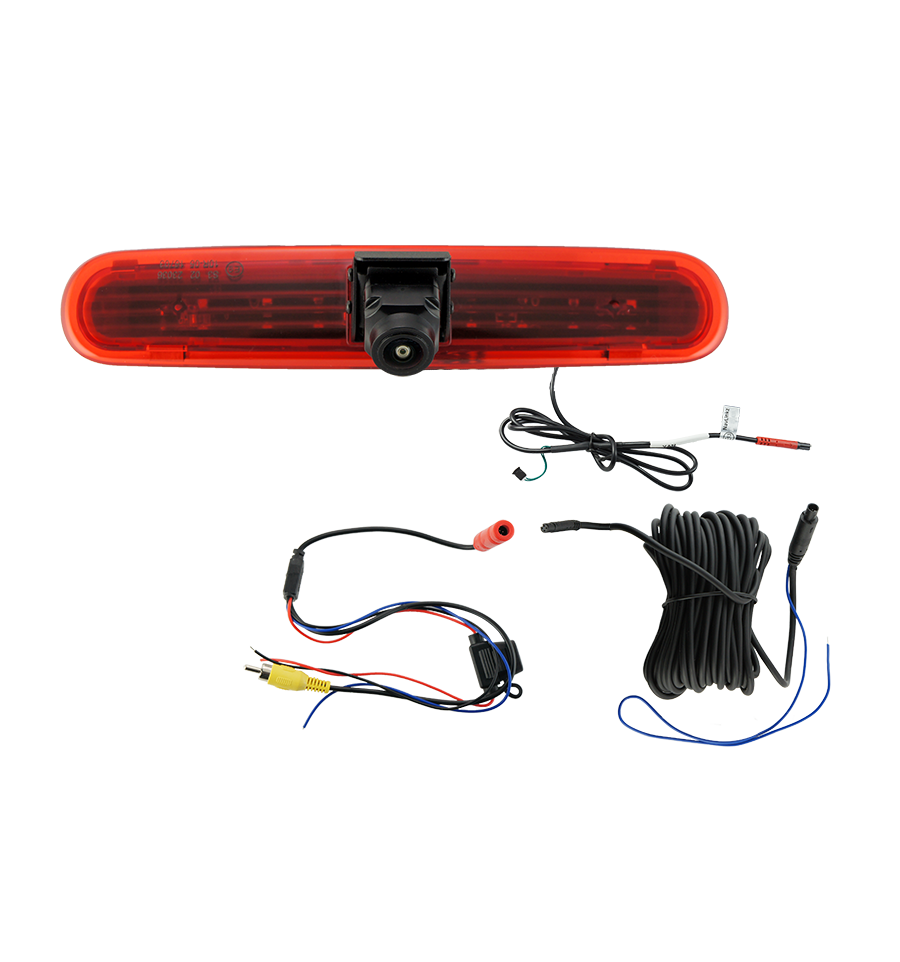

  • 11.20m total system cable length, consists of:
    - 0.80m cable fixed on camera to female 4pin-BM (diameter 5mm)
    - 10.00m extension cable male 4pin-BM to female 4pin-BM
    - 0.40m adapter male 4pin-BM to male RCA and power wires

Dimensions:

Brake light with cameraapprox 201 x 45 x 95mm (W x H x D)
Overhang length camera
(from brake light)
approx 46mm
Installation openingapprox 195 x 30mm (W x H)
Installation opening depthapprox 52mm



Specifications:

Operating voltage+12V DC
Current consumptionmax. 50mA
Suitable for permanent power (ACC)Yes
Operating temperature range-30°C to +75°C
Storage temperature range-40°C to +80°C
CategoryCameras RVC
