Opel Vivaro B Rear-view camera exchange brake light with CMOS Expand

Opel Vivaro B Rear-view camera exchange brake light with CMOS

Opel Opel



Vehicle-specific 3. brake light glass with NTSC rear-view camera to replace the factory glass. Fits Opel Vivaro B  Vehicles with tailgate or double door

More details

€ 130,33

tax incl.

Worldwide shipping

24/48h Delivery

Secure payment

Car electronic experts since 1990

Vehicle-specific exchange brake light illumination-glass with rear-view camera. For vehicles with tailgate and double door. Easy assembling by replacing the factory brake light illumination-glass. Professional connector cable with enough length and automotive plug connection. Easy to lay the cable due to a small cable diameter.

Compatible with:

  • Vivaro B from 08/2014 til 03/2019
    For vehicles with tailgate or double door
    Due to the arc of the tail gate, it is not possible to see the bumper and towing bar

Please check the size indications and the pictures of the camera for the compatibility with the vehicle, before buying!

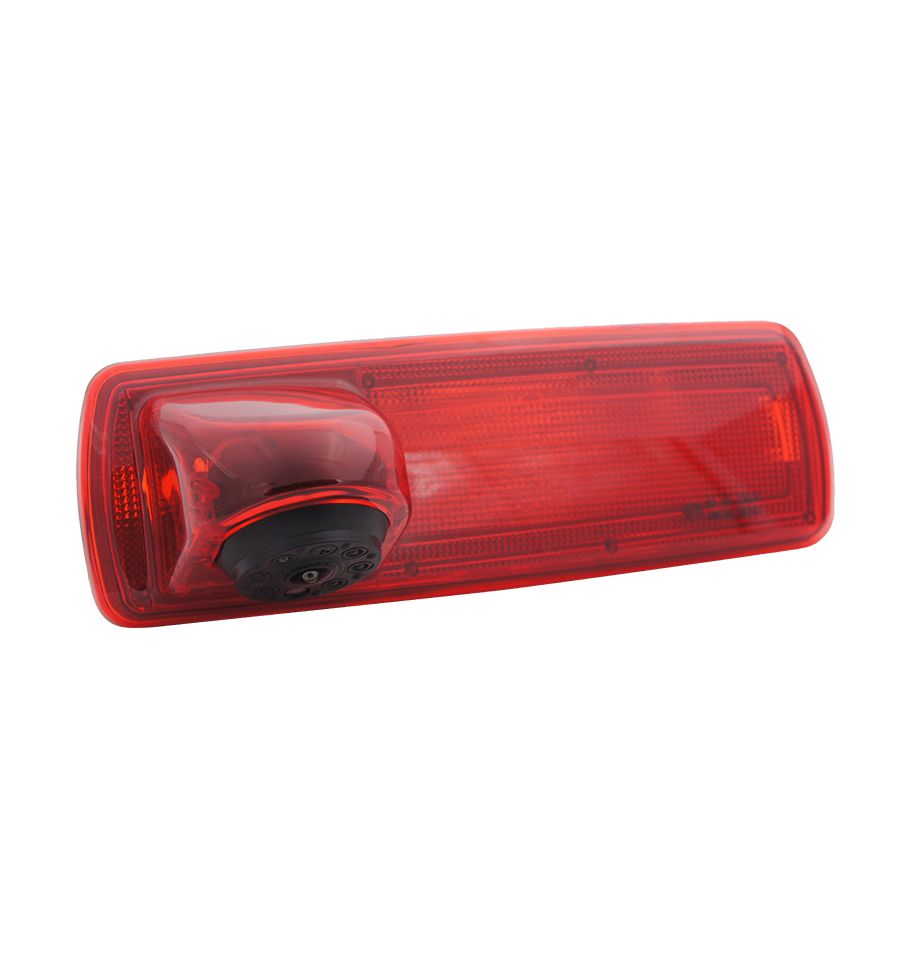

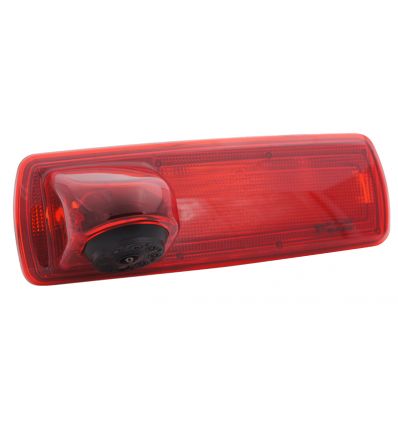

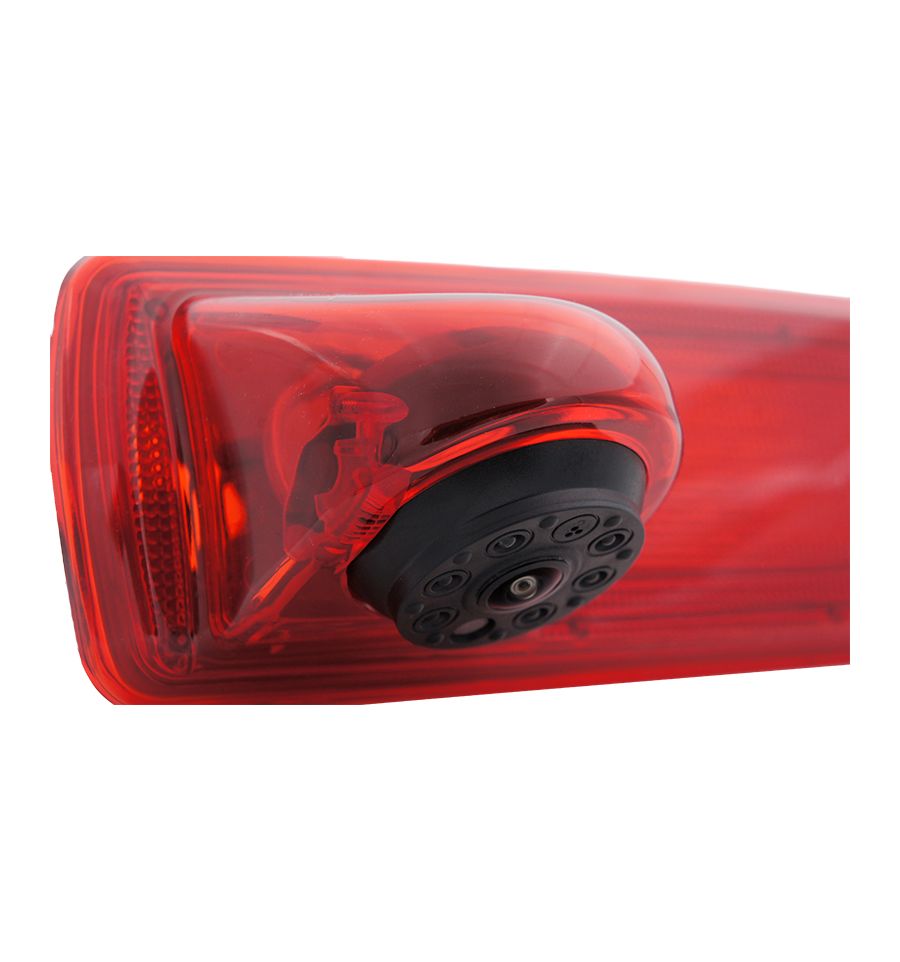

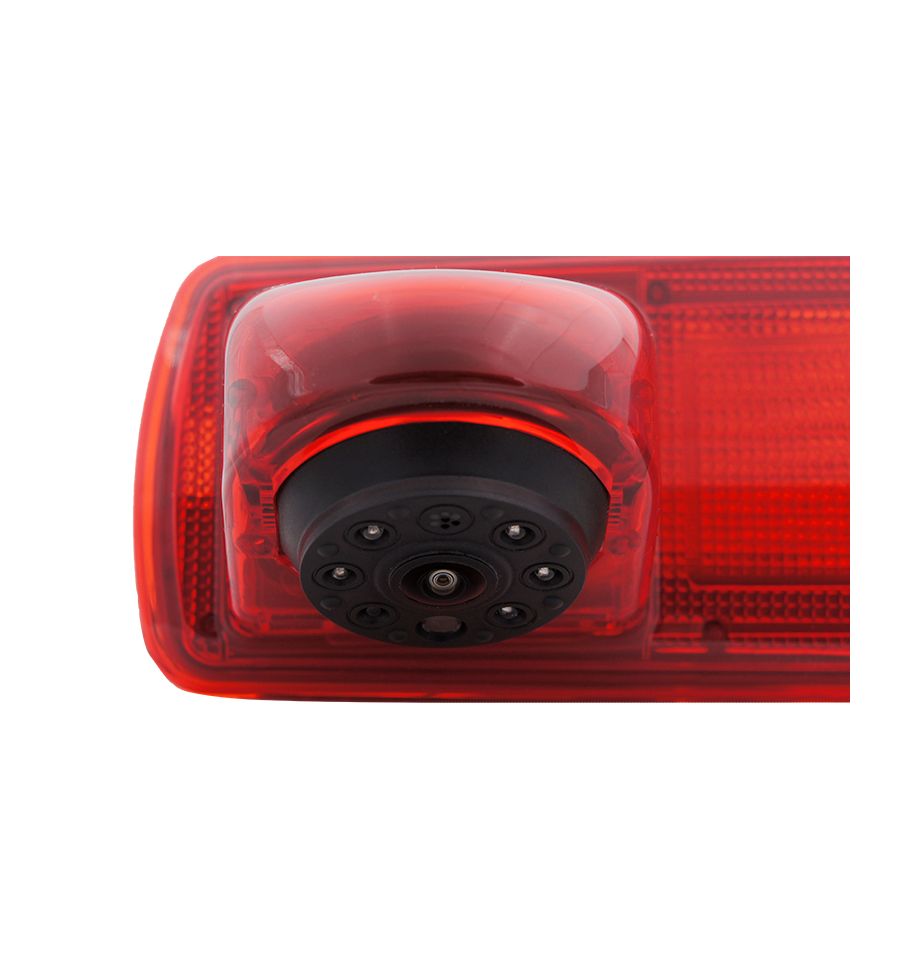

  • Camera in vehicle-specific 3rd brake light glass

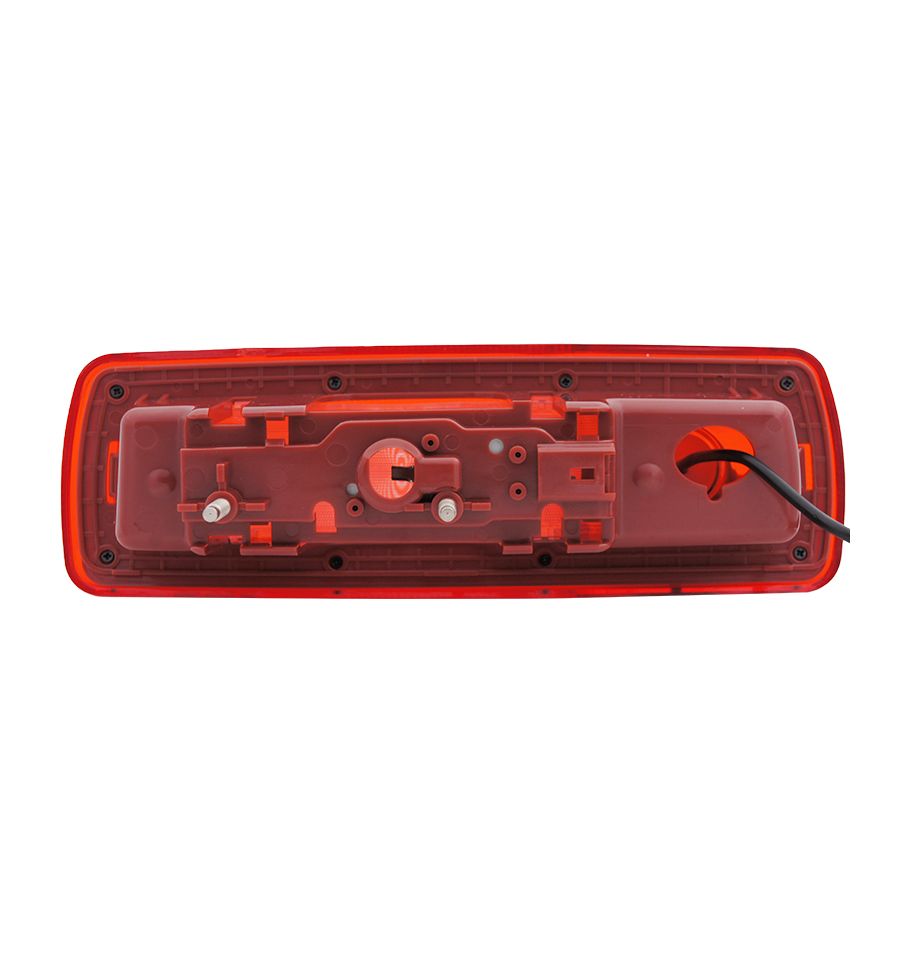

  • Mounted by exchanging the factory 3rd brake light glass
  • Use of factory illumination
  • Camera position adjustable in 3 steps vertically
  • Sensor-type CMOS 1/4inch HD low-light sensitive
  • NTSC format (800 TV lines)
  • Bezel F1.36
  • Light sensitivity 0.01 LUX
  • Infrared night vision LED
  • Angle horizontal 160°, vertical 120°, diagonal 200°
  • Mirrored picture (fixed)
  • Guide-lines can be switched
  • Protection class IP69
  • Mini 4pin-BM system harness with integrated throughput wire (blue) for reverse signal

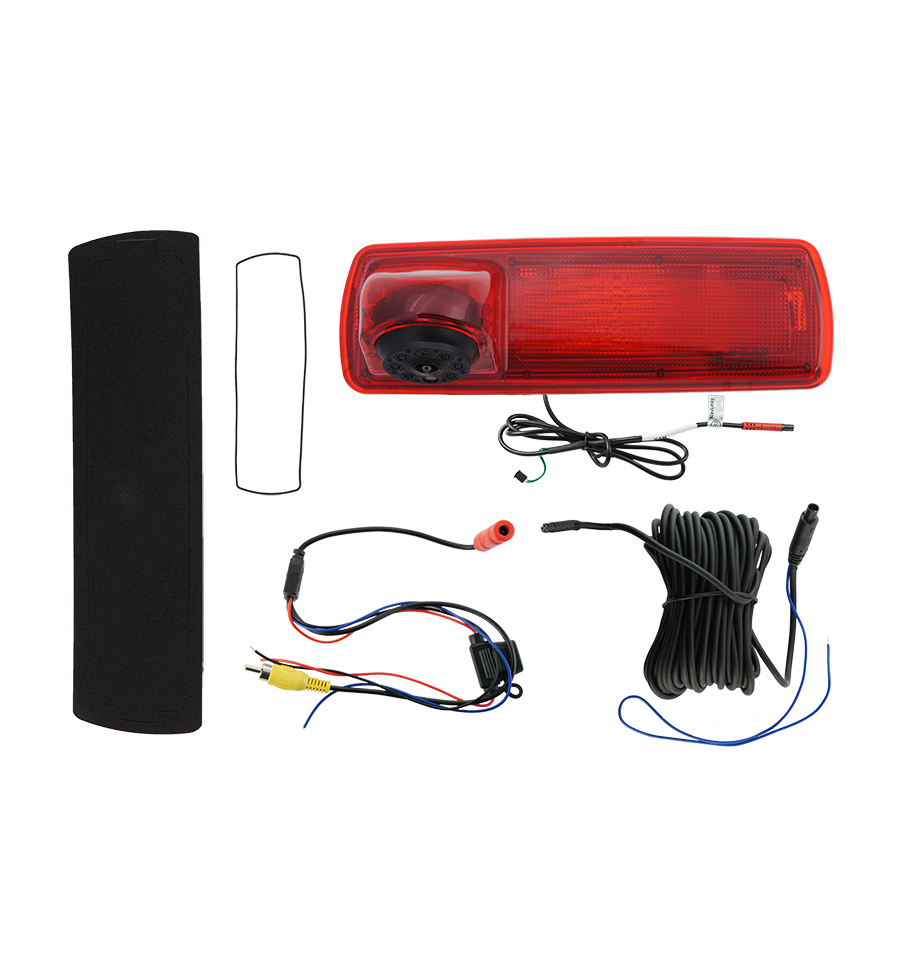

  • 11.20m total system cable length, consists of:
    - 0.80m cable fixed on camera to female 4pin-BM (diameter 5mm)
    - 10.00m extension cable male 4pin-BM to female 4pin-BM
    - 0.40m adapter male 4pin-BM to male RCA and power wires

Brake light with cameraapprox 232 x 78 x 151mm (W x H x D)

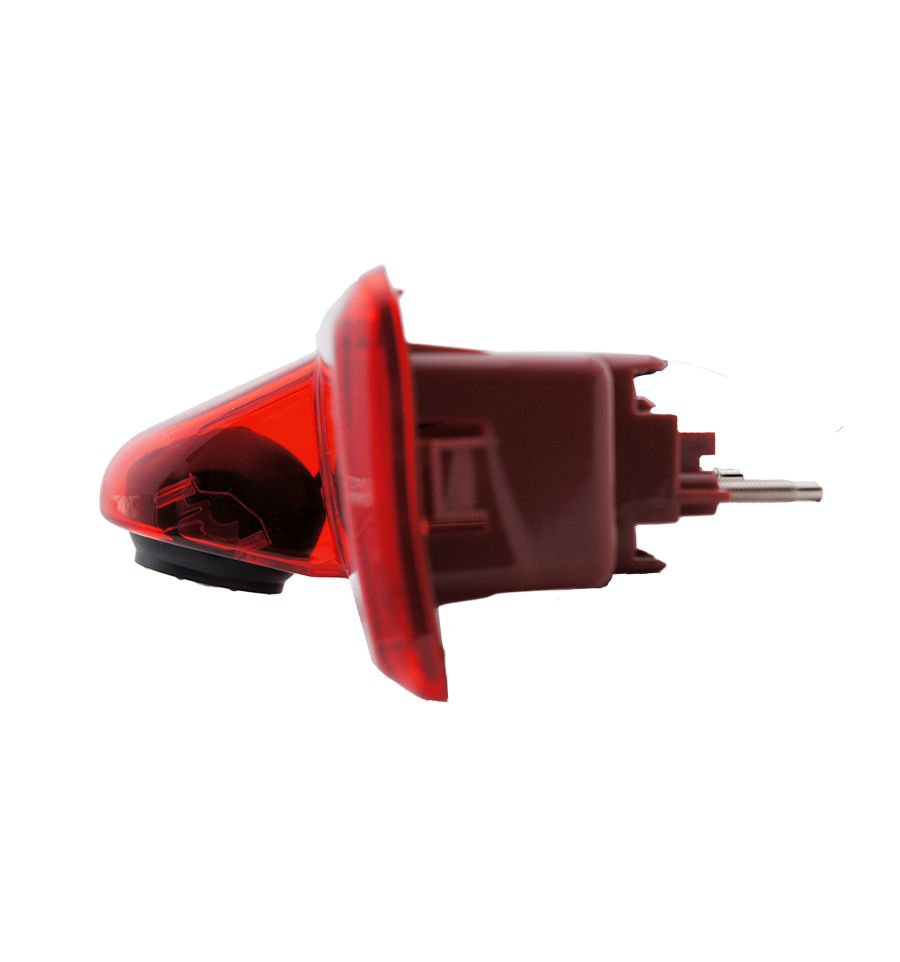

Overhang length camera
(from brake light)
approx 58mm
Installation openingapprox 201 x 47mm (W x H)
Installation opening depthapprox 63mm

Operating voltage+12V DC
Current consumptionmax. 120mA
Suitable for permanent power (ACC)Yes
Operating temperature range-30°C to +75°C
Storage temperature range-40°C to +80°C
CategoryCameras RVC
