New

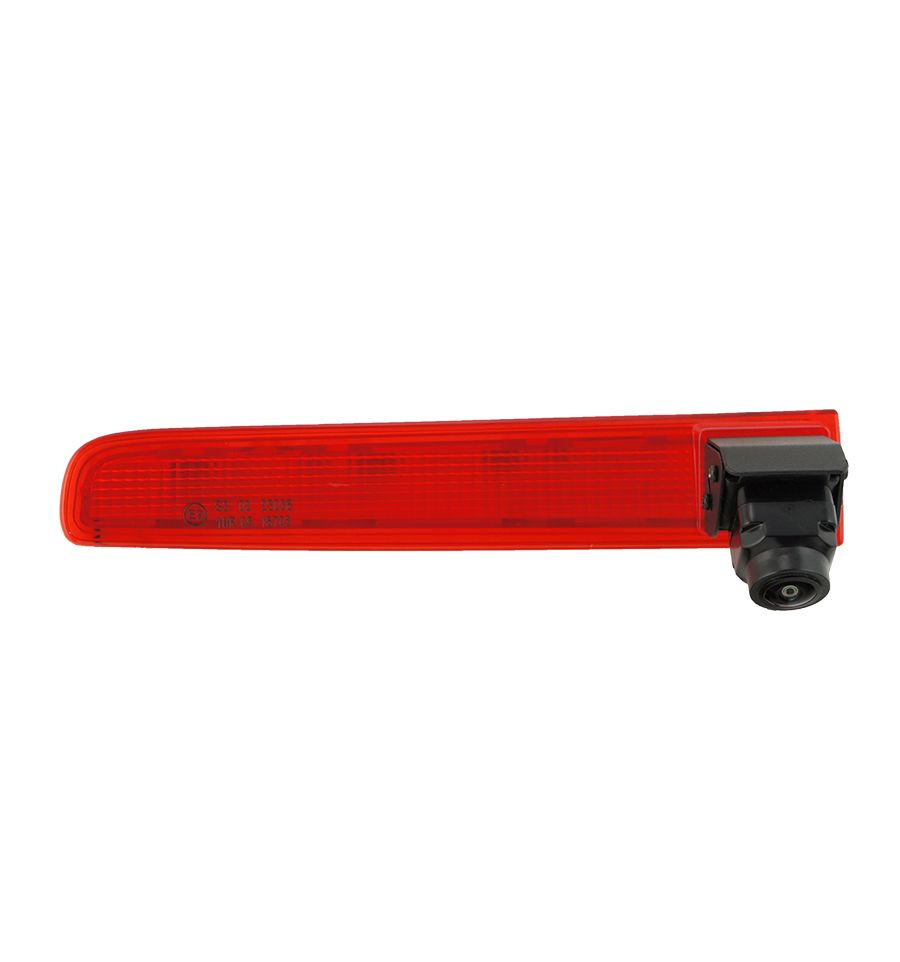

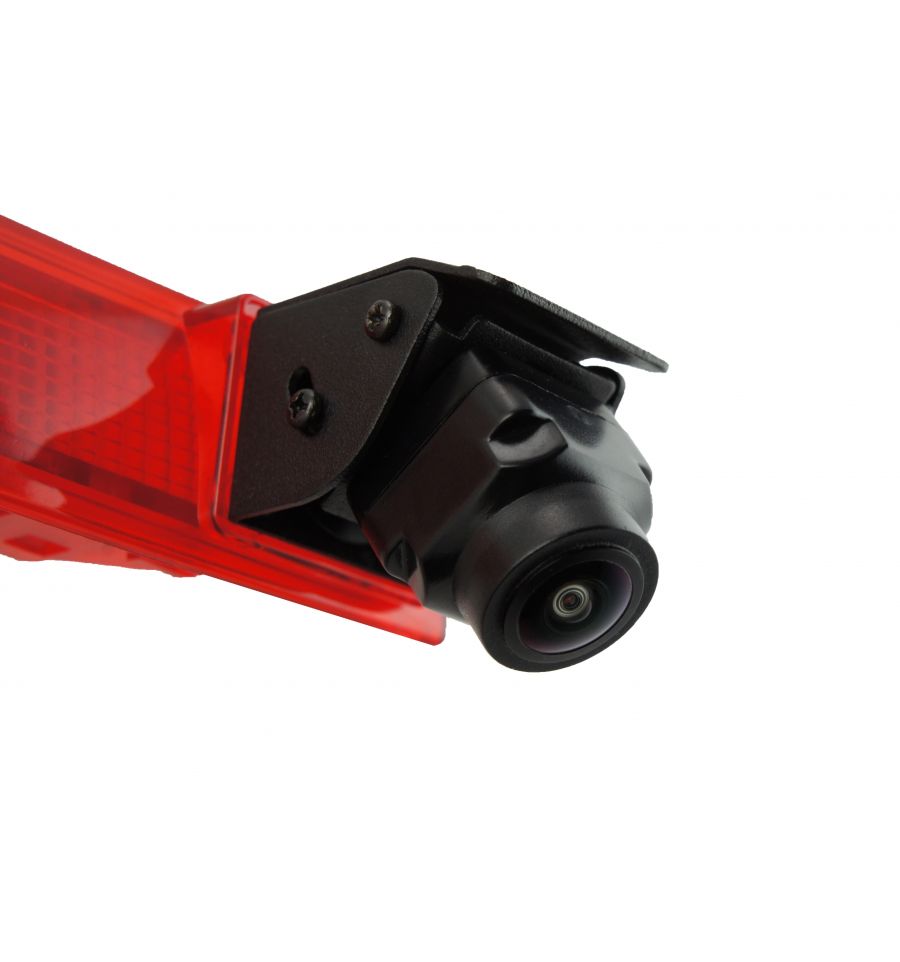

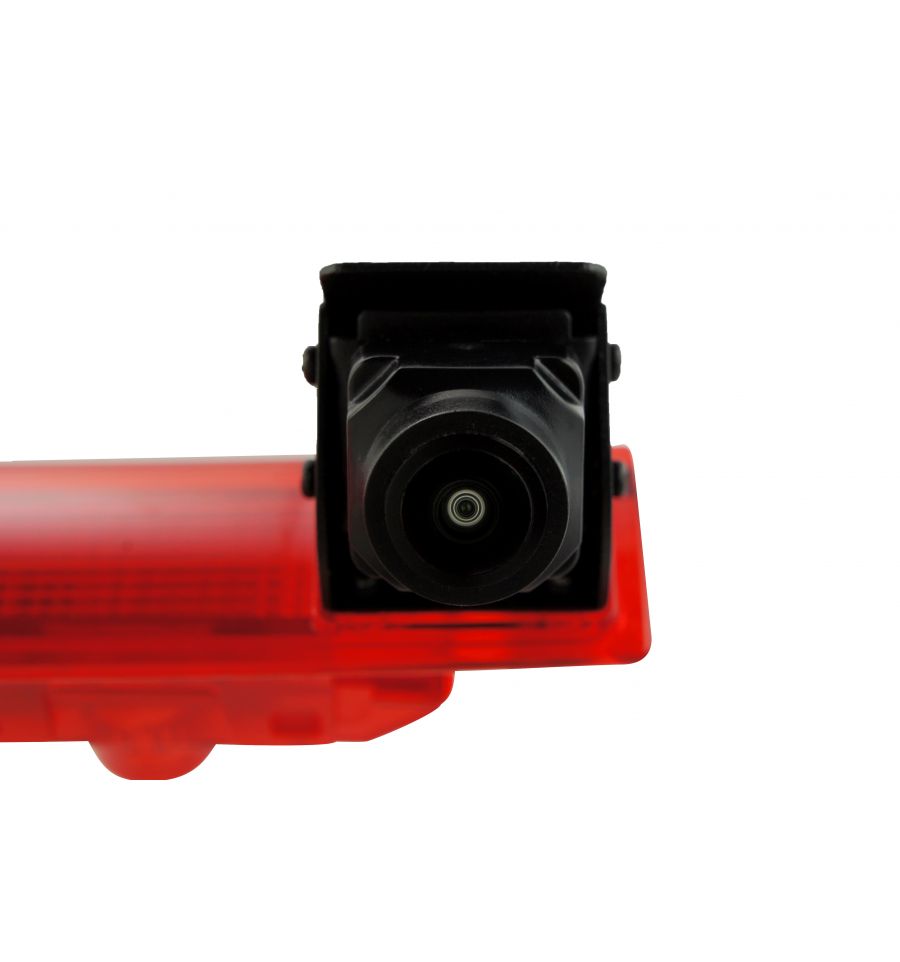

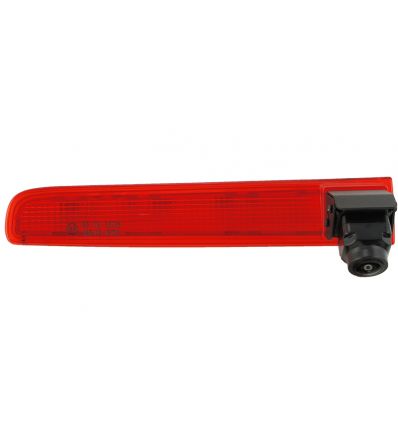

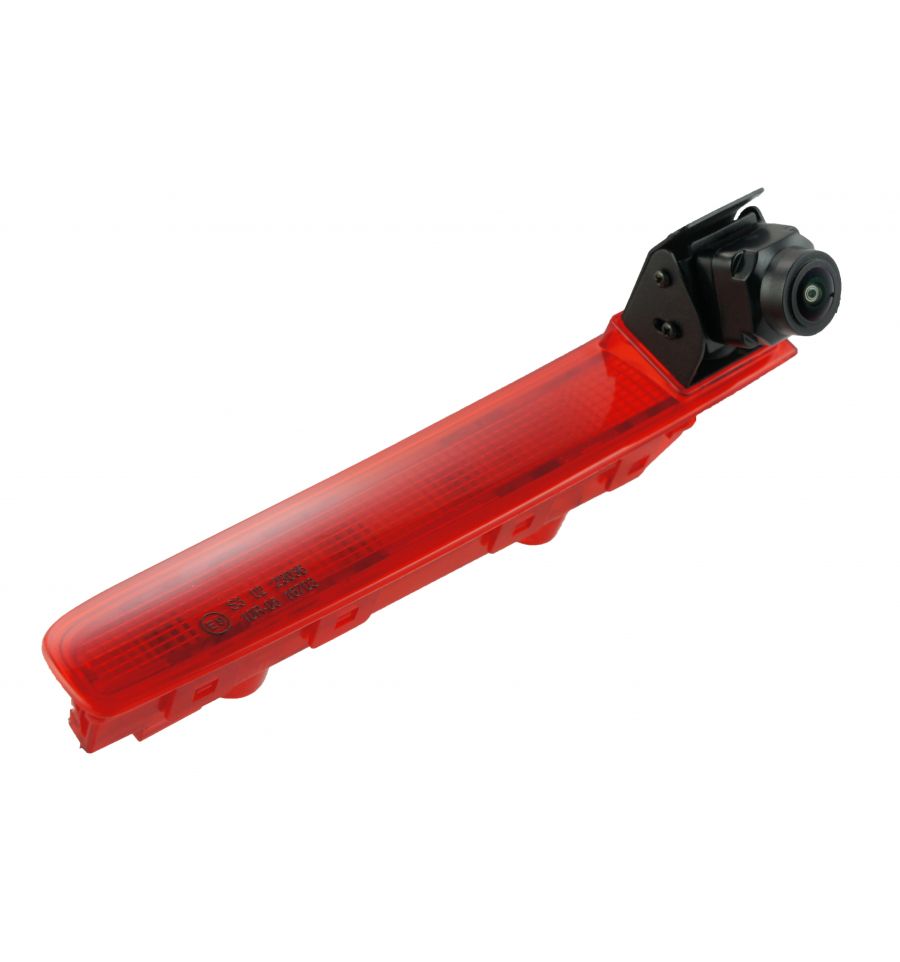

Vehicle-specific 3. brake light glass with NTSC rear-view camera.
Fits Volkswagen California/Caravelle/Multivan/Transporter T5 03/2003-04/2015, T6 07/2015-10/2019, T6.1 10/2019-.
Vehicles with double door only (not for tail gate).
Valutazione: Scrivi per primo una recensione!
Vehicle-specific exchange 3rd brake light glass left side with integrated rear-view camera.
Easy assembly by replacing the factory 3rd brake light glass left side.
Professional system harness with sufficient length and automotive connectors.
Easy to lay cable due to a small cable and connector diameter.
Compatible with:
| Brand | Modello |
|---|---|
| Volkswagen | T5 (7H/7E) - California, Caravelle, Multivan, Tranporter or Transvan 03/2003 til 07/2015 For vehicles with double door only (does not fit vehicles with tail gate) For vehicles without high roof only (does not fit vehicles with high roof) Due to the arc of the rear doors, it is not possible to see the bumper and towing bar T6 (SG) - California, Caravelle, Multivan, Tranporter or Transvan 07/2015 til 10/2019 For vehicles with double door only (does not fit vehicles with tail gate) For vehicles without high roof only (does not fit vehicles with high roof) Due to the arc of the rear doors, it is not possible to see the bumper and towing bar T6.1 (SH) - California, Caravelle, Multivan, Tranporter or Transvan 10/2019 up For vehicles with double door only (does not fit vehicles with tail gate) For vehicles without high roof only (does not fit vehicles with high roof) Due to the arc of the rear doors, it is not possible to see the bumper and towing bar |
NOTE:
Please check the size indications and the pictures of the camera for the compatibility with the vehicle, before buying!
Features:
- Camera in vehicle-specific 3rd brake light glass left side
- Mounted by exchanging the factory 3rd brake light glass left side
- Use of factory illumination
- Camera position adjustable stepless vertically
- Sensor-type CMOS 1/4inch HD low-light sensitive
- NTSC format (800 TV lines)
- Bezel F1.36
- Light sensitivity 0.01 LUX
- Angle horizontal 160°, vertical 120°, diagonal 200°
- Mirrored picture (fixed)
- Guide-lines can be switched on by wire loop
- Protection class IP69
- Mini 4pin-BM system harness with integrated throughput wire (blue) for reverse signal

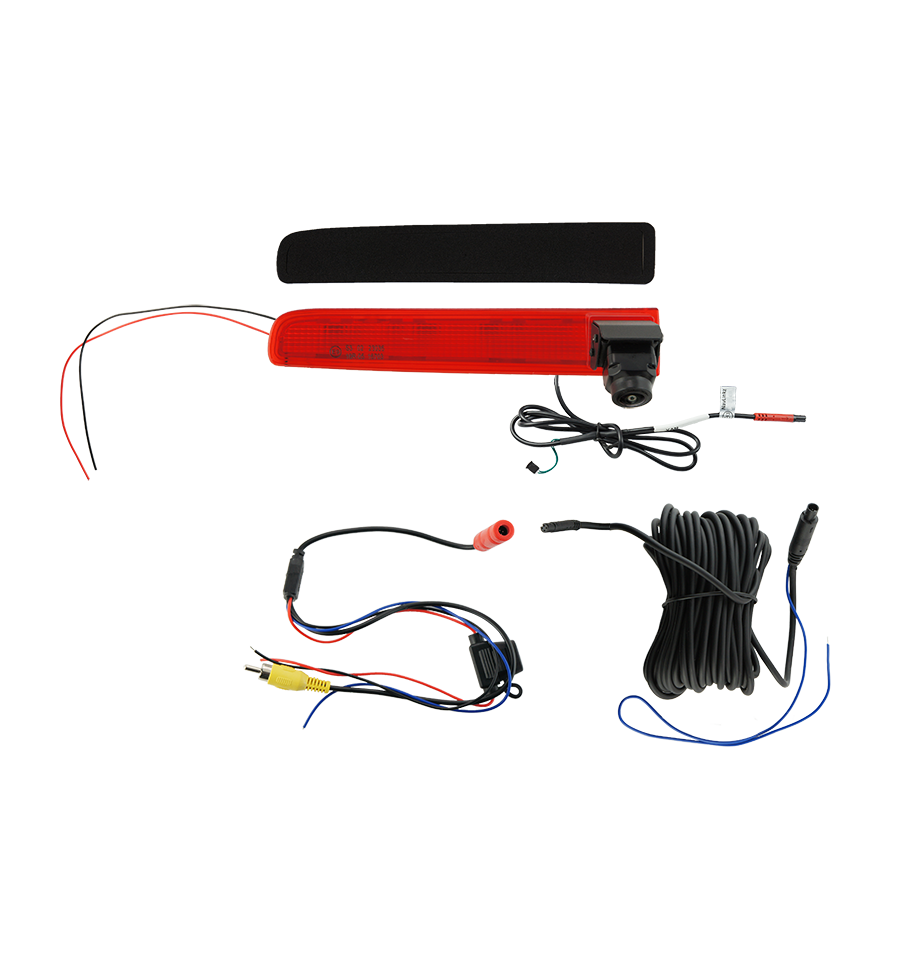

- 11.20m total system cable length, consists of:
- 0.80m cable fixed on camera to female 4pin-BM (diameter 5mm)
- 10.00m extension cable male 4pin-BM to female 4pin-BM
- 0.40m adapter male 4pin-BM to male RCA and power wires
Dimensions:
| Brake light with camera | approx 187 x 45 x 88mm (W x H x D) |
| Overhang length camera (from brake light) | approx 45mm |
| Installation opening | approx 164 x 22mm (W x H) |
| Installation opening depth | approx 41mm |
| Operating voltage | +12V DC |
| Current consumption | max. 40mA |
| Suitable for permanent power (ACC) | Yes |
| Operating temperature range | -30°C to +75°C |
| Storage temperature range | -40°C to +80°C |
| Category | Cameras RVC |
