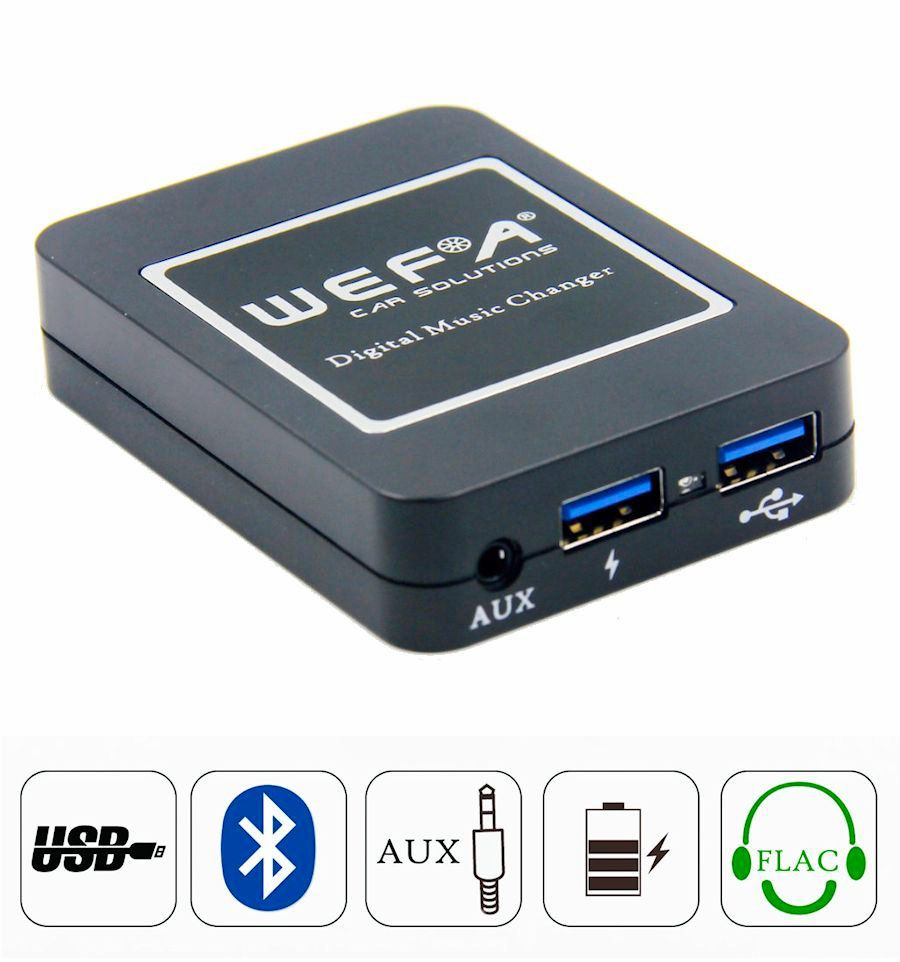

Toyota Big (5+7) USB, AUX, Wireless Bluetooth Streaming Handsfree Interface

• Connect any Android, Apple, Windows and Blackberry Smartphone in Bluetooth 4.0 mode and listen to music in wireless streaming from the original audio system of your car.
• Control playback using the next / previous track, fast forward / reverse, volume +/- of the original car stereo or those on the steering wheel.
• Connects directly to the original car stereo CD Changer port, high quality sound without interference.
• Plug and play - maintains the original appearance of the dashboard, thanks to its small size it can be easily hidden.
• Incorporates Bluetooth hands-free functionality (pauses music upon incoming / receiving a call and automatically resumes playback when finished)
• Answering / Rejecting calls using original keys (Fast forward FF).
• Support A2DP, AVRCP, HFP, SPP, GATT, ATT technologies Bluetooth audio streaming and playback control.

• USB port 1:playback of audio files from USB pendrive controlling their execution from the original keys of the car radio and / or from the steering wheel controls (if supported) supports MP3, WMA, FLAC (8-16-24bit), ACC files , MP4, M4A, WAV, AIF, AIFC.
• USB port 2: provides a power supply for charging your device - 5V-2A (has no other functions, charging cable not supplied).
• Auto pause function when switching to CD / TAPE / FM, etc.
• AUX input with 3.5mm jack for connecting devices without Bluetooth function.
• Supports many apps such as Spotify, Google Play etc. including the control of some features.
• Separate microphone for handsfree included in the kit.
• Interface size: 4.5 x 7.5 x 2.0cm.

Installation:

The interface connects to the CD changer port located on the back of your car stereo. On some cars, this can be reached from the passenger side whilst on others you will need to remove the radio. Instructions how to remove your radio to access the CD changer port can be found through many online resources, car manuals or by a local installer.

Compatibility:

Model	Radio
4-Runner (1998-2002)	All factory fitted Head Units with CD changer preparation Big 5+7 pin :   16408 16810 17809 18201 18301 18302 18401 18402 18403 18404 18406 35407 35802 38408 55838 56816 57412 57414 58402 58405 58406 58408 58801 58804 58806 58807 58808 58812 A 56811 A 56817 A 56818 TF 0410 TF 4300 TF 4301 TM 4000 TM 4410 W 53804 W 53806 W 58300 W 58500 W 58802 WH 8403 WH 8405 WH 8406
Auris (dal 2007)
Avalon (1998-2002)
Avensis (1998-2002)
Camry (1998-2003)
Carina E (1992-1997)
Celica (1998-2003)
Coaster (dal1993)
Corolla (1998-2004)
Corolla (Verso dal 2004)
Cressida (1989-1992)
Echo/ Platz/ Vios (2000-2003)
FJ Cruiser (dal 2006)
Fortuner
Hi-Ace (dal 1989)
Hi-Lux (dal1989)
Highlander (1998-2003)
Kluger (dal 2001)
Land Cruiser (1998-2002)
Lite Ace (dal 1993)
Matrix (1998-2004)
MR 2 (1998-2002)
Optimo (dal 1993)
Paseo (1992-1999)
Pick Up (1986-1995)
Picnic (dal 1990)
Previa (dal 1990)
RAV4 (1994-2003)
Sequoia (1998-2002)
Solara (1998-2003)
Sienna (1998-2003)
SportsVan (1996-2004)
Starlet / Vitz (dal 1993)
Supra (1986-1998)
Tacoma (1998-2004)
Tercel (1987-1998)
Tundra (1998-2002)
Van (1987-1990)
Yaris (dal 1999)
Yaris Verso (1999-2005)

The interface is compatible with any Bluetooth enabled device including Andriod, Blackberry, Windows, iOS mobile phones and tablets.



Technical specifications:

• Power supply voltage: 10.8V ~ 14.6V DC
• Power consumption during operation: 200mA
• Standby consumption: 3 mA
• Operating temperature - 35 ℃ ~ + 85 ℃
• DAC audio converter: 20 bit
• Total harmonic distortion: 0.05%
• Signal to Noise Ratio: 90dB
• Frequency Response: 20Hz-20KHz

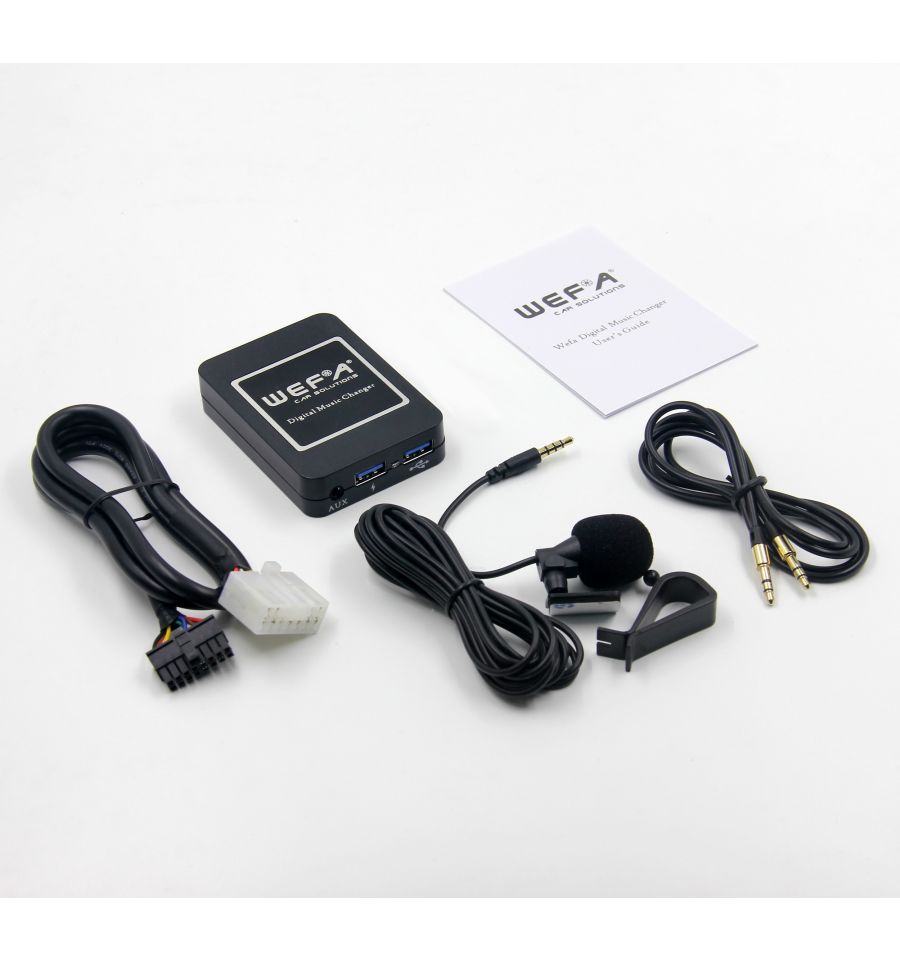

Package includes:

• WEFA USB / AUX / Bluetooth interface

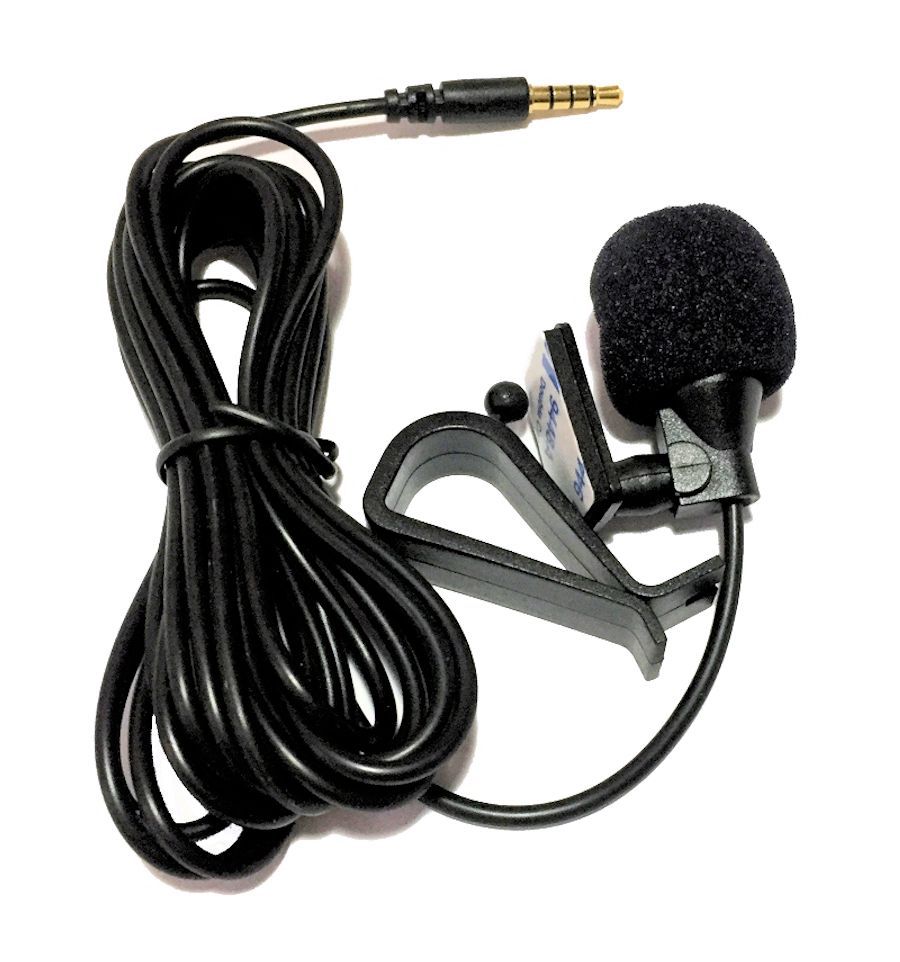

• External microphone (cable length about 300cm)
• Cabling for connection to the CD changer port of the car radio (specific for each model)

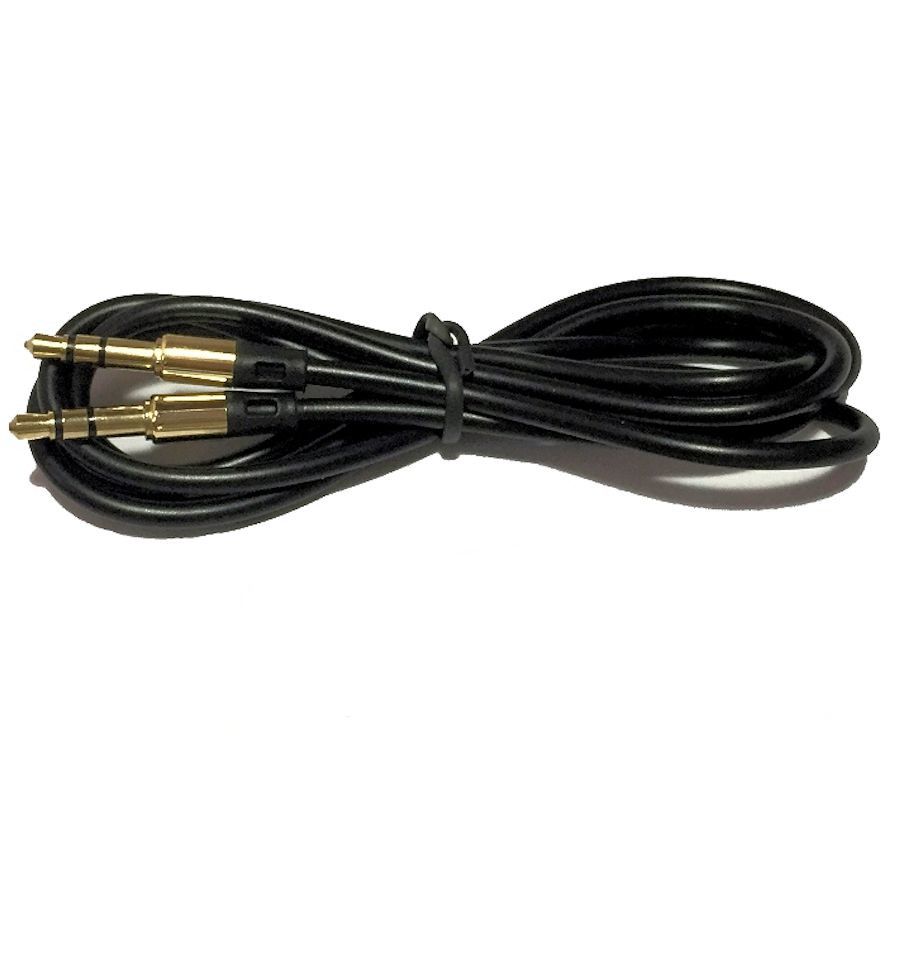

• AUX cable with 3.5mm jack / jack connectors (approx. Length 100cm)
• USB> SD / microSD adapter
• Instructions for use in English, downloadable in the "Download" section

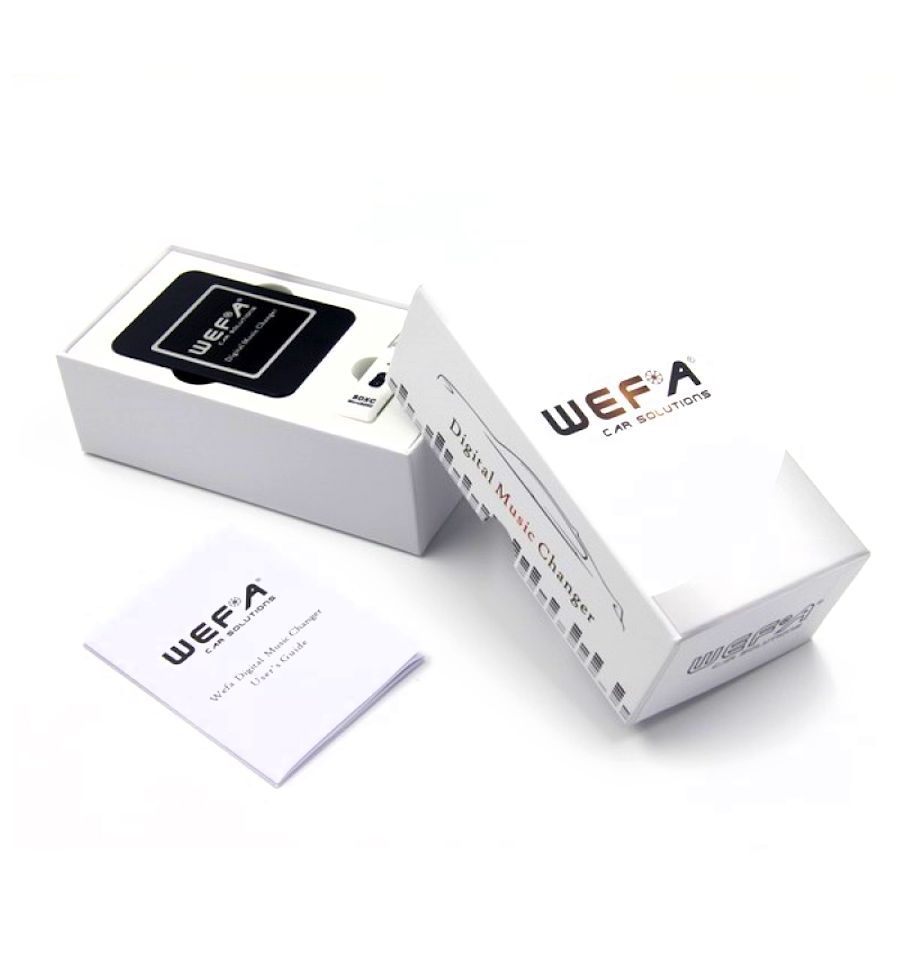

• Interface box
