Video interface for DS7 - DS9 Citroen C5 X IVI Mid - High 12" monitor
Video interface for DS7 - DS9 Citroen C5 X IVI Mid - High 12" monitor
This video interface allows to connect a rear-view camera and a front camera and an additional video-source (e.g. DVD-player, DVB-T tuner, ...) to the factory-infotainment system.
Product features:
- Video-insertion
- Rear-view camera video-input
- Front camera input
- Video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner, .)
- Automatic switching to rear-view camera input on engagement of reverse gear
- Automatic switching to front camera for 10secs after disengaging the reverse gear
- Activatable parking guide lines for rear-view camera (not available for all vehicles)
- Video-in-motion (ONLY for connected video-sources)
Compatibility:
| Modello | Radio / Navigazione |

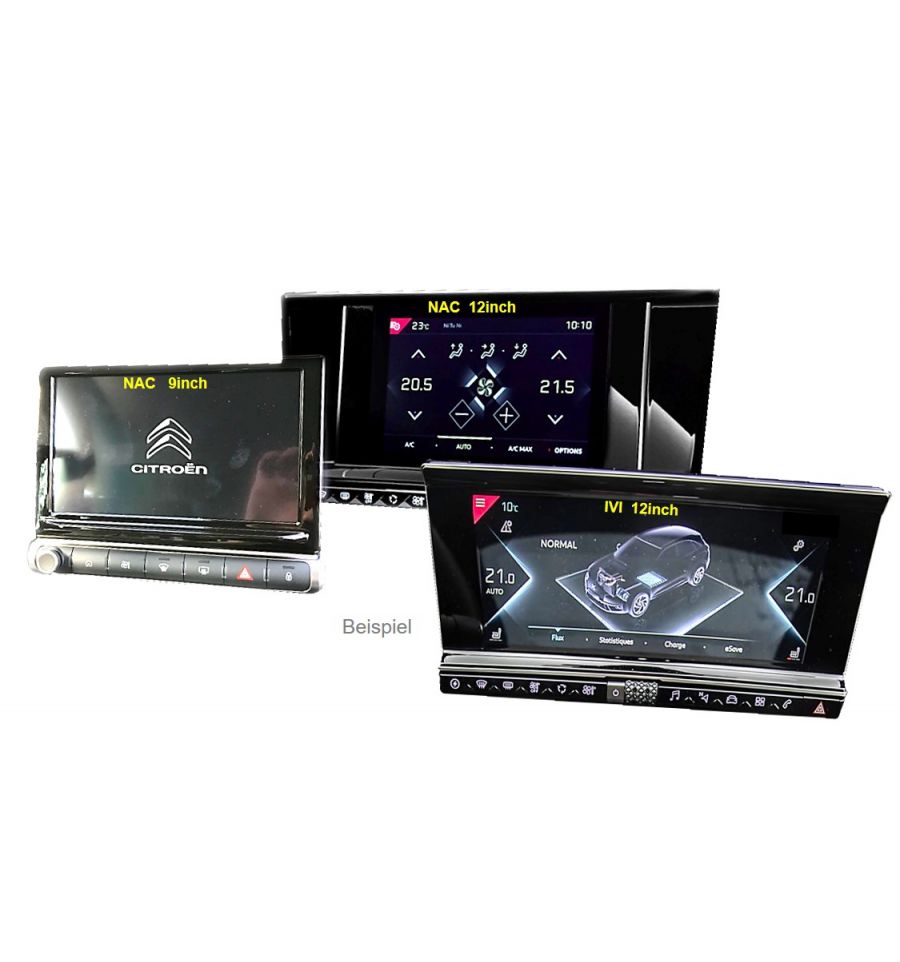

| C5 X 02/2022- | IVI Mid - High con monitor originale da 12" Harman |
| DS7 Crossback 2022- | |
| DS9 2022- |
Limitations:
| Video only | The interface inserts ONLY video signals into the infotainment. For inserting Audio signals either the possibly existing factory audio-AUX-input or a FM-modulator can be used. |
| Factory rear-view camera | Automatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required. |
| PDC and guidelines | If the video interface does not receive the required information from the vehicle CAN-bus, neither moving guide-lines nor PDC will be supported. |
| Original bluetooth | In some configurations the original bluetooth connection could be temporarily interrupted when the rear camera is activated. |
Specifications:
| BATT/ACC range | 7V – 25V |
| Stand.by power drain | <10mA |
| Power | 0.7A@12V |
| Video input | 0.7V˜1V |
| Video input formats | NTSC |
| Temperature range | -40°C to +85°C |
| Dimensions video-box | 154 x 22 x 92 mm (W x H x D) |

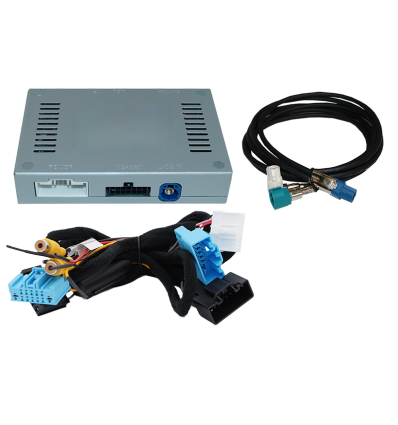

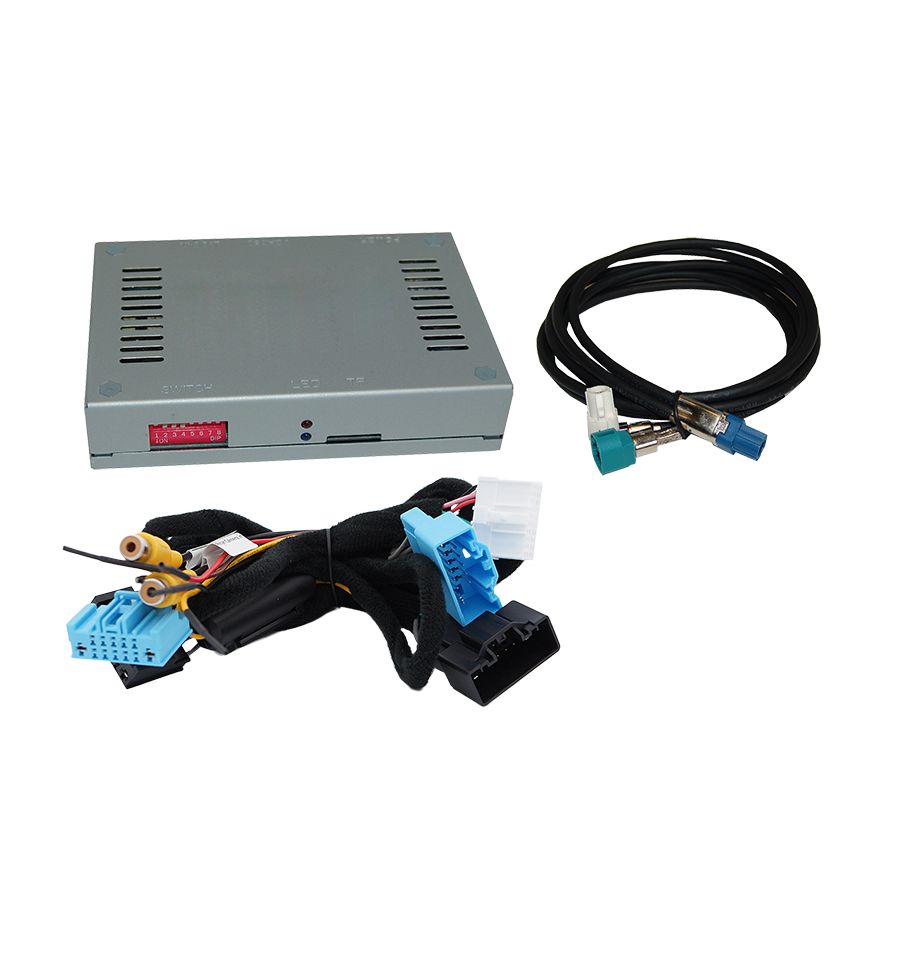

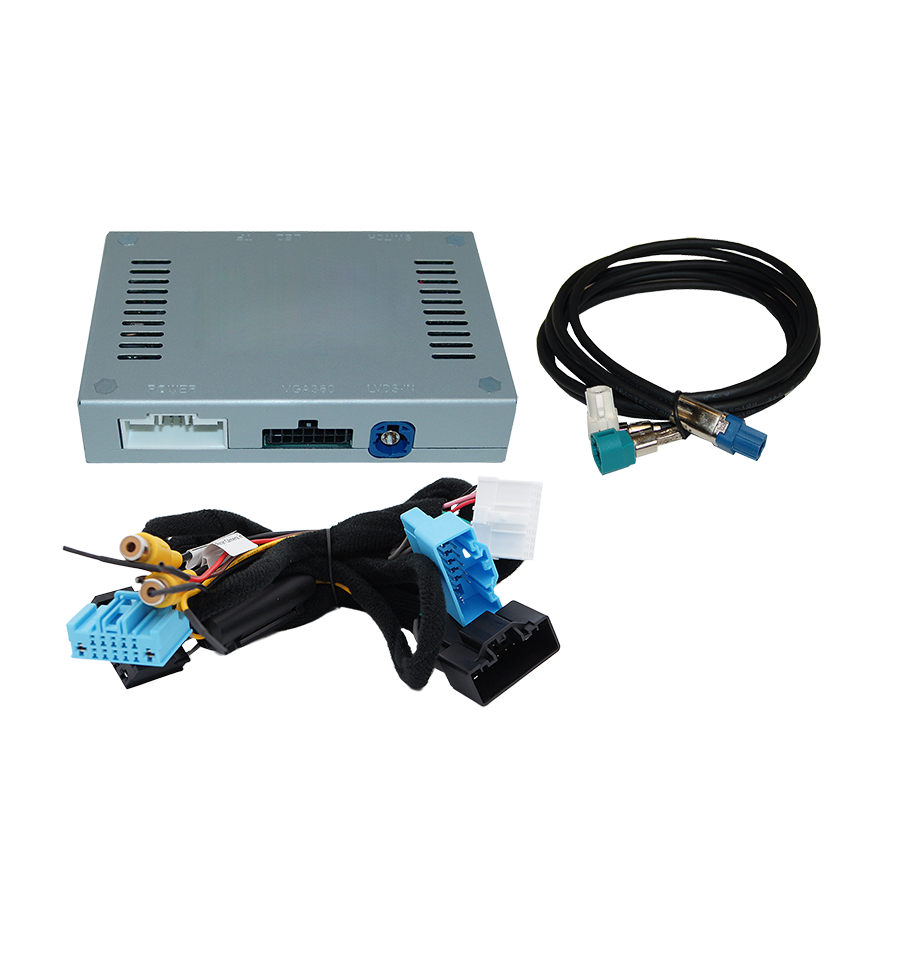

Connections:
- Video-insertion: 4-pin HSD
- Power and CAN-bus: Plug & play
- Rear-view camera-input: RCA connector
- Front-view camera-input/video input: RCA connector
Remember that in some states it is illegal to use the video in motion while driving!
The manufacturer of this item, and the administrator of this site will not be responsible for any damage to persons or property caused by improper use or in terms contrary to the laws.
| Category | Rear View Camera Interfaces, Video integration |
